AJK Offroad Hydraulic / Brake Line Clamp Assembly with Base Clamp
Shipping calculated at checkout
In stock

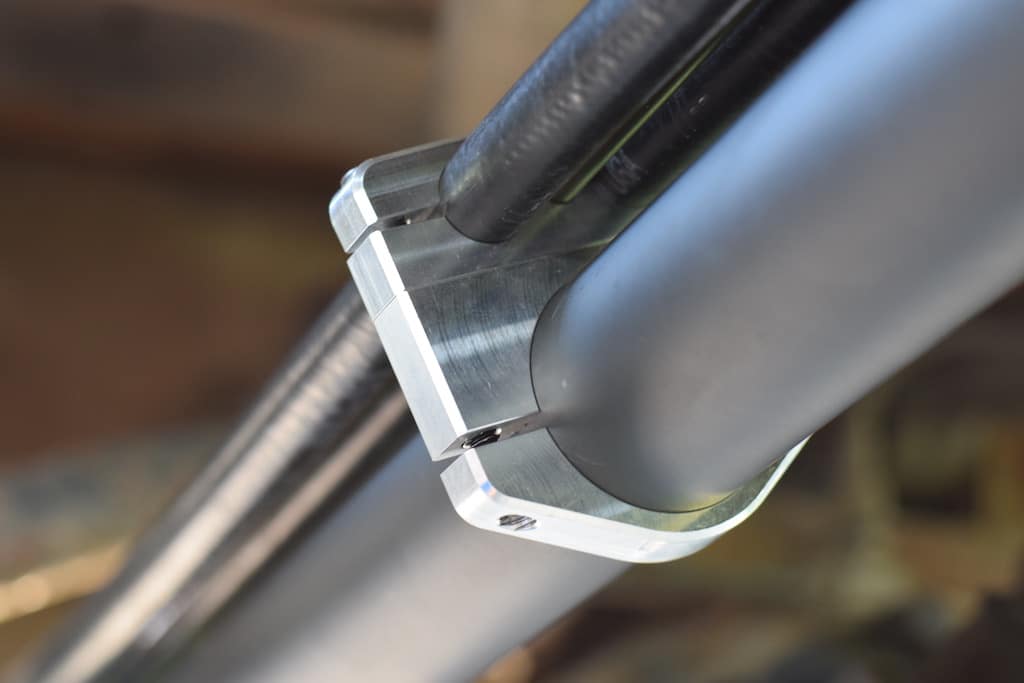

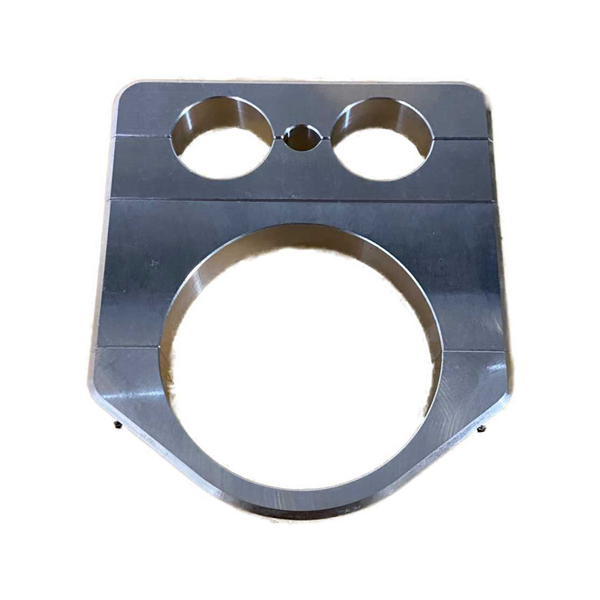

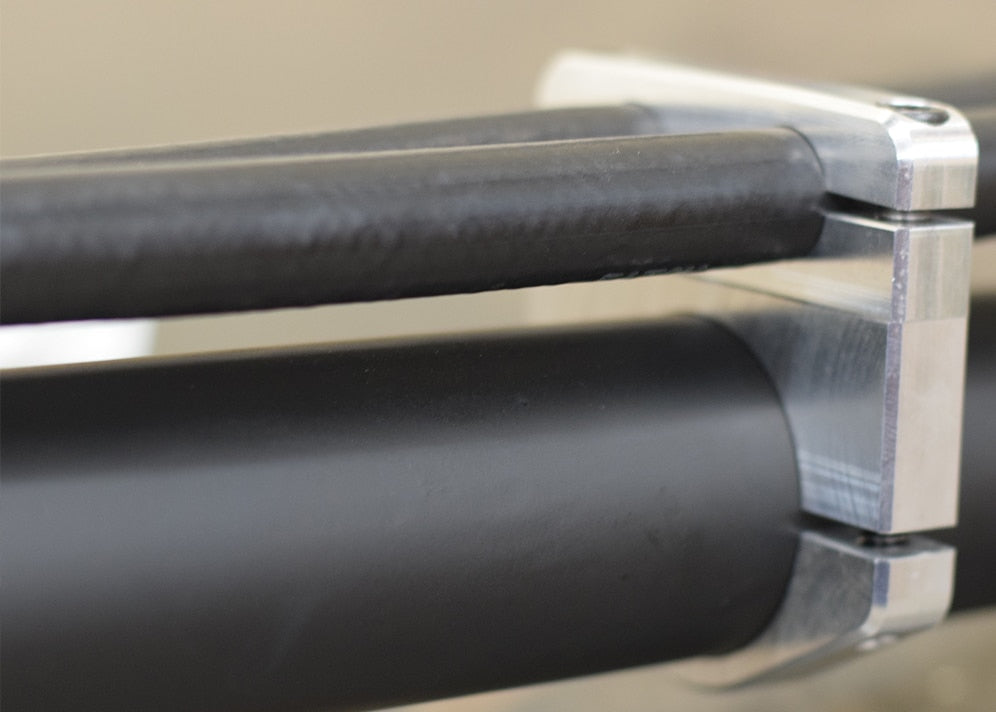

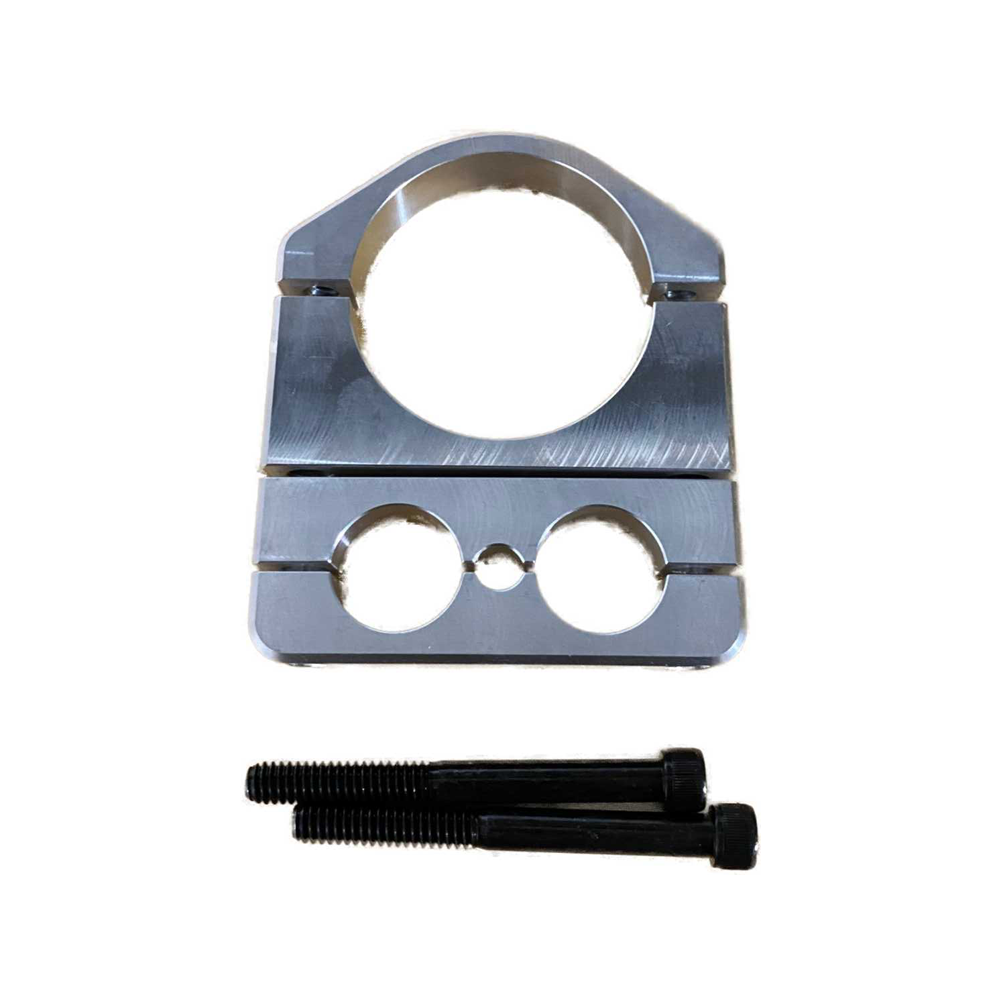

The AJK Offroad hydraulic and brake line clamp assembly combines AJK's line clamp with its base clamp to run lines down four-link bars or any tubing.
Choose 1.50, 1.75, 1.875 or 2.00-inch tubing and a small top (lines up to 0.625 inch), large top (up to 0.800 inch) or blank top to make your own custom clamp. Both pieces are 6061 aluminum, so it is a complete bolt-on clamp with no zip ties.
Key Features
- Complete assembly

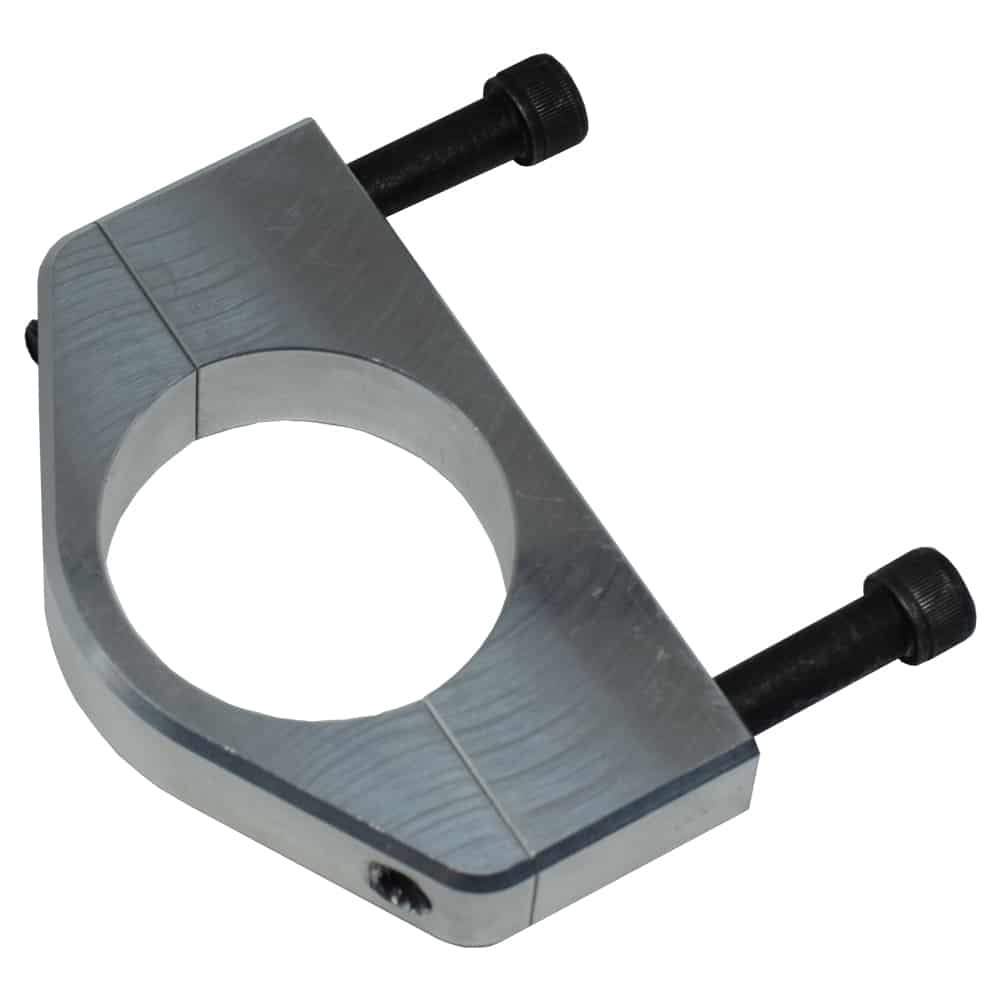

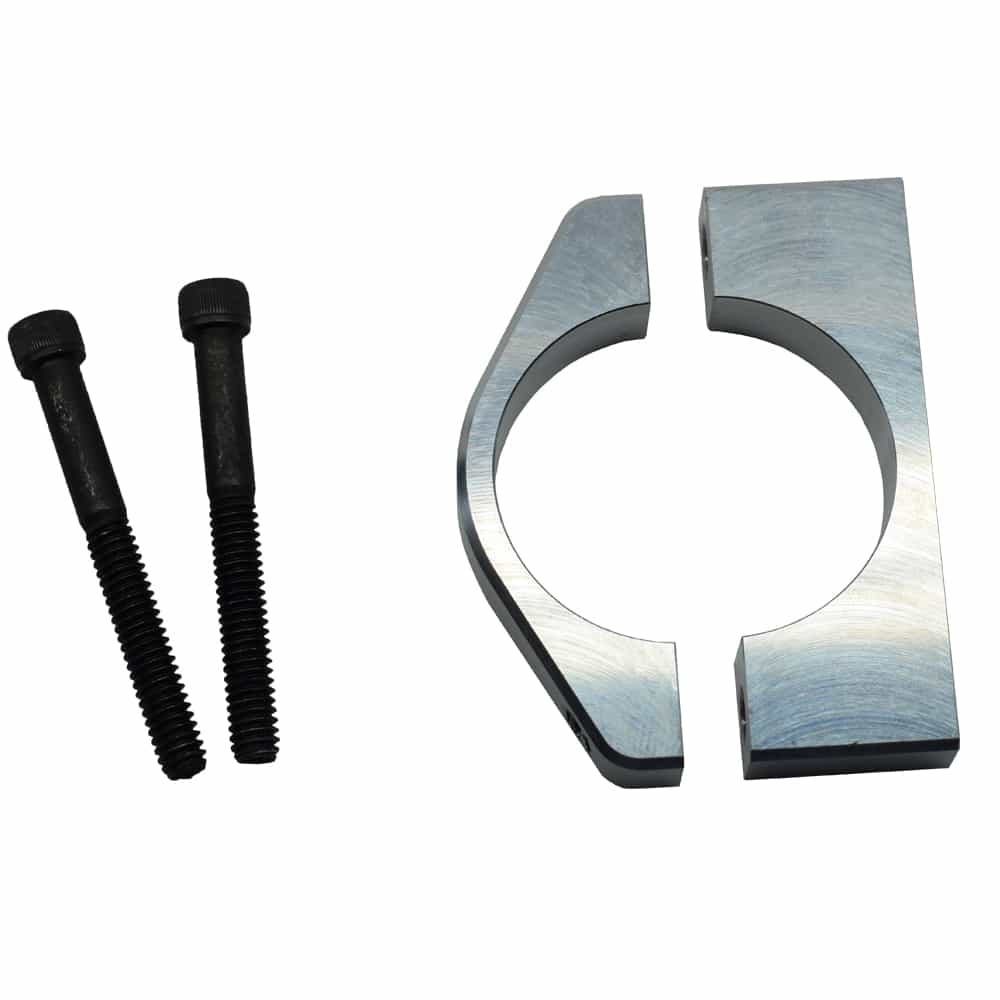

- Base clamp plus line clamp
- 1.50 to 2.00-inch tubing
- Small, large or blank top
- 6061 aluminum
- No more zip ties
Built To Solve: Lines Hanging Off Link Bars
- Brake lines twisted off the rig
- Zip ties that snap
- Lines rubbing on suspension
Best For: Four-Link and Hydraulic Steering Builds
- Hydraulic assist steering
- Four-link bars
- Roll cage line routing
Specifications
- Tube sizes: 1.50, 1.75, 1.875, 2.00 inch

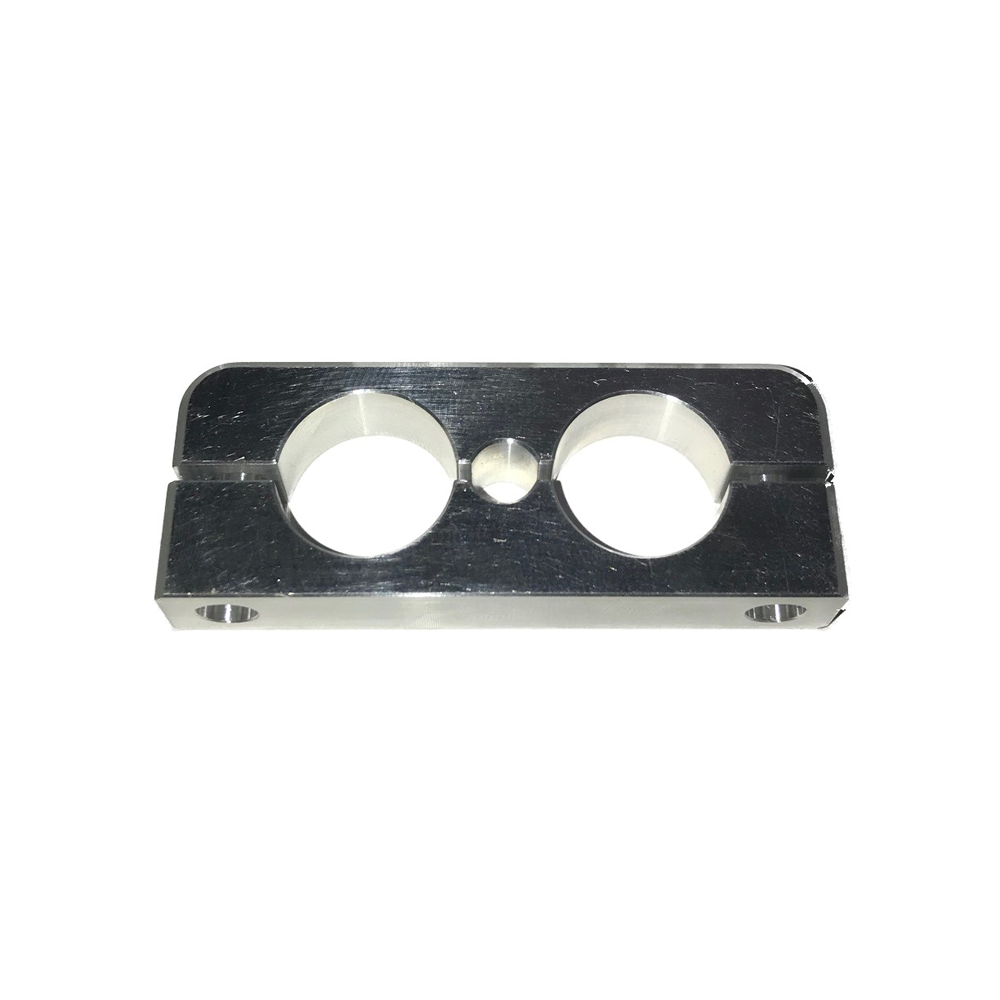

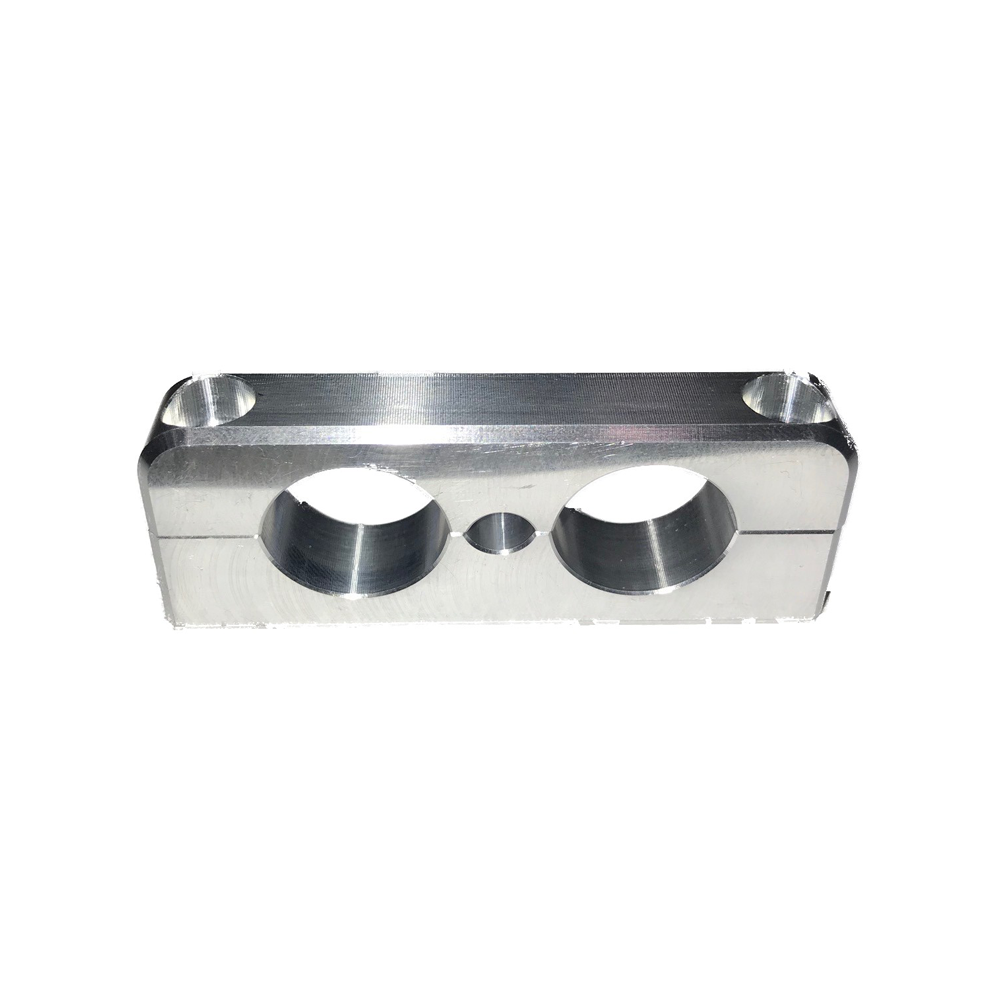

- Tops: small (0.625-inch line), large (0.800-inch line), blank
- Material: 6061 aluminum
- Manufacturer Part Number: 200130-200203
Fitment
Universal fit; check the sizes and specifications listed before ordering.
FAQ
What comes in the AJK line clamp assembly?
A base clamp and a line clamp top.
What tube sizes fit?
1.50, 1.75, 1.875 or 2.00 inches.
What top options are offered?
Small, large or blank.
What line sizes fit?
Small to 0.625 inch, large to 0.800 inch.

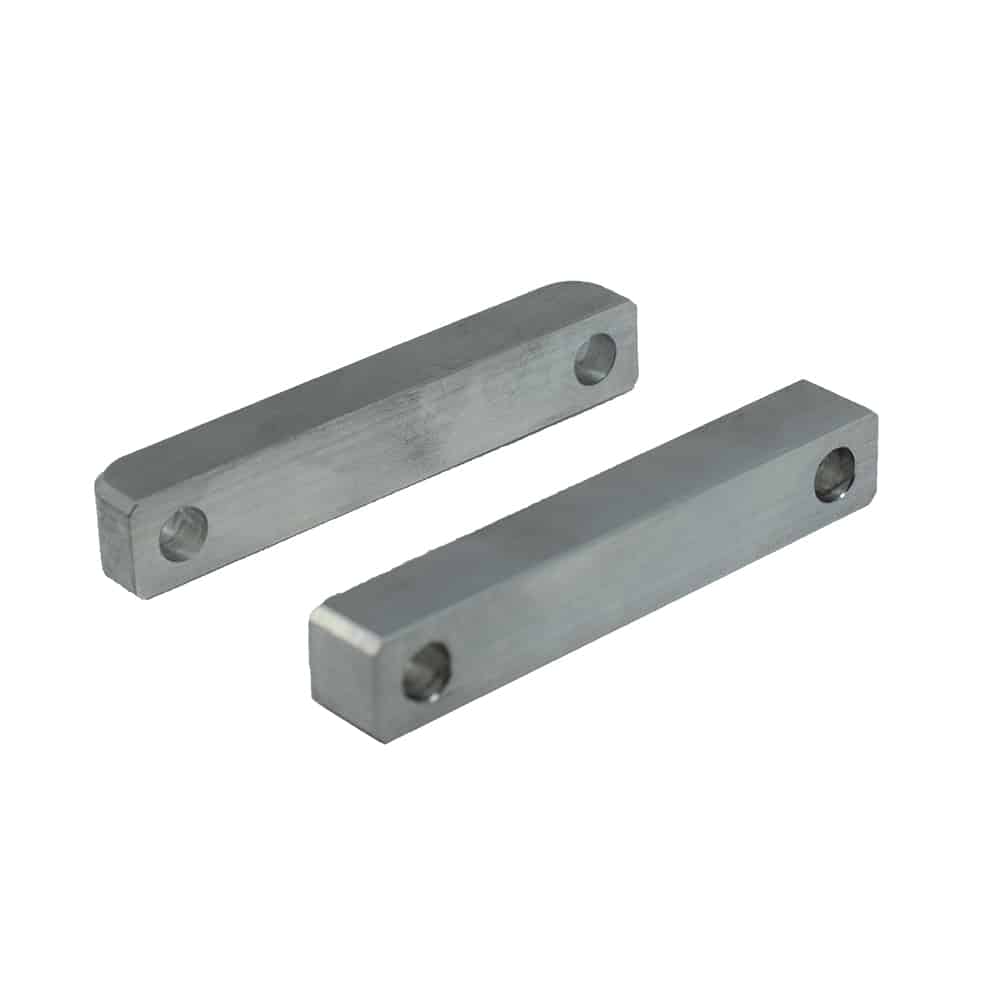

What is the blank for?
Making your own custom clamp.
What is it made of?
6061 aluminum.
Why AJK Offroad
AJK Offroad designs and builds its off-road parts from CNC machined 6061-T6 billet aluminum and laser-cut steel, and stocks the hardware and electrical parts its own builds use. The line covers clamps, mounts, recovery, towing and electrical parts for side-by-sides, UTVs, tube buggies and Jeeps, and Dunes 2 Dezert SXS carries the full AJK Offroad range in one place.
Route Your Lines Clean
Pick your tube size and top.
