Polaris RZR XP 1000 RS1 Mid-Travel Radius Rods | HCR Racing

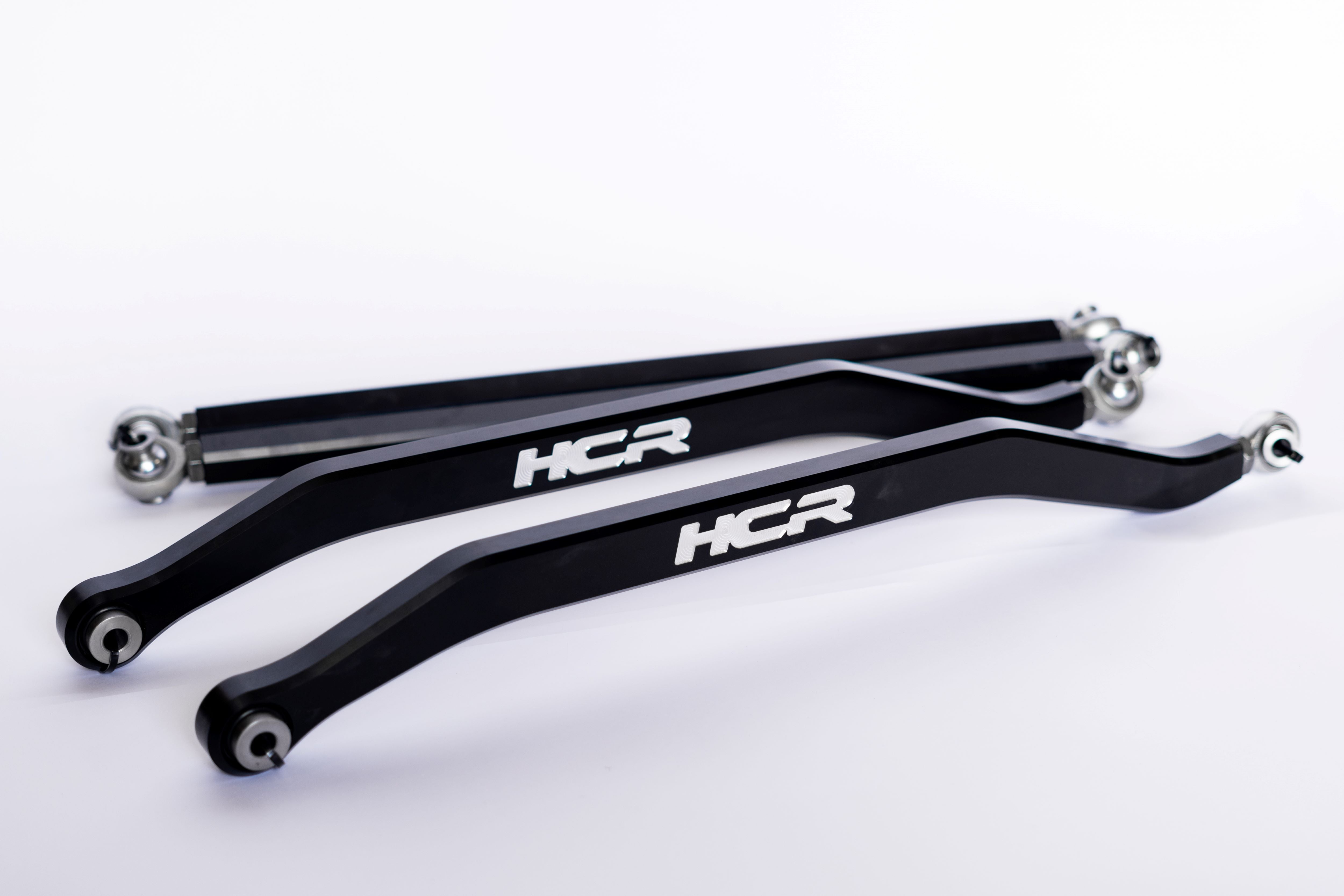

Polaris RZR XP 1000 and RS1 machines using supported HCR mid-travel suspension can add high-clearance aluminum rear links with the correct 10mm or 12mm hub hardware. The black-anodized set includes upper and lower links, six right-hand heims, O-rings and application-specific misalignment spacers. Selecting the correct hub-hardware size is required before ordering.

Key Features

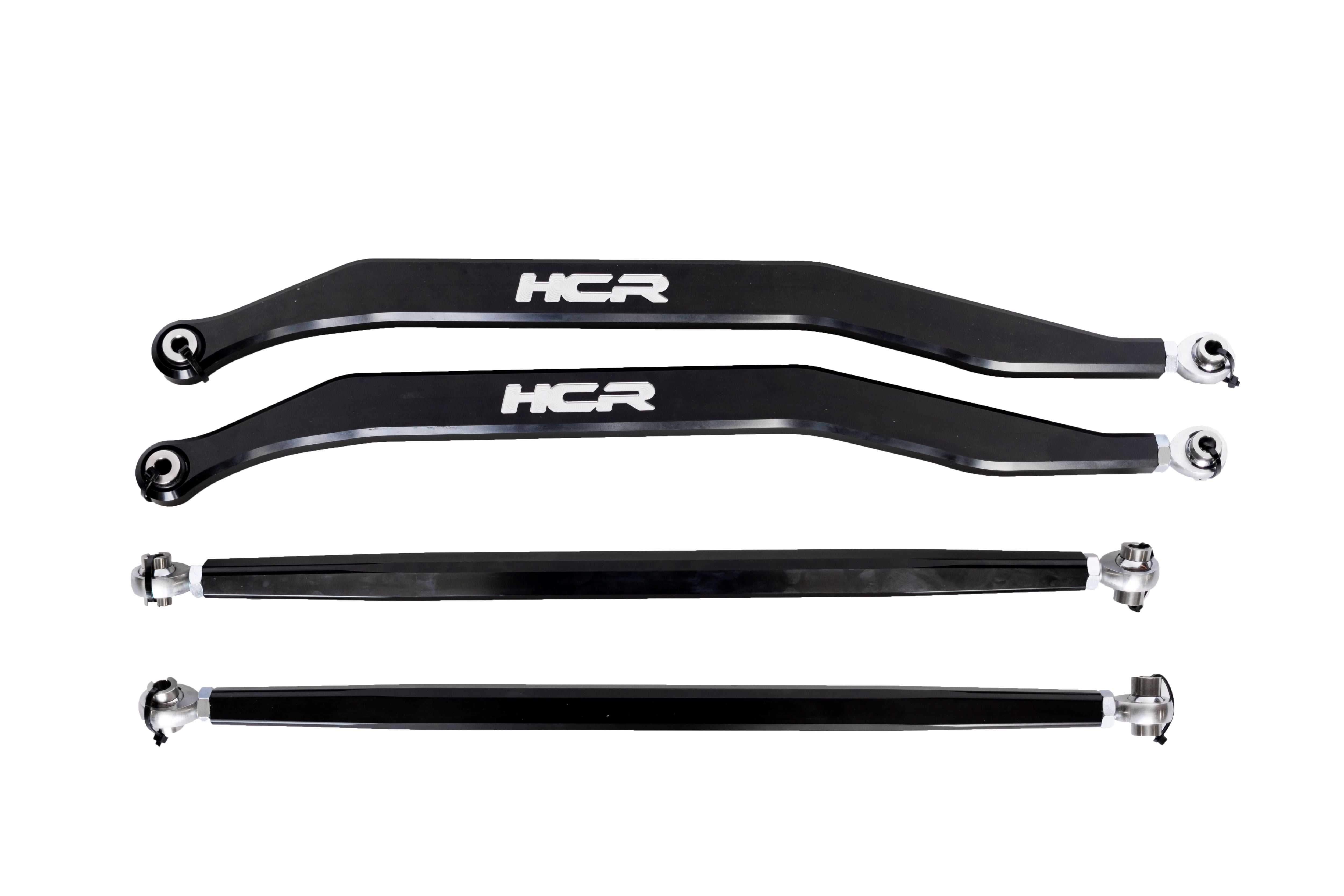

• Two lower high-clearance link bars
• Two upper link bars

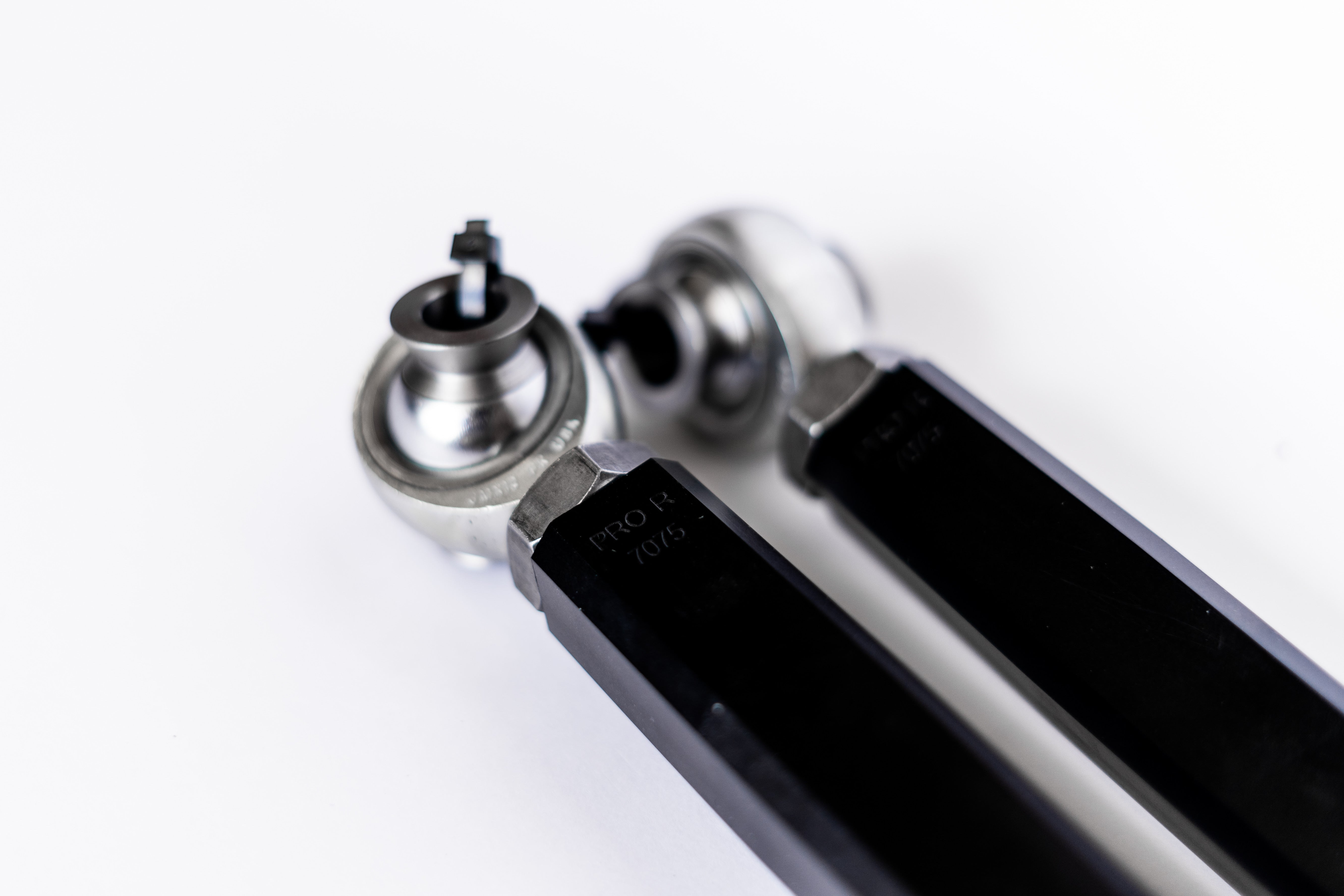

• Six 5/8-18 right-hand heims
• Four O-rings included
• Eight back-plate and eight hub-side misalignment spacers
• Black anodized finish
• Available for 10mm or 12mm hub hardware

Built To Solve: Limited Clearance On HCR RZR Mid-Travel Rear Links

• Rear-link clearance needs on compatible mid-travel builds
• Incomplete link hardware and spacer combinations
• Risk of ordering the wrong hub-hardware size

Best For: RZR XP 1000 And RS1 HCR Mid-Travel Builds

• XP 1000 machines using the supported HCR mid-travel kit
• RS1 machines using the supported HCR MTS kit
• Owners who can confirm 10mm or 12mm hub hardware before ordering

Specifications

• Material: Aluminum
• Finish: Black anodized
• Lower links: 2
• Upper links: 2
• Heims: Six 5/8-18 right-hand
• O-rings: 4
• Misalignment spacers: 16 total
• Hub-hardware choices: 10mm or 12mm
• Warranty note: Removing joints for refinishing can void warranty

Fitment

• Polaris RZR XP 1000 with supported HCR mid-travel kit
• Polaris RZR RS1 with supported HCR MTS kit

Confirm whether the hub uses 10mm or 12mm hardware before ordering. Fitment is not guaranteed on unlisted applications.

FAQ

What is included with these RZR rear links?

The set includes two lower links, two upper links, six heims, four O-rings and 16 misalignment spacers.

Why must I choose 10mm or 12mm?

The hub-side hardware differs by application, so the correct size must be confirmed before ordering.

What finish is supplied?

The radius rods arrive with a black anodized finish.

Which suspension kits are listed?

HCR lists its RZR XP 1000 mid-travel kit and Polaris RS1 MTS kit.

Can the joints be removed for powder coating?

HCR warns that damage caused by removing the joints or by powder coating can void warranty coverage.

Are these universal RZR radius rods?

No. They are HCR-spec rear links for the listed mid-travel systems.

Why HCR Racing

HCR Racing matches its rear links, joints and spacers to specific suspension systems. These aluminum links preserve the intended HCR mid-travel configuration while adding high-clearance geometry.

Complete Your HCR RZR Mid-Travel Rear Suspension

Confirm the suspension kit and measure the hub hardware before choosing the 10mm or 12mm HCR radius-rod option.
