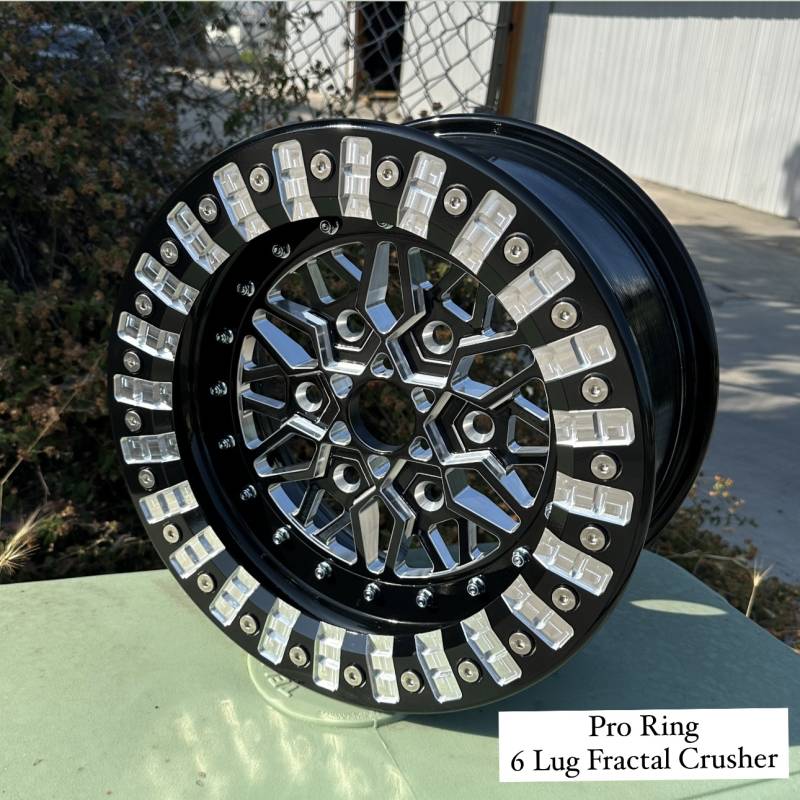

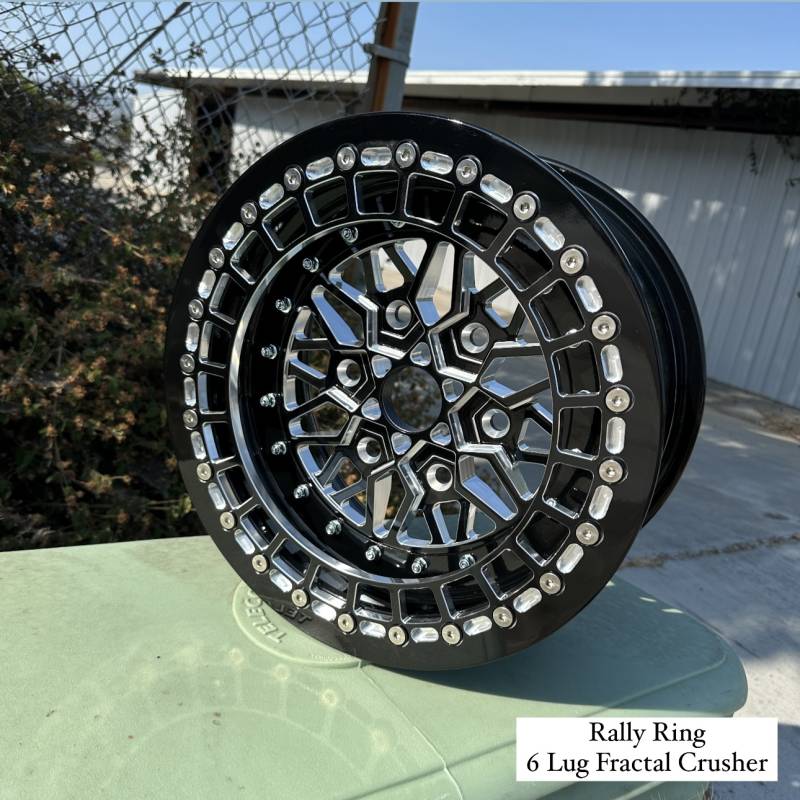

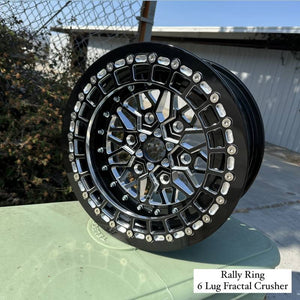

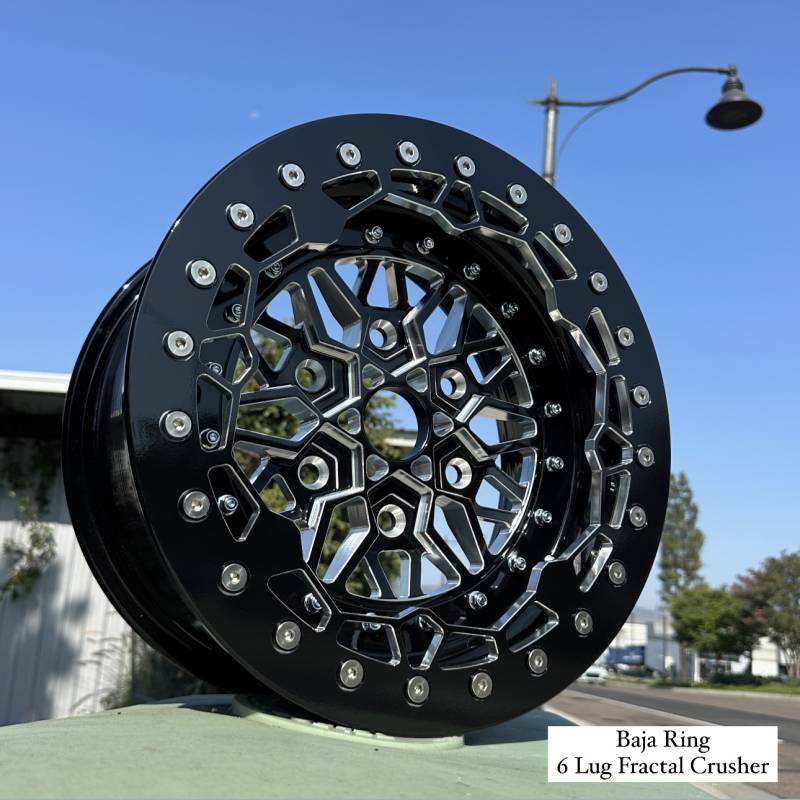

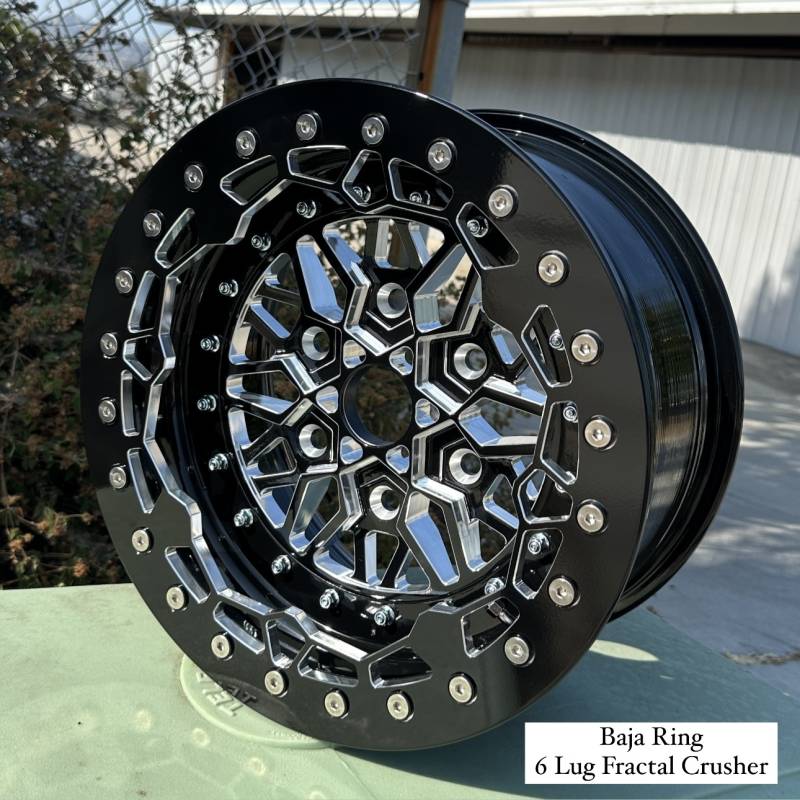

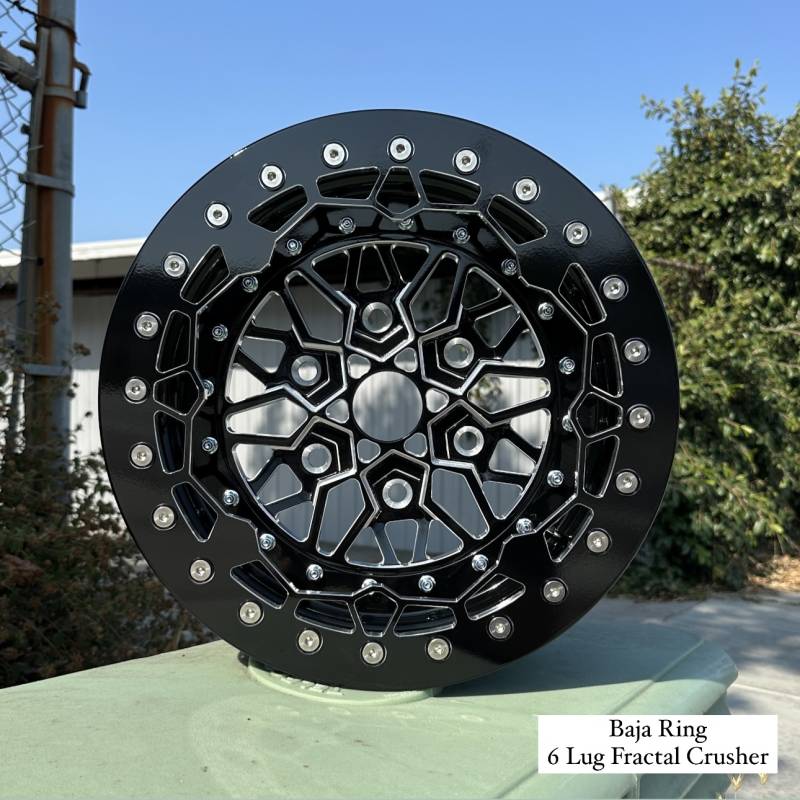

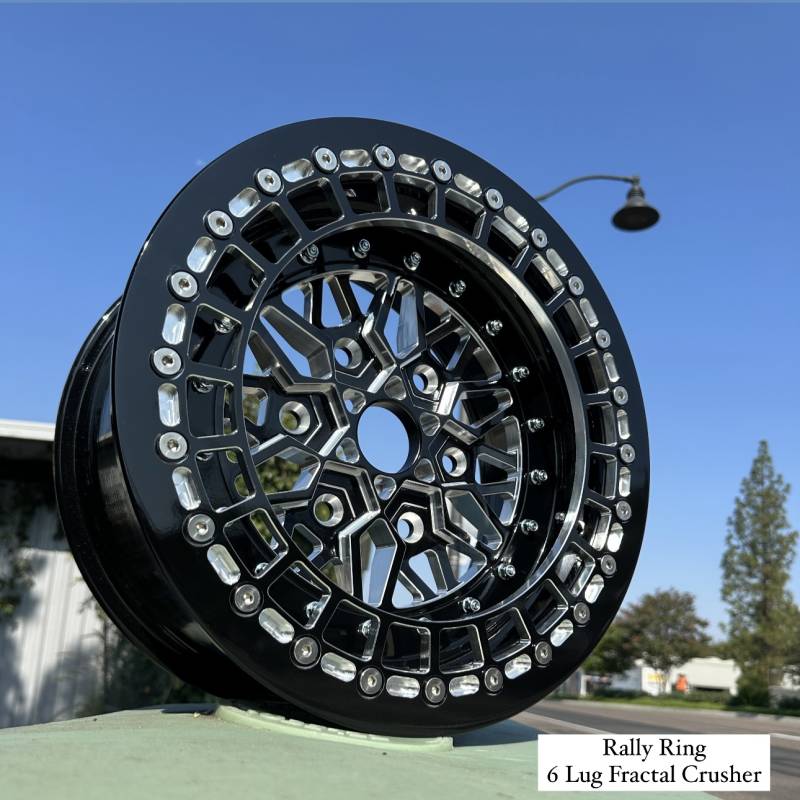

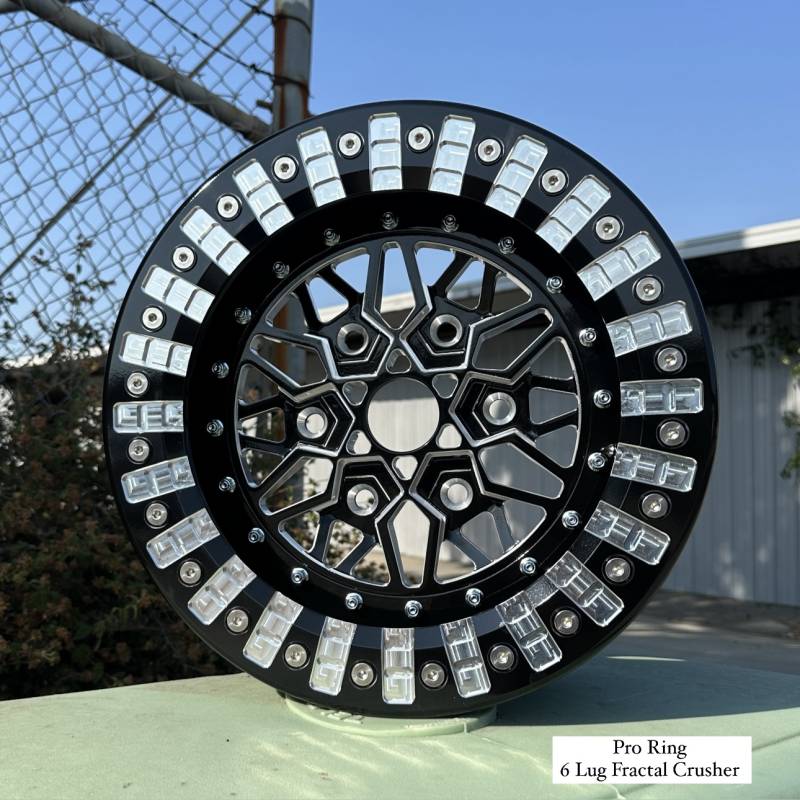

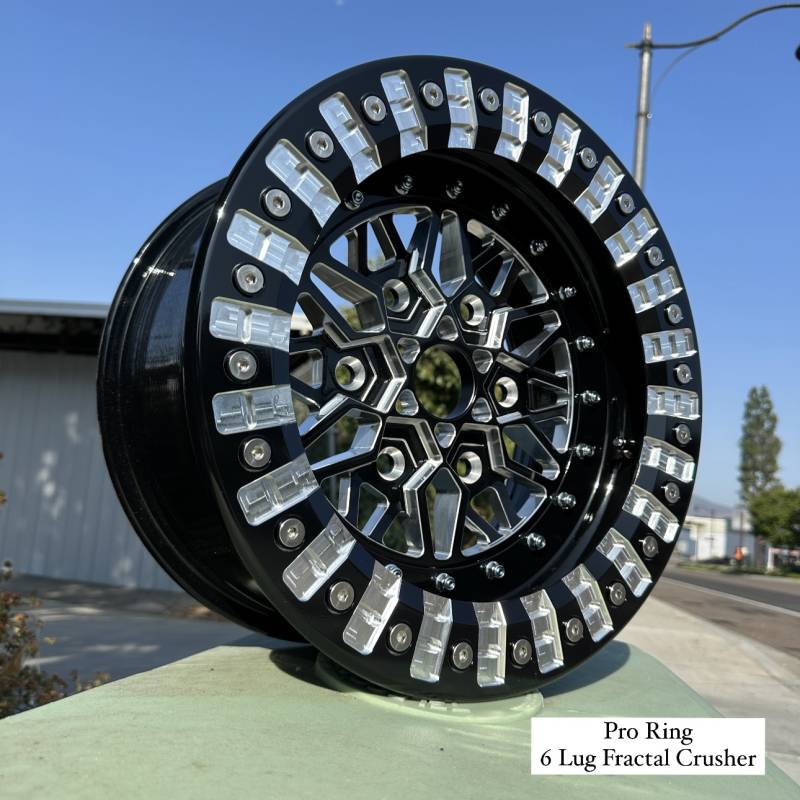

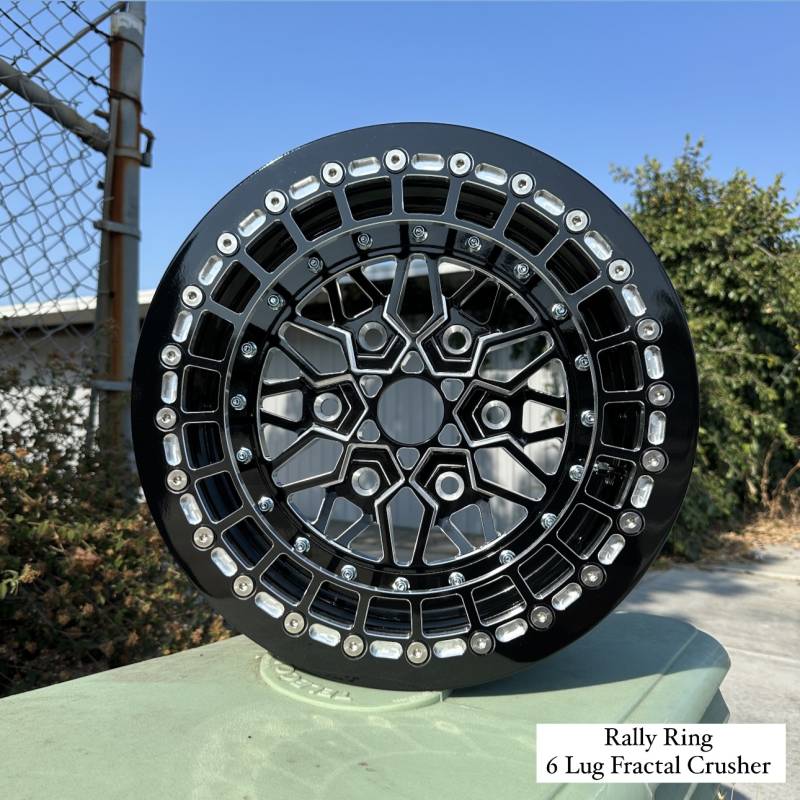

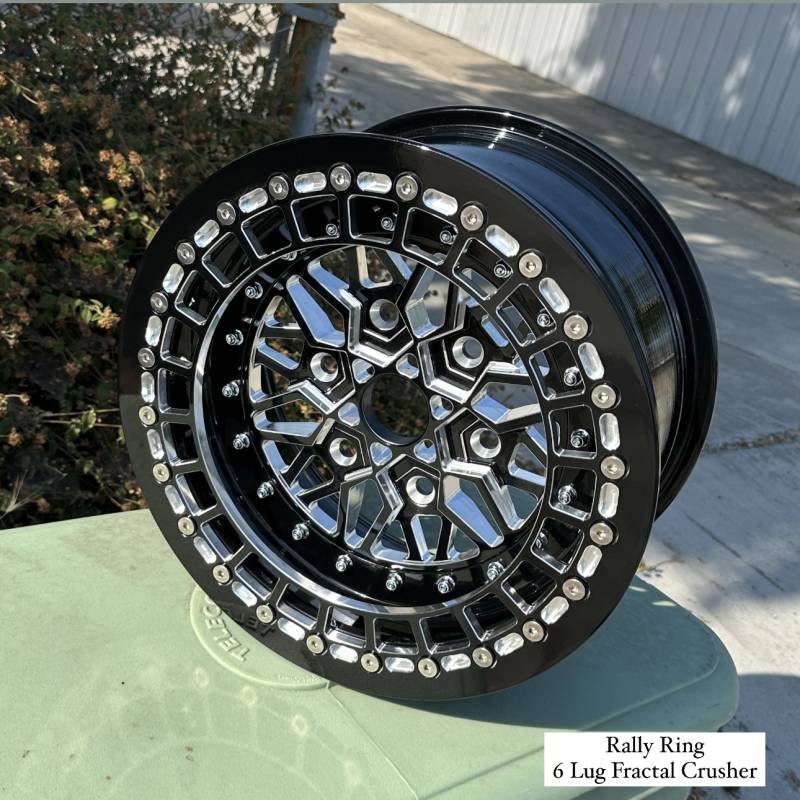

Fractal Crusher Billet Beadlock Wheel Maverick R 6x5.5 | Alba Racing

The Alba Racing Fractal Crusher Billet Beadlock Wheel is built for UTV owners who are tired of cracked cast wheels, lost beads, and flats after hard hits. Designed for Can-Am Maverick R (6x5.5), this wheel combines a CNC-machined 1.25-inch 6061-T6 billet center with a true 3-piece serviceable beadlock construction for serious strength, traction, and trail-side confidence.

Unlike cast wheels that can crack or fail on impacts, the Fractal Crusher is built from heat-treated 6061-T6 aluminum to absorb abuse and keep you moving. The true beadlock ring mechanically clamps the tire, allowing you to run lower tire pressure for better grip in dunes, rocks, desert, and technical terrain without constantly worrying about rolling a bead.

Each wheel features rolled inner and outer lips for added durability, 8mm Grade 8 beadlock hardware, and a chrome valve stem. Sold per wheel and made in the USA.

Key Features

• Fractal face design with bold billet styling
• True 3-piece beadlock construction
• Fully serviceable design lets you replace damaged sections
• 1.25-inch CNC-machined 6061-T6 billet center
• Heat-treated 6061-T6 aluminum construction
• True beadlock ring for low-pressure traction
• Rolled inner and outer lips for added strength
• Includes 8mm Grade 8 beadlock hardware and chrome valve stem
• Made in the USA
• Sold per wheel

Built To Solve

• Cracked or split cast wheels
• Tire bead loss when aired down
• Bent rims that no longer hold air
• Wheels that require full replacement after damage
• Flat spots, wobble, and impact-related wheel failure

Best For

• Aggressive UTV riders
• Desert and dune riding
• Rock crawling and technical trails
• Short-course and off-road racing
• Riders who want a rebuildable beadlock wheel

Specifications

• Bolt Pattern: 6x5.5
• Construction: True 3-piece serviceable beadlock
• Center: 1.25-inch CNC-machined 6061-T6 billet
• Material: Heat-treated 6061-T6 aluminum
• Hardware: 8mm Grade 8 beadlock bolts
• Valve Stem: Chrome valve stem included
• Beadlock Ring Torque: 14-16 ft-lbs
• Billet Center Torque: 8-10 ft-lbs
• Sold: Per wheel
• Origin: Made in USA

Fitment

Designed for the Can-Am Maverick R. Always confirm your machine's year, model, hub pattern, offset, and clearance before ordering. Fitment is not guaranteed on unlisted or unverified applications.

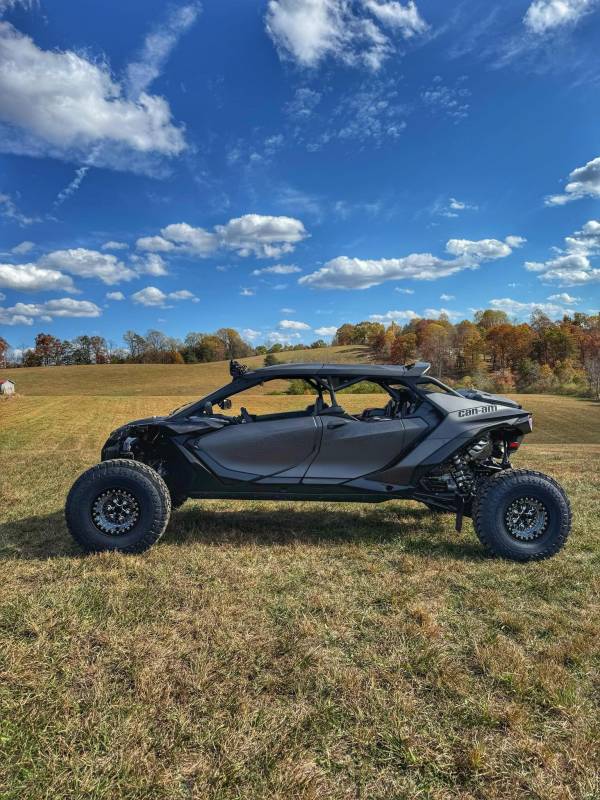

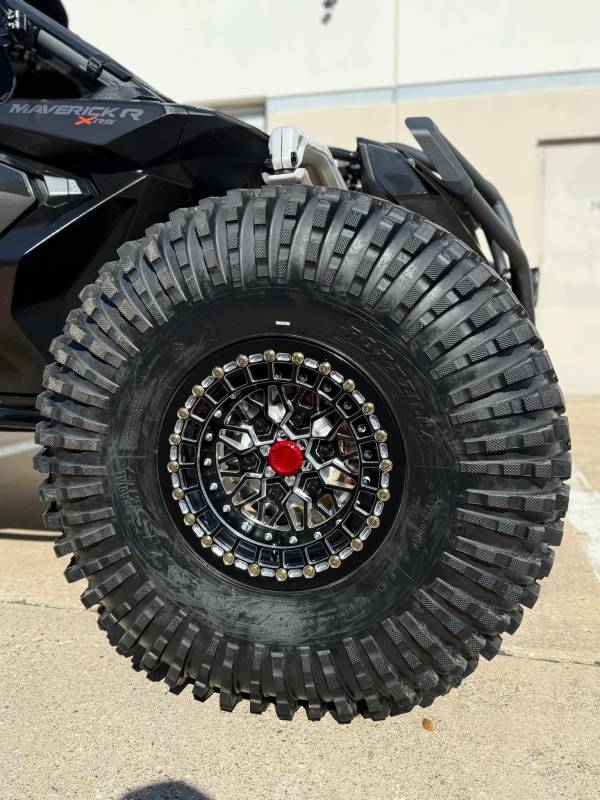

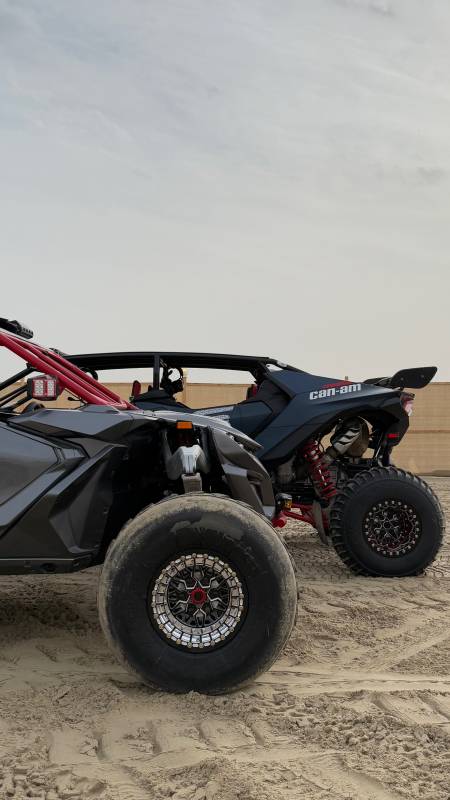

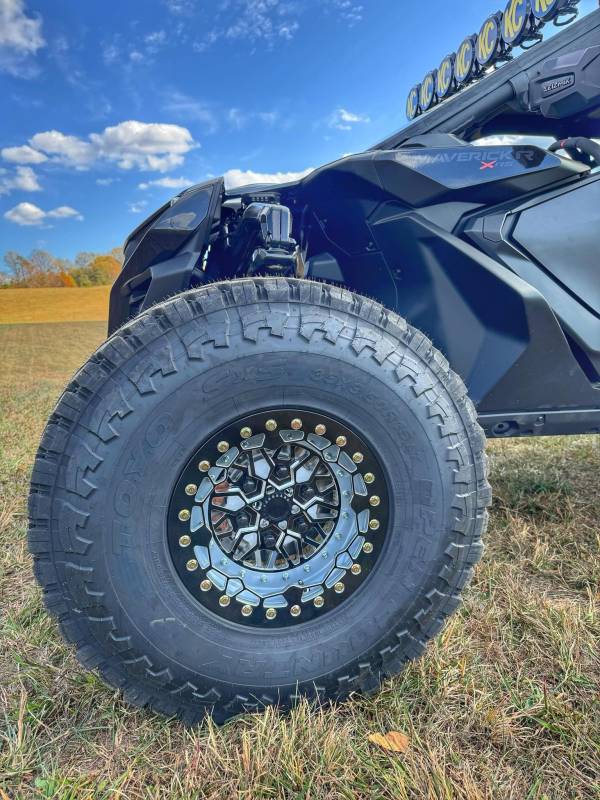

• Can-Am Maverick R
• Can-Am Maverick R Max

Optional billet center caps available.

FAQ

Will these crack like cast wheels?

The Fractal Crusher is made from heat-treated billet 6061-T6 aluminum, which is designed to handle hard impacts better than cast wheels.

Can I run low tire pressure?

Yes. The true beadlock ring clamps the tire bead, helping you air down for traction without rolling the bead off the wheel.

Is the wheel repairable?

Yes. The true 3-piece design is serviceable, so damaged sections can be replaced instead of replacing the entire wheel.

How are these installed?

Install like a standard beadlock wheel. Torque the beadlock ring bolts to 14-16 ft-lbs and the billet center to 8-10 ft-lbs in a star pattern.

Why choose the Fractal Crusher?

The Fractal face gives this Crusher wheel a more aggressive billet look while keeping the same USA-made strength, serviceability, and beadlock performance Alba Racing is known for.

Why Alba Racing

Alba Racing has built billet UTV and powersports parts in the USA for decades, trusted by racers for components that hold up to abuse. Their Crusher wheels are CNC-machined, heat-treated, and fully serviceable, engineered to survive the impacts that destroy cast wheels.

Order Yours

Upgrade your UTV with Alba Racing Fractal Crusher Billet Beadlock Wheels from Dunes 2 Dezert SXS and ride harder with a stronger, serviceable wheel built for real off-road abuse.
