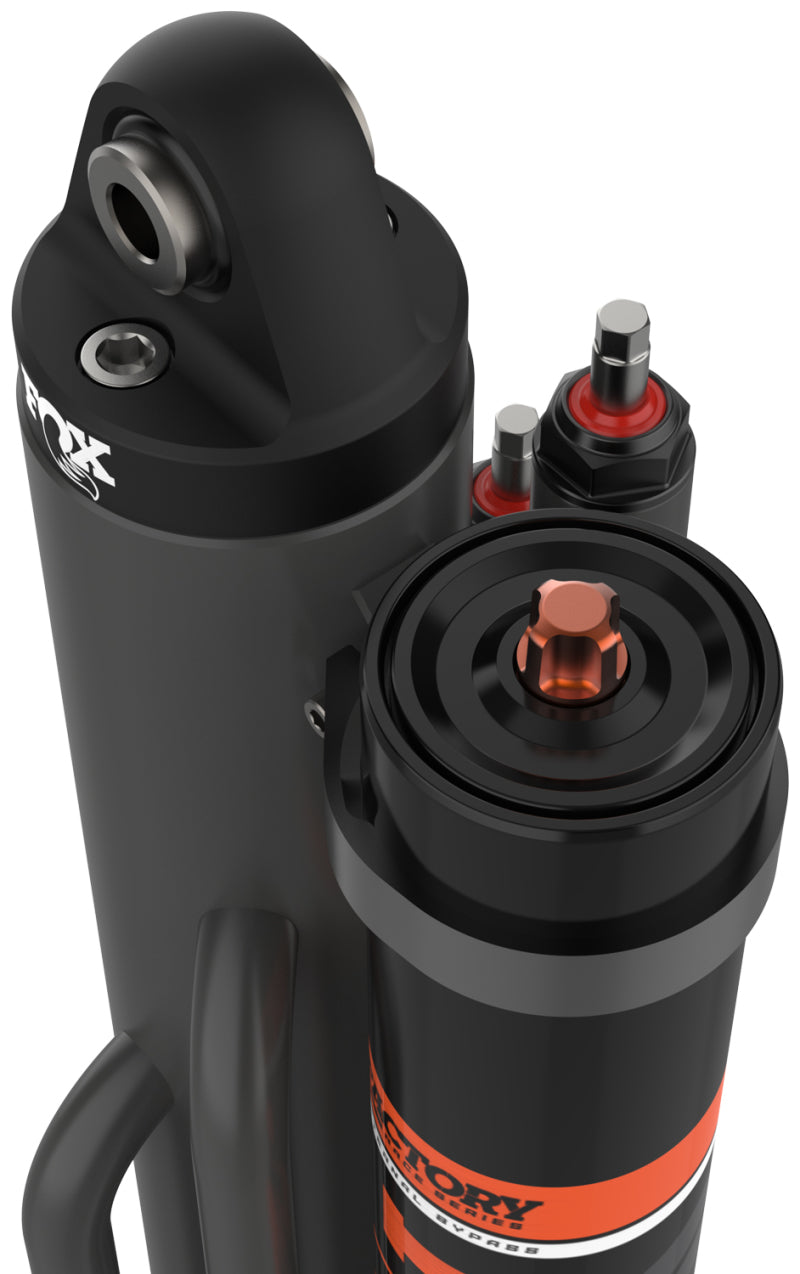

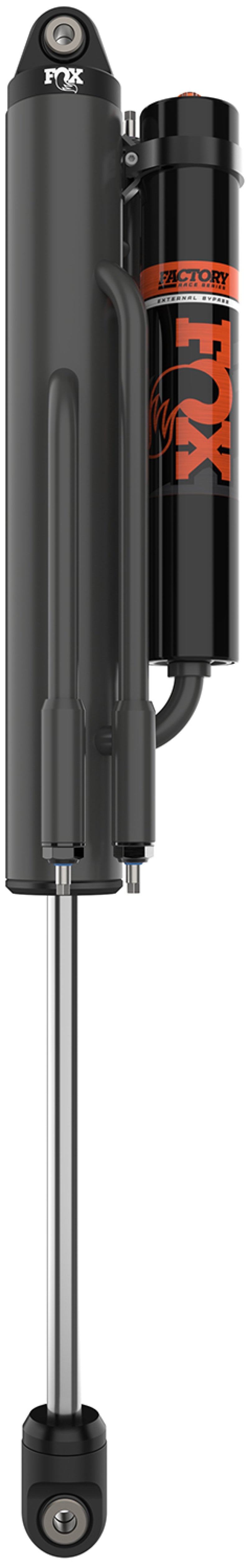

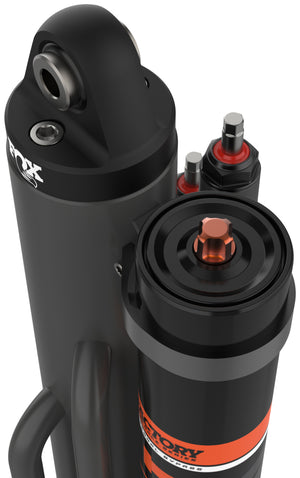

FOX Race 3.0 x 16 External Bypass Remote Shock – Right

The FOX Race 3.0 x 16 External Bypass Remote Shock (Right) is engineered to deliver race-proven suspension performance for the most demanding off-road environments. Built through extensive research and development, FOX shocks are designed to withstand extreme punishment while providing the consistent damping and control required for high-performance vehicles.

Whether you're charging across desert terrain, tackling rock crawls, or navigating technical trails, this shock provides precise suspension tuning and superior damping performance. FOX’s patented internal bypass technology delivers a progressive damping curve that provides both smooth ride comfort and exceptional bottom-out resistance.

The advanced FOX Ride Zone system, combined with Dual Speed Compression (DSC) adjustment, allows riders to fine-tune suspension performance based on terrain, vehicle weight, and driving speed—giving you total control in extreme conditions.

Key Features

• FOX Race Series 3.0 x 16 external bypass shock
• Right-side application
• Patented internal bypass technology
• Dual Speed Compression (DSC) adjustability
• Remote reservoir with cactus cooler design
• 3.0-inch aluminum shock body
• 7/8-inch shaft with redundant seals
• Owner serviceable and rebuildable
• Custom valving options available
• Designed for extreme off-road racing and performance applications

Advanced Suspension Technology

Patented Internal Bypass System

FOX’s internal bypass design allows shock oil to flow around the piston at certain points of the stroke while increasing pressure at others, resulting in:

• Smooth performance over small bumps
• Increased resistance during large impacts
• Improved suspension stability and control

This system provides the feeling of near-endless suspension travel while maintaining exceptional bottom-out protection.

FOX Ride Zone Performance

The FOX Ride Zone combines several advanced features including:

• Race-developed shock piston design
• Internal bypass technology
• Dual Speed Compression adjustment

This allows drivers to dial in suspension performance for:

• Vehicle weight distribution
• Terrain conditions
• Driving speed and aggressiveness

Race-Proven Durability

FOX Race Series shocks are built to perform under the harshest conditions using premium materials and advanced engineering:

• 3.0-inch aluminum shock bodies
• Remote reservoirs for improved cooling
• 7/8" hard chrome plated shafts
• Redundant seals for maximum reliability

These features ensure consistent damping performance even during prolonged high-speed off-road use.

Premium Construction

• NEW Cerakote® ceramic protective coating over zinc-plated basecoat
• 17-4 H900 hard chrome plated stainless steel shaft
• Black anodized CNC-machined aluminum components
• JM92 MIL-SPEC oil developed specifically for off-road racing

These components provide excellent corrosion resistance, durability, and consistent performance in extreme environments.

What’s Included

• FOX Race 3.0 x 16 External Bypass Remote Shock – Right

Fitment

Application-specific fitment varies by vehicle and suspension setup.

Compatible with race and high-performance off-road vehicles requiring FOX 3.0 x 16 bypass shocks.

FAQ

What is internal bypass technology?

Internal bypass allows oil to flow around the piston at certain points of the stroke while increasing pressure at others, improving ride comfort and bottom-out resistance.

Are these shocks rebuildable?

Yes. FOX Race Series shocks are fully rebuildable and owner serviceable.

Can these shocks be custom tuned?

Yes. Custom valving options are available to match your vehicle’s suspension setup and driving style.

What terrain are these shocks designed for?

FOX Race Series shocks are ideal for:

• Desert racing
• High-speed off-road driving
• Rock crawling
• Dune riding
• Technical trail terrain
