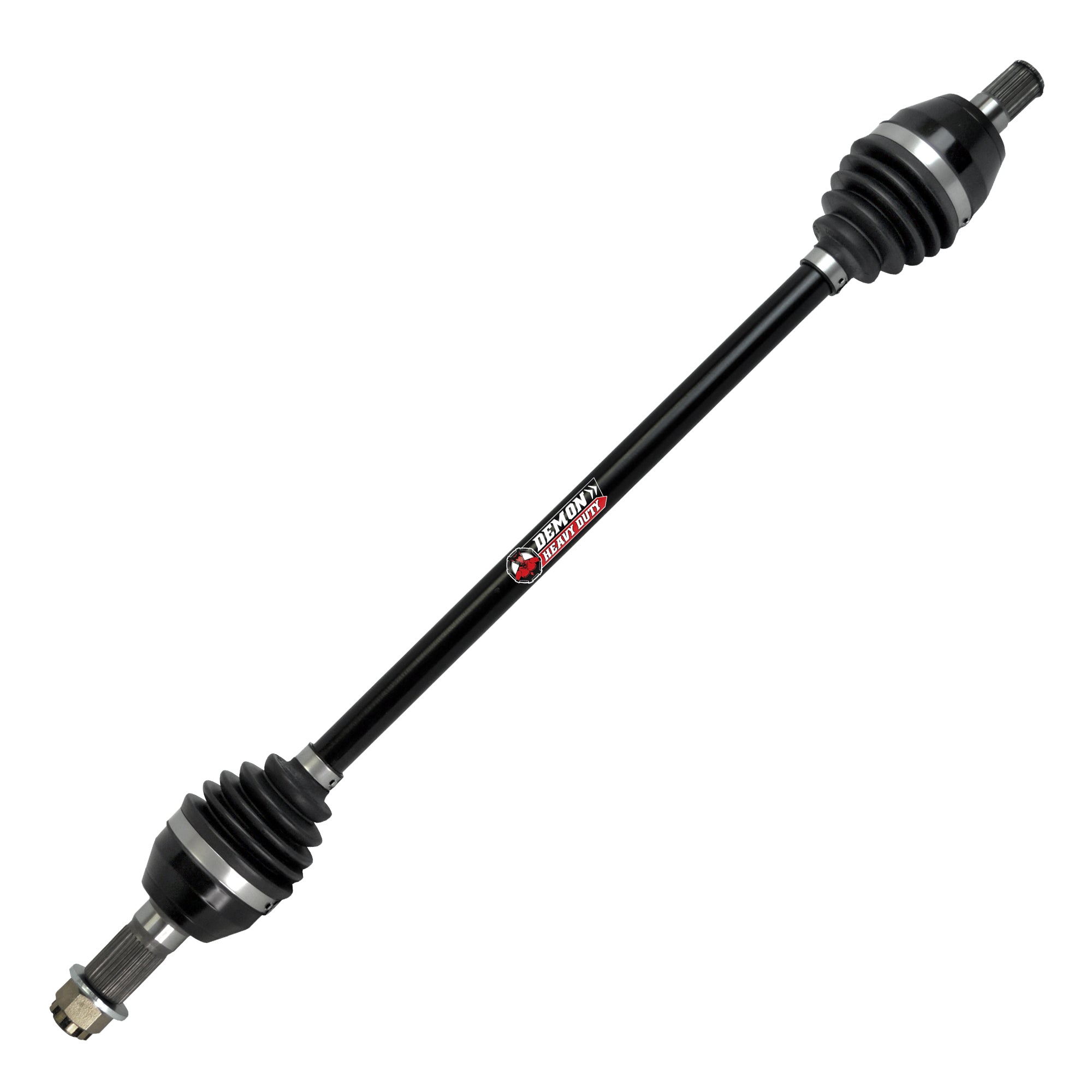

Demon Can-Am Maverick X3 64" Front Heavy Duty Axle (2018-2024)

A snapped front axle on a 64-inch Can-Am Maverick X3 ends the day where it happens. The Demon Heavy Duty front axle is a direct-fit replacement for the front left or right (sold each) position on 64-inch-wide X3 and X3 Max machines from 2018 through 2024, built around larger CV joints, a dual heat treated chromoly shaft and a 4340 chromoly steel inner CV cage so the driveline survives sand, whoops and hard desert miles.

Demon builds this axle with a double plunge design that lets the shaft slide on the bar splines, giving 1.5 inches of travel and 40 degrees of articulation at the inboard joint. The outboard joint travels 0.5 inches and swings from 45 to 47 degrees depending on the model. Molybdenum grease keeps friction and heat down inside the joint.

Key Features

• Dual heat treated high strength chromoly steel shaft
• Inner CV cage upgraded to 4340 chromoly steel
• Larger CV joints and shafts than the standard Demon line
• Double plunge design — 1.5 inches of plunge travel and 40 degrees of articulation on the inboard joint
• Outboard joint travels 0.5 inches and swings 45 to 47 degrees depending on the model
• TPEE (thermoplastic polyester elastomer) boots — stiffer, and more fatigue, puncture and temperature resistant than a standard OEM boot
• Molybdenum grease for low friction and smooth motion
• Backed by a 1 year warranty

Built To Solve: Broken Front Axles On A 64-Inch Can-Am Maverick X3

• Stock front axles that let go under power in deep sand or on dune faces
• Torn OEM boots that sling grease, pack the joint with sand and destroy the CV
• Clicking or binding at full droop when the suspension outruns the axle's articulation
• Repeat axle replacement on a machine running more power or taller tires
• Heat build-up in the CV joint on long, fast desert runs

Best For: 64-Inch X3 And X3 Max Owners Riding Dunes, Desert And Whoops

• Dune and sand riders loading the driveline hard off the throttle stop
• Desert and whoop riders running long, fast miles where CV heat matters
• Owners who have already broken an OEM shaft on this chassis
• Owners carrying a spare axle for weekend trips and remote rides
• Riders wanting an upgrade over stock without race-spec pricing — for a dedicated race car, see Demon's X-Treme Heavy Duty line

Specifications

• Position: front left or right (sold each)
• Machine width: 64-inch
• Smart-Lok: see fitment below
• Shaft material: dual heat treated high strength chromoly steel
• Inner CV cage material: 4340 chromoly steel
• Boot material: TPEE (thermoplastic polyester elastomer)
• Grease: molybdenum
• Inboard joint: 1.5 in plunge travel, 40° articulation
• Outboard joint: 0.5 in travel, 45°–47° swing depending on model
• Shipping weight: 8.8 lb
• Warranty: 1 year
• Manufacturer Part Number: PAXL-3082HD

Fitment

Demon lists this front axle for 2018 through 2024 Can-Am Maverick X3 and Maverick X3 Max in 64-inch width, front left or right (sold each). This is the With Smart-Lok front axle for 64-inch machines.

Owners of 72-inch machines need Demon part PAXL-3046HD instead. Machine width, not seat count or trim name, decides which axle fits — confirm your width before ordering. Fitment is not guaranteed on applications outside the range above.

FAQ

Will this axle fit my 72-inch Maverick X3?

No. This is the 64-inch axle. On a 72-inch machine you need Demon part PAXL-3046HD instead. Width is the most common mistake on X3 axle orders.

Does it fit the 4-seat X3 Max?

Yes. Demon lists this axle for both the Maverick X3 and the X3 Max at this width. Seat count does not change the axle; machine width does.

Is this one axle or a pair?

One axle, sold each, fitting either side in the front position. Order quantity two if you are replacing both sides.

Why do stock X3 front axles break?

Axles fail where the shaft and CV joint run out of articulation and plunge travel under load. Demon addresses this with a double plunge design giving 1.5 inches of travel and 40 degrees of articulation on the inboard joint, plus larger CV joints and shafts.

What makes the Demon Heavy Duty stronger than the OEM shaft?

A dual heat treated high strength chromoly steel shaft with the inner CV cage upgraded to 4340 chromoly steel, larger CV joints, and TPEE boots that are stiffer and more puncture, fatigue and temperature resistant than a standard OEM boot.

How long is the warranty?

Demon covers this axle with a 1 year warranty.

Why Demon

Demon Powersports developed this axle line through years of research and development to reach a price point that does not burn a hole in your pocket while still holding to their quality standards. The heavy duty range is bigger, beefier and stronger than the standard shaft, and it is the tier most X3 owners land on after their first OEM axle failure.

Complete Your 64-inch Maverick X3 Front Driveline Rebuild

If you are replacing a front axle on a 64-inch Maverick X3 or X3 Max, order quantity two to do both sides at once and keep the old side as a trail spare. Confirm your machine width before ordering — the 72-inch machine uses a different part number. While the front end is apart, check the carrier bearing and limit straps: worn driveline components let the suspension outrun the axle's articulation and are a common reason a replacement axle fails as fast as the original.

Installation Video

Demon Powersports' official heavy duty axle installation walkthrough:
