CFMOTO UForce U10 Pro 4" Long Travel Kit | SuperATV

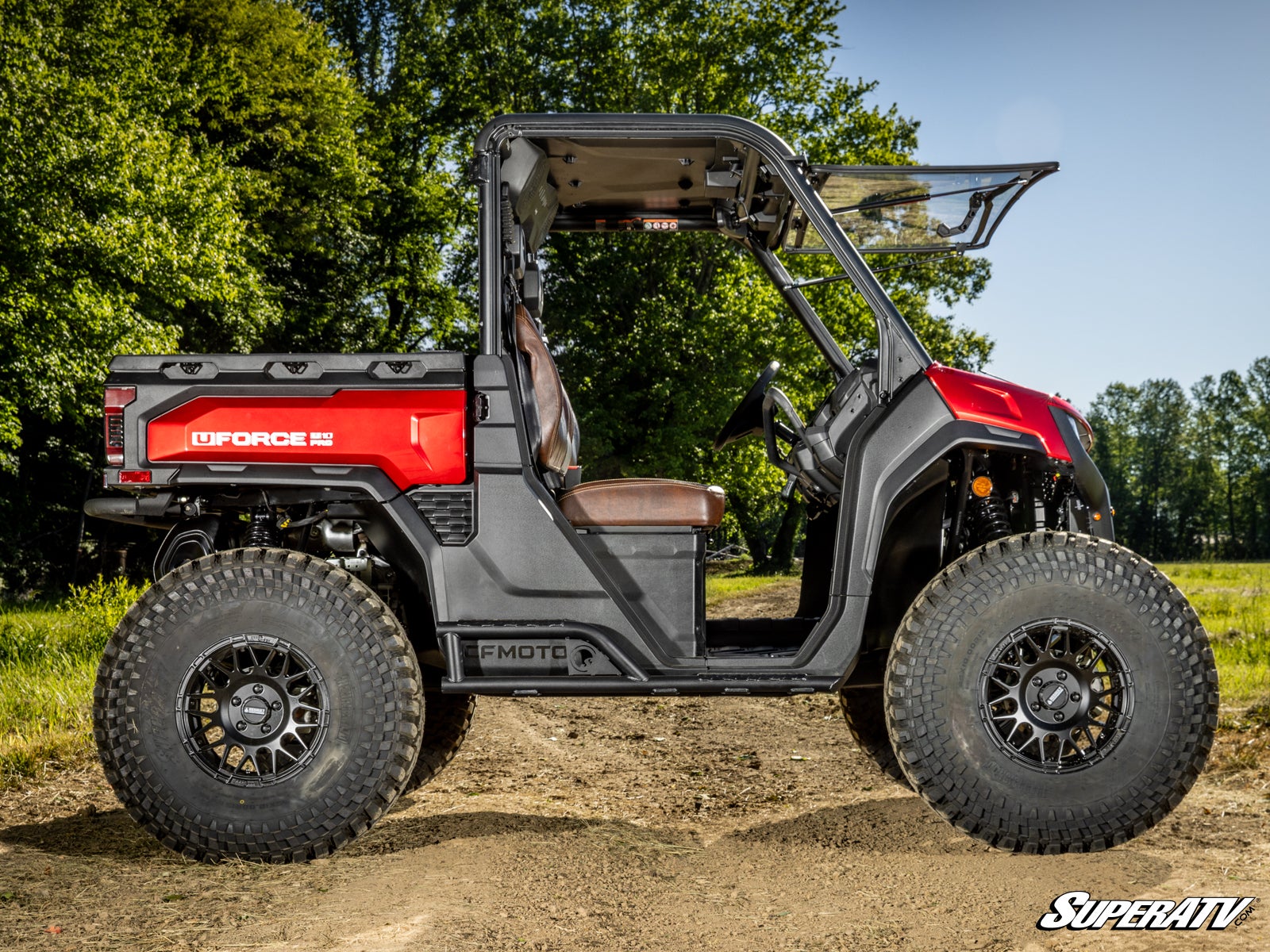

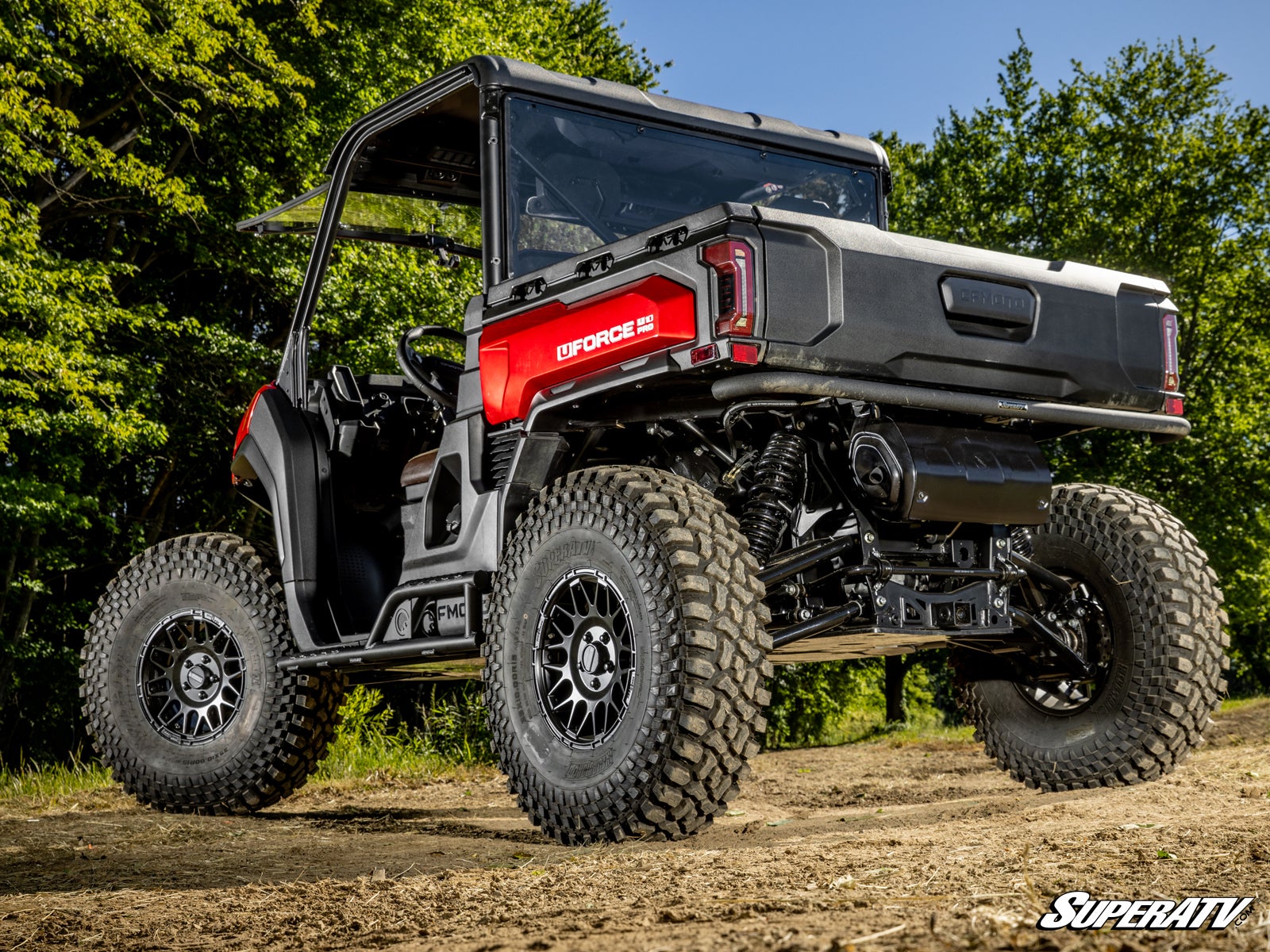

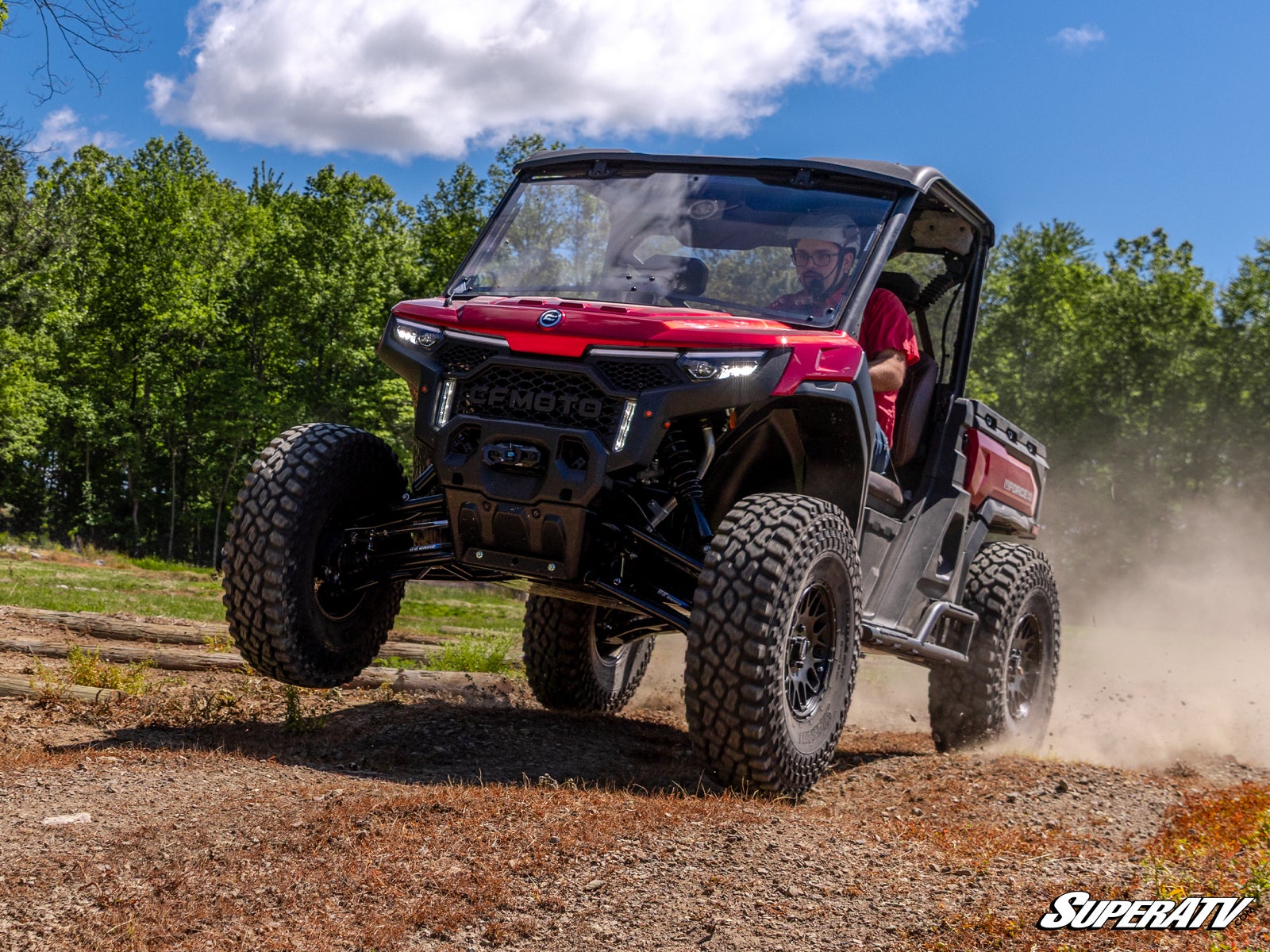

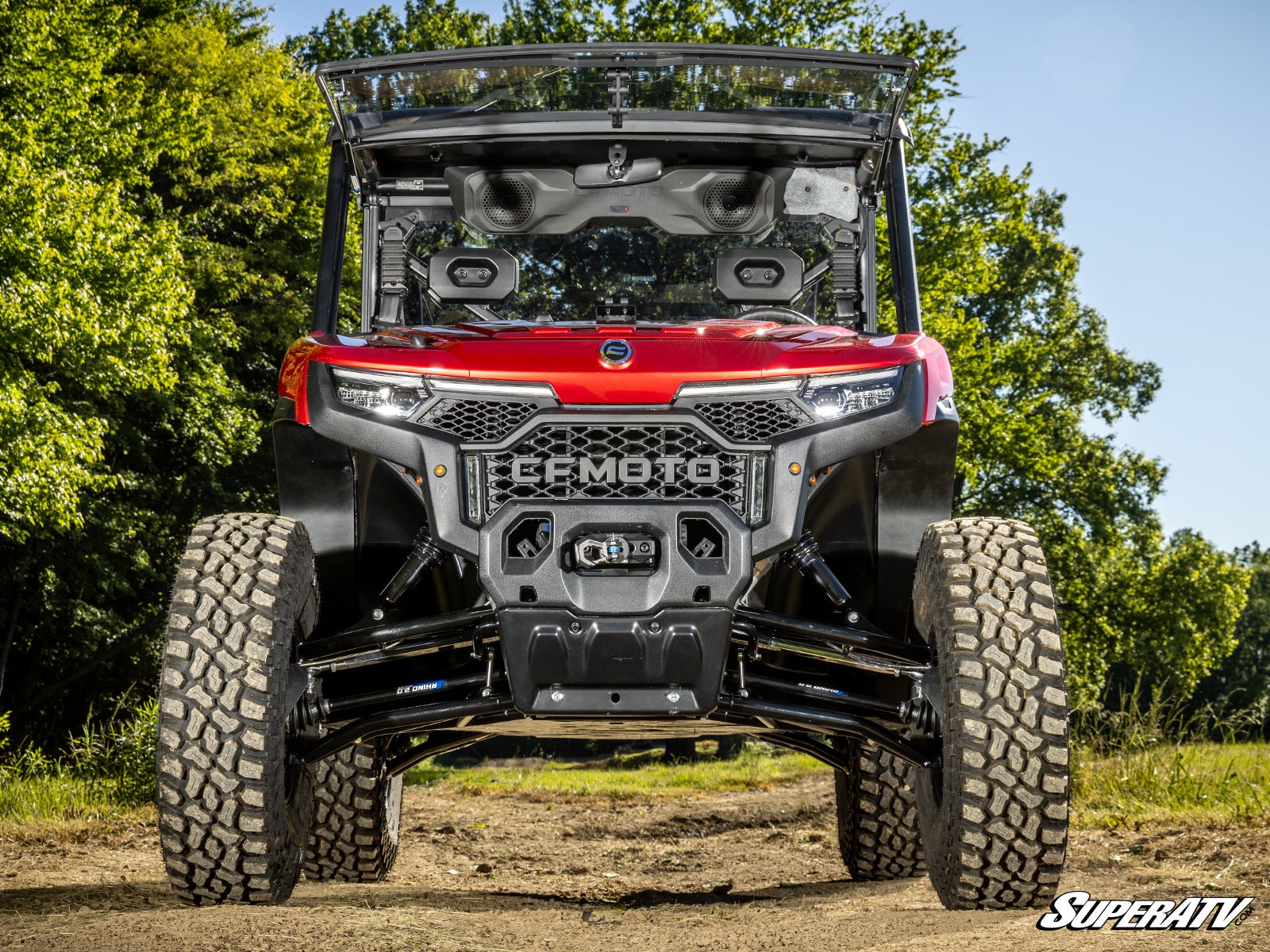

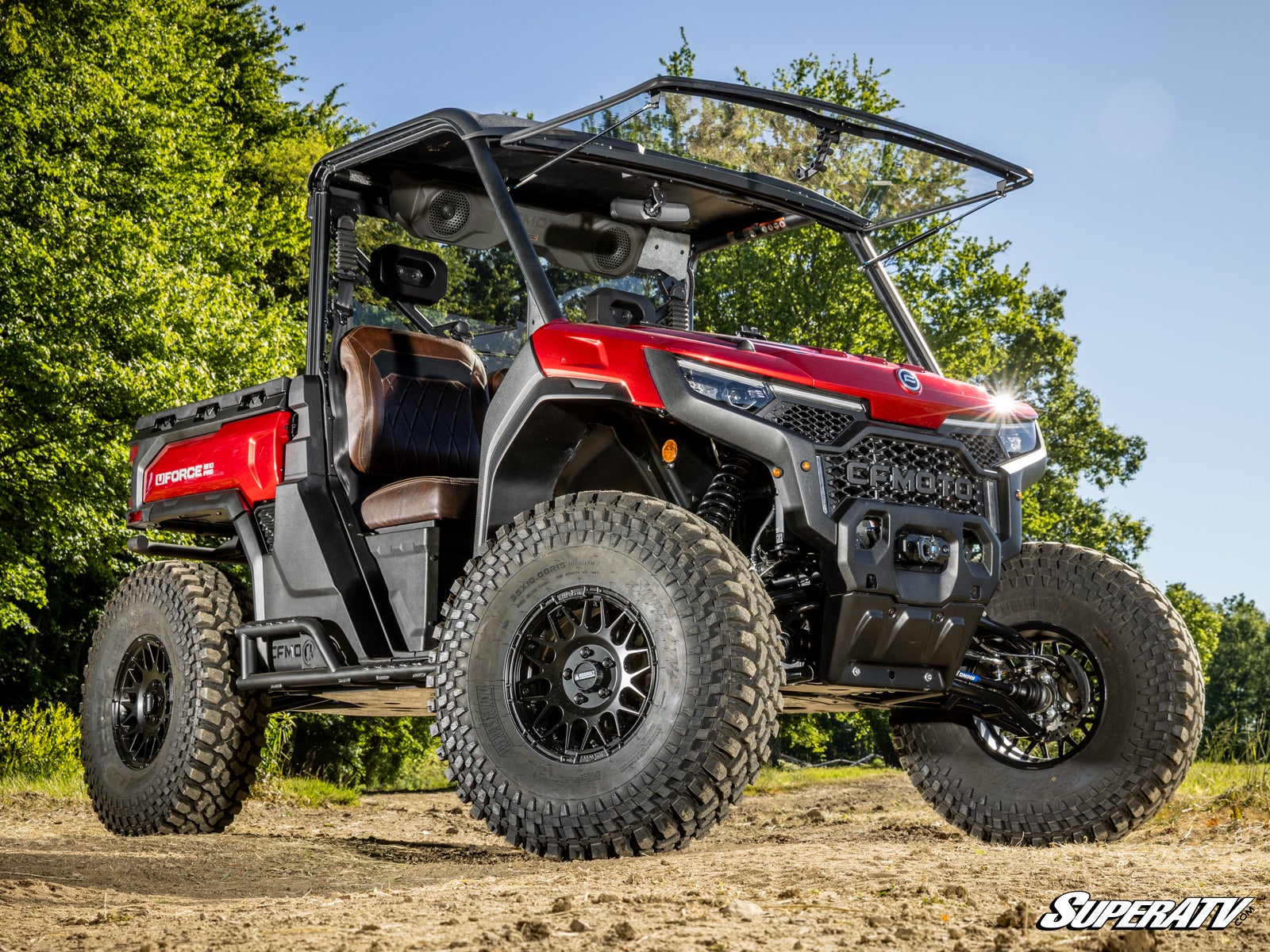

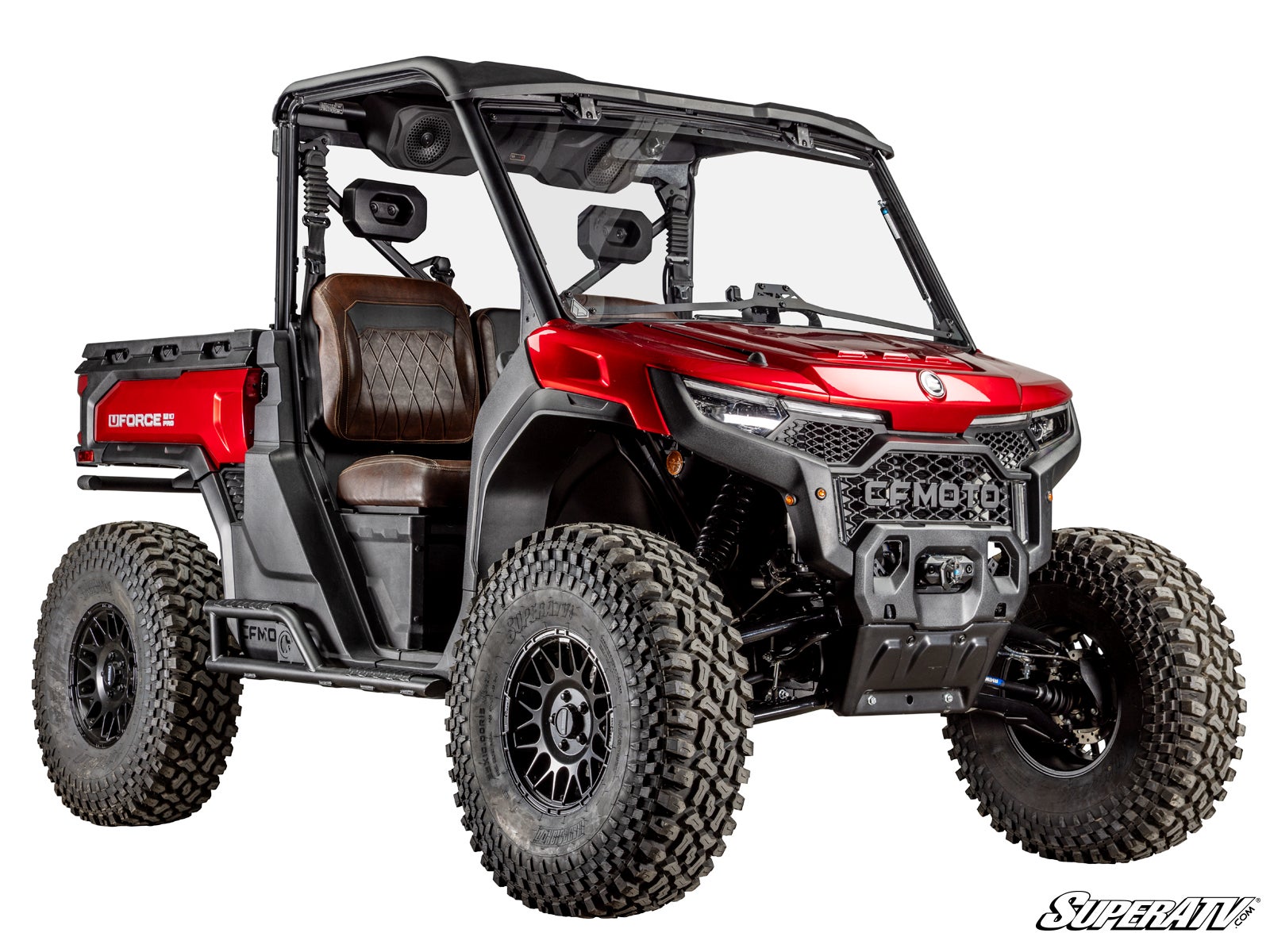

The SuperATV 4" Long Travel Kit is for CFMOTO UForce U10 Pro owners who want a wider, more stable machine that can clear up to 35" tires. It widens the stance 4" per side, moves the track from 64" to 72", and includes Atlas Pro A-arms, billet hex tie rods, UHMW bushings, and four Rhino 2.0 axles.
If your U10 Pro feels narrow, tippy, under-suspended, or limited by factory tire clearance, this kit addresses those issues as a complete suspension system. It is built for riders using the U10 Pro beyond light utility work — trail riding, desert runs, dunes, rutted roads, rocky terrain, and big-tire builds.
Key Features
- Designed for 2025+ CFMOTO UForce U10 Pro models
- Widens the machine 4" per side for an 8" overall width gain
- Moves stance from 64" to 72"
- Adds 1.5" forward offset front and rear
- Clears up to 35" tires

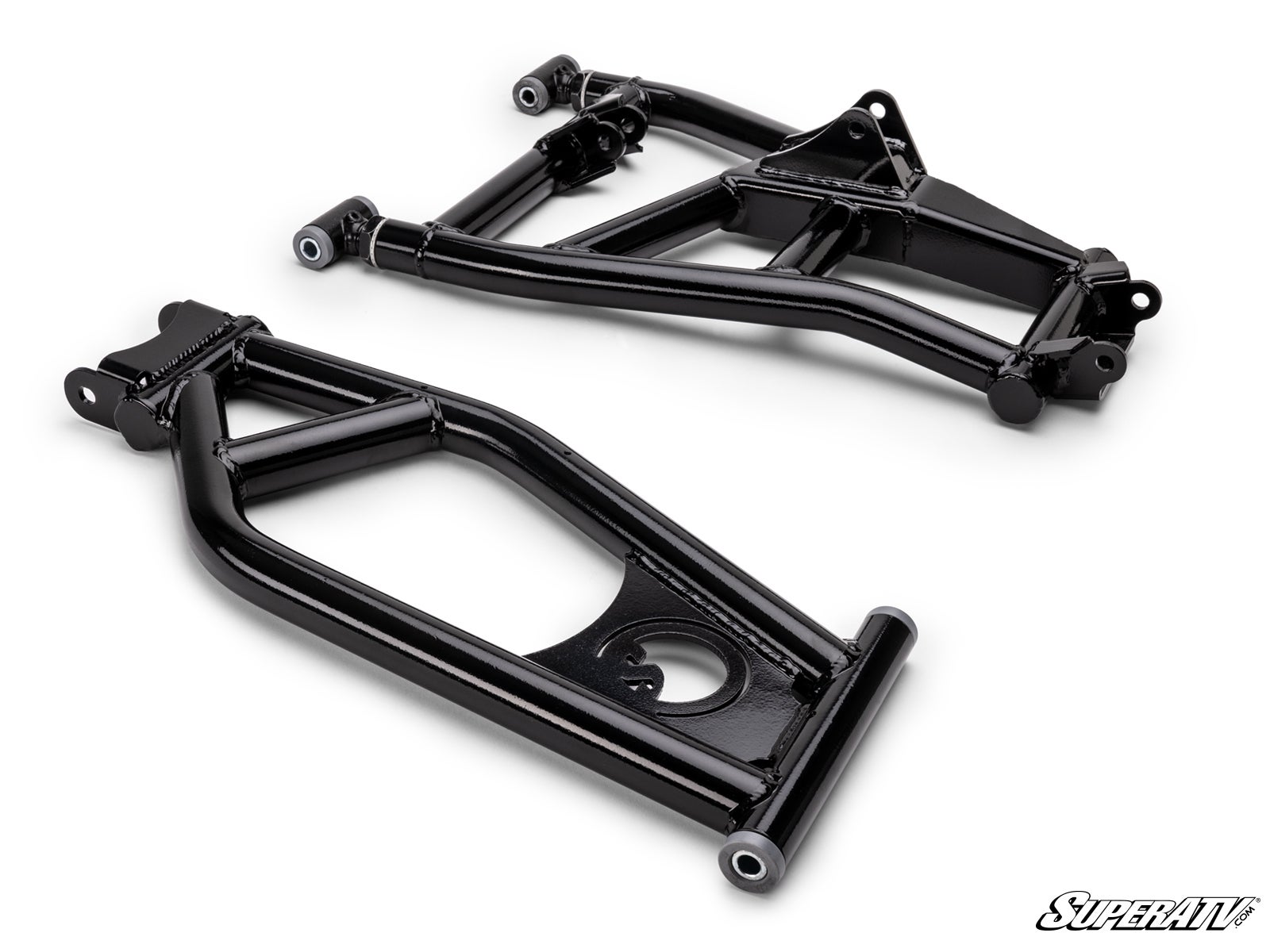

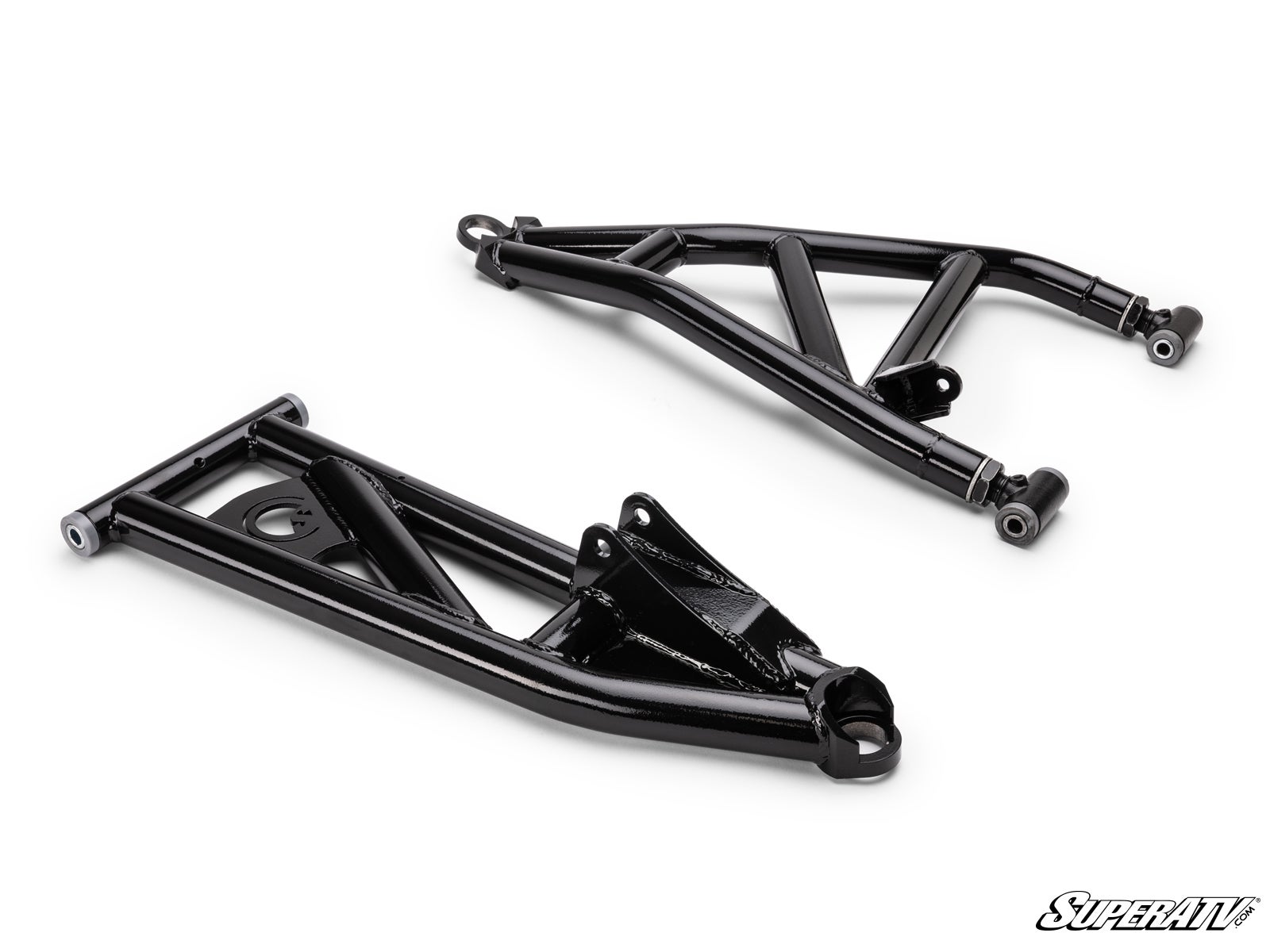

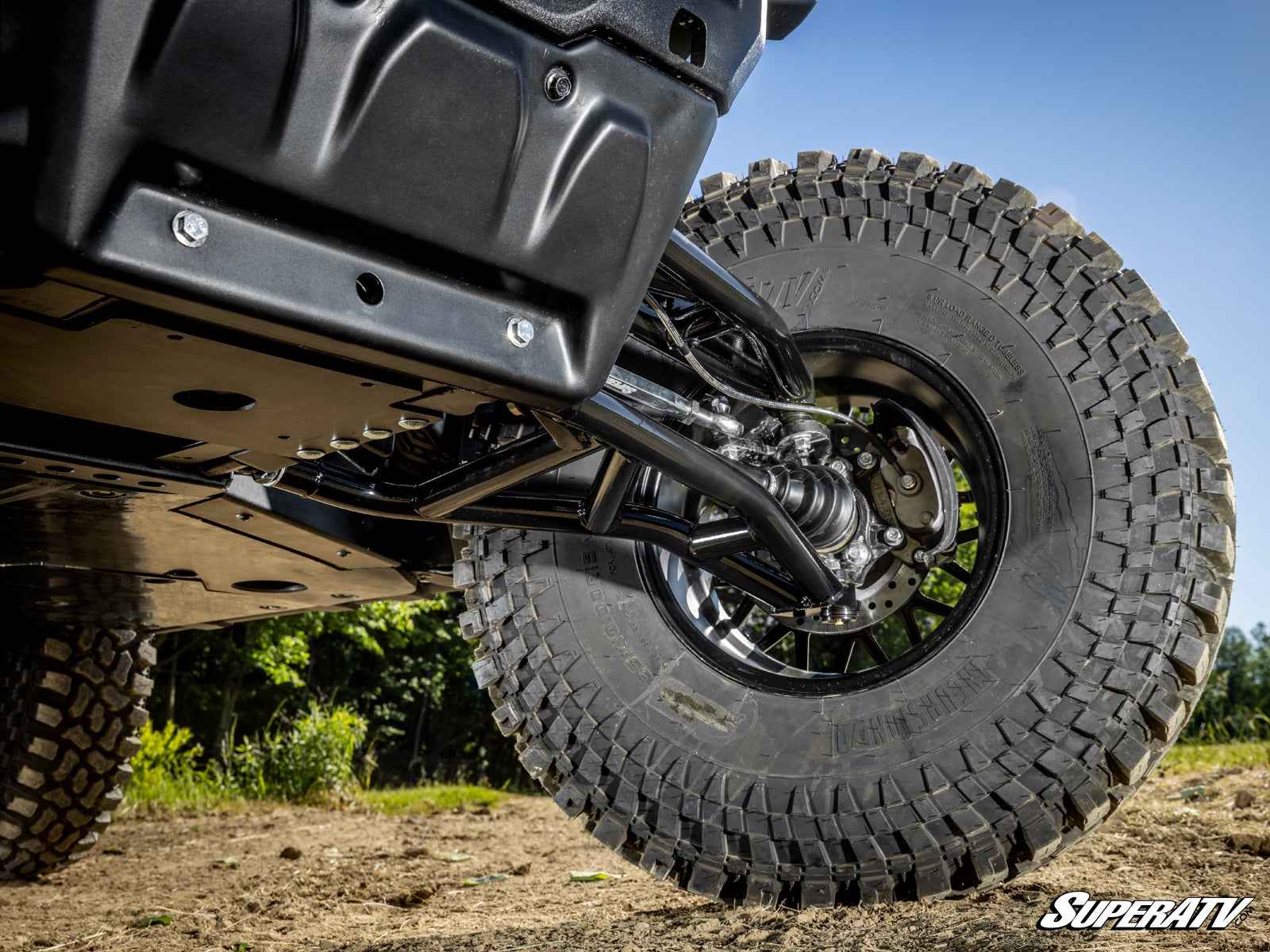

- Includes SuperATV Atlas Pro A-arms

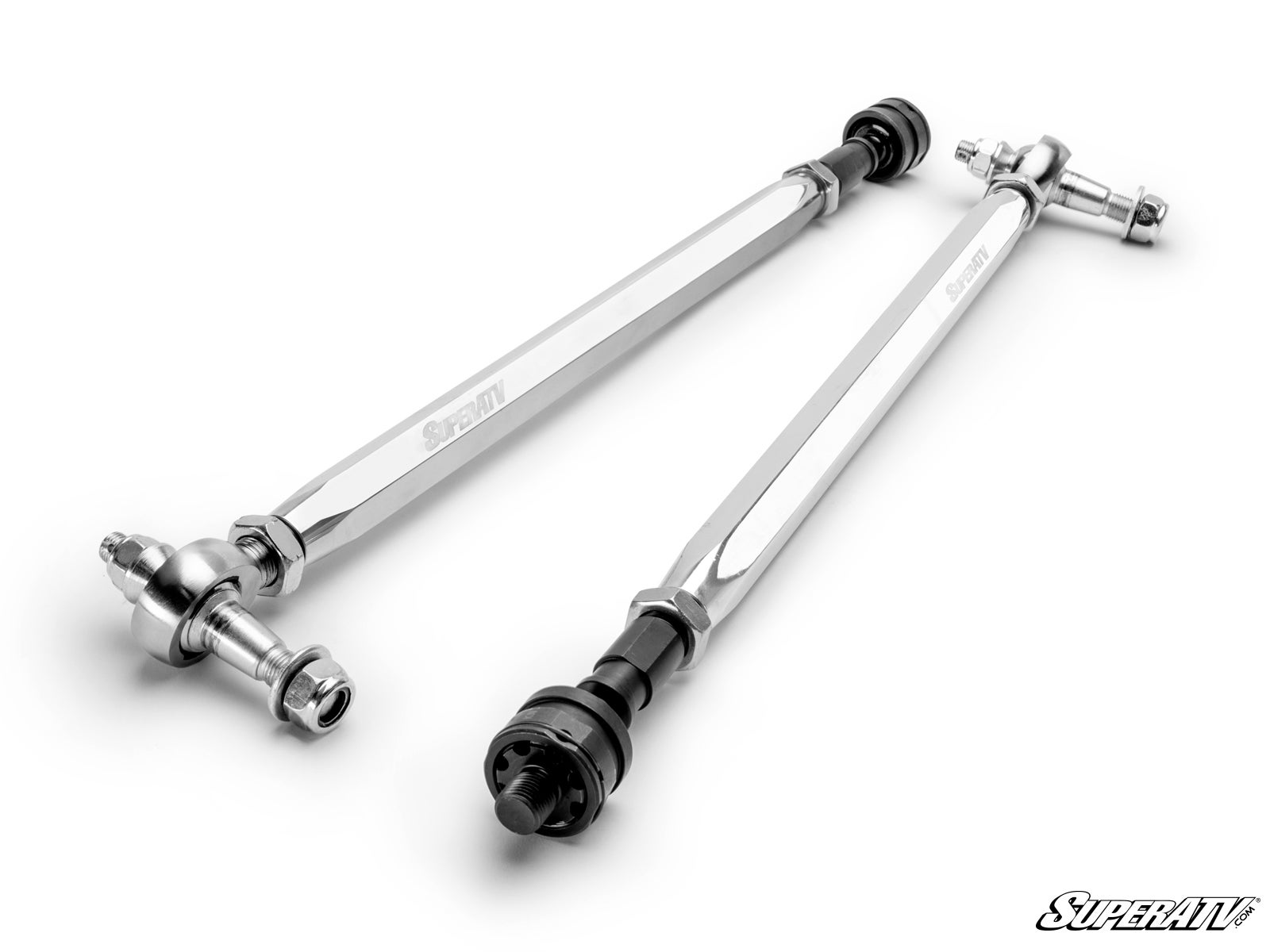

- Includes 6061-T6 billet aluminum hex tie rods
- Includes heat-treated chromoly monoball tie rod ends

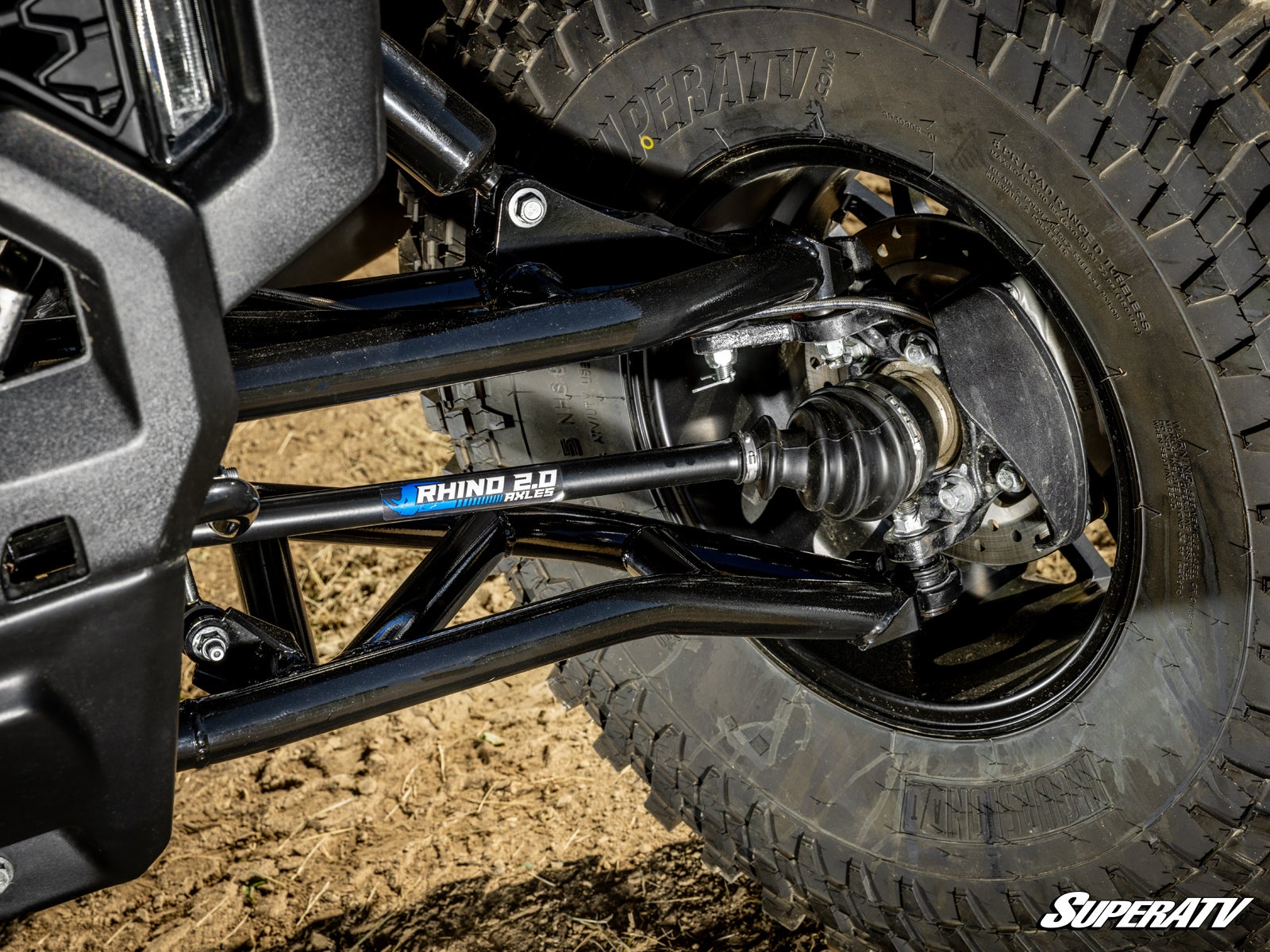

- Includes four Rhino 2.0 4340 chromoly axles

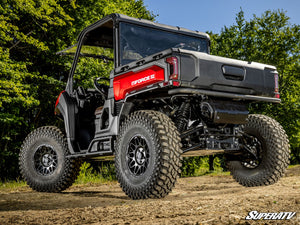

- Includes preinstalled self-lubricating UHMW bushings
- Preadjusted pivot blocks help set camber out of the box
- UV-resistant powder coat finish
- Available with optional HD 4340 Chromoly ball joints
- Available with optional SDi Terrain Master 2.1 shocks
Built To Solve
- A CFMOTO U10 Pro that feels narrow or unstable in off-camber terrain
- Limited factory clearance when trying to run larger tires
- Suspension that bottoms or runs out of travel in rough terrain
- Steering flex or vague feedback during hard trail use
- Factory-width suspension that limits confidence in ruts, whoops, and side hills
- Big-tire builds that need axle strength, width, and tire clearance together
Best For
- 2025+ CFMOTO UForce U10 Pro owners upgrading from work use to aggressive recreational riding
- Riders who want to run up to 35" tires without piecing together a suspension setup
- U10 Pro XL and Highland owners who want a wider, more planted stance
- Trail riders dealing with ruts, off-camber climbs, rocks, and rough two-track
- Dune and desert riders who want more stability at speed
- Builders who want A-arms, axles, tie rods, bushings, and options matched as one system
Specifications
- Width added: 4" per side
- Total width gain: 8" overall
- Final stance: 72"
- Factory stance reference: 64"
- Forward offset: 1.5" front and rear
- Maximum tire clearance: 35"
- A-arm tubing: 38 mm OD
- Shock mount material: 1/4" wall DOM
- Additional A-arm material: 3.5 mm chromoly
- Tie rod material: 6061-T6 billet aluminum
- Tie rod end material: heat-treated chromoly
- Axle type: Rhino 2.0
- Axle material: 4340 chromoly
- Bushing material: UHMW
- Optional ball joint material: HD 4340 Chromoly
- Optional shock package: SDi Terrain Master 2.1
Fitment
Fits the following 2025+ CFMOTO UForce U10 Pro models:
- CFMOTO UForce U10 Pro
- CFMOTO UForce U10 Pro Highland
- CFMOTO UForce U10 Pro XL
- CFMOTO UForce U10 Pro XL Highland
Fitment is not guaranteed on applications not listed above. Confirm your year, model, and package before ordering.
FAQ
Who needs this CFMOTO U10 Pro long travel kit?
This kit is for UForce U10 Pro owners who want more width, more tire clearance, and a more stable suspension setup than the factory-width machine provides. It makes the most sense for riders using the U10 Pro on trails, dunes, desert terrain, rocks, ruts, or big-tire builds.
Why would I install a long travel kit on a UForce U10 Pro?
A long travel kit helps solve the limits of the stock-width suspension. This SuperATV kit widens the machine 4" per side, increases the stance to 72", adds 1.5" forward offset, and clears up to 35" tires. The result is a more planted U10 Pro with more room for tire and suspension movement.
How does this kit help with stability?
The wider stance gives the U10 Pro a broader footprint. Moving from a 64" stance to a 72" stance helps the machine feel more planted in off-camber terrain, ruts, whoops, and uneven trail sections.
Can this kit clear 35" tires?
Yes. The kit is designed to clear up to 35" tires. Tire fitment can still depend on wheel offset and setup, so confirm your full wheel and tire combination before ordering.
Are axles included?
Yes. The kit includes four Rhino 2.0 4340 chromoly axles. They are included so the suspension, width, and axle articulation work together as one matched system.
What are the ball joint and shock options?
The kit can be ordered with reused existing ball joints or optional HD 4340 Chromoly ball joints. It can also be ordered with reused existing shocks or optional SDi Terrain Master 2.1 shocks.
Why SuperATV
SuperATV builds complete suspension systems instead of loose upgrade pieces. This long travel kit matches Atlas Pro A-arms, billet tie rods, UHMW bushings, Rhino 2.0 axles, and optional shocks so the CFMOTO U10 Pro gets a balanced width, clearance, and strength upgrade.
Build Your U10 Pro for Wider, More Stable Riding
Order the SuperATV 4" Long Travel Kit for your 2025+ CFMOTO UForce U10 Pro from Dunes 2 Dezert SXS. Choose your ball joint and shock options at checkout, and verify your wheel and tire setup before installation.
