AJK Offroad Can-Am X3 Radius Rod Plate

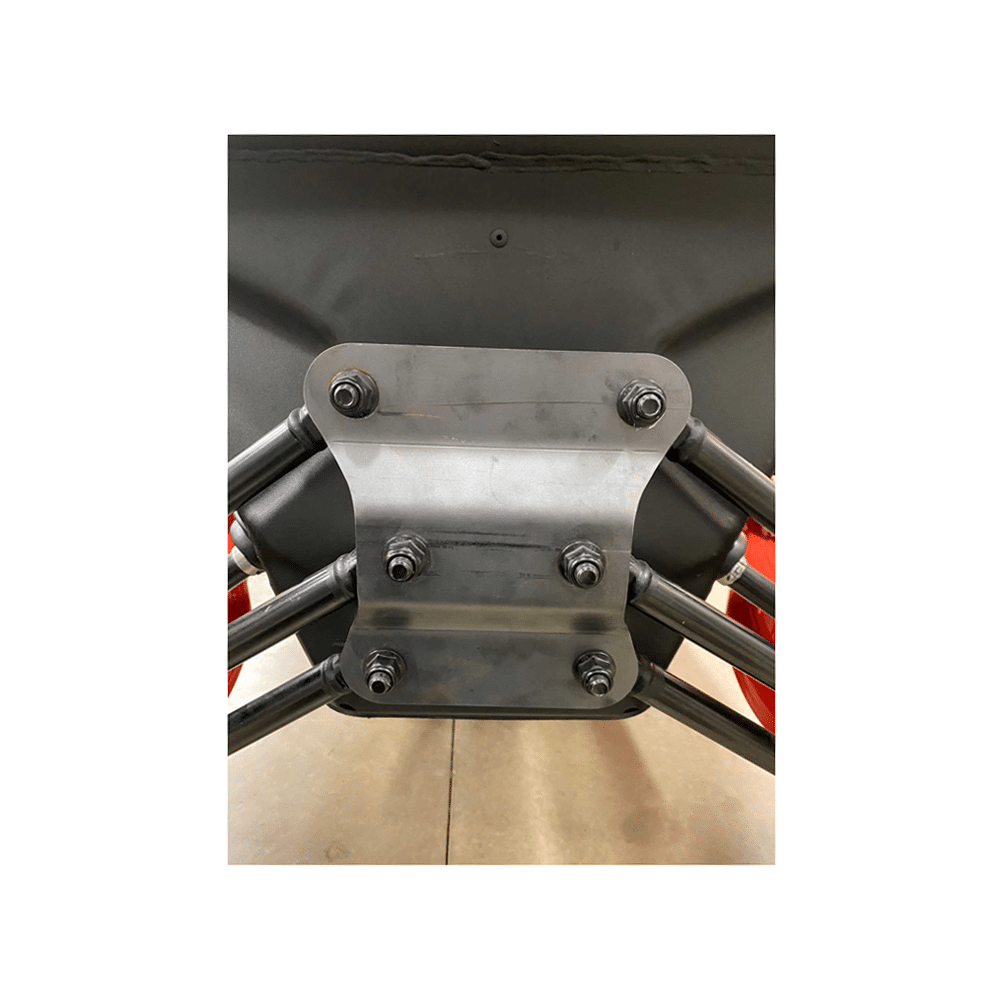

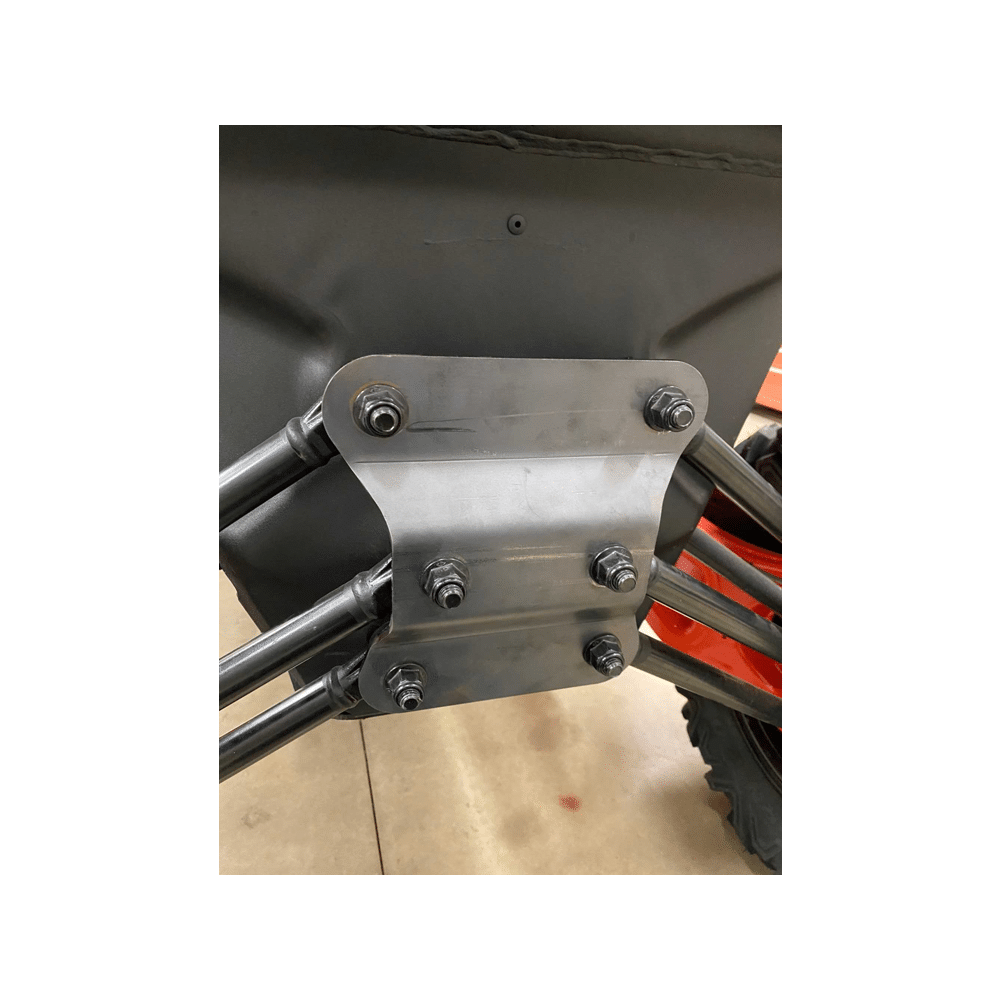

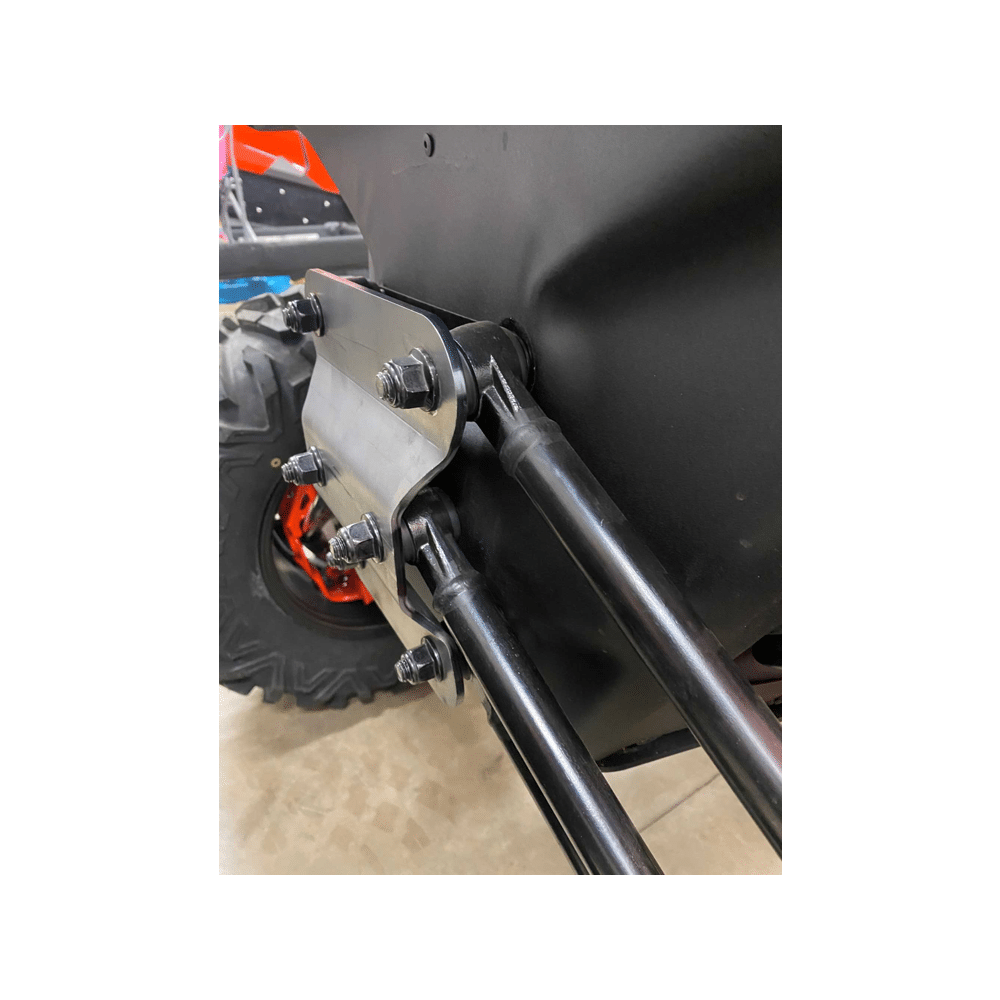

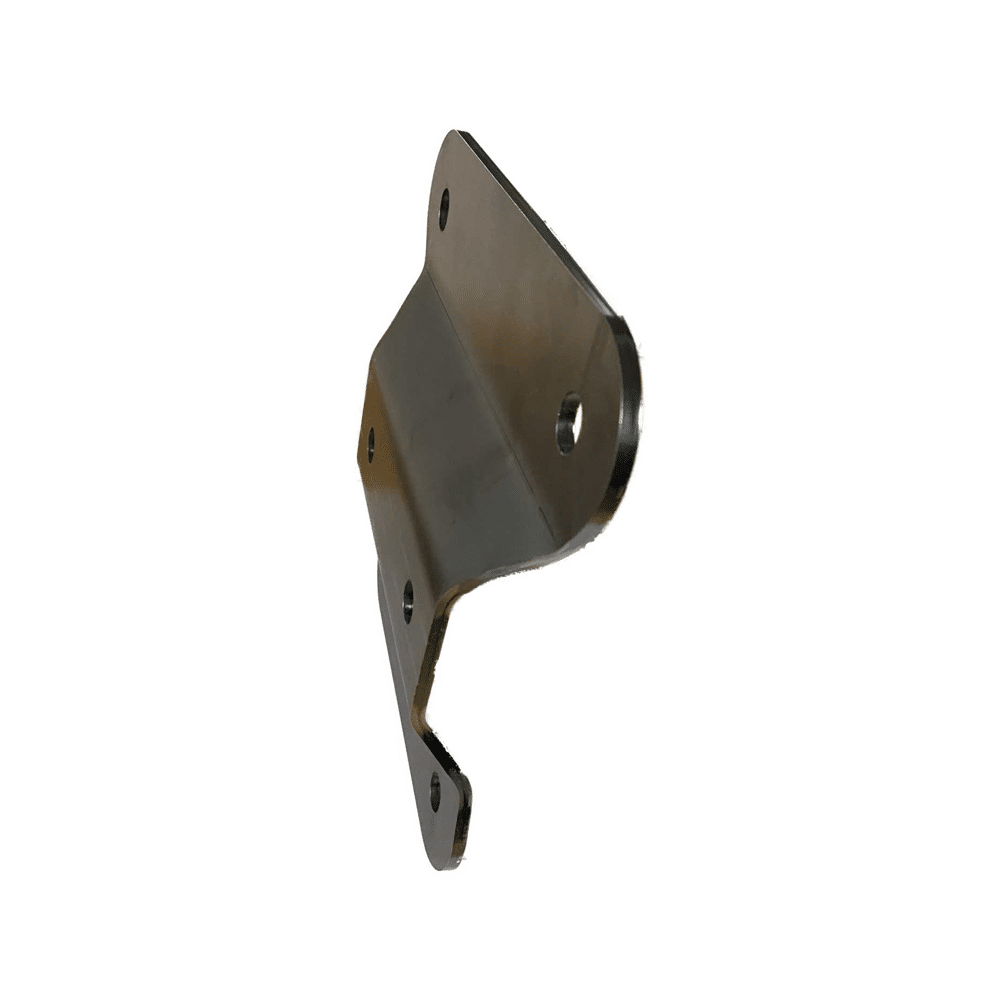

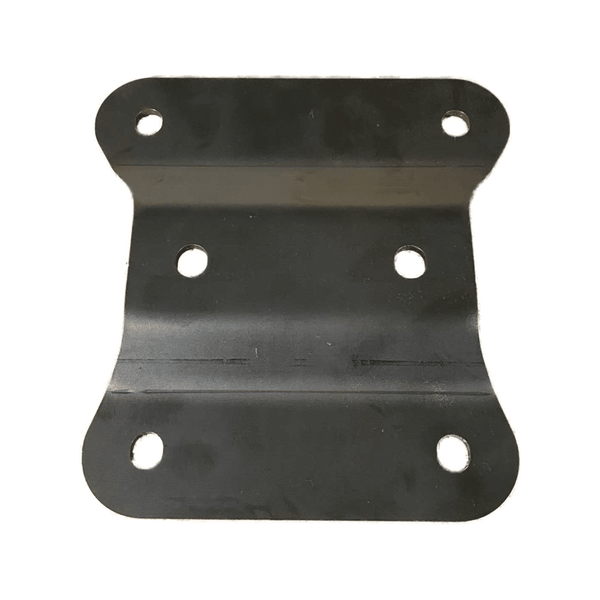

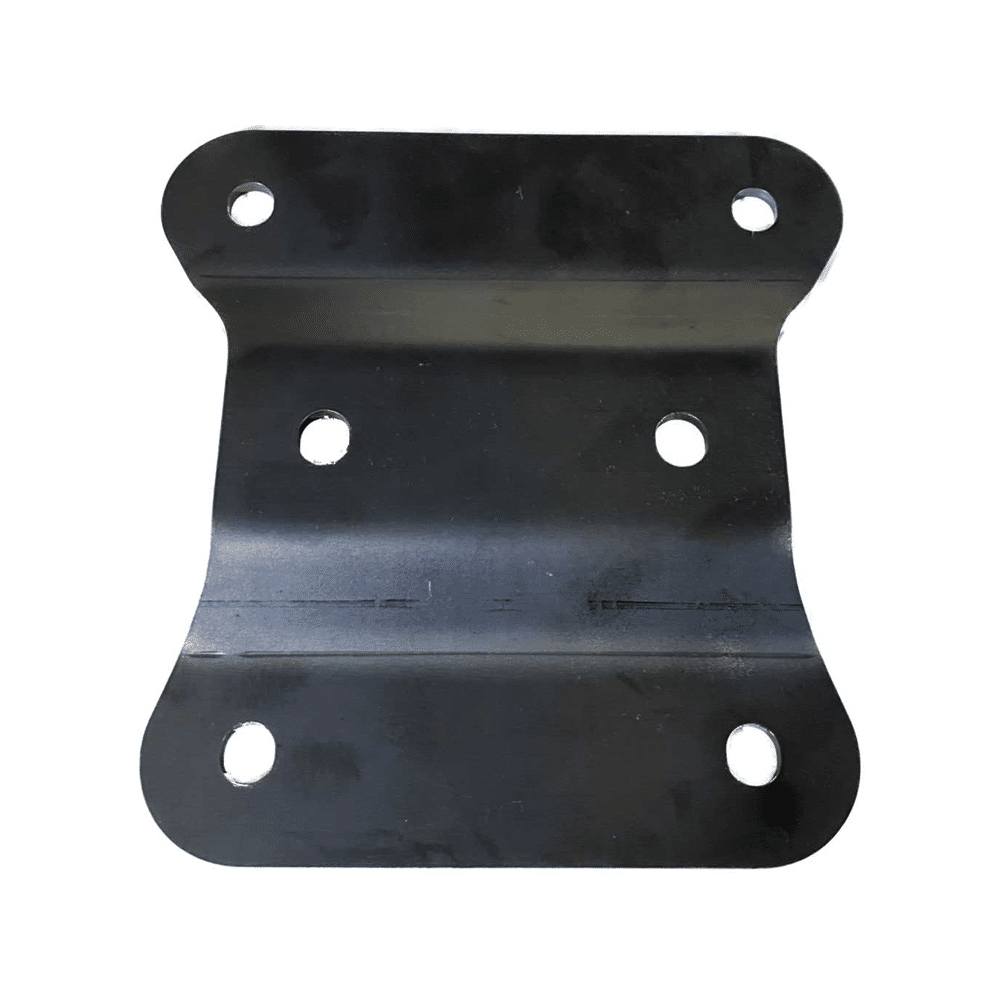

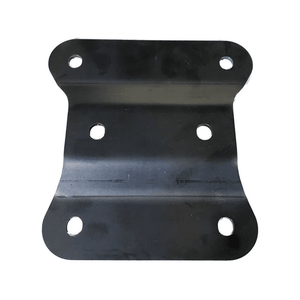

The AJK Offroad Can-Am X3 Radius Rod Plate is a 3/16" thick CNC laser cut and bent steel plate that bolts to the factory X3 rear frame location — the standard starting point for custom rear bumper builds, recovery point installations, and rear accessory mounts on the Maverick X3. No drilling or welding required for the plate installation itself. Made in the USA by AJK Offroad.
Key Features & Benefits
- 3/16" Thick CNC Laser Cut and Bent Steel — Purpose-built thickness and bend profile for the X3 rear radius rod mounting location
- Uses Factory Hardware — Bolt-on installation to the factory X3 rear frame — no drilling, cutting, or modification
- Rear Bumper Build Foundation — The standard base plate for fabricating tube rear bumpers and recovery points on the X3
- CNC Precision Cut — Consistent dimensions for a reliable, repeatable fit on every X3
- Made in USA — CNC laser cut and bent by AJK Offroad
Specs & Fitment
| Spec | Detail |
|---|---|
| Material | 3/16" CNC laser cut and bent steel |
| Installation | Bolt-on — factory rear frame hardware |
| Welding Required | No (for plate installation) |
| Manufacturer | AJK Offroad — Made in USA |
Vehicle Fitment — Can-Am:
- Maverick X3 / X3 Max (all years, 2-seat and 4-seat)
Frequently Asked Questions
What is this plate most commonly used for?
This plate is the standard base for builders fabricating custom X3 rear bumpers, D-ring recovery mounts, and rear accessories that need a reinforced attachment point at the rear frame. It provides a flat, rigid steel mounting surface that spreads load across the factory frame location.
Is this the same as the Billet Aluminum Radius Rod Plate?
No — the AJK Billet Aluminum Radius Rod Plate is a CNC machined 6061-T6 billet upgrade for visual and functional enhancement at the radius rod location. This steel plate is the structural bumper mount base. Both serve different purposes and are available separately on the site.
Does this plate include hardware?
The plate uses existing factory rear frame hardware. No additional fasteners are required for the basic bolt-on installation.
Do I need to weld this plate?
The plate bolts on without welding. If building a custom tube bumper that attaches to this plate, welding would be part of that bumper fabrication process.
Will this fit both 2-seat and 4-seat X3 models?
Yes — the rear radius rod mounting location is the same across both X3 configurations.
Start your Can-Am X3 rear bumper build with the AJK Offroad X3 Radius Rod Plate — available now at Dunes 2 Dezert SXS, your Desert Southwest source for Can-Am Maverick X3 fabrication hardware and AJK Offroad chassis components.
