XTC Can-Am Maverick X3 6 Switch Power Control System (2017-2027)
Shipping calculated at checkout
In stock
Adding several accessories to a Can-Am Maverick X3 means finding a way to distribute power, protect each circuit and keep connections identifiable for later troubleshooting. Listed for: Can-Am Maverick R 2024 - 2027; Can-Am Maverick R Max 2024 - 2027; Can-Am Maverick X3 2017 - 2027; Can-Am Maverick X3 64 2017 - 2027; Can-Am Maverick X3 72 2017 - 2027; Can-Am Maverick X3 Max 2017 - 2027. Fitment is not guaranteed on unlisted applications. The XTC power control system handles UTV electrical distribution through four relayed circuits and two direct-switch circuits. Individual fuses protect the circuits, while color-coded barrier-strip connections help identify accessory wiring.
Key Features
- One 30-amp and three 20-amp relayed circuits with diode protection
- Two 10-amp direct-switch circuits for low-power accessories
- Individual circuit fuses and a blown-fuse LED indicator
- Color-coded barrier-strip connections correspond to fuse box and switch harness wires
- Vehicle-specific power connector and rocker switch harness for factory pre-cut positions
- Eight-gauge power cable and 50-amp main circuit breaker at the battery

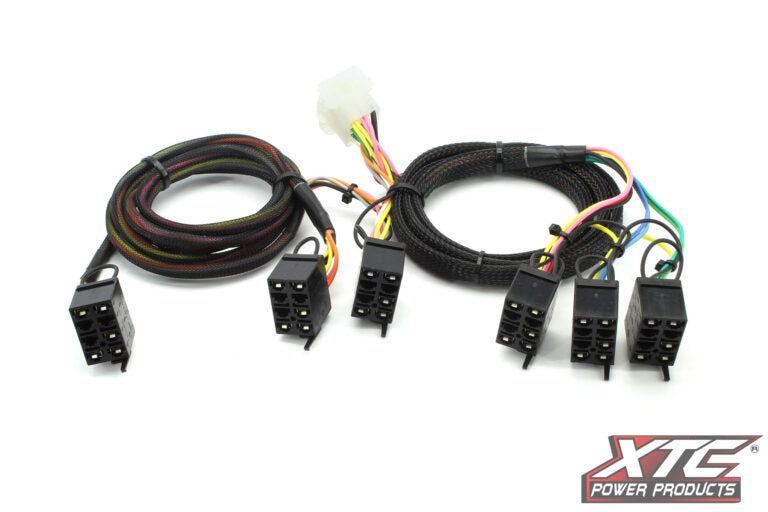

- Molex connector joins the switch harness to the power control system
Built To Solve: Maverick X3 Accessory Power Distribution
- Separate six accessory circuits instead of putting every connection on one fuse.
- Use the color-coded barrier strip to identify wires when adding connections or troubleshooting.
- Reduce relay voltage spikes with diode protection on the four high-current circuits.
- Run low-power accessories such as rock lights or whip lights on the two 10-amp direct circuits.
Best For: Can-Am Maverick X3 Accessory Builders
- X3 owners wiring several separately fused accessories.
- Two- and four-seat X3 owners using factory pre-cut rocker switch positions.
- Builders who want color-coded connection points for future wiring work.
- Installers choosing between basic rocker switches and separately purchased custom switches.
Specifications
- Relayed circuits: One 30-amp circuit and three 20-amp circuits with diode protection
- Direct-switch circuits: Two 10-amp circuits
- Main circuit breaker: 50 amp at the battery
- Power cable: Eight gauge
- Fuse indication: Blown-fuse LED indicator
- Manufacturer part numbers: PCS-64-MAV-NS (No. I'll Use Custom Rocker Switches), PCS-64-MAV (Yes. Include Basic Rocker Switches)

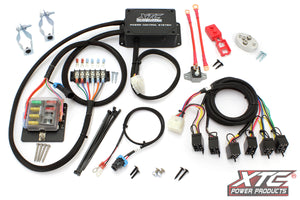

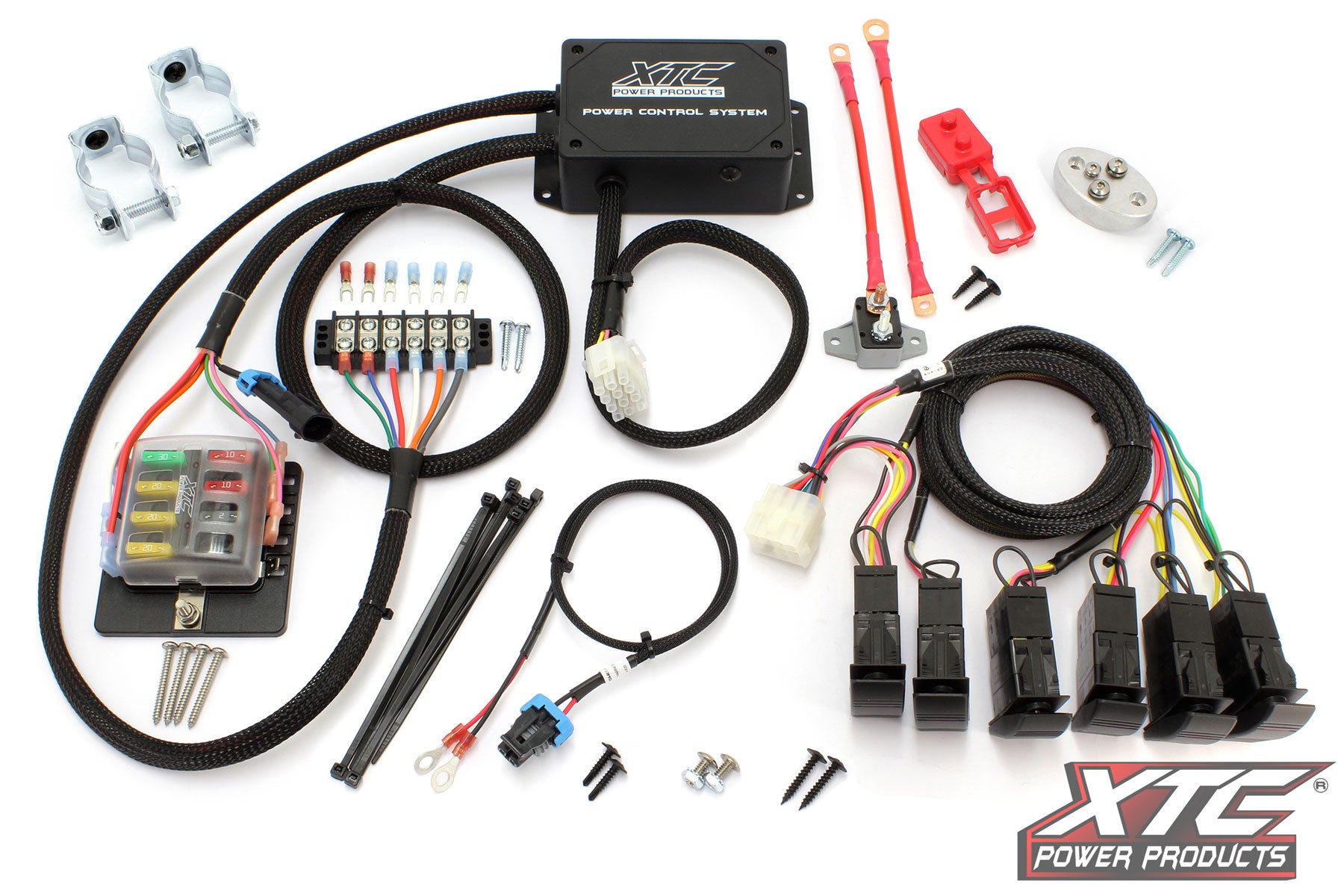

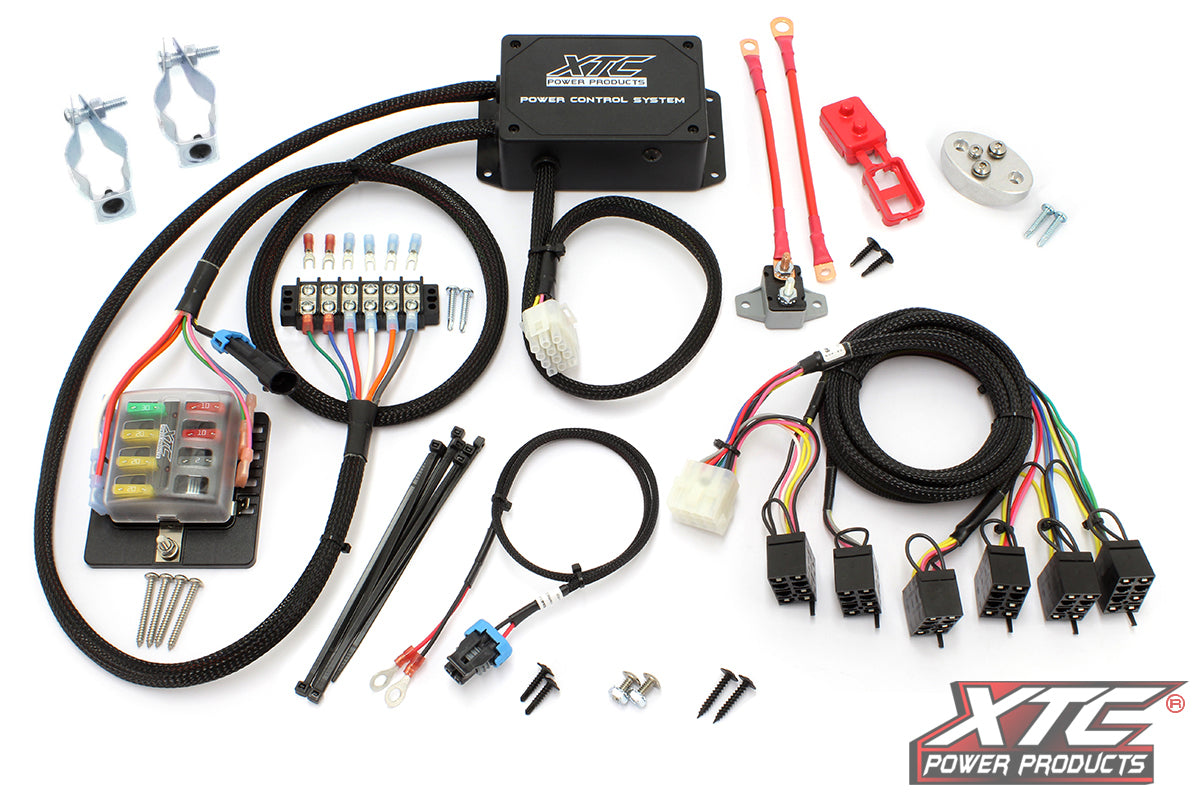

What's in the Box
- Barrier strip
- 50-amp main circuit breaker
Fitment
- Can-Am Maverick R 2024 - 2027
- Can-Am Maverick R Max 2024 - 2027
- Can-Am Maverick X3 2017 - 2027
- Can-Am Maverick X3 64 2017 - 2027
- Can-Am Maverick X3 72 2017 - 2027
- Can-Am Maverick X3 Max 2017 - 2027
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
How many accessory circuits can the system control?
It controls six circuits: one 30-amp and three 20-amp relayed circuits, plus two 10-amp direct-switch circuits.
Where do the Maverick X3 rocker switches mount?
The described arrangement places three in the center console, two in the center dash and the last next to the steering wheel or in the center dash. An installer can also arrange them together in a custom layout.
Do the accessory circuits require the ignition to be on?
The wiring system works with or without ignition power. The lower LED on available custom rocker switches illuminates only when the ignition key is on.
Are laser-etched custom rocker switches part of the basic switch choice?
Laser-etched custom rocker switches are sold separately.
Which circuits should I use for low-power rock lights or whip lights?
The two 10-amp direct-wire circuits are intended for low-power accessories such as rock lights or whip lights.
Why XTC Power Products
XTC uses a vehicle-specific power connector and a rocker switch harness sized for factory pre-cut switch positions.
Wire Your Maverick X3 Accessories
Choose the XTC power control system configuration for your Can-Am Maverick X3.
