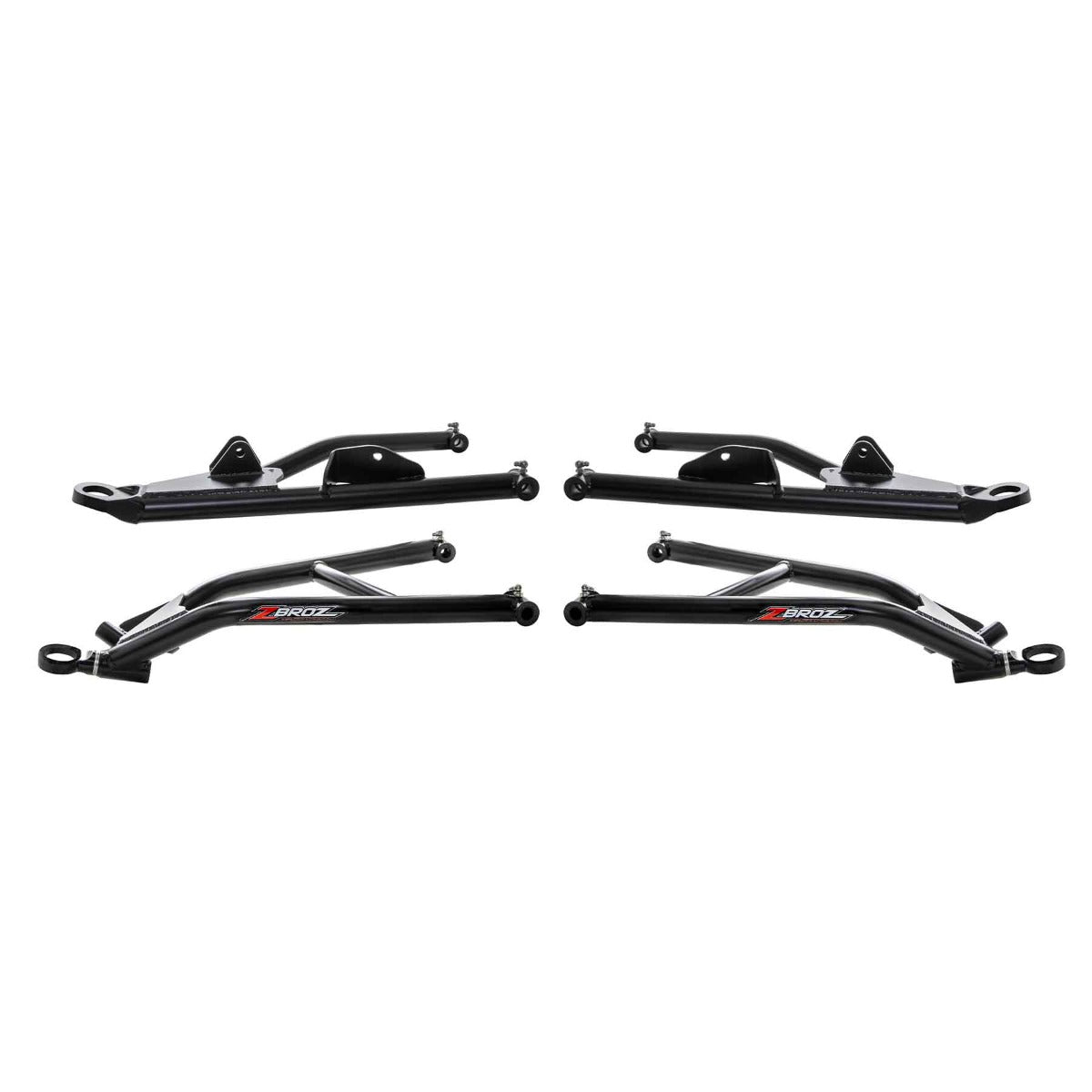

Can-Am Defender HD10 +2 Forward A-Arm Kit by ZBroz Racing

The ZBroz HD Pro +2 Forward A-Arm Kit for Can-Am Defender HD10 was built to take on any terrain or load you can throw at it. Maximum Ground Clearance design gives you the advantage of running larger wheels and tires while still protecting your front axles from a-arm snagging obstacles.

Built from 1.25" DOM steel tube with precision TIG welding at every connection and crossbar point, this kit uses pre-installed brass bushings with grease zerks at every pivot point for longer life under heavy off-road abuse. The camber adjustable lower A-arm housing ships at −1° camber and includes shims for fine-tuning (1° per shim) — perfect for serious mountain trails, rock crawling, and desert/dune riding.

Key Features

• 1.25" diameter DOM steel tube — precision TIG-welded at every connection and crossbar
• +2" forward design — extends wheelbase 2" without changing steering geometry, stays within OEM steering specs
• Maximum Ground Clearance design — protects front axles, clears a-arm snagging obstacles
• Camber adjustable lower ball joint housing — ships at −1° camber, includes shims (1° per shim)
• Pre-installed brass bushings with grease zerks at all pivot points
• Fits 30" to 33" tires without modification or fender trimming
• Ball joints NOT included — designed to reuse your OEM ball joints; ball joint housings are compatible with most aftermarket ball joints
• Made in the USA (Logan, Utah)

Specifications

• Material: 1.25" DOM steel tube
• Construction: Precision TIG-welded
• Bushings: Pre-installed brass with grease zerks
• Ball joints: NOT included (reuse OEM or use compatible aftermarket)
• Camber: Adjustable, ships at −1°, 1° per shim included
• Tire clearance: 30" to 33" without modification
• Forward offset: +2" (wheelbase extension)
• Finish: Black powder coat
• Reuse: OEM Upper Pivot Caps and Pivot Shaft, OEM Lower Pivot Caps and Lower Pivot Shafts
• Country of origin: USA

Fitment

Fits 2020-2025 Can-Am Defender HD10 chassis, including 2-seat and Defender MAX (4-seat) variants. Trim coverage includes:

• Defender HD10 DPS
• Defender HD10 XT
• Defender HD10 XT Cab
• Defender HD10 Limited
• Defender HD10 Lone Star
• Defender HD10 X mr
• Defender MAX HD10 (4-seat versions of the above trims)

Frequently Asked Questions

Are ball joints included?

No — the Defender HD10 +2 Forward A-Arm Kit ships without ball joints. The kit is designed to reuse your OEM ball joints, and the ball joint housings are compatible with most aftermarket ball joints if you prefer to upgrade.

What does +2" Forward mean?

The +2 Forward A-arm design moves the wheel forward 2 inches, extending the wheelbase without changing steering geometry. This stays within all OEM steering component specs while improving stability and giving you the clearance to run larger tires.

What tire sizes will fit with this kit installed?

The ZBroz HD Pro A-arm kit fits 30" to 33" tall tires without fender trimming or modifications.

Is camber adjustable?

Yes — the lower a-arm uses a camber adjustable ball joint housing. Kits ship at −1° camber with shims included for fine-tuning at 1° per shim, so you can dial in each side independently.

What years and trims does this fit?

This kit fits the 2020-2025 Can-Am Defender HD10 chassis across all trims (DPS, XT, XT Cab, Limited, Lone Star, X mr) including Defender MAX (4-seat) variants.

Why ZBroz Racing

ZBroz Racing pioneered the Maximum Ground Clearance A-arm design for ATVs and snowmobiles in 2002, then brought that proven MGC platform to UTVs in 2008 with the RZR 800 LT kit — before anyone else in the industry. Every ZBroz Can-Am Defender HD Pro A-arm is engineered and built in Logan, Utah by the same team that has been winning races since 1998. When you buy ZBroz, you're investing in a legacy of performance, precision, and trust — engineered by racers who know exactly what your machine needs to conquer any terrain.

Order Yours Today

Take your Can-Am Defender HD10 to the next level with the ZBroz HD Pro +2 Forward Camber Adjustable A-Arm Kit. Order from Dunes 2 Dezert SXS.

Install Video

Watch the official ZBroz Racing install walkthrough for the Can-Am Defender +2 Forward A-Arms.
