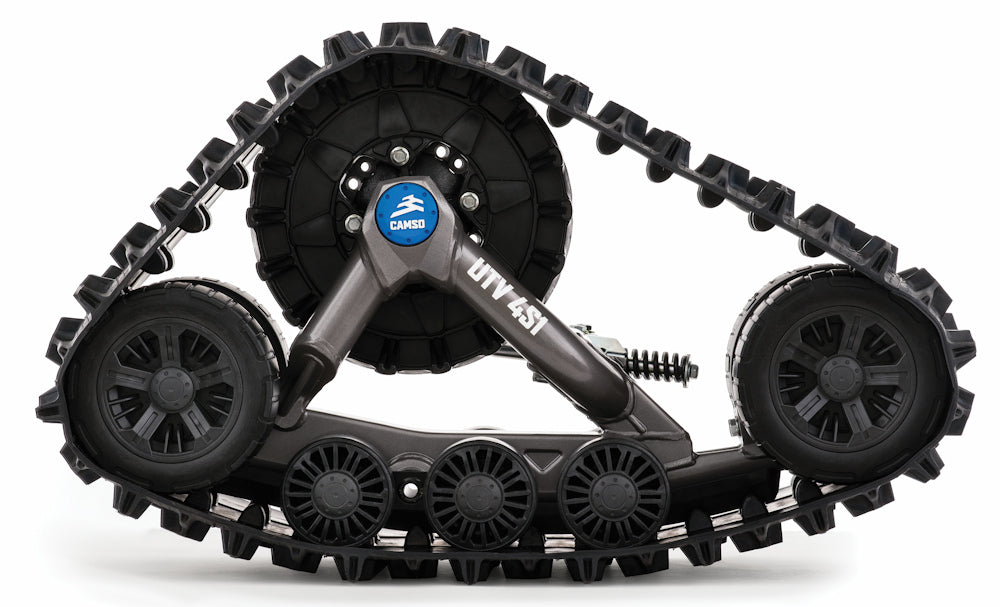

The Camso UTV 4S1 track kit for the 2016 Kubota RTV-X1140 Sheet-Metal Arm replaces all four wheels with rubber track systems so your machine keeps moving through deep snow instead of digging in. It ships as four track systems (two front, two rear) plus the adapted mount kit Camso specifies for this vehicle, putting about 2,520 sq. in. of track on the ground for flotation and traction.
If you are shopping for Kubota RTV tracks or Kubota RTV track kit, this is the kit Camso lists for the Kubota RTV-X1140 Sheet-Metal Arm. Like all Camso side by side tracks, it is sold as a complete set of four track systems, not individual tracks.
Key Features
- Camso UTV 4S1 system built for side-by-sides from 400 to 1000cc, matched to the Kubota RTV-X1140 Sheet-Metal Arm by an adapted mount kit
- Internal-drive track systems on a carbon steel frame
- Approx. 2,520 sq. in. contact patch with 1.125 in lugs front and rear
- Wider rear tracks (14 in) than front tracks (12.5 in)
- Camso rates the UTV 4S1 to climb 20° hills in deep snow, haul up to 1,000 lb of supplies or feed in deep snow, and tow a 2,500 lb shack at up to 15 MPH across ice and snow
- Backed by a 2-year limited warranty
Built To Solve: RTV-X1140 Snow Traction
- Tires that dig in and high-center the machine in deep or drifted snow
- Lost access to the cabin, fishing spot, feed lot or back acreage once the snow piles up
- Wheel spin on packed snow and ice when you are hauling a load
- Low ground clearance under the chassis on snow-covered trails
Best For: RTV-X1140 Owners Who Ride Through Winter
- Kubota RTV-X1140 owners who need the machine to work in deep snow, not just on cleared ground
- Owners who keep using the machine through winter: hunting, ice fishing, caring for land, or reaching a remote cabin
- Riders who have confirmed their exact Kubota model, trim and year against the fitment list below
Specifications
- Track system: Camso UTV 4S1
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Track width: Front 12.5 in / Rear 14 in
- Track length: Front 98.5 in / Rear 116.7 in
- Lug height: 1.125 in front and rear
- Weight per track system: Front 103 lb / Rear 120 lb
- Ground clearance: Front 16 3/8 in / Rear 16 1/2 in
- Contact patch: Approx. 2,520 sq. in.
- Included: 4 track systems (2 front, 2 rear) and the adapted mount kit for the listed vehicle
- Warranty: 2-year limited warranty
- Manufacturer Part Number: 6522-08-6241
Fitment
- Kubota RTV-X1140 with sheet-metal rear A-arms (2016)
Fitment is taken from Camso's own vehicle application data. Fitment is not guaranteed on unlisted models, trims or years. Installing a track system will change your vehicle's length, width and ground clearance due to the tracks' offset.
FAQ
Will Camso tracks keep my Kubota RTV-X1140 Sheet-Metal Arm from getting stuck in deep snow?
They spread the machine's weight over about 2,520 sq. in. of rubber track instead of four tire contact patches, which gives far more flotation and traction in deep snow than stock tires. Driving style, snow conditions and load still matter, so no track kit makes a machine unstoppable.
Can I haul and tow with this track kit on my Kubota RTV-X1140 Sheet-Metal Arm?
Camso rates the UTV 4S1 to haul up to 1,000 lb of supplies or feed in deep snow and to tow a 2,500 lb shack at up to 15 MPH across ice and snow. Always stay within your Kubota RTV-X1140 Sheet-Metal Arm's own payload and towing ratings.
Which Kubota models and years does this kit fit?
Camso lists this kit for: Kubota RTV-X1140 with sheet-metal rear A-arms (2016). Confirm your exact model, trim and year before ordering.
What comes in the box?
Four Camso UTV 4S1 track systems (two front, two rear) and the adapted mount kit Camso specifies for the listed vehicle.
Is installation difficult, and are modifications needed?
The kit includes the adapted mount kit Camso specifies for this vehicle, and the official Camso installation video below walks through the process. Camso lists no special modification notes for this application.
Should I choose the UTV 4S1, X4S or ENDUR?
Camso positions the X4S for ATVs and mid-size side-by-sides from 400 to 700cc, the UTV 4S1 for side-by-sides from 400 to 1000cc, and the ENDUR for larger side-by-sides of 1000cc and more. The right system is the one Camso lists for your exact vehicle, which for this listing is the UTV 4S1.
Why Camso
Camso builds rubber track systems for ATVs, side-by-sides and snowmobiles, and every Camso UTV 4S1 kit includes the adapted mount kit Camso specifies for the Kubota RTV-X1140 Sheet-Metal Arm. Every kit carries a 2-year limited warranty, and Camso publishes owner's manuals, installation guides and maintenance information for its track systems.
Complete Your RTV-X1140 Winter Track Setup
Before ordering this Camso UTV 4S1 track kit, confirm your Kubota RTV-X1140 Sheet-Metal Arm year, trim and the fitment notes above. RTV-X1140 machines with forged rear A-arms use Camso kit 6522-08-1593 instead. Browse all UTV track systems if your machine is not listed here, and plan your install with the official Camso installation video below. Order from Dunes 2 Dezert SXS and we will ship it to you.
