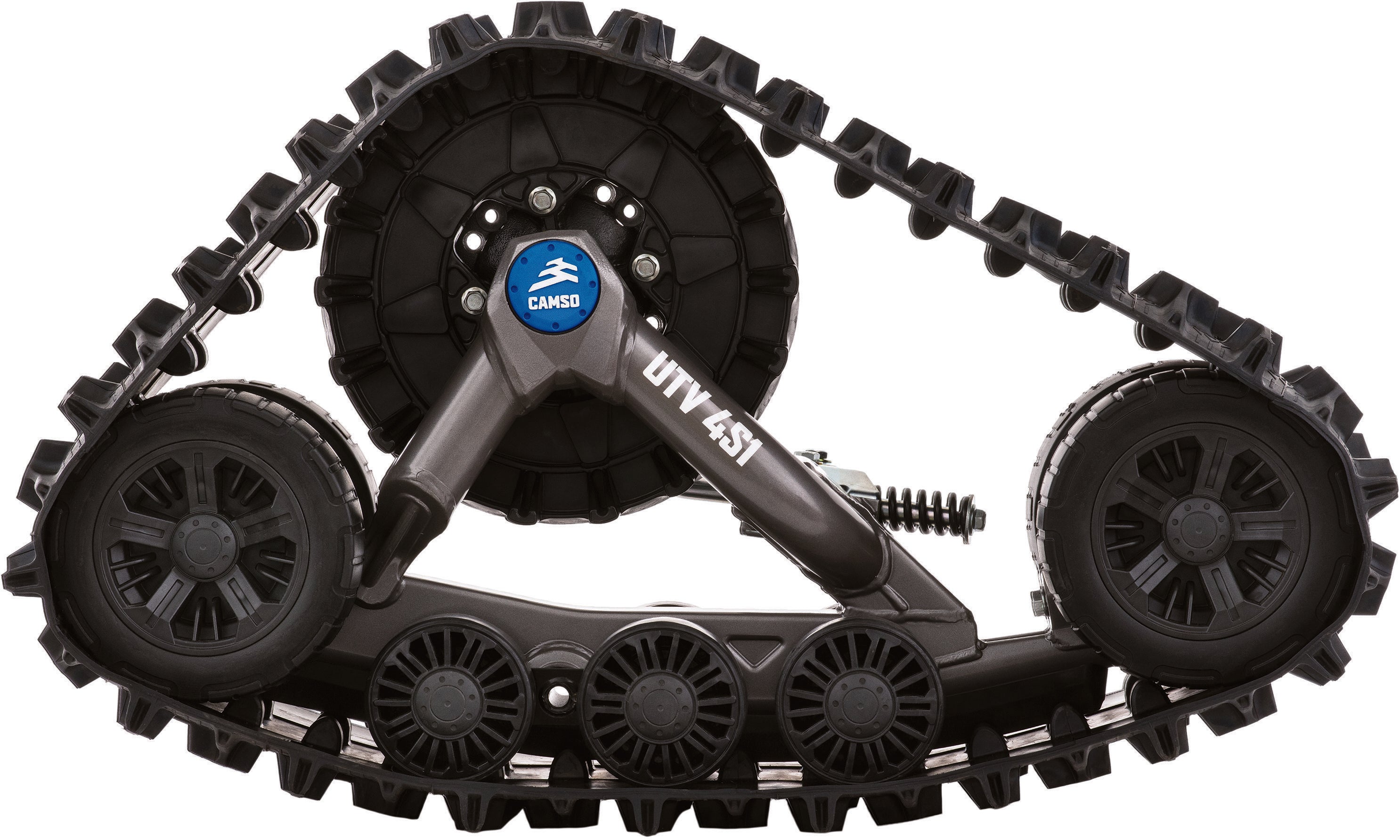

CAMSO UTV 4S1 Track System for Yamaha Wolverine 1000 RMAX
Transform your UTV into a true four-season machine with the CAMSO UTV 4S1 Track System for Yamaha Wolverine 1000 RMAX, engineered for riders who demand maximum capability in the harshest terrain. Whether you're battling deep snow, thick mud, swampy trails, rocky climbs, or remote backcountry terrain, this Yamaha Wolverine RMAX track kit delivers dominant traction, flotation, and stability.
With over 2520 sq. in. of ground contact and an impressive 5-inch increase in ground clearance, the CAMSO 4S1 Track System for Yamaha Wolverine RMAX allows you to confidently navigate powdery snow, rutted trails, broken ice, logs, and steep hillsides. The upgraded Flex-Track front design improves steering response and stability, giving you more control when sidehilling or climbing 20º slopes.
Built to thrive in extreme off-road environments, the CAMSO UTV 4S1 Track System uses a carbon-steel frame, high-density wheels, and oil-bath triple bearings for unmatched longevity. This rugged construction reduces maintenance while providing reliable performance for hauling up to 1000 lbs and towing 2500 lbs on snow or ice—perfect for winter work, hunting, mountain access, or backcountry exploration.
The optimized sprocket ratio enhances torque distribution, ensuring efficient power transfer even in demanding terrain. With reduced vibration, improved flotation, and superior lateral stability, this Wolverine RMAX 1000 track system gives you year-round capability and confidence.
This complete Yamaha-specific kit includes 4 tracks, an adapted mount kit, anti-rotation system, and hardware for a straightforward installation that fits both Wolverine RMAX 2 and RMAX 4 models.
⭐ Top Performance Benefits
✔ Maximum Traction & Climbing Power
• Designed for deep snow + technical climbs
• Wide contact patch boosts flotation
• 1.125" aggressive lugs provide superior grip
✔ Smooth & Comfortable Ride
• Foam-filled idler wheels absorb trail impacts
• Rubber-mounted shafts reduce vibration
• Flex-Track improves steering on uneven surfaces
✔ Extreme Durability
• Carbon-steel frame resists debris & impacts
• High-density tires minimize wear
• Triple hub bearings with oil-bath lubrication
• Bladder-type seals keep water and mud out
✔ Improved Torque + Hauling Power
• Optimized sprocket ratio for better torque
• Haul 1000 lbs or tow 2500 lbs
• Ideal for work, hunting, or winter utility
✔ Enhanced Steering & Stability
• Curved Flex-Track improves high-speed control
• Stable on steep sidehills
• Smooth geometry for long-distance riding
📐 Technical Specifications
Drive & Frame
• Internal drive system
• Carbon steel frame
• Works with 15–18 tooth sprockets
• Anti-rotation system with progressive damper
Track Dimensions
• Front: 98.5" × 12.5" × 1.125"
• Rear: 116.7" × 14" × 1.125"
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: ~6.25 lbs
Wheels & Bearings
• 5.2" double-bearing mid-rollers
• 9.49" flat-free tires
• Triple hub bearings with forged-steel hubs
🔧 What’s Included
• 4 Track Systems — 2 Front, 2 Rear
• Yamaha Wolverine 1000 RMAX Mount Kit
• Anti-Rotation Spring & Limiter
• All Installation Hardware
❓ Frequently Asked Questions
Will this CAMSO 4S1 Track System fit my Yamaha Wolverine RMAX?
Yes — fits the following models (2021–2024):
• Wolverine RMAX 2 1000
• Wolverine RMAX 4 1000
• R-Spec, EPS, SE, Sport, LE, XT-R
How much extra ground clearance does it provide?
Approximately 5 inches depending on setup.
Is it capable of towing and hauling in deep snow?
Yes — tow 2500 lbs and haul 1000 lbs.
How difficult is the installation?
Designed for straightforward installation using the included RMAX-specific mount kit.
How does it handle steep terrain?
Tested and proven on 20º climbs and sidehills.
🚙 Fitment
2021–2024 Yamaha Wolverine RMAX 1000 2 & 4
EPS • R-Spec • SE • Sport • LE • XT-R
