CA Tech USA Segway Super Villain High Clearance Radius Rods
Shipping calculated at checkout
In stock

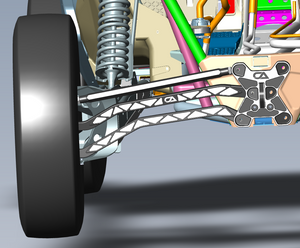

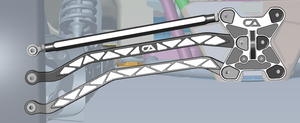

CA Tech USA high clearance radius rods for the Segway Super Villain replace the stock rear rods with 6061 billet aluminum rods that are 1.25 inches thick through the center and over 1.5 inches tall. They run FK brand spherical bearings with a cloth PTFE liner and include offset misalignment spacers that move the rods away from the OEM chassis, which the stock rods can rub at full droop. Choose Black or Raw.
CA Tech USA lists a new-product lead time of up to 5 weeks for this kit.
Key Features
- 6061 billet aircraft grade aluminum, 1.25 inches thick through the center
- Finished height of over 1.5 inches
- FK brand spherical bearings with cloth PTFE liner and stainless steel spacers
- Offset misalignment spacers to clear the OEM chassis at full droop
- Fully rebuildable; heim joints and needed additional hardware included
Built To Solve: Bent Rods and Chassis Rub on the Super Villain
- Stock radius rods bending on rocks and ledges
- OEM rods rubbing the chassis at full droop
- Low rear clearance catching on obstacles
Best For: Super Villain Riders Pushing the Rear Suspension Hard
- Desert, rock and race riders who hit the rear rods
- Owners who want a rebuildable rod set rather than replacing bent stock rods
- Builds pairing them with the CA Tech USA Super Villain pull plate
Specifications
- Material: 6061 billet aircraft grade aluminum
- Thickness: 1.25 inches through the center; height over 1.5 inches
- Bearings: FK brand spherical bearings, cloth PTFE liner
- Set includes: 4 billet high clearance rods, 2 billet straight rods, heim joints, offset misalignment spacers and needed additional hardware
- Hardware: uses factory hardware where possible
- Finish: Black or Raw
- Lead time: up to 5 weeks per CA Tech USA
- Manufacturer Part Number: CA-280-BL (Black), CA-280-RAW (Raw)
Fitment
Listed by CA Tech USA for the Segway Super Villain. We list it for the Super Villain SX20. CA Tech USA does not separately confirm the SX20 Hybrid or publish a model-year range, so contact us before ordering for those. Fitment is not guaranteed on unlisted applications.
FAQ
What is included in the Super Villain radius rod set?
Four billet high clearance rods and two billet straight rods, plus all heim joints and the needed additional hardware. Factory hardware is reused where possible.
Why are offset spacers included?
The OEM rods can rub the chassis at full droop. CA Tech USA includes offset misalignment spacers to move the rods away from the chassis.
How thick are the rods?
1.25 inches thick through the center of the rod, with a finished height of over 1.5 inches.
Are they rebuildable?
Yes. Wear items such as heim joints, bearings, o-rings and seals are sold as rebuild kits.
What does the warranty cover?
CA Tech USA's lifetime warranty covers bending or breaking. Wear items are not covered.
How long until they ship?
CA Tech USA lists a lead time of up to 5 weeks while it builds this new product.
Why CA Tech USA
CA Tech USA builds UTV suspension and chassis parts in Cleveland, Tennessee, uses FK brand spherical bearings in its radius rods, and backs them with a no-hassle lifetime warranty against bending or breaking.
Upgrade Your Super Villain Rear Suspension
Order the CA Tech USA Super Villain high clearance radius rods in Black or Raw and plan around the up-to-5-week lead time. Add the matching billet pull plate to strengthen the radius rod mounting point, and keep a rebuild kit on hand for future heim service.
