Baja Designs XL-R Sport LED Light Pod Pair
Shipping calculated at checkout
In stock
On a winding UTV trail, a narrow beam can leave the edges of a turn in the dark, while nearby lighting may not reach far down the trail. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. Baja Designs XL-R Sport UTV pod lights project light forward using a choice of spot, driving combo or wide cornering optics. The two-pod setup uses a wiring harness and mounting hardware.
Key Features
- Two LED light pods with round outer bezels
- Spot, driving combo and wide cornering beam options
- Driving combo optics blend near-field and distance lighting
- Wide cornering optics spread a 42-degree horizontal beam
- Replaceable lenses and optics through the uService design
- Hardcoated polycarbonate lenses and powder-coated cast aluminum housings
Built To Solve: UTV Trail Lighting for Turns and Distance
- Use the 9-degree spot pattern to illuminate farther down the trail.
- Choose driving combo optics for a blend of near-field and distance light.
- Use the wide cornering pattern to illuminate the sides of tight turns.
- Replace lenses and optics through the uService design.
Best For: UTV Riders Choosing Forward Trail Lights
- Riders looking for a two-pod LED light setup.
- Trail drivers choosing between distance and wider corner coverage.
- UTV owners looking for a universal auxiliary light pair.
- Riders who want replaceable lenses and optics.
Specifications
- Product type: XL-R Sport LED light pod pair
- Light quantity: 2
- Dimensions: 5.24 in. long × 5.24 in. high × 3.65 in. deep
- Weight: 2.45 lb.
- Wattage: 26 W
- Amperage rating: 2 A
- Average rated life: 49,930 hours
- Lens material: Hardcoated polycarbonate
- Housing and bezel material: Powder-coated cast aluminum
- Mounting hardware material: Stainless steel
- Water resistance: IP69K; waterproof up to 9 ft and pressure washable
- Impact resistance: IK10 compliant
- Warranty: Limited lifetime warranty

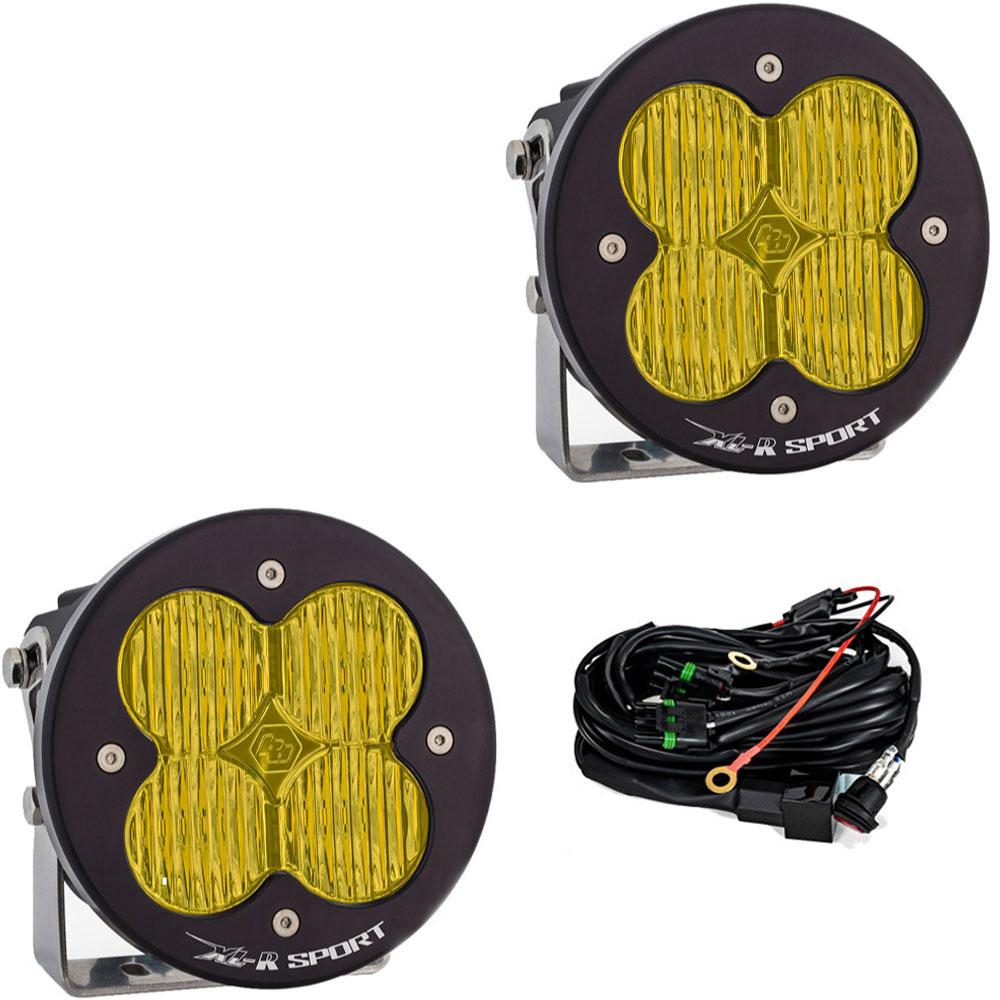

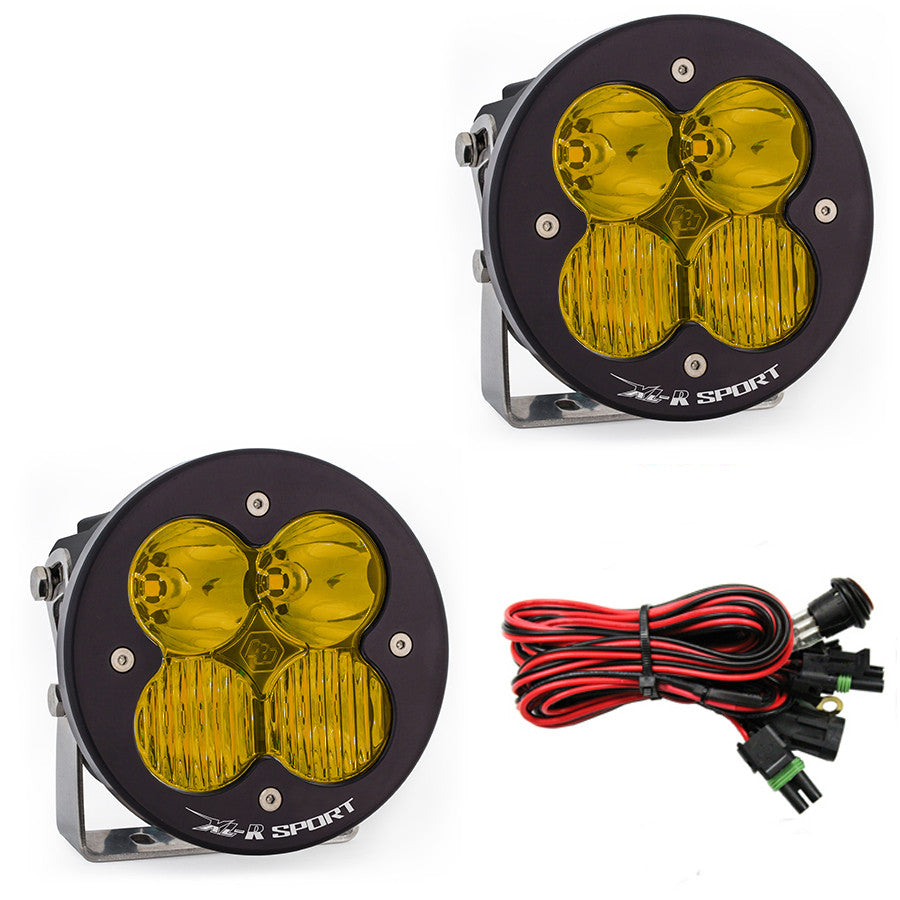

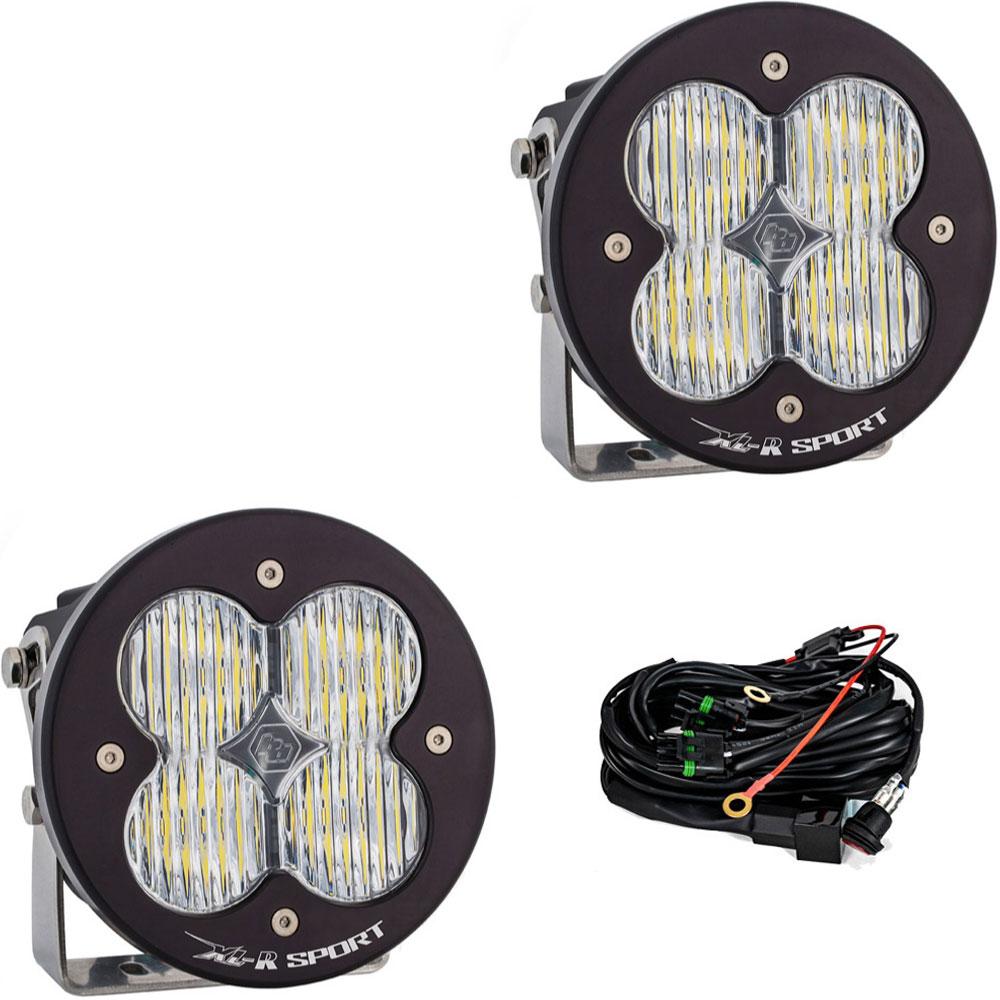

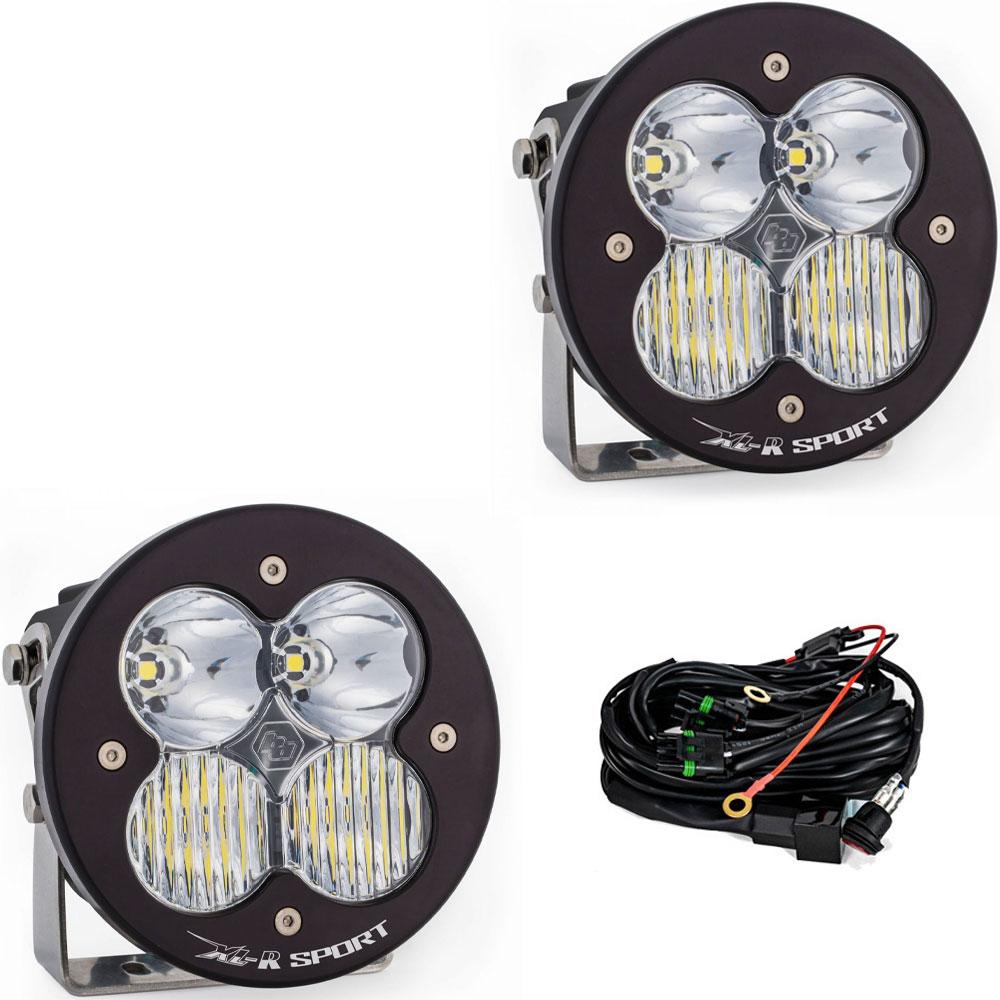

- Manufacturer part numbers: 577801 (Spot / Clear), 577803 (Driving/Combo / Clear), 577813 (Driving/Combo / Amber), 577805 (Wide Cornering / Clear), 577815 (Wide Cornering / Amber)
What's in the Box
- Wiring harness
- Mounting hardware
Fitment
- Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
How do I choose a beam pattern?
Choose spot for a longer, narrower beam, driving combo for a blend of near and distance light, or wide cornering for a broad horizontal beam.
How wide is the wide cornering beam?
The wide cornering pattern has a 42-degree flattened horizontal beam.
How do the pods connect and mount?
The pair uses a wiring harness and mounting hardware. Vehicle-specific mounting and wiring instructions are not specified.
Can the spot pattern serve as the only trail beam?
The spot pattern is designed for use alongside additional wide cornering or driving combo beam lights.
Does the pair have high and low modes without another accessory?
A dimmer is sold separately to enable the high/low feature.
Why Baja Designs
Baja Designs uses replaceable lenses and optics in its uService design for the XL-R Sport.
Choose Your XL-R Sport UTV Pod Lights
Choose a beam pattern and lens color for your trail lighting setup.
