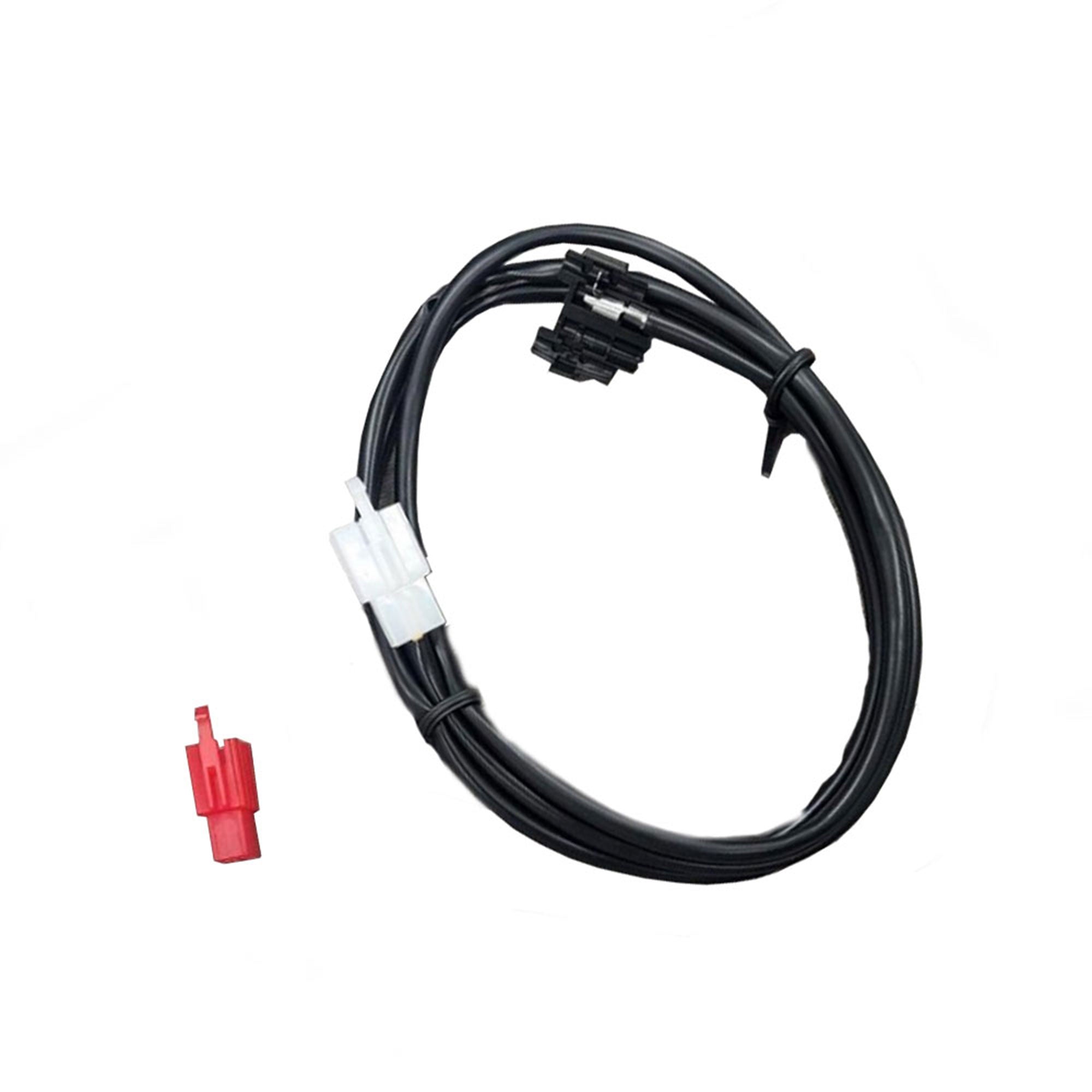

Baja Designs Squadron 2.0 Universal Trigger Harness
Shipping calculated at checkout
In stock
A relay harness switch lead must be connected to a suitable trigger source to activate the lights. A PWM or intermittent signal cannot be used for this connection. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs harness adapter replaces the switch connection on the main harness and uses a constant 12V source to activate the relay harness.
Key Features
- Activates a relay harness from a constant 12V trigger source
- Plugs in place of a white 3-pin switch connector
- Red 4-pin connector installation requires moving the terminal from the white connector
- Trigger source wire is secured in a crimp splice
- Universal trigger harness for Squadron 2.0 pod lights
Built To Solve: Squadron 2.0 Relay Harness Trigger Connection
- Connect a constant 12V source to activate the relay harness.
- Replace the switch connection on a white 3-pin main harness.
- Move the terminal into the red connector for a red 4-pin main harness.
- Crimp the trigger source wire into the splice connector with pliers.
Best For: Squadron 2.0 Pod Light Installers
- Installers connecting Squadron 2.0 pod lights to a relay harness.
- Builders with a constant 12V trigger source.
- Owners working with a white 3-pin main harness connector.
- Installers prepared to move a terminal for a red 4-pin main harness connector.
Specifications
- Trigger signal: Constant 12V
- Main harness connector configurations: White 3-pin or red 4-pin
- Manufacturer part numbers: 60-0050
What's in the Box
- Red connector
Fitment
- Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Can a PWM signal trigger the relay harness?
No. Use a constant 12V signal, not a PWM or intermittent signal.
How is the trigger source wire connected?
Place the 12V source wire into the splice teeth and crimp the connector shut with pliers.
What changes if the main harness has a red connector?
For a red 4-pin connector, remove the terminal from the adapter's white connector and insert it into the red connector.
Where should the trigger harness wires be routed?
Tie the wires away from sharp, hot and rotating components.
Will this fit my machine?
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Why Baja Designs
Baja Designs uses a trigger adapter to activate a relay harness from a constant 12V source.
