Baja Designs Squadron 2.0 2-Light Wire Harness
Shipping calculated at checkout
In stock

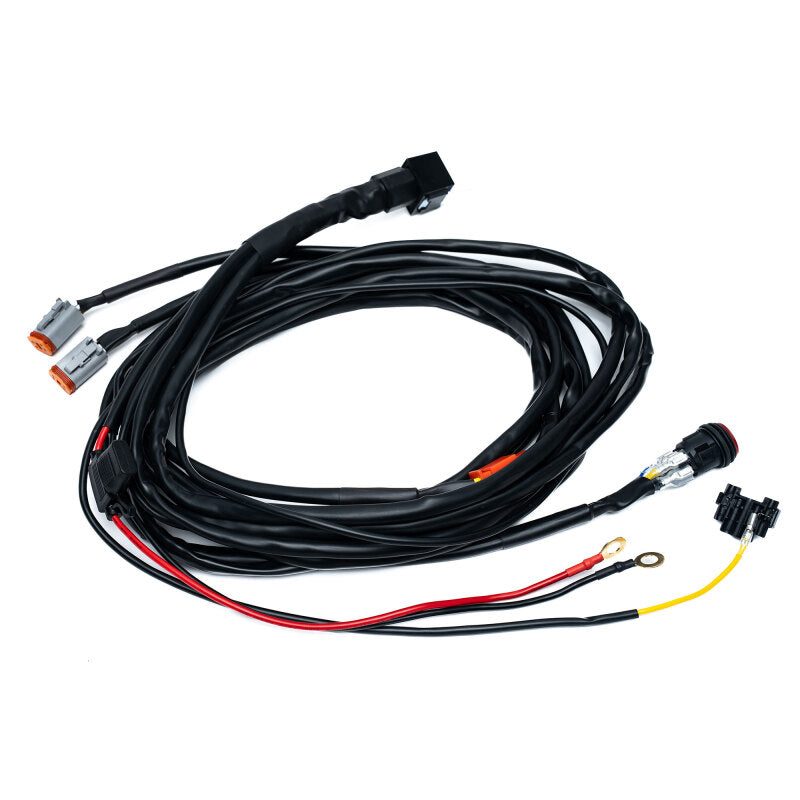

Wiring two Squadron 2.0 lights to a battery and controlling their backlights requires separate connections and switching. Listed for: Baja Designs Squadron 2.0 Pro lights; Baja Designs Squadron 2.0 Sport lights. Fitment is not guaranteed on unlisted applications. The Baja Designs harness connects directly to the battery and uses two 4-pin Deutsch-style connector leads and a three-position toggle switch for light and backlight control.
Key Features
- Two leads with 4-pin Deutsch-style connectors
- Direct battery connection
- Three-position toggle switch for on-off and backlight control
- 170-watt maximum per connector
- 270-watt maximum across the harness
- Two 96-inch light branches
Built To Solve: Squadron 2.0 Dual-Light and Backlight Wiring
- Connect two Squadron 2.0 light leads directly to battery power.
- Control the main lights and backlighting through a three-position switch.
- Route each light branch up to 96 inches from the harness.
- Plan additional Pro or Sport lights around the connector and total harness wattage limits.
Best For: Squadron 2.0 Pro and Sport Light Installers
- Installers wiring two Squadron 2.0 light leads to a battery
- Squadron 2.0 owners adding backlight control at a three-position switch
- Pro light setups that may use splitter harnesses for additional lights
- Sport light setups planned around the stated light-count and wattage limits
Specifications
- Leads: 2
- Connector: 4-pin Deutsch-style
- Switch: 3/4-inch, 3-position
- Harness power limit: 270 watts maximum
- Connector power limit: 170 watts maximum per connector
- Battery-to-relay length: 24 inches
- Relay-to-switch length: 108 inches
- Light branch lengths: 96 inches each
- Manufacturer part numbers: 640055
What's in the Box
- Two-lead wire harness with 4-pin Deutsch-style connectors and three-position toggle switch
Fitment
- Baja Designs Squadron 2.0 Pro lights
- Baja Designs Squadron 2.0 Sport lights
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Where does the Squadron 2.0 harness connect for power?
The dual-lead harness connects directly to the battery.
What wattage limits apply to the two-light harness?
Each connector is rated for 170 watts maximum, and the entire harness is rated for 270 watts maximum.
Can additional Squadron 2.0 lights connect without extra wiring?
The stated higher light counts require appropriate splitter harnesses.
Do Squadron 2.0 Pro and Sport setups use the same stated light-count range?
No. The listed range is two to four Pro lights or two to eight Sport lights with splitters.
Will this fit my machine?
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Why Baja Designs
Baja Designs pairs two 4-pin Deutsch-style leads with a three-position switch and backlight integration on this Squadron 2.0 harness.
Wire Your Squadron 2.0 Lights
Choose the Baja Designs two-lead harness for battery-connected Squadron 2.0 light and backlight control.
