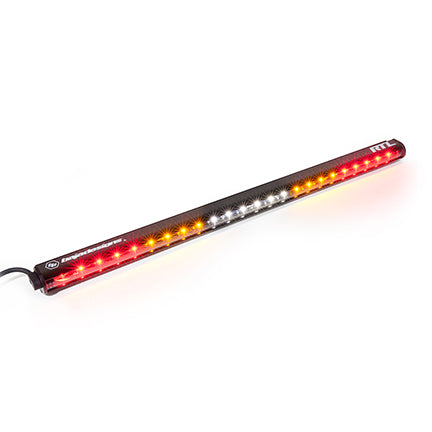

Dust and fog can make the rear of an off-road vehicle harder for following drivers to see. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs chase light uses a five-section LED bar with red and amber sections and a choice of center light color to improve rear visibility.
Key Features
- Five-section RTL LED bar with red outer sections and amber sections
- Clear, blue, green and white configurations with different center-light and amber-section behavior
- 32.125-inch overall length listed for the clear RTL-C
- Black aircraft-grade aluminum housing with hard anodizing
- Hard-coated polycarbonate lens
- Stainless steel mounting hardware
- IP69K water-resistance rating listed for the clear RTL-C
Built To Solve: Off-Road Rear Visibility in Dust and Fog
- Puts red and amber lighting across the rear of the vehicle.
- Uses the center section for a white, blue or green light, depending on configuration.
- Offers flashing amber sections on the blue, green and white configurations.
- Gives the clear configuration solid amber sections and a white center light.
Best For: Off-Road Drivers Adding Rear Visibility
- Drivers looking for rear marker lighting on dusty trails.
- Race participants considering the blue or green RTL configurations for rear-light requirements.
- UTV owners selecting a rear light bar and a separate UTV wiring harness.
- Vehicle builders who can accommodate the listed 32.125-inch clear RTL-C bar.
Specifications
- Dimensions, clear RTL-C: 32.125 in. long × 1.5 in. high × 2.15 in. deep
- Weight, clear RTL-C: 3.75 lb
- Housing: Black aircraft-grade aluminum with Mil-Spec hard anodizing
- Lens material: Hard-coated polycarbonate
- Mounting hardware material: Stainless steel
- Water resistance, clear RTL-C: IP69K; waterproof up to 9 ft and pressure washable
- Power, clear RTL-C: 30 W brake light; 12 W running light; 18 W white light
- Manufacturer part numbers: 103002 (Blue), 103002 (Clear), 103003 (Green), 103005 (White)
What's in the Box
- Selected RTL bar
- Mounting hardware
Fitment
- Universal; verify mounting space and wiring for the application.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the RTL bar come with a wiring harness?
No. The wiring harness must be obtained separately.
How does the RTL bar mount?
The bar mounts using the supplied mounting hardware.
How long is the clear RTL-C bar?
The listed overall length is 32.125 inches.
Does the clear RTL-C have turn signals?
The clear RTL-C is listed without turn signals.
Which wiring harness should I choose?
Choose the automotive RTL harness for an automotive application or the UTV RTL harness for a UTV application.

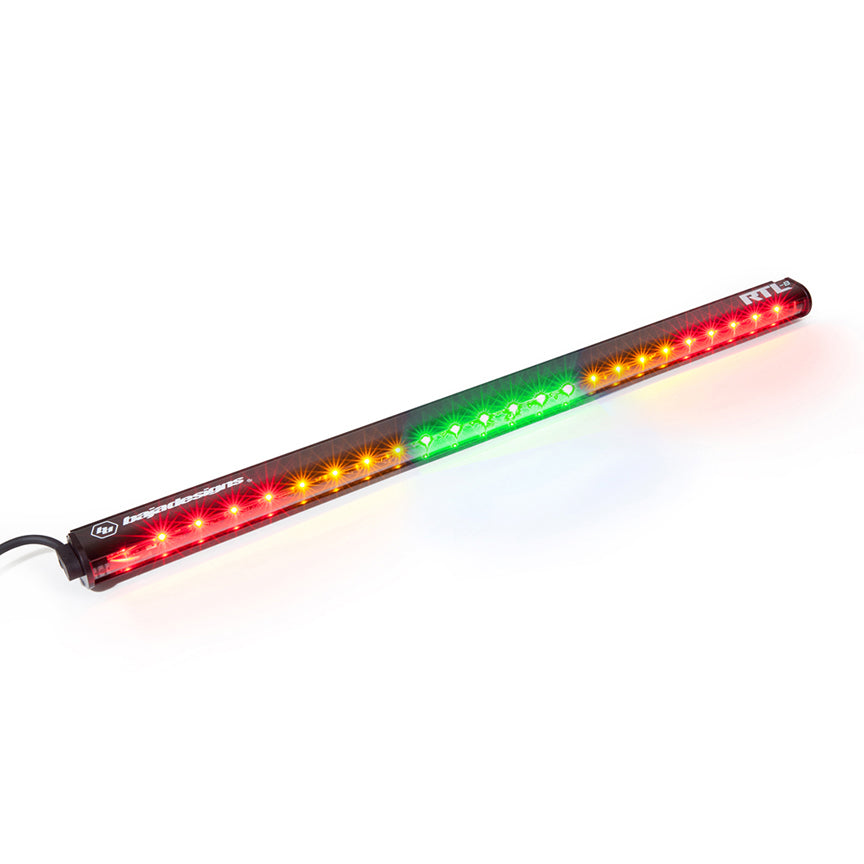

How do the blue and green versions differ from the clear version?
Blue and green have matching center-light colors and a flashing amber section. Clear has a white center light and solid amber sections.
Why Baja Designs
Baja Designs offers RTL configurations with different center-light colors and amber flashing behavior.
Choose Your Baja Designs RTL Rear Light Bar
Choose the RTL configuration for your rear-light setup and check which wiring harness your vehicle requires.
