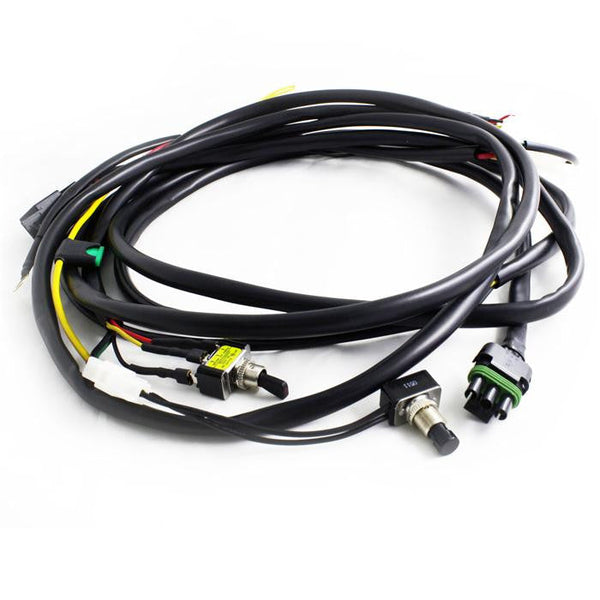

Baja Designs OnX6/XL Hi-Power Wiring Harness
Shipping calculated at checkout
Low stock
Wiring XL Pro, XL Sport or OnX6 plus LED lights requires a connection to the battery and a way to control the lights and dim mode. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs wiring harness connects at the battery with ring terminals and uses an on/off toggle switch and a dim-mode button to control the lights.
Key Features
- On/off toggle switch and dim-mode button
- Heavy-duty wire gauge with protective sheathing
- 100 inches between the battery ring terminals and weatherpack
- Three-pin connections and splice connectors
- Rated for a maximum of two lights and 355 watts
- Relay and fuse in the harness
Built To Solve: OnX6 and XL Light Wiring Control
- Turn the LED lights on or off with the toggle switch.
- Select dim mode with the toggle button.
- Connect to the battery using ring terminals.
- Use the 100-inch run between the battery terminals and weatherpack for bumper or roof mounting.
Best For: XL and OnX6 Light Installers
- Owners wiring Baja Designs XL Pro or XL Sport lights
- Owners wiring Baja Designs OnX6 plus LED lights
- Installers connecting no more than two lights
- Builders planning a bumper or roof light location
Specifications
- Application: OnX6/XL
- Maximum lights: 2
- Wiring length: 100 inches between battery ring terminals and weatherpack
- Terminal connector: Three-pin connections
- Terminal type: Splice connectors
- Wire gauge description: Heavy-duty wire gauge
- Manufacturer part numbers: 640119
What's in the Box
- On/off toggle switch
- Splitter
- Battery ring terminals
- Relay
- Sheathing
- Fuse
Fitment
- Universal; for Baja Designs XL Pro, XL Sport and OnX6 plus LED lights
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the harness come with mounting hardware?
No. Mounting hardware is not supplied.
Where does the harness connect at the battery?
The battery end uses ring terminals.
How long is the run to the weatherpack?
It measures 100 inches from the battery ring terminals to the weatherpack.
Can this harness control more than two lights?
No. The specified maximum is two lights.
Which Baja Designs lights can use this harness?
It is specified for XL Pro, XL Sport and OnX6 plus LED lights.
Why Baja Designs
Baja Designs specifies this harness for its XL Pro, XL Sport and OnX6 plus LED lights, with separate on/off and dim-mode controls.
Wire Your Baja Designs XL or OnX6 Lights
Order the Baja Designs OnX6/XL hi-power wiring harness from Dunes 2 Dezert SXS.
