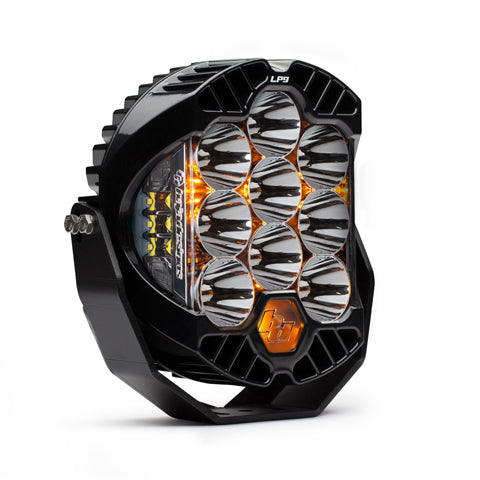

A narrow forward beam can leave the sides of a trail poorly lit while concentrating light farther ahead. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. Baja Designs pods use nine forward-projecting LEDs and six peripheral LEDs. The LP9 Pro casts a 200-degree peripheral spread, with a choice of driving/combo or spot optics.
Key Features
- Nine forward-projecting LEDs and six Integrated Peripheral Technology LEDs
- 200-degree peripheral light spread
- Driving/combo optics blend 42-degree driving and 8-degree spot beams
- Spot pattern focuses an 8-degree beam farther down the trail or road (where permitted)
- Direct Ducted Cooling routes air over the rear heat sinks
- High, low and daytime running backlight modes
- Replaceable lenses and optics through the uService design
Built To Solve: LP9 Pro Trail and Peripheral Lighting
- The peripheral LEDs spread light to the sides instead of relying only on the forward beam.
- Driving/combo optics blend near-field and distance illumination in one light.
- The spot pattern concentrates light farther ahead in a narrower beam.
- Air travels through the housing and over the rear heat sinks for cooling.
Best For: Riders Choosing LP9 Pro Pod Lights
- Riders choosing a driving/combo beam for near-field and distance coverage
- Riders adding a narrow spot beam alongside wider auxiliary lights

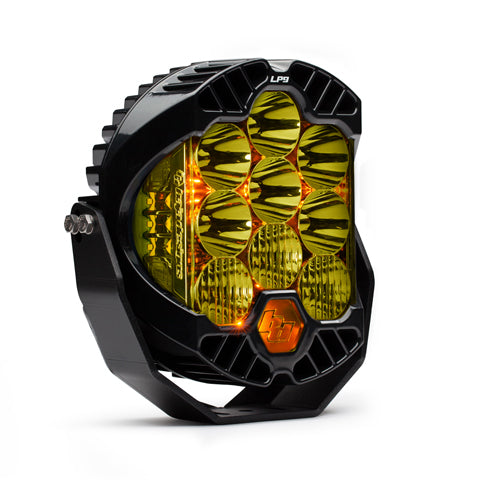

- Buyers choosing clear or amber lens options

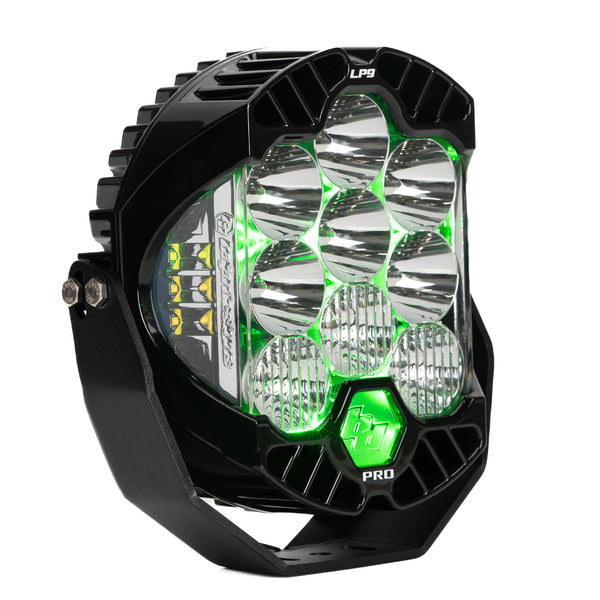

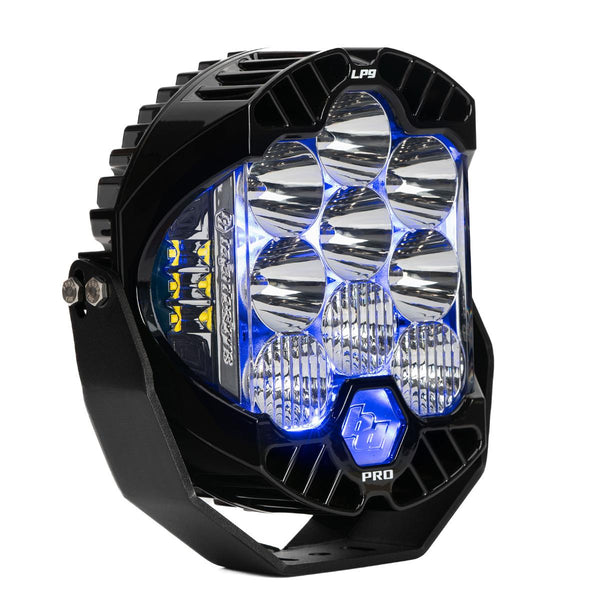

- Show or photo-shoot builders considering red, blue or green backlighting
Specifications
- Application: Universal
- Brightness: 12,547 lumens
- Amperage: 9 A
- Wattage: 124.200 W
- Dimensions: 8 in. high, 8 in. long, 3.250 in. deep
- Weight: 6.500 lb
- Housing material: Powder-coated cast aluminum
- Lens material: Hardcoated polycarbonate
- Terminal connector: DT06-4S Deutsch
- Water resistance: IP69K; waterproof up to 9 ft and pressure washable
- Rated life: 49,930 hours
- Light quantity: 1
What's in the Box
- Mounting hardware
Fitment
- Universal; no vehicle-specific applications or years specified
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the LP9 Pro come with a wiring harness?
No. A wiring harness is not included.
What connector does the LP9 Pro use?
The specified terminal connector is a DT06-4S Deutsch.
How large is the LP9 Pro?
The light measures 8 inches high, 8 inches long and 3.250 inches deep.
Should I choose the driving/combo or spot pattern?
Choose driving/combo for a blend of near-field and distance light. Choose spot for a narrower beam farther ahead, used alongside wider auxiliary lights.
Will this fit my machine?
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Why Baja Designs
Baja Designs uses Direct Ducted Cooling on the LP9 Pro to move air from the front of the housing over the rear heat sinks.
Choose Your Baja Designs LP9 Pro Beam
Select the LP9 Pro beam pattern, lens color and backlight option for your lighting setup.
