Baja Designs Squadron 2.0 Backlight Wire Harness
Shipping calculated at checkout
In stock
Squadron 2.0 Sport and Pro backlights need a connection to vehicle wiring or a fuse box; the main light circuit alone does not provide that connection. Listed for: Baja Designs Squadron 2.0 Sport or Pro backlights. Fitment is not guaranteed on unlisted applications. The four-lead Deutsch harness connects Squadron 2.0 backlights to vehicle wiring using a Scotchlok or to a fuse box using fuse taps. Its light branch measures 96 inches.
Key Features
- Deutsch harness add-on for Squadron 2.0 backlight integration
- Four leads support up to four Sport or Pro backlights
- Scotchlok connection for vehicle wiring
- Fuse taps for fuse box connection
- 96-inch light branch
- Dedicated to backlight integration rather than the main light circuit
Built To Solve: Squadron 2.0 Backlight Wiring
- Connect up to four Squadron 2.0 backlights through one four-lead harness.
- Use the Scotchlok to connect the backlight circuit to vehicle wiring.
- Use the fuse taps for a fuse box connection.
- Route the 96-inch light branch to the Squadron 2.0 lights.
Best For: Squadron 2.0 Sport and Pro Light Owners
- Owners connecting Squadron 2.0 Sport backlights.
- Owners connecting Squadron 2.0 Pro backlights.
- Builders wiring up to four Squadron 2.0 backlights.
- Owners choosing a fuse box or vehicle-wiring connection for backlight integration.
Specifications
- Maximum Sport lights: 4
- Light branch length: 96 inches (8 feet)
- Manufacturer part numbers: 64-0098

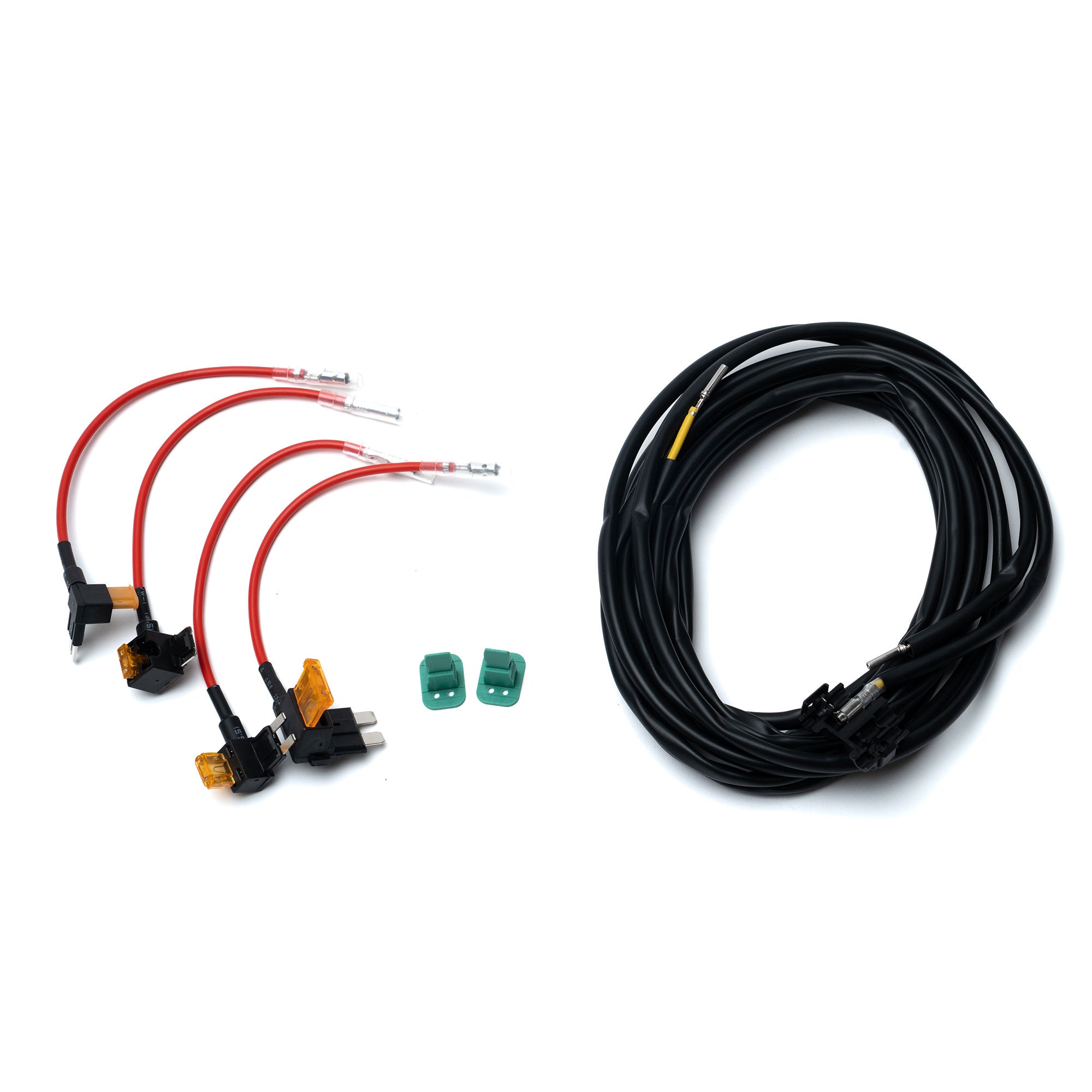

What's in the Box
- Scotchlok
- Four fuse taps
Fitment
- Baja Designs Squadron 2.0 Sport or Pro backlights
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Can this Squadron 2.0 harness run the main light circuit?
No. This harness is only for backlight integration.
How can the Squadron 2.0 backlight circuit connect to vehicle wiring?
A Scotchlok connects it to vehicle wiring; fuse taps provide a fuse box connection.
How much routing length is available on the backlight branch?
The light branch measures 96 inches, or 8 feet.
Is there a limit on the number of Squadron 2.0 backlights?
The harness is intended for up to four backlights.
Which Squadron 2.0 light models can use this backlight harness?
Choose it for Squadron 2.0 Sport or Pro backlights. The stated maximum is four of either model.
Why Baja Designs
Baja Designs specifies this four-lead Deutsch add-on for Squadron 2.0 Sport and Pro backlights.
Connect Squadron 2.0 Backlights
Order the Baja Designs Squadron 2.0 backlight wire harness from Dunes 2 Dezert SXS.
