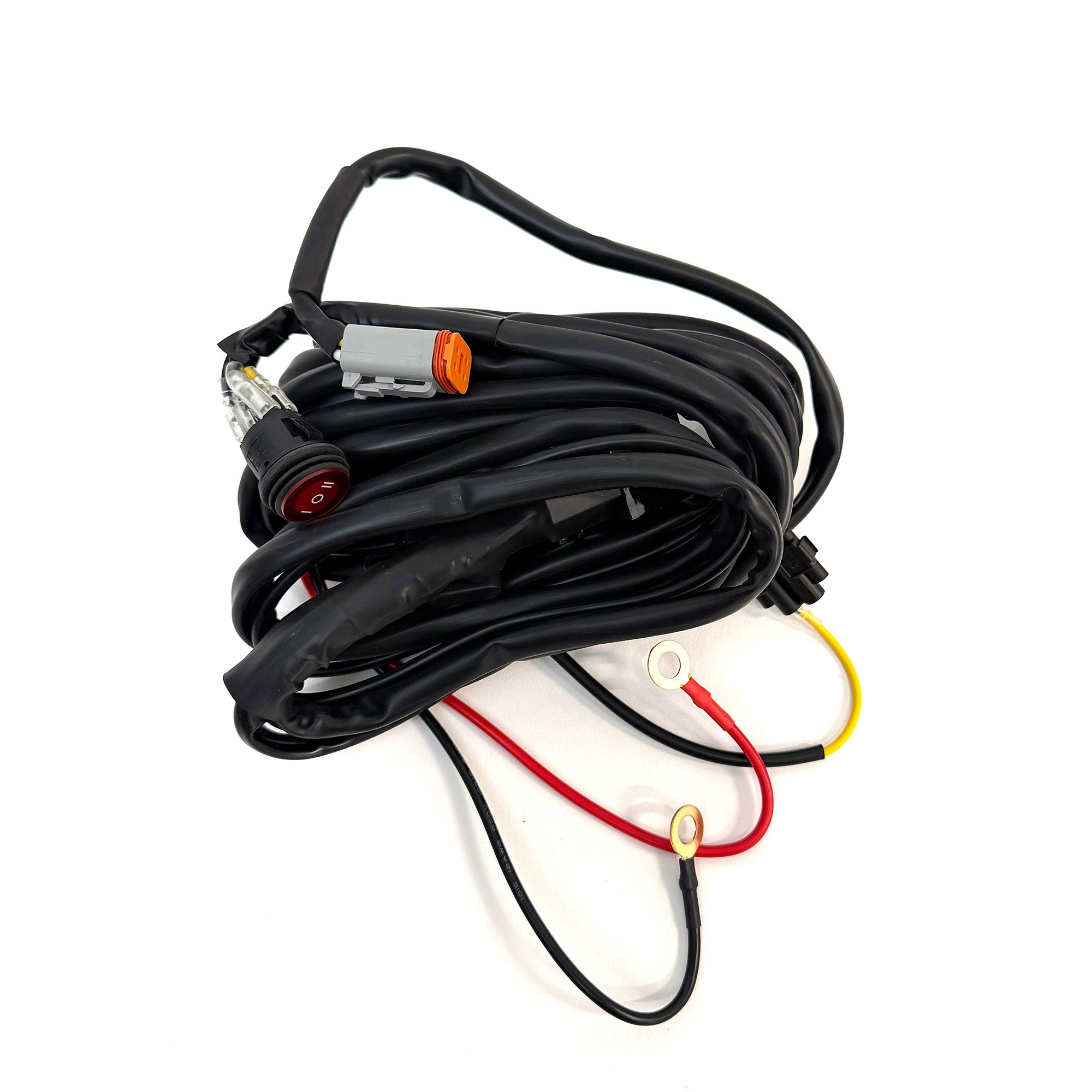

Baja Designs Universal Squadron 2.0 Wire Harness
Shipping calculated at checkout
In stock
Squadron 2.0 pod lights need a way to connect to the battery and control the backlight as well as the main light. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs wiring harness connects directly to the battery and uses a three-position toggle to control the light and backlight trigger.
Key Features
- Four-pin Deutsch-style single-light connection
- Three-position on/off/on toggle switch
- Direct battery connection
- Switch and trigger for backlight integration
- One light lead
- 170-watt maximum power rating
Built To Solve: Squadron 2.0 Pod Light Wiring and Backlight Control
- Connects a Squadron 2.0 light directly to the battery.
- Controls the light and backlight trigger with a three-position toggle.
- Routes one light lead through a four-pin Deutsch-style connection.
- Supports additional Squadron 2.0 lights with appropriate splitter harnesses, within the stated limits.
Best For: Squadron 2.0 Pod Light Installers
- Installers wiring a single Squadron 2.0 Pro or Sport light.
- Builders using a three-position toggle for light and backlight control.
- Installers planning up to two Squadron 2.0 Pros with appropriate splitter harnesses.
- Installers planning up to four Squadron 2.0 Sports with appropriate splitter harnesses.
Specifications
- Connector: 4-pin Deutsch-style
- Switch: 3/4-inch, three-position toggle
- Harness type: Toggle on/off/on
- Maximum power: 170 watts, approximately 13 amps at 13.5 volts
- Light leads: 1
- Battery to relay length: 24 inches
- Relay to switch length: 108 inches
- Light branch length: 96 inches
- Manufacturer part numbers: 60-0058
What's in the Box
- Four-pin Deutsch-style single-light harness
- Three-position toggle switch
Fitment
- Universal fitment for Squadron 2.0 Pro and Sport pod lights
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
What is the harness power limit?
The maximum is 170 watts, approximately 13 amps at 13.5 volts.
How long is the light branch?
The light branch measures 96 inches, or 8 feet.
Where does the harness connect for power?
It connects directly to the battery.
How many Squadron 2.0 lights can the harness support?
With appropriate splitter harnesses, it can support up to two Pros or four Sports.
Is this harness a choice for controlling a Squadron 2.0 backlight?
Yes. Choose it when you want switch and trigger control for the backlight.
Why Baja Designs
Baja Designs pairs a four-pin Deutsch-style light connection with a three-position toggle and backlight trigger on this harness.
