Baja Designs Squadron 2.0 Wire Harness

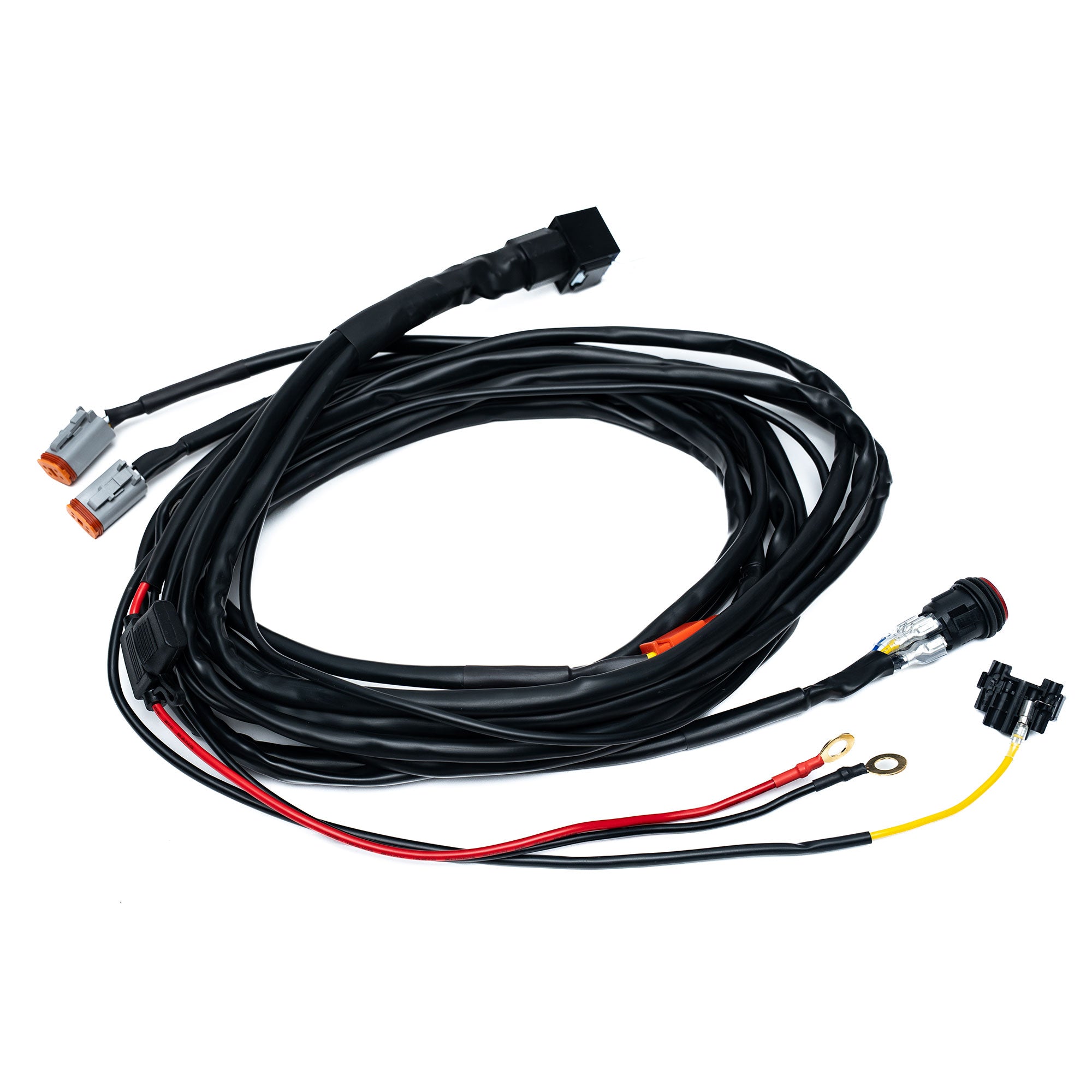

Connecting Squadron 2.0 pod lights directly to a battery also calls for a way to switch the lights and their backlights without wiring each function separately. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs wiring harness connects to the battery and uses a three-position toggle switch to control the lights and backlight. Two leads use 4-pin Deutsch-style connectors.

Key Features

• Two light leads with 4-pin Deutsch-style connectors
• Three-position toggle switch for light and backlight control
• Direct battery connection
• 270-watt maximum for the complete harness
• 170-watt maximum per connector
• Compatible with additional Squadron 2.0 lights using appropriate splitter harnesses

Built To Solve: Squadron 2.0 Light and Backlight Wiring

• Connect Squadron 2.0 pod lights directly to the battery.
• Control the lights and backlight through a three-position switch.
• Run two light branches from one harness.
• Plan additional lights around the connector and total harness wattage limits.

Best For: Squadron 2.0 Pod Light Installers

• Owners wiring two Squadron 2.0 light branches to a battery
• Installers who want switched backlight control
• Builders planning a multi-light setup with appropriate splitters
• Buyers checking branch lengths and wattage before wiring pod lights

Specifications

• Leads: 2
• Connector: 4-pin Deutsch-style
• Switch: 3/4-inch, 3-position
• Maximum harness power: 270 watts, approximately 20 amps at 13.5 volts
• Maximum connector power: 170 watts, approximately 13 amps at 13.5 volts
• Battery-to-relay length: 24 inches
• Relay-to-switch length: 108 inches
• Light branch lengths: 96 inches each
• Manufacturer part numbers: 64-0055

What's in the Box

• Three-position toggle switch

Fitment

• Universal fitment for Squadron 2.0 pod lights

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

How does the harness connect to power?

It connects directly to the battery and uses a three-position toggle switch for light and backlight control.

How long are the light branches?

Each light branch is 96 inches long.

What is the harness power limit?

The complete harness is rated for a maximum of 270 watts, and each connector is rated for a maximum of 170 watts.

How do I add more lights to a lead?

Additional Squadron 2.0 lights require appropriate splitter harnesses. Check the wattage limits when planning the branches.

Does the light count differ between Squadron 2.0 Pro and Sport?

Yes. The stated maximum is two Pro lights or five Sport lights per lead with appropriate splitters. The separate Sport total is listed as eight with splitters, so confirm the intended Sport configuration before ordering.

Why Baja Designs

Baja Designs pairs two 4-pin Deutsch-style light leads with a three-position switch and backlight integration on this Squadron 2.0 harness.

Wire Your Squadron 2.0 Pod Lights

Check your light count, branch lengths and wattage before ordering the Baja Designs Squadron 2.0 harness.
