XTC Kawasaki Ridge Turn Signal Kit (2024-2027)
Shipping calculated at checkout
In stock
On a Kawasaki Ridge, a turn signal left flashing after a turn can be easy to miss. A timer that cancels too early while waiting at a light can also leave the signal off before the turn. Listed for: Kawasaki Ridge 2024 - 2027; Kawasaki Ridge Crew 2024 - 2027. Fitment is not guaranteed on unlisted applications. The billet lever starts one of three signal timers. Smart Brake Hold pauses the countdown when the brakes are applied, and the harness plugs inline with the factory rear lights.
Key Features
- Billet aluminum turn lever with manual signal cancellation
- Three automatic cancellation timers: 8, 20 and 75 seconds
- Smart Brake Hold pauses the timer while the brakes are applied
- Vehicle-specific harness plugs inline with the factory rear taillight harness
- Opposing brake light operates while the signaling side flashes
- Hazard and horn control on a custom rocker switch
- Auxiliary power output for a license plate light or whip lights
Built To Solve: Kawasaki Ridge Signal Timing and Wiring
- Use a quick lever press for an 8-second signal cycle.
- Hold the lever longer to select a 20- or 75-second cycle.
- Pause the signal countdown with the brake applied at a light.
- Connect to the rear factory taillight harness without cutting wires.
- Cancel an active signal manually with a second lever press.
Best For: Kawasaki Ridge Riders Adding Turn Signals

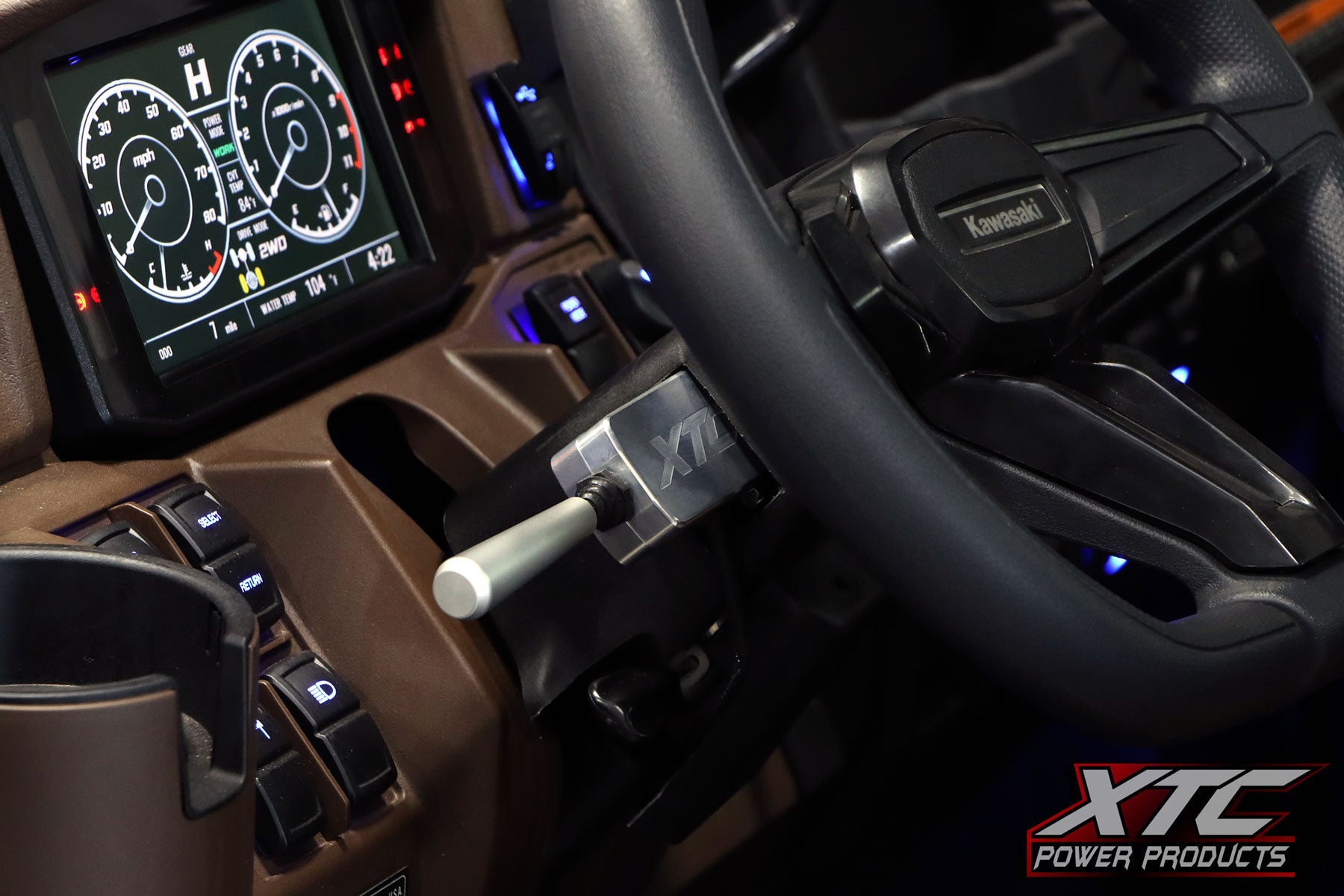

- Riders who prefer a billet lever over a standard signal rocker
- Riders who want timed cancellation for lane changes and turns

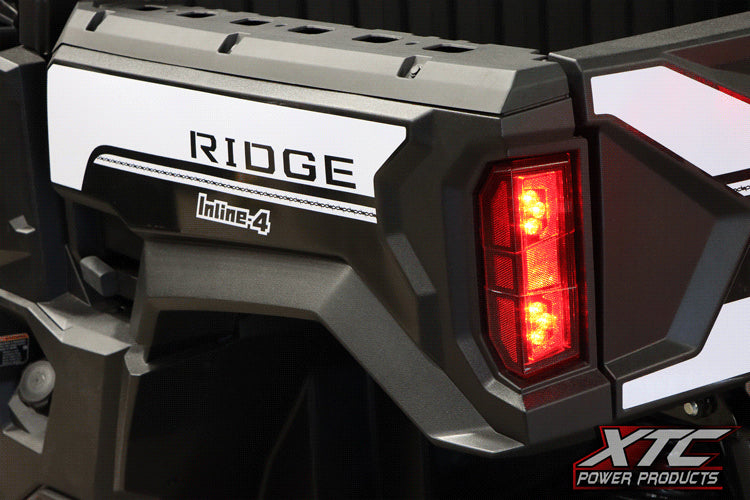

- Ridge owners who want to use the factory rear lights for signaling
Specifications
- Signal timer settings: 8, 20 or 75 seconds
- Turn lever material: Billet aluminum
- Auxiliary output use: License plate light or whip lights
- Manufacturer part numbers: ATS-L-KAW-RIDG-DRL

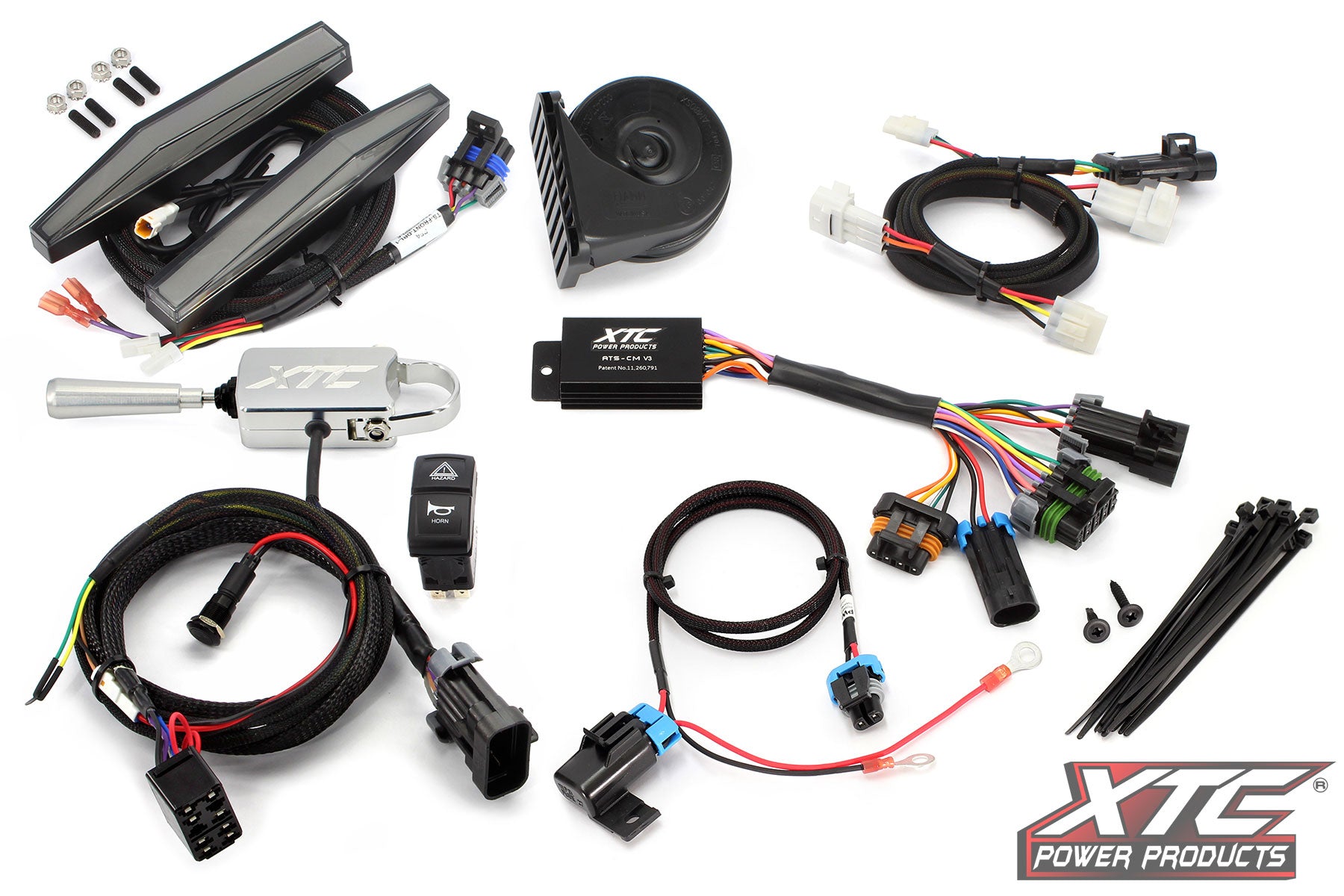

What's in the Box

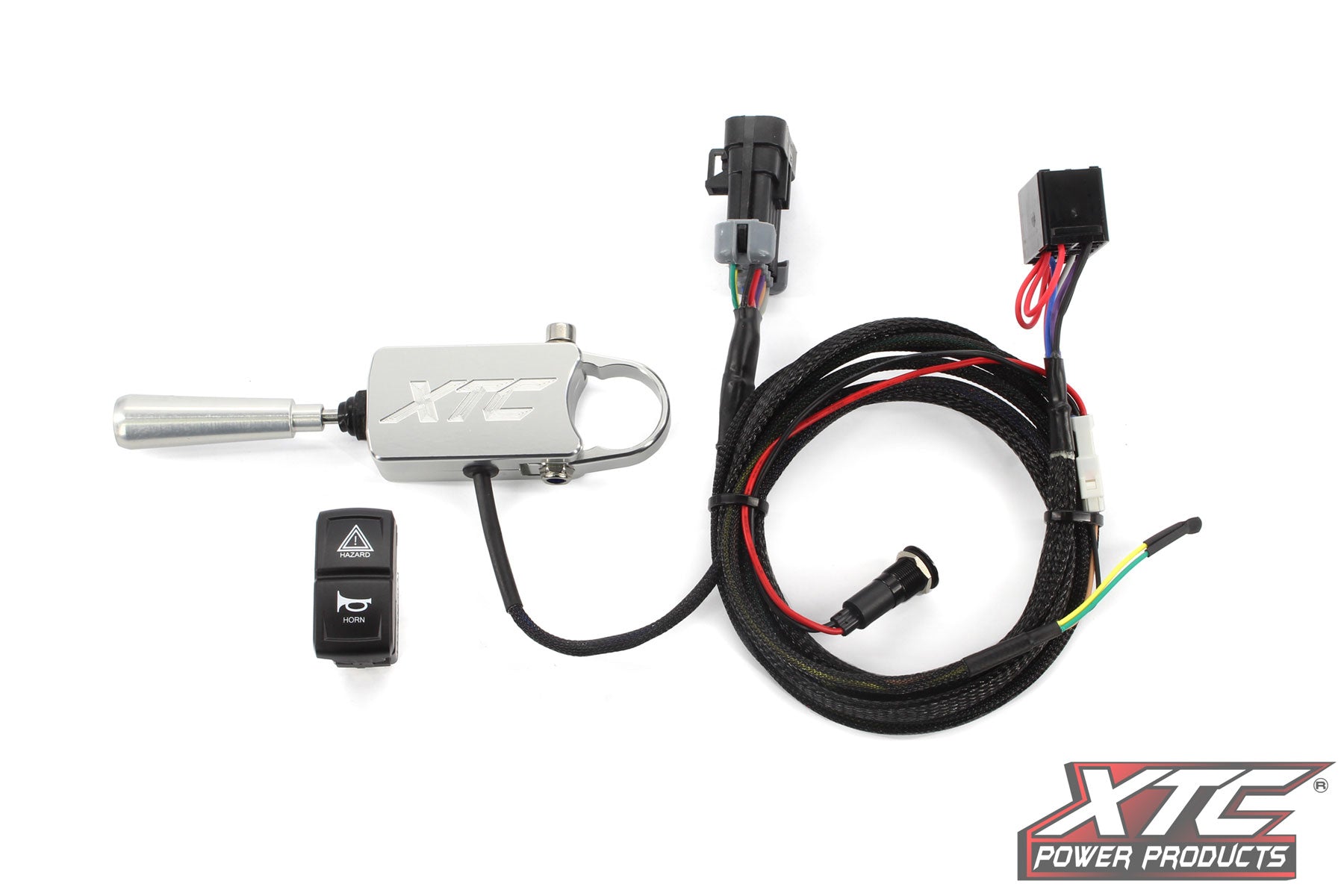

- Billet aluminum turn signal lever
- Hazard/Horn rocker switch
- FIAMM horn

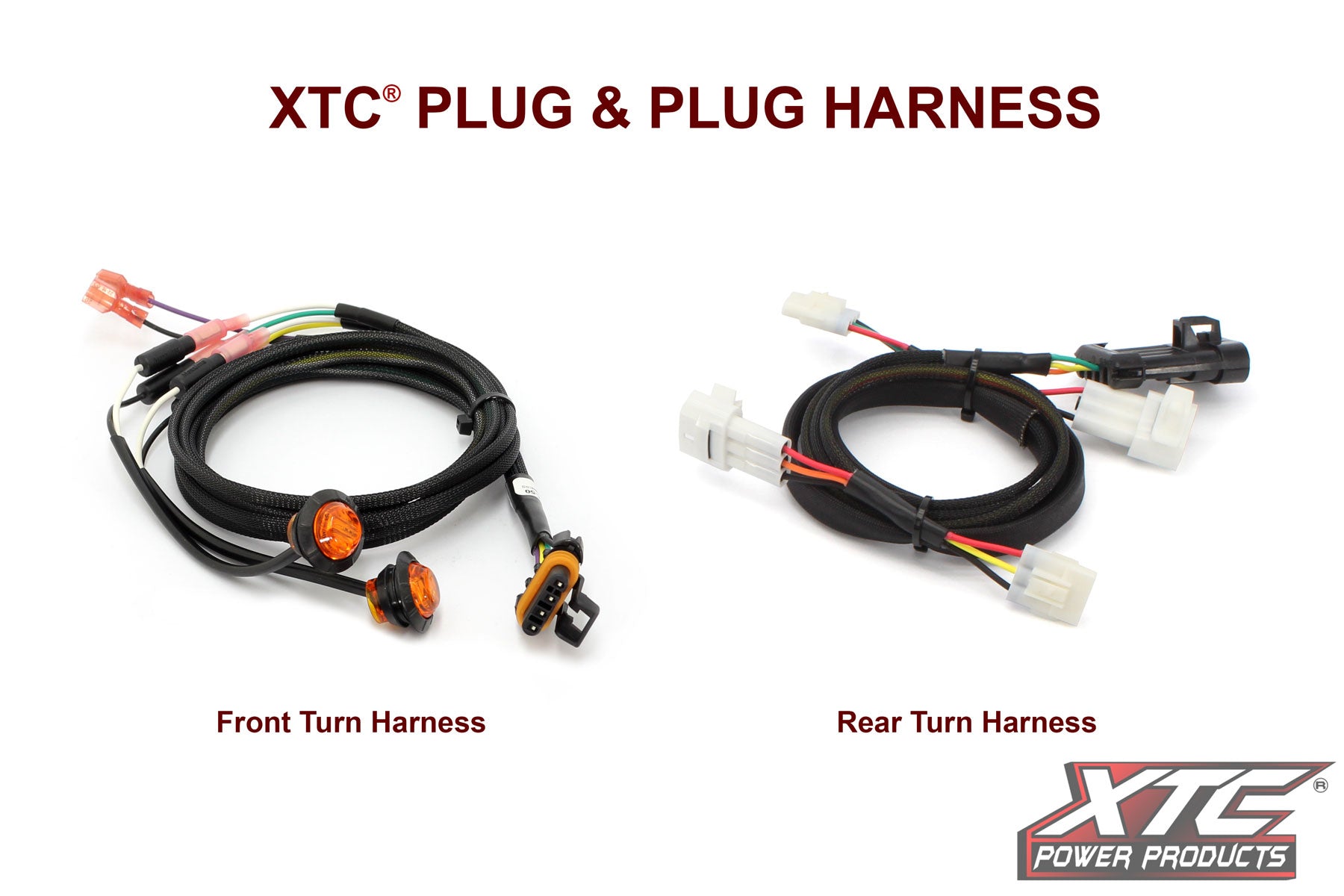

- Vehicle-specific harness
Fitment
- Kawasaki Ridge 2024 - 2027
- Kawasaki Ridge Crew 2024 - 2027
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
How long can the Ridge turn signal stay on automatically?
The lever selects an 8-, 20- or 75-second cycle depending on how long it is pressed.
Where does the turn signal harness connect?
The vehicle-specific harness plugs inline with the rear factory taillight harness.
Does installation require cutting or crimping wires?
No. The system is described as installing without cutting wires or crimping.
Does the signal timer keep counting while the brakes are applied?
No. Smart Brake Hold pauses the countdown while the brakes are applied and resumes it when they are released.
How do I choose a signal duration with the lever?
Use a quick press for 8 seconds, hold for 2 seconds for 20 seconds, or hold for 5 seconds for 75 seconds.
Why XTC Power Products
XTC uses a small solid-state control box and a vehicle-specific harness in its modular ATS turn signal system.
Add Timed Turn Signals to Your Kawasaki Ridge
Order the XTC Kawasaki Ridge turn signal kit from Dunes 2 Dezert SXS.
