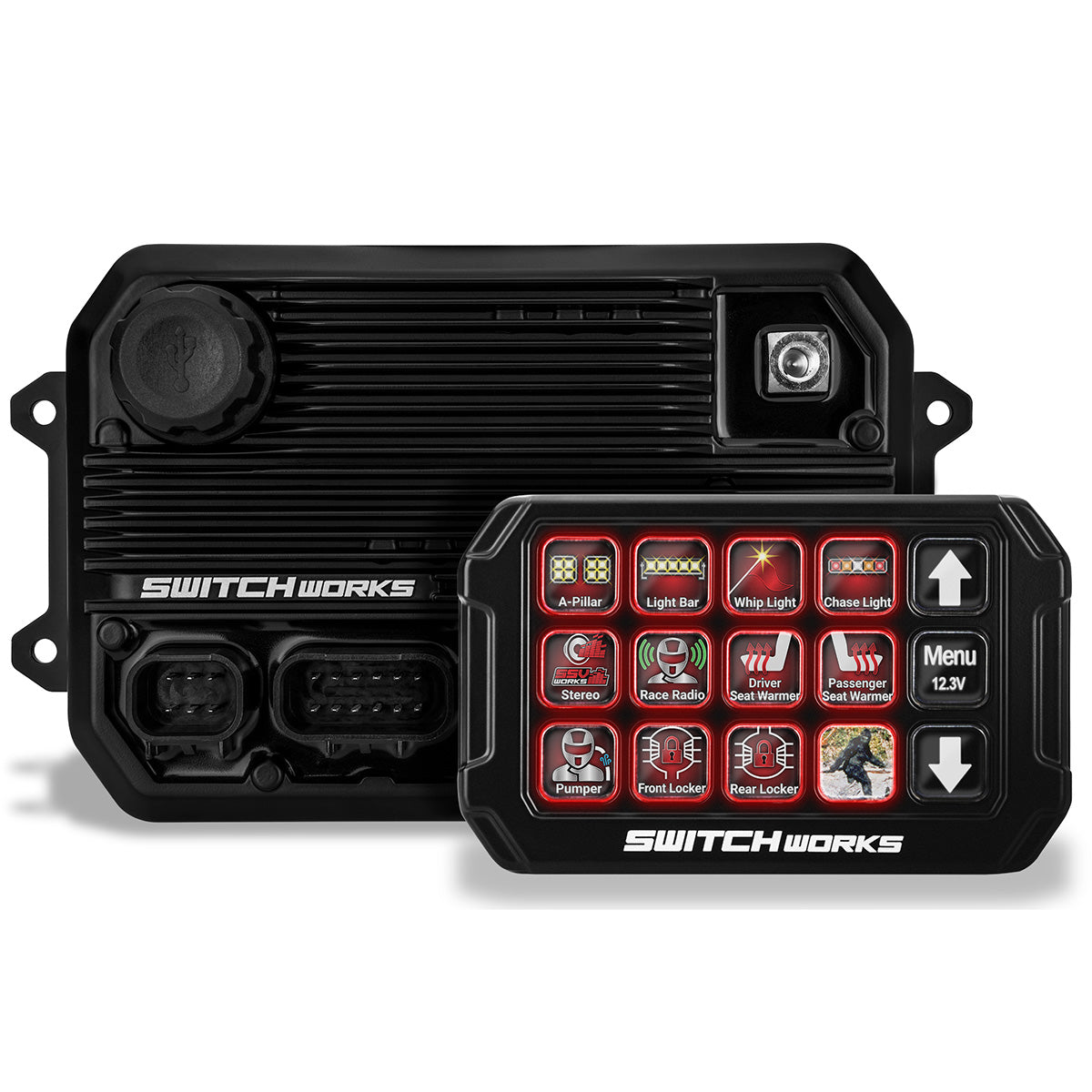

Alpha12 Digital Smart Switcher – 12-Output Programmable Accessory Controller

Meet the Alpha12 Digital Smart Switcher—the most advanced 12-output solid-state accessory controller ever designed for UTVs, trucks, off-road vehicles, boats, RVs, and custom builds. Engineered for power, configurability, and reliability, the Alpha12 delivers full digital switching with no relays or fuses, incredible flexibility, and a sleek LCD touch-button interface.

This state-of-the-art switcher supports a massive 180 amps total, with 6 high-current and 6 low-current outputs, giving you the freedom to run lights, pumps, comm systems, compressors, fans, lockers, whips, sound systems, and more—all with total control and customization.

Choose from 60+ pre-loaded button icons or upload your own, configure output behavior, set amperage limits, monitor system health, and run everything from a Hyper-Brite day/night display that remains readable in any condition.

The Alpha12 is completely weatherproof (IP67 brain / IP65 controller), making it a rugged solution for UTVs, powersports, marine use, and harsh off-road environments.

⚡ Key Features

• 12 Fully Programmable Outputs
  Controlled by an LCD touch-button display

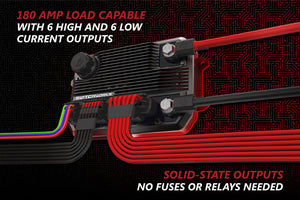

• 180A Total Load Capacity
  (6 high-current + 6 low-current outputs)
• No Fuses. No Relays.
  Solid-state design with auto protection

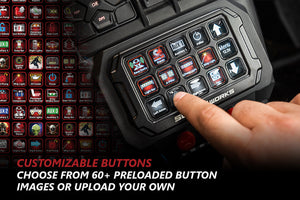

• Choose or Upload Button Icons
  60+ included or upload via PC app
• Direct Power/Ground Connections
  Weatherproof automotive-grade connectors
• Configurable Output Limits
  Set custom amperage per circuit

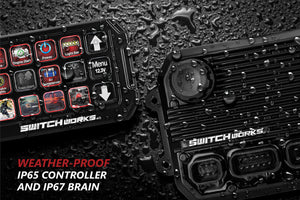

• Weatherproof
  IP67-rated brain module & IP65-rated controller
• Hyper-Brite Display
  Automatic day/night brightness modes
• System Health Monitoring & Hazard Alerts
• Dual-Function Buttons
  Supports momentary, latching, or timed control
• Low-Profile Design
  Installs cleanly into modern dashboards

🔧 Expandability & System Options

Add More Outputs – Up to 24 Circuits

Link a second Alpha12 brain and run all outputs through a single controller.

Add a Second Controller – Dual Control Points

Great for:

• Driver + Co-driver
• Cab + Bed/Rear Access
• Overland or work vehicles

PC App Configuration

• Upload custom button icons
• Configure entire system via USB
• Update firmware
• Adjust outputs, labels, current limits, priorities, and more
• Perfect for builders, installers & shops

🛠 Installation Info

Installation is straightforward thanks to the plug-and-play harnessing, but exact time varies based on:

• The number of accessories wired
• Vehicle model
• Installer experience

Battery Cable: 4 AWG (10 ft included)
Grounding:
You may use your own grounding, but using the Alpha12 grounds ensures the cleanest and most organized installation.

Vehicle-Specific Mounting:
For platforms like the 2025 Can-Am Maverick R, mounting kits are available directly from the manufacturer.

Ignition Functionality:
Can be programmed to operate with ignition ON or OFF. Ideal for night shows, campsites, or event displays.

🔍 Common Questions (Q&A Integrated)

Q: Does the Alpha12 require using its ground circuits?
A: No. While optional, using the Alpha12 grounds provides a cleaner and more reliable wiring layout.

Q: What gauge wire is used for power?
A: The system includes 4 AWG battery leads (10 ft long).

Q: Will it work on a 2025 Can-Am Maverick R?
A: Yes. Vehicle-specific mounting kits are available—contact manufacturer support for details.

Q: Can I use it with ignition OFF for shows/event lighting?
A: Yes. Output behavior can be fully programmed to run with or without ignition power.

Q: Is installation difficult?
A: Install time depends on the number of accessories, but the system is designed for easy plug-and-play setup.

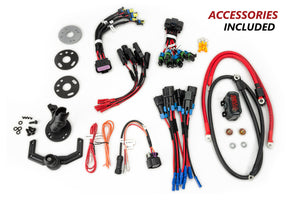

📦 Included in the Box

• Alpha12 Brain Module (IP67)
• LCD Touch-Button Controller (IP65)
• Wiring Harnesses & Connectors
• Battery Cables
• Mounting Hardware
• USB Interface for PC Configuration

🚀 Why Choose the Alpha12?

If you demand maximum control, clean installation, and bulletproof electrical reliability, the Alpha12 stands alone as the industry’s premier digital switching solution for both on-road and off-road performance builds.

Perfect for:
UTVs · SxS · Jeeps · Trucks · Overland Builds · Boats · RVs · Custom rigs · Show vehicles · Work fleet vehicles
