All Balls Racing Polaris Ranger 500 & 6x6 500 U-Joint (1999-2007)

The All Balls Racing U-joint kit for the Polaris Ranger 500, Ranger 6x6 500 and Ranger Series replaces worn factory parts to cure driveline clunks, vibration and worn U-joints. It is built to All Balls' application data as a direct replacement, so it goes back in where the original came out and restores smooth, quiet power delivery through the driveline.

Searching for Polaris Ranger 500 U-joint, Polaris Ranger 500 prop shaft U-joint or Polaris Ranger 500 U-joint replacement? Use the exact-model fitment list below to confirm this kit matches your machine.

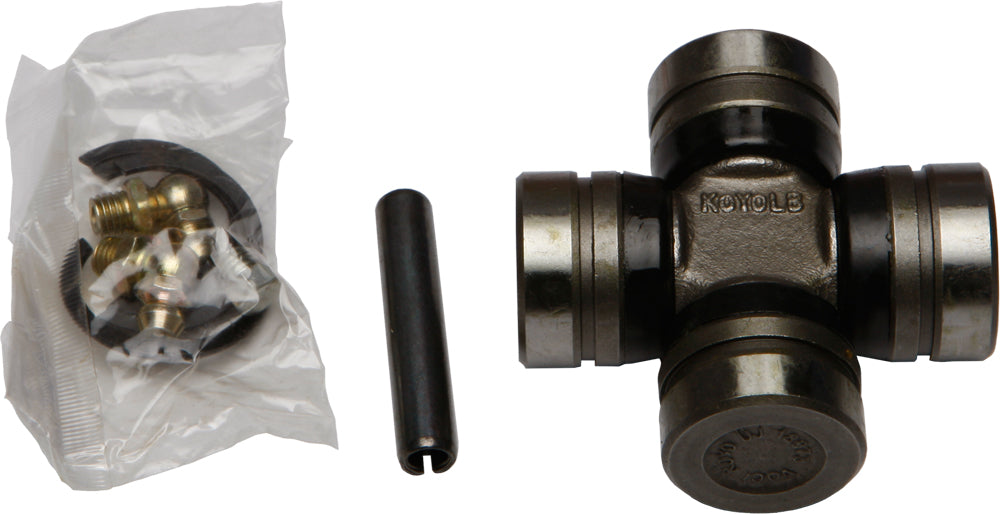

Kit contents per All Balls: u-joint x1, cap plug (per All Balls).

Key Features

• Cold forged from SCM-415 steel with precision-ground journals case hardened to HRC58-61, per All Balls
• Pre-greased with high-temperature Lithium Complex 3 grease
• Quad-lip seals on the bearing cups keep contamination out and grease in
• Centrally located grease zerk and grease channels spread grease evenly through the cups
• Cap plug included to replace the grease zerk on low-clearance applications

Built To Solve: Worn Polaris Ranger 500, Ranger 6x6 500 and Ranger Series U-Joint Kit Problems

• A clunk when shifting between forward and reverse
• Driveline vibration that rises with speed
• Rusty, dry U-joint caps after water and mud
• Play in the drive shaft joints

Best For: Polaris Ranger 500, Ranger 6x6 500 and Ranger Series Owners Rebuilding The Driveline

• Ranger 500 owners replacing a worn U-joint
• Higher-hour trail and work machines
• Riders who cross water and mud often
• Owners doing their own drivetrain service

Specifications

• Brand: All Balls Racing
• Product type: U-joint kit
• Contents: U-joint x1
• Contents: Cap plug (per All Balls)
• Kit type: U-joint kit
• Position: varies by machine (see Fitment)
• OEM cross reference (per All Balls): 1590257
• Country of origin: Taiwan
• Manufacturer Part Number: 19-1012

Fitment

All Balls lists this U-joint kit for the following UTVs:

• Polaris Ranger 4x4 500 (1999, 2004)
• Polaris Ranger 6x6 500 (2004)
• Polaris Ranger Series 10 4x4 & 6x6 (2007)

Position by machine, per All Balls:

• Rear axle inner: Polaris Ranger; Polaris Ranger 6x6
• Rear axle outer: Polaris Ranger; Polaris Ranger 6x6

All Balls also lists this part for some ATV models; D2D lists UTV fitment only.

Fitment is based on the manufacturer's application data. Fitment is not guaranteed on unlisted models; confirm your exact year, model and package before ordering.

FAQ

How do I know my Ranger 500 U-joint is bad?

A clunk when you shift between forward and reverse, vibration that rises with speed, rust dust at the caps, or play when you twist the shaft by hand are the usual signs.

What comes in the kit?

All Balls lists one u-joint and cap plug (per All Balls).

Which models does it fit?

All Balls lists Polaris Ranger 4x4 500 (1999, 2004); Polaris Ranger 6x6 500 (2004); Polaris Ranger Series 10 4x4 & 6x6 (2007).

Which position does it fit?

It depends on the machine. All Balls lists it for more than one position across its applications; the position for each machine is listed under Fitment.

Is installation difficult?

The drive shaft or axle comes out, the old U-joint caps are pressed out of the yokes and the new joint is pressed in and its snap rings fitted. A vise or press and your service manual are needed. All Balls does not publish an install sheet for this part.

Should I replace the U-joint or the whole drive shaft?

If the shaft is straight and the yokes are undamaged, a new U-joint is the low-cost fix. If the tube is bent or the yokes are worn, replace the shaft.

Why All Balls Racing

All Balls Racing specializes in replacement bearings, seals, drivetrain, steering and suspension parts for ATVs and UTVs, packaged by application so the right parts arrive for the job. Its kits are built as direct replacements for the factory parts they cover.

Complete Your Ranger 500 Drivetrain Repair

Confirm your exact year and model in the fitment list before ordering, and inspect the U-joints, carrier bearing, axles and differential seals while the driveline is apart.
