All Balls Racing Honda Pioneer Lower Ball Joint Kit (2014-2026)

The All Balls Racing lower ball joint kit for the Honda Pioneer 500, 520 and 700 replaces worn factory parts to cure front-end clunk and wheel play. It is built to All Balls' application data as a direct replacement, so it goes back in where the original came out and restores tight, predictable steering and suspension.

Searching for Honda Pioneer lower ball joint, Pioneer 700 lower ball joint or Pioneer 500 lower ball joint? Use the exact-model fitment list below to confirm this kit matches your machine.

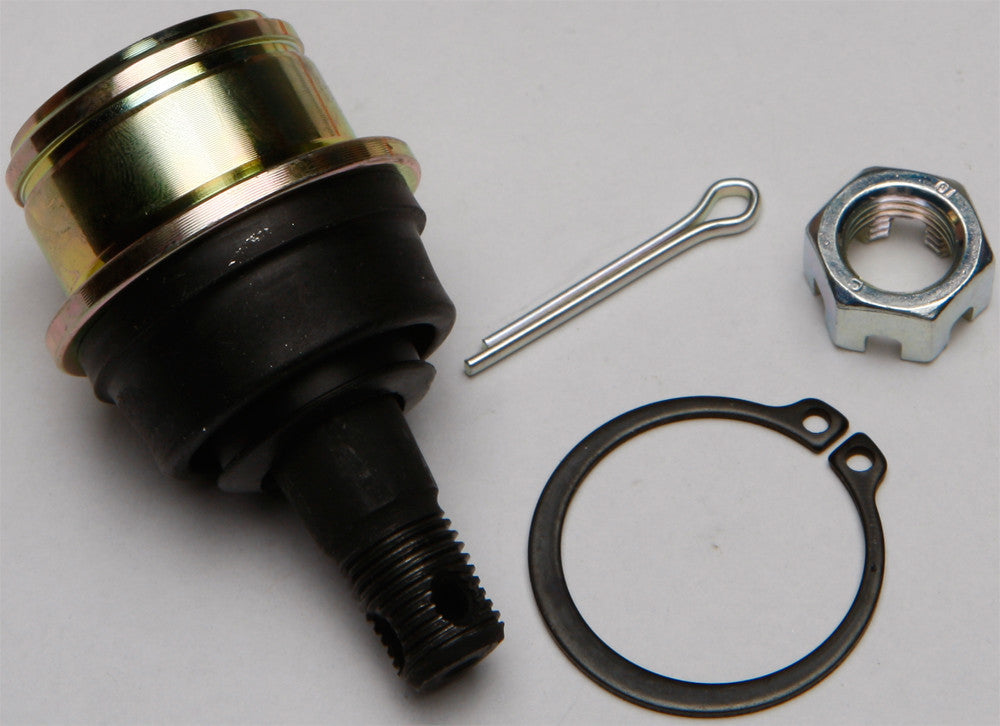

Kit contents per All Balls: ball joint x1.

Key Features

• Heavy-duty steel housing built for durability and long service life
• Self-lubricating POM-M90 bearing cup isolates the ball stud from the housing, reducing friction and wear
• Forged, precision-ground ball stud for strength in demanding off-road conditions
• Pre-lubricated with high-performance grease for smooth operation out of the box

Built To Solve: Worn Honda Pioneer 500, 520 and 700 Lower Ball Joint Kit Problems

• Front-end clunk over bumps and braking
• Wheel play when the raised wheel is rocked top to bottom
• Vague, wandering steering from loose joints
• Torn boots and dirt-packed joints after mud and water riding

Best For: Honda Pioneer 500, 520 and 700 Owners Rebuilding The Front End

• Honda Pioneer 500 and 520 owners
• Pioneer 700 and 700-4 owners
• Work and hunting machines with front-end clunk
• Owners who want a sealed, maintenance-free joint

Specifications

• Brand: All Balls Racing
• Product type: lower ball joint kit
• Contents: Ball joint x1
• Position: lower
• OEM cross reference: 51220-HL1-A01, 51220-S5A-J01
• Country of origin: Taiwan
• Manufacturer Part Number: 42-1054

Fitment

All Balls lists this lower ball joint kit for the following UTVs:

• Honda Pioneer 500 (2015-2023)
• Honda Pioneer 520 (2021-2026)
• Honda Pioneer 700 (2014-2026)
• Honda Pioneer 700-4 (2014-2026)

All Balls also lists this part for some ATV models; D2D lists UTV fitment only.

Fitment is based on the manufacturer's application data. Fitment is not guaranteed on unlisted models; confirm your exact year, model and package before ordering.

FAQ

How do I know my Honda Pioneer ball joints are worn?

A clunk over bumps, play when you rock a raised front wheel top to bottom, and uneven tire wear are the usual signs. A torn boot that has let in dirt is another warning sign.

What comes in the kit?

All Balls lists one ball joint per kit. Order one kit for each joint you are replacing.

Which Honda Pioneer models does it fit?

All Balls lists Honda Pioneer 500 (2015-2023), Pioneer 520 (2021-2026) and Pioneer 700 and 700-4 (2014-2026) for the lower position. Pioneer 1000 models use 42-1060.

Is this an upper or lower ball joint?

All Balls lists this kit for the lower position on the machines below.

Is installation difficult?

Ball joints are pressed into the A-arm or knuckle, so you need a ball joint press and your service manual torque values. All Balls does not publish an install sheet for this kit; many owners have a shop press the joints.

Is there a greaseable HP version?

All Balls does not list an HP version of this joint. This kit is the sealed, maintenance-free style with a self-lubricating cup, so there is nothing to grease.

Why All Balls Racing

All Balls Racing specializes in replacement bearings, seals, steering and suspension rebuild parts for ATVs and UTVs, packaged by application so the right parts arrive for the job. Its kits are built as direct replacements for the factory parts they cover.

Complete Your Honda Pioneer Front Suspension Rebuild

Order one kit per joint you are replacing and confirm the position for your exact model in the fitment list. While the arms are apart, check A-arm bushings, tie rod ends and boots so the front end comes back tight in one job.
