All Balls Racing Can-Am Maverick X3 Left Tie Rod Assembly (2017-2026)

The All Balls Racing left tie rod assembly for the Can-Am Maverick X3 replaces worn factory parts to cure steering play, clunks and wander. It is a direct-replacement kit built to All Balls' application data, so it goes back in where the original came out and restores tight, quiet operation.

Searching for Maverick X3 tie rods, Can-Am X3 tie rod or X3 tie rods? Use the exact-model fitment list below to confirm this kit matches your machine.

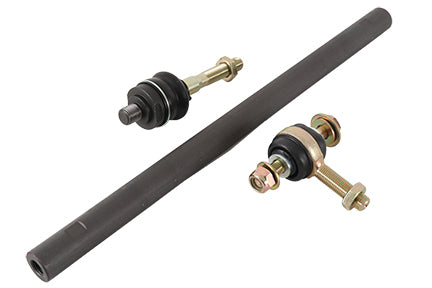

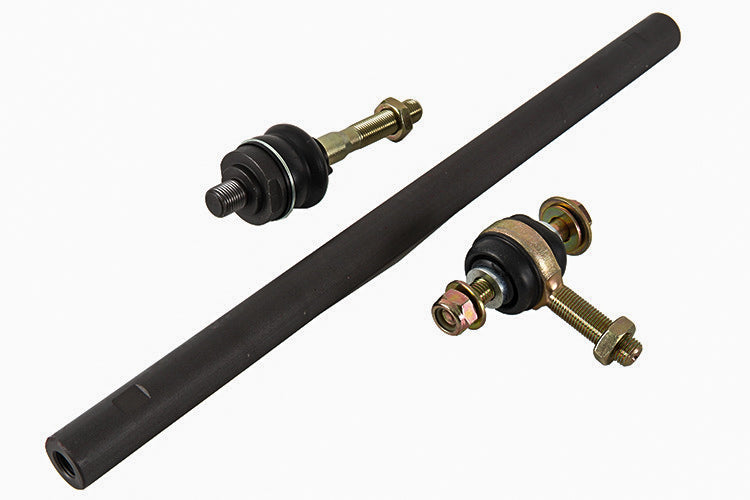

Kit contents per All Balls: tie rod x1, tie rod end x2.

Key Features

• Heavy-duty forged steel housings, strengthened in critical areas while keeping clearance to mating parts
• Precision-ground heavy-duty ball stud mated with a low-friction isolator cup and swaged inside the forged housing for long life and smooth operation
• Yellow zinc plating protects the main housing from corrosion; black oxide coating protects the ball stud
• Heavy-duty boots keep grease in and water and dirt out
• All Balls upgrades failure-prone cast aluminum ends to forged steel

Built To Solve: Worn Can-Am Maverick X3 Left Tie Rod Assembly Problems

• A bent tie rod after a rock or tree strike
• Steering play from worn tie rod ends
• Toe that will not stay in alignment
• Worn boots letting in dirt and water

Best For: Can-Am Maverick X3 Owners Rebuilding Steering

• Can-Am Maverick X3 and X3 Max owners (2017-2026)
• Riders replacing a bent left tie rod
• Owners who want a complete rod rather than individual ends
• Rock and trail riders who see tie rod hits

Specifications

• Brand: All Balls Racing
• Product type: left tie rod assembly
• Contents: Tie rod x1
• Contents: Tie rod end x2
• Position: left side
• Country of origin: Taiwan
• Manufacturer Part Number: 51-1082

Fitment

All Balls lists this left tie rod assembly for the following machines:

• Can-Am Maverick X3 (2017-2026)
• Can-Am Maverick X3 Max (2018-2026)
• Can-Am Maverick X3 Turbo RR XMR 64 and XRC 64 (2022-2026)
• Can-Am Maverick X3 Turbo RR 72 inch packages (2020-2026)

Fitment is based on the manufacturer's application data. Fitment is not guaranteed on unlisted models; confirm your exact year, model and package before ordering.

FAQ

What comes in the kit?

All Balls lists one tie rod and two tie rod ends.

Which side does it fit?

All Balls lists this kit for the left side. Order the matching right-side part for the other side.

Which Maverick X3 models does it fit?

2017-2026 Maverick X3 and X3 Max models listed below, including Turbo RR packages and 64 inch XMR models. Check your exact model and package in the list.

What are signs of a bad tie rod?

A bent rod, steering play, a clunk when turning and toe that will not hold.

Do I need an alignment?

Yes. Set toe after installation. All Balls does not publish an install sheet.

Should I buy the full assembly or just the outer end?

If the rod is straight and only the end is worn, the outer tie rod end (51-1054) is enough. If the rod is bent or both ends are worn, the full assembly is the better fix.

Why All Balls Racing

All Balls Racing specializes in replacement bearings, seals, steering and suspension rebuild parts for ATVs and UTVs, packaged by application so the right parts arrive for the job. Its kits are built as direct replacements for the factory parts they cover.

Finish Your Maverick X3 Steering Repair

Confirm the side and your exact X3 package before ordering, and inspect the opposite tie rod while you are there. Plan on a front-end alignment after installation.
