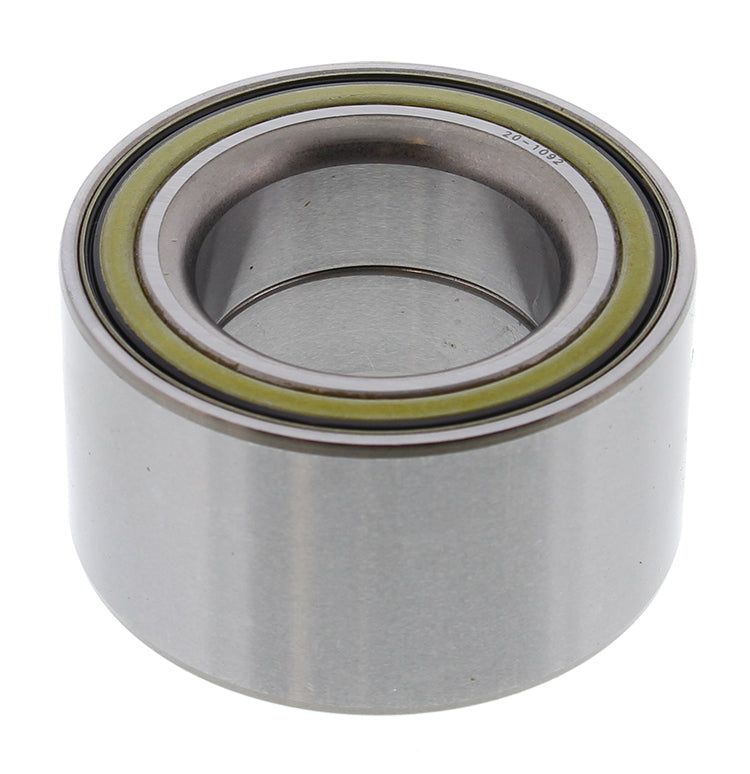

All Balls Racing Can-Am Maverick X3 Front Wheel Bearing (2017-2026)

The All Balls Racing front wheel bearing kit for the Can-Am Maverick X3 replaces worn factory parts to cure wheel play, grinding and bearing noise. It is a direct-replacement kit built to All Balls' application data, so it goes back in where the original came out and restores tight, quiet operation.

Searching for Can-Am Maverick X3 wheel bearing, X3 wheel bearing or Maverick X3 front wheel bearing? Use the exact-model fitment list below to confirm this kit matches your machine.

Kit contents per All Balls: ball bearing x1 (services one wheel).

Key Features

• Developed with OEM suppliers to meet or exceed OEM specifications
• Bearings manufactured to ABEC 3 precision levels
• Triple-lip bearing seals keep grease in and water and dirt out
• Dual-row angular contact bearing with a metal shield protecting the rubber seals
• Prefilled to 30% with Chevron SRI 2 grease containing rust and oxidation inhibitors, rated -20°F to 350°F

Built To Solve: Worn Can-Am Maverick X3 Front Wheel Bearing Kit Problems

• Grinding, humming or roaring from the front wheel that changes with speed
• Play or wobble when you rock a raised front wheel by hand
• Bearings worn out by water crossings, mud, dust and pressure washing
• Uneven tire wear or vague steering traced to a loose front hub

Best For: Can-Am Maverick X3 Owners Rebuilding Wheel Hubs

• Maverick X3 owners rebuilding front hubs at scheduled service or after a failure
• Riders who wash, cross water or run mud and dust often
• Owners who want an OEM-spec replacement rather than the tapered HP upgrade
• Can-Am Defender 1100 owners (2026) — see fitment below

Specifications

• Brand: All Balls Racing
• Product type: front wheel bearing kit
• Contents: Ball bearing x1 (services one wheel)
• Grease: Chevron SRI 2, -20°F to 350°F
• OEM cross reference: 293350109, 293350129, 293350141, 293350151
• Country of origin: China
• Manufacturer Part Number: 25-1751

Fitment

All Balls lists this front wheel bearing kit for the following machines:

• Can-Am Maverick X3 (2017-2026)
• Can-Am Maverick X3 Max (2018-2026)
• Can-Am Defender 1100 (2026)
• Can-Am Defender MAX 1100 (2026)
• Can-Am Maverick X3 Turbo RR XMR 64 and XRC 64 (2022-2026)
• Can-Am Maverick X3 Turbo RR 72 inch packages (2020-2026)

Fitment is based on the manufacturer's application data. Fitment is not guaranteed on unlisted models; confirm your exact year, model and package before ordering.

FAQ

How do I know my Maverick X3 front wheel bearing is bad?

Common signs are a grinding or humming noise that rises with speed and play when you rock a raised front wheel top to bottom. Replace the bearing before the play damages the hub or knuckle bore.

What comes in the kit?

All Balls lists one ball bearing in this kit, packaged to service one complete wheel. Order one kit per wheel you are servicing.

Does this fit both 64 and 72 inch Maverick X3 models?

Yes. All Balls lists standard 64 inch models plus the RR 72 inch XDS, XRS, XRC and XMR packages, and Maverick X3 Max models. Check your exact year and package in the fitment list below.

Is this a front or rear bearing?

All Balls lists this kit for the front wheel position on the models below. If you are servicing the rear, confirm the rear part number before ordering.

Is installation difficult?

Wheel bearings are pressed into the knuckle, so you need a hydraulic press or bearing tool and a service manual for torque values. All Balls does not publish an install sheet for this kit; many owners have a shop press the bearing.

What is the difference between this and the All Balls tapered DAC upgrade?

This kit is the OEM-spec dual-row angular contact bearing. The tapered DAC upgrade (25-1751-HP) is rated by All Balls for higher static and dynamic loads and suits heavier, bigger-tire builds.

Why All Balls Racing

All Balls Racing specializes in replacement bearings, seals, steering and suspension rebuild parts for ATVs and UTVs, packaged by application so the right parts arrive for the job. Its kits are built as direct replacements for the factory parts they cover.

Complete Your Maverick X3 Front Hub Service

Order one front wheel bearing kit per wheel you are rebuilding, and check the hub, axle splines and tie rod ends while the knuckle is apart. If your X3 runs larger tires or carries extra weight, compare the tapered DAC upgrade before you order.
