AJK Offroad Can-Am X3 Roll Cage Mounts – B Pillar

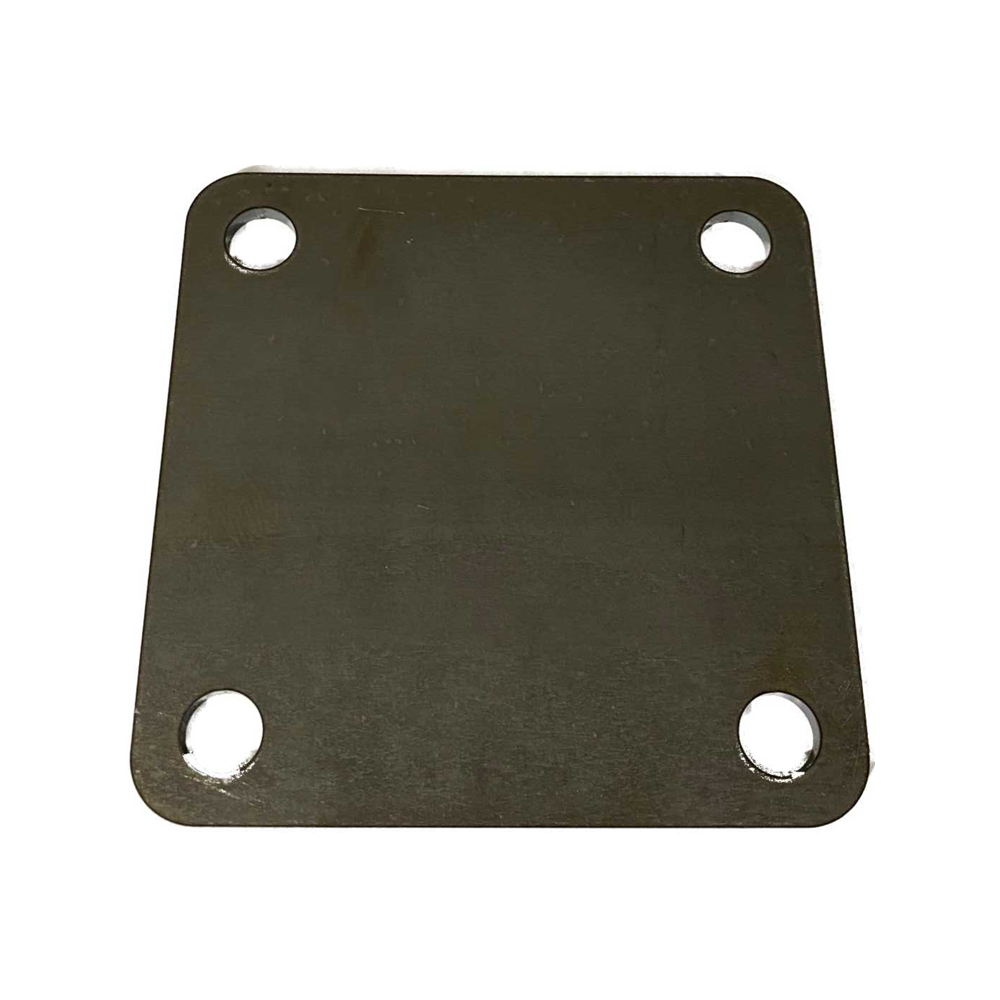

The AJK Offroad Can-Am X3 Roll Cage Mounts for the B pillar are 3/16" CNC laser cut steel plates that bolt to the B pillar cage location on the Maverick X3 using factory hardware — no drilling, no welding. Sold as a set of 2 (one per side), these plates provide a reinforced steel mounting surface at the X3 mid-cage position for harness anchors, Click 6 tabs, accessory brackets, and other mounting needs. Available for 2-seat and 4-seat X3 configurations. Made in the USA by AJK Offroad.
Key Features & Benefits
- 3/16" CNC Laser Cut Steel — Heavy-gauge mounting plate at the X3 B pillar mid-cage position
- Bolt-On — Uses Factory Hardware — Zero modification to the cage required

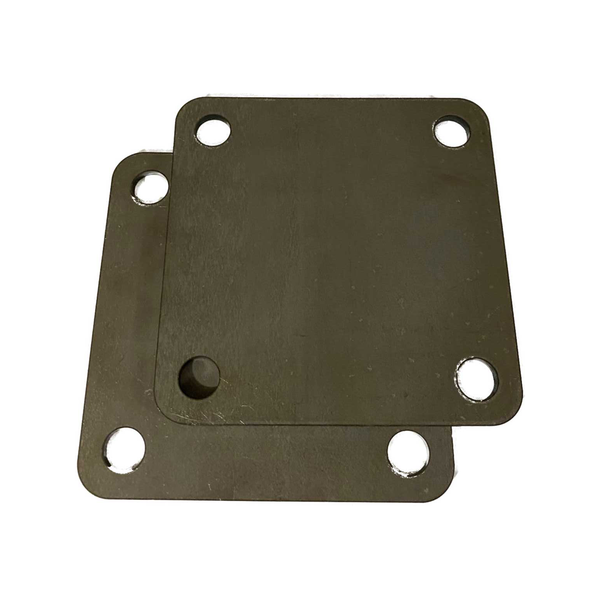

- Sold as a Set of 2 — Driver and passenger B pillar plates included
- 2-Seat and 4-Seat Compatible — Available for both X3 configurations
- Made in USA — CNC laser cut by AJK Offroad
Specs & Fitment
| Spec | Detail |
|---|---|
| Material | 3/16" CNC laser cut steel |
| Sold As | Set of 2 (one per side) |
| Installation | Bolt-on — factory cage hardware |
| Welding Required | No |
| Manufacturer | AJK Offroad — Made in USA |
Vehicle Fitment — Can-Am:
- Maverick X3 / X3 Max (all years, 2-seat and 4-seat)
Frequently Asked Questions
What is the B pillar mount most commonly used for?
The B pillar is the mid-cage position — commonly the primary location for seat harness anchor mounts, Click 6 harness tabs, and side-access accessory brackets. It is also a popular location for subwoofer and audio component mounting brackets on builds with in-cage audio.
Do I need the A pillar and B pillar mounts or just one?
That depends on your build. Most full harness setups use both A and B pillar locations. Each is sold separately so you can buy only what your build requires.
Is this compatible with the 4-seat X3 Max?
Yes — available for both 2-seat and 4-seat X3 configurations. Select the correct version for your model at checkout.
Does this work with the AJK Click 6 harness tabs?
Yes — the AJK Click 6 Tabs and Weld-On Click 6 Plate are companion products that work with this mount plate for a complete harness routing setup on the X3 cage.
Is additional hardware needed?
No — the plates use existing factory cage hardware. Nothing additional is needed for the basic bolt-on installation.
