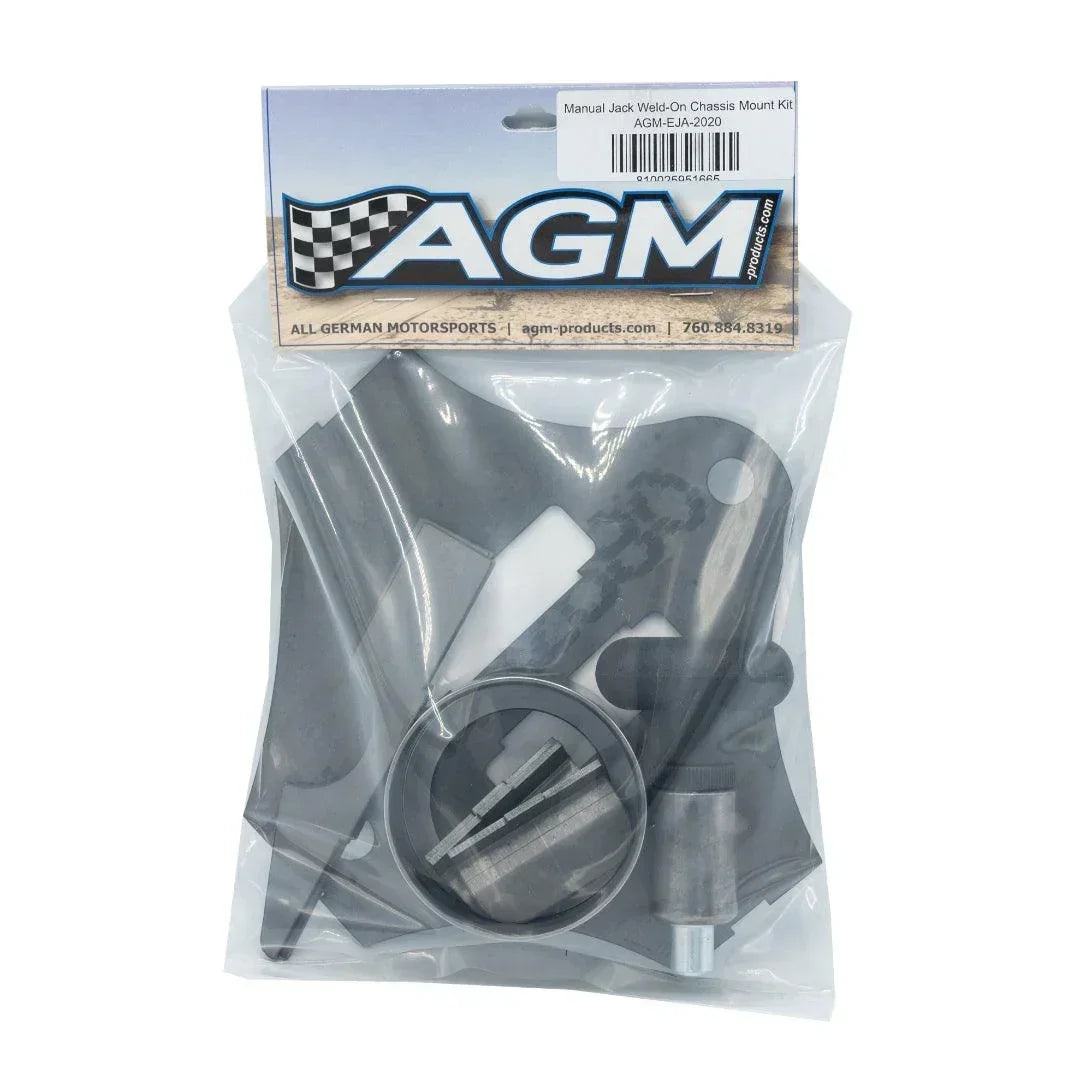

The AGM Weld-On PRO Jack Mount Kit permanently mounts an AGM Manual Jack PRO or Electric Jack PRO to a race car, pre-runner or custom chassis. Interlocking 4130 tabs and tubes simplify layout and alignment, and the lower mount is ready for 1.5 in. tubing with guide marks for 1.75 and 2.0 in.
Key Features
- Permanent weld-on chassis mount

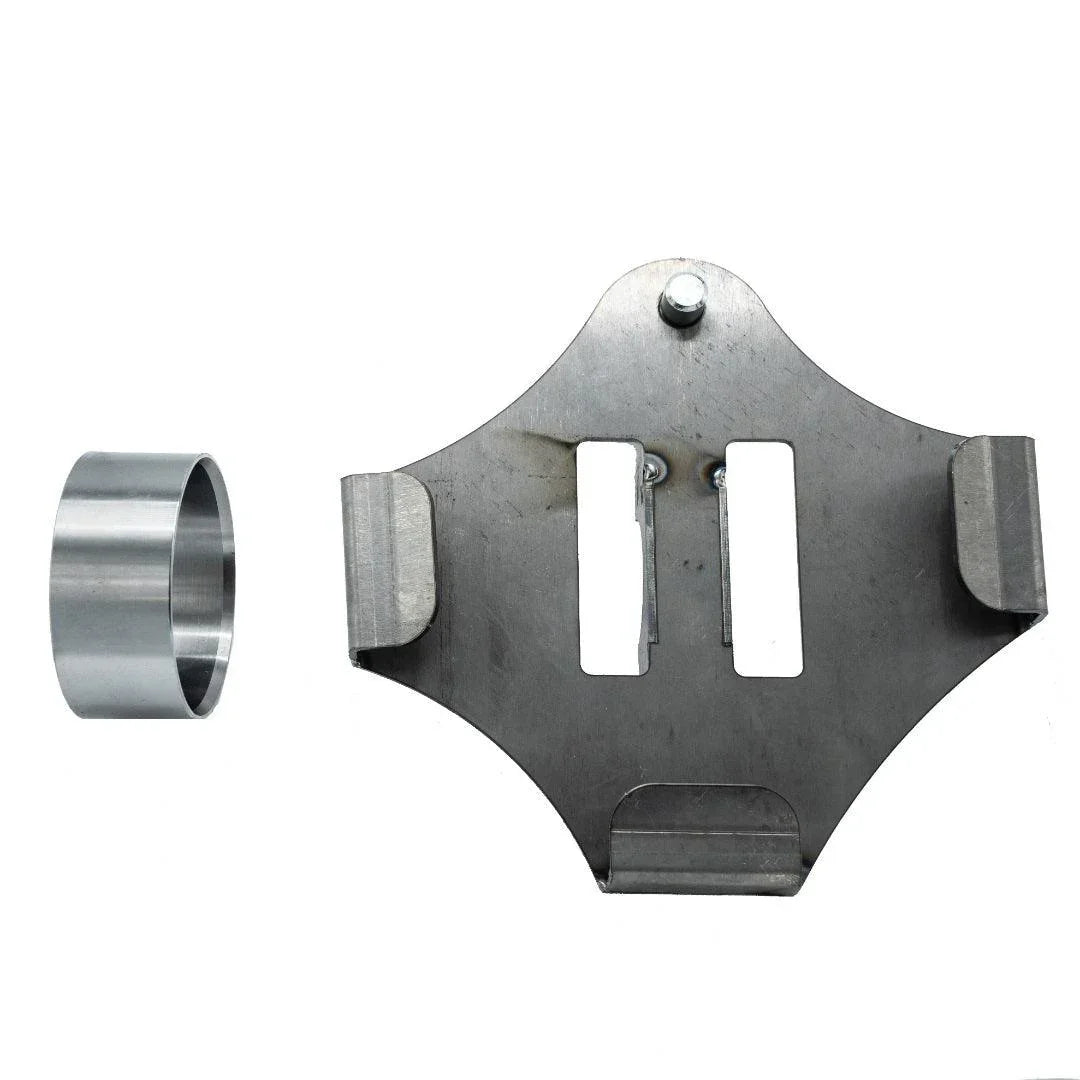

- 4130 steel interlocking tabs and tubes

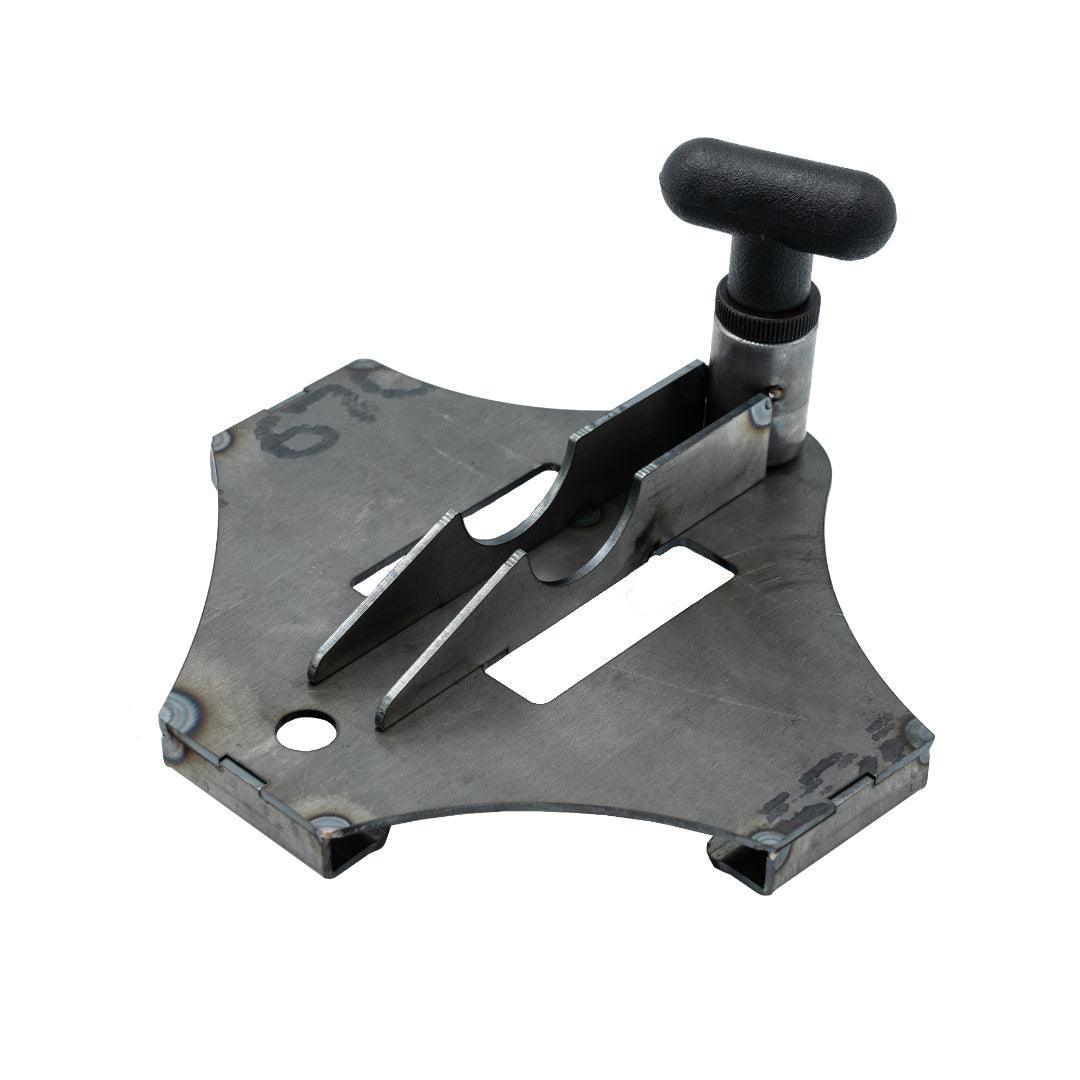

- Lower mount ready for 1.5 in. tubing
- Guide marks for 1.75 in. and 2.0 in. tubing

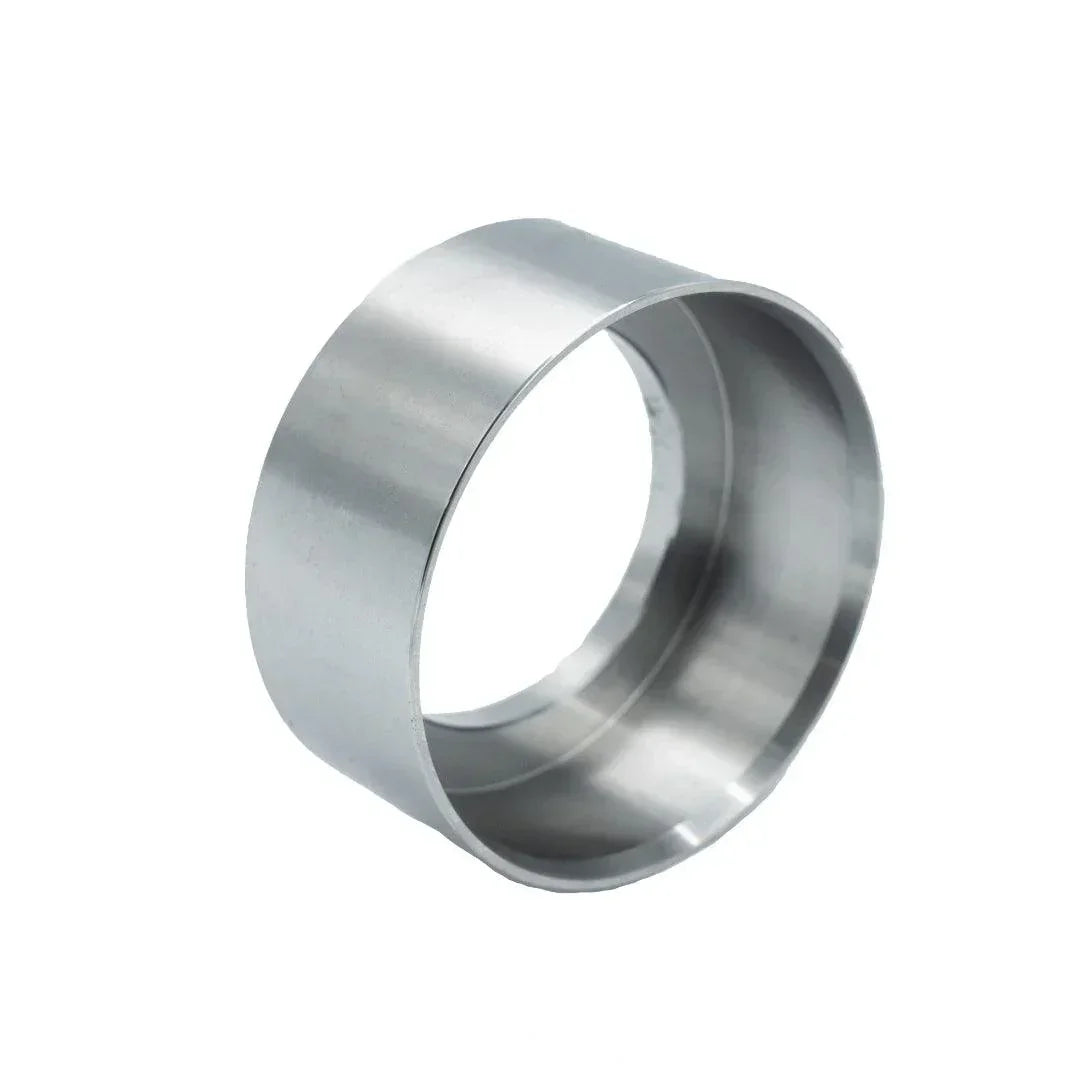

- Top mount welds direct or sets height with stand-off tubes or plates
Built To Solve: A Loose or Hard-to-Reach Jack in a Race Vehicle
- Jacks rattling loose in the cab or bed
- Slow access to the jack during a race stop
- Mounts that do not fit fabricated chassis tubing
Best For: Race Cars, Pre-Runners and Custom Chassis
- Race vehicles
- Pre-runners
- Custom and fabricated chassis
- Builders who want a clean weld-on installation
Specifications
- Mount style: weld-on chassis mount
- Material: 4130 steel
- Lower mount: ready for 1.5 in. tubing; guide marks for 1.75 in. and 2.0 in.
- Top mount: weld to chassis or set height with stand-off tubes or plates
- Compatible jacks: AGM Manual Jack PRO and Electric Jack PRO
- Manufacturer Part Number: AGM-EJA-2020
Fitment
Fits the AGM Manual Jack PRO and Electric Jack PRO only. Does not fit the AGM Manual Jack Sport, Electric Jack Sport, Scissor Jack or Scissor Jack HD. Requires welding to the chassis.
FAQ
Which jacks fit the Weld-On PRO Jack Mount Kit?
Only the AGM Manual Jack PRO and Electric Jack PRO.
Does it fit the Manual Jack Sport?
No. It does not fit the Manual Jack Sport, Electric Jack Sport, Scissor Jack or Scissor Jack HD.
What tube size does the lower mount fit?
It is ready for 1.5 in. tubing and has guide marks that can be sanded out for 1.75 in. or 2.0 in.
What is it made of?
Interlocking 4130 steel tabs and tubes.
Any tips for positioning it?

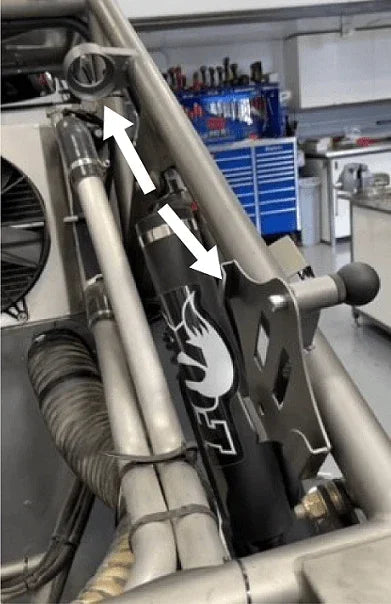

Fully collapse your PRO Series jack and use it as a mock-up to set the mounts, so the jack drops back in quickly every time.
Weld-On mount or Quick Clamps?
Weld-on is permanent and clean for race builds. Quick Clamps install in minutes without welding.
Why AGM
AGM builds its trail jacks around three in-house systems: the GroundLoc concave base for loose terrain, the VersaLift modular lifting head and collar, and ToughThred ACME screw drives that lift mechanically with no hydraulics to leak. Every AGM jack, hook, Jack Point and mount is designed to work as one system, so accessories you add later fit the jack you already own.
Mount Your AGM PRO Series Jack for the Race
Confirm you run a Manual Jack PRO or Electric Jack PRO and measure your chassis tubing before ordering. Builders who cannot weld should look at Quick Clamps instead.
Installation Video
AGM walks through how to properly mount an AGM Manual or Electric Jack.
