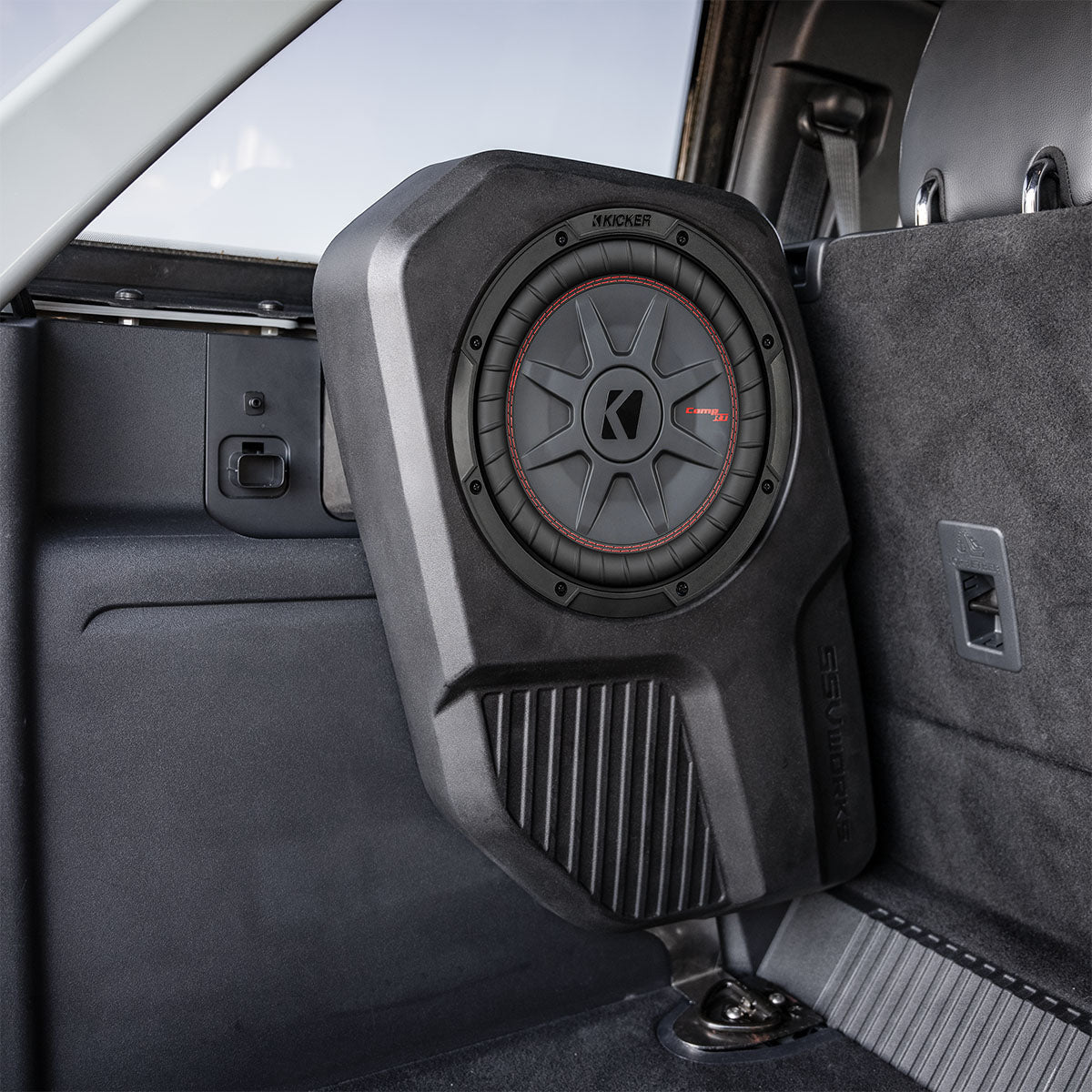

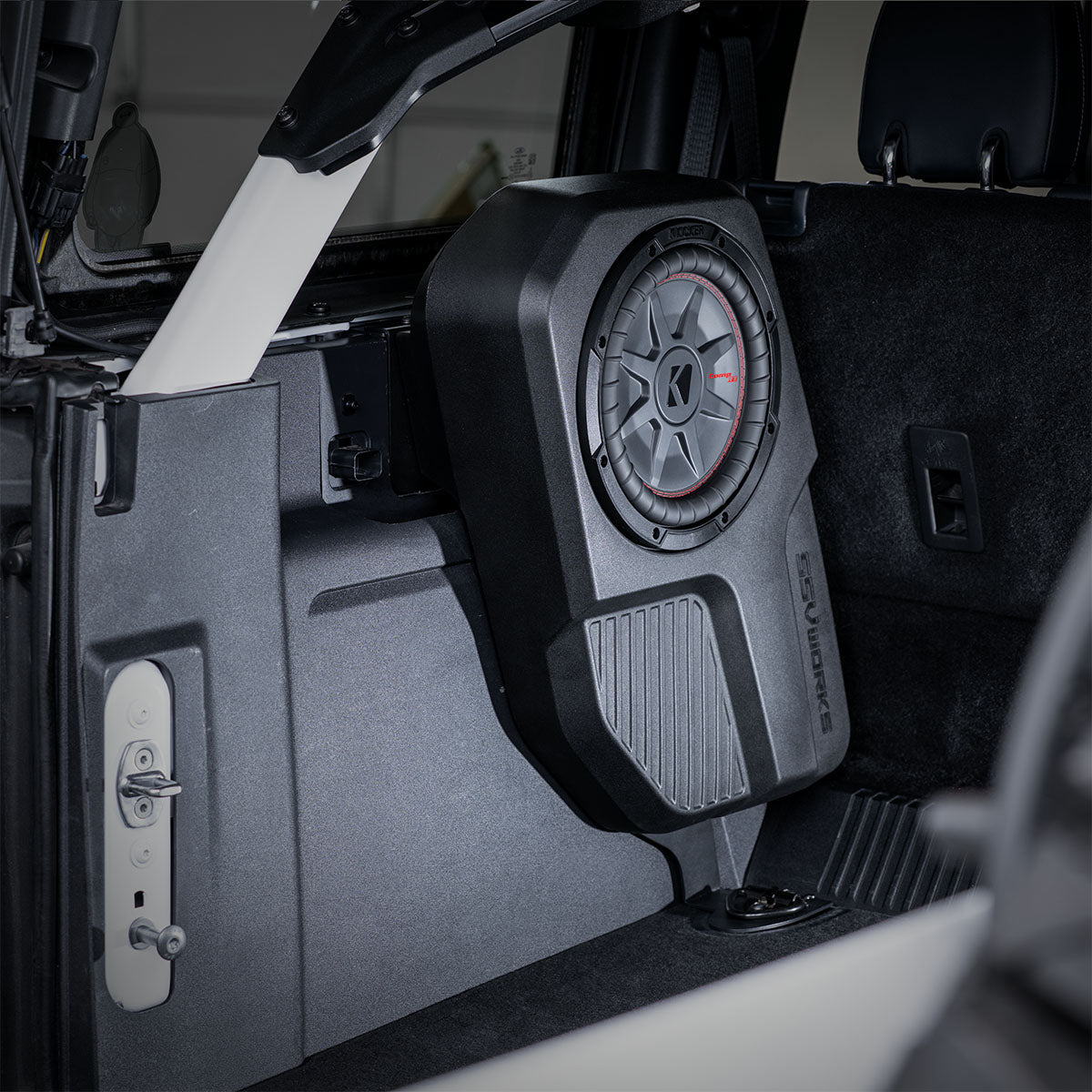

The SSV Works Ford Bronco 4-door complete 10-inch subwoofer kit adds a Kicker CompRT sub and a Kicker KPX500.1 amplifier to 2021-2026 Bronco 4-door models through the factory subwoofer output harness. The enclosure mounts on the driver side and the amp and amp plate tuck under the driver-side panel, using factory mounting locations.
This Ford Bronco subwoofer kit is the one to choose if you want the amplifier included rather than adding a bare enclosure. SSV Works describes it as plug-and-play into the factory subwoofer output harness, whether your Bronco has the B&O subwoofer, the Visteon subwoofer or no factory sub, and as a Bronco B&O subwoofer upgrade you do not need to remove the factory 8-inch sub. Two cautions before you order this Ford Bronco subwoofer: SSV Works says it is not plug-and-play on some 2021-2022 models, because 2021-2022 Broncos with the standard 6-speaker system do not have the subwoofer output harness, and Broncos without a factory sub (or with the dummy sub) need FORScan to enable that harness. As a Bronco Kicker subwoofer, Bronco 10 inch subwoofer and Bronco amp and subwoofer package, it is the complete SSV Works subwoofer option; SSV Works also sells Bronco 4 door subwoofer enclosures without an amp.
Key Features
- Kicker CompRT 10-inch subwoofer, rated 800W max / 400W RMS by SSV Works
- Kicker KPX500.1 amplifier included, rated 750W max
- Plugs into the factory subwoofer output harness: SSV Works says no cutting or splicing

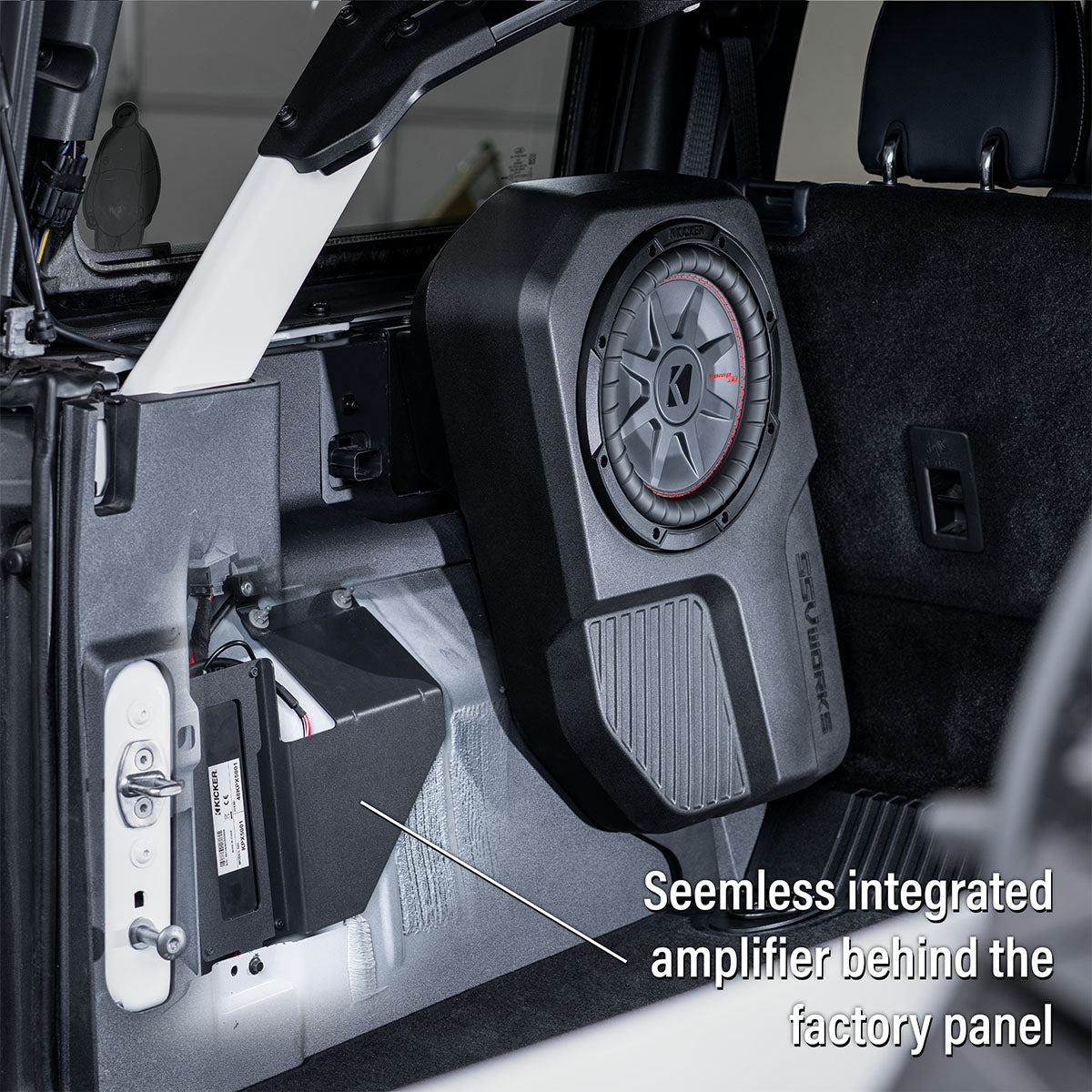

- Driver-side enclosure, with the amp and amp plate under the driver-side panel
- Uses factory mounting locations, with no custom brackets
- Works with or without the factory 8-inch subwoofer in place, per SSV Works
Built To Solve: Thin Bass In The 2021-2026 Ford Bronco 4-Door
- Factory audio that lacks low-end weight and impact
- Adding a sub usually means sourcing an amp, wiring and a box separately
- Custom installs that cut or splice factory wiring
Best For: 2021-2026 Ford Bronco 4-Door Owners Adding A Sub And Amp
- 2023-2026 Bronco 4-door owners across the trims SSV Works lists
- 2021-2022 Bronco 4-door owners with factory B&O audio
- Owners who want the subwoofer and amplifier in one kit
- 2-door Bronco owners: SSV Works lists this kit as not compatible
- 2021-2022 Broncos with the standard 6-speaker system: SSV Works says this is not plug-and-play, so contact us before ordering
Specifications
- Subwoofer: Kicker CompRT 10-inch, 800W max / 400W RMS, 84.8 dB sensitivity
- Amplifier: Kicker KPX500.1, 750W max, 10-160 Hz
- Mounting: enclosure on the driver side; amp and amp plate under the driver-side panel
- Connection: factory subwoofer output harness
- Manufacturer Part Number: 250-BR-PHZ+DS10K

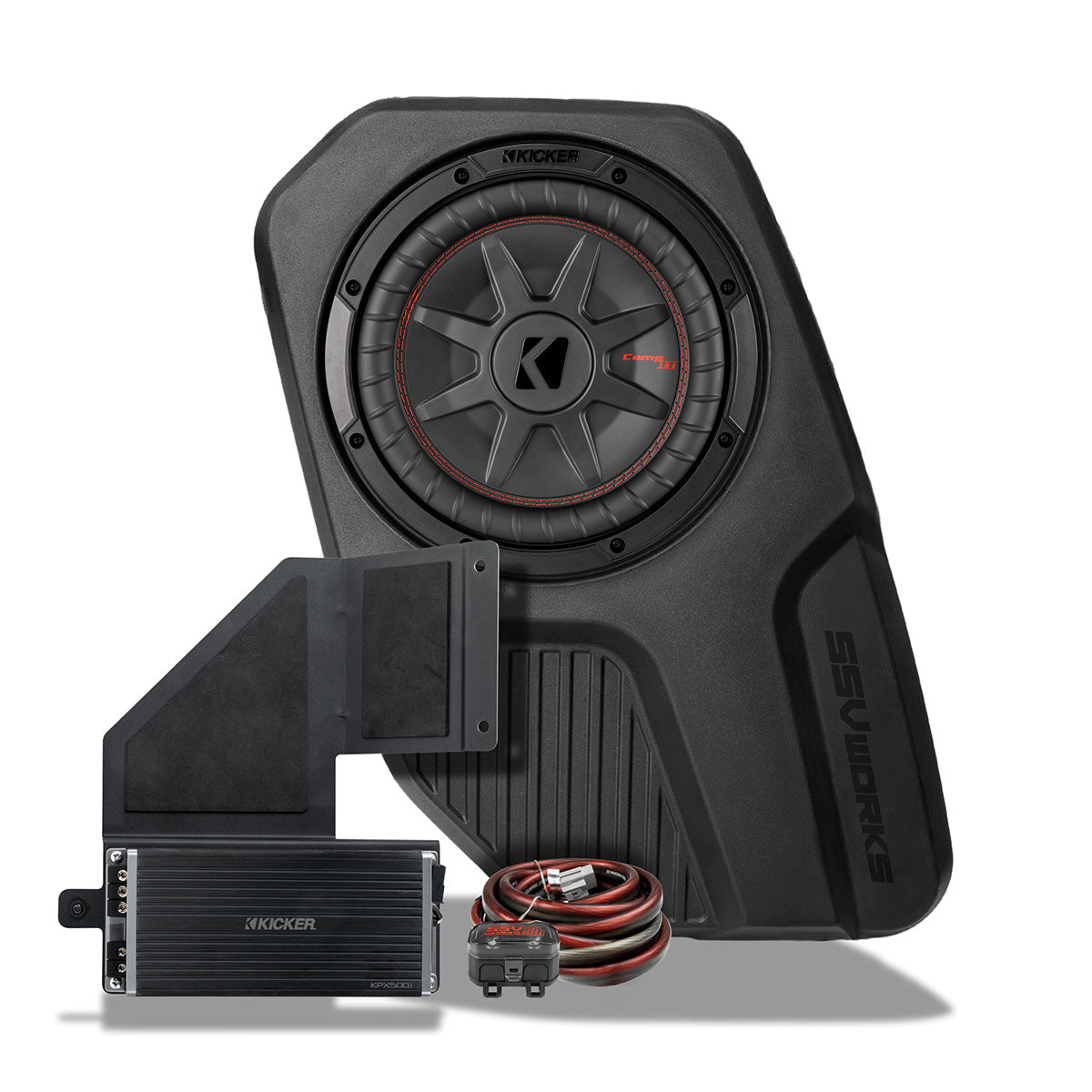

What's In The Box
- 10-inch Kicker CompRT subwoofer in its driver-side enclosure
- Kicker KPX500.1 amplifier and amp plate
- Plug-and-play wiring for the factory subwoofer output harness
- Mounting hardware
Not included: radio or head unit (this kit uses your factory Bronco audio), FORScan software or the cable to run it, and any additional speakers. Requires the factory subwoofer output harness. 2021-2022 Broncos with the standard 6-speaker system do not have that harness, so the kit is not plug-and-play on those models. Broncos with no factory sub or the dummy sub need FORScan to enable the harness. Contents above are taken from SSV Works' product description and tech specs; the separate in-the-box list on SSV's page currently shows a speaker-pod parts list, so contact us if you want the box contents confirmed before ordering.
Fitment
Fits 2021-2026 Ford Bronco 4-door. SSV Works lists all 2023-2026 4-door trims it tracks, including Big Bend, Black Diamond, Outer Banks, Badlands, Everglades, Wildtrak, Heritage Edition, Heritage Limited and Raptor; 2021-2022 4-door models are covered only with factory B&O audio. Not compatible with the 2-door Bronco. Confirm your year, door count and factory audio before ordering; fitment is not guaranteed on unlisted applications.
FAQ
Does this kit include an amplifier?
Yes. SSV Works lists a Kicker KPX500.1 amplifier with the kit, along with the Kicker CompRT 10-inch subwoofer. The amp and amp plate mount under the driver-side panel.
Is it plug-and-play on every Bronco?
No. SSV Works says it is not plug-and-play for some 2021-2022 models, because 2021-2022 Broncos with the standard 6-speaker system do not have the subwoofer output harness. B&O-equipped 2021-2022 4-doors and 2023-2026 4-doors are listed as compatible.
Do I need FORScan?
Only in some cases. SSV Works says FORScan is not required with the Visteon or B&O factory subwoofer, but a Bronco with no factory sub or the dummy sub needs FORScan to enable the factory subwoofer output harness.
Do I have to remove my factory 8-inch subwoofer?
No. SSV Works says the system is designed to be plug-and-play with or without the factory 8-inch subwoofer.
Will it fit a 2-door Bronco or the Bronco Raptor?
It does not fit the 2-door Bronco. SSV Works says it fits the 4-door Bronco Raptor.
How does this compare with a Bronco subwoofer enclosure on its own?
An enclosure on its own does not power itself. This complete kit includes the Kicker amplifier and plug-and-play wiring, so you do not need to source an amp separately.
Why SSV Works
SSV Works has built purpose-made vehicle audio since 2006, and its Bronco line uses the same approach as its UTV kits: vehicle-specific enclosures and plug-and-play wiring built around factory mounting points and factory harnesses.
Complete Your 2021-2026 Ford Bronco 4-Door Bass Upgrade
Confirm you have a 4-door Bronco, check your year and factory audio (2021-2022 models need B&O audio), and plan for FORScan if your Bronco has no factory sub. Then pair this subwoofer kit with SSV Works Bronco rear speaker pods for a fuller system. Order from Dunes 2 Dezert SXS.
