Can-Am Maverick X3 2 inch forward offset A-arms in black
SuperATV 2 inch forward offset high-clearance A-arms for Can-Am Maverick X3, Can-Am Red

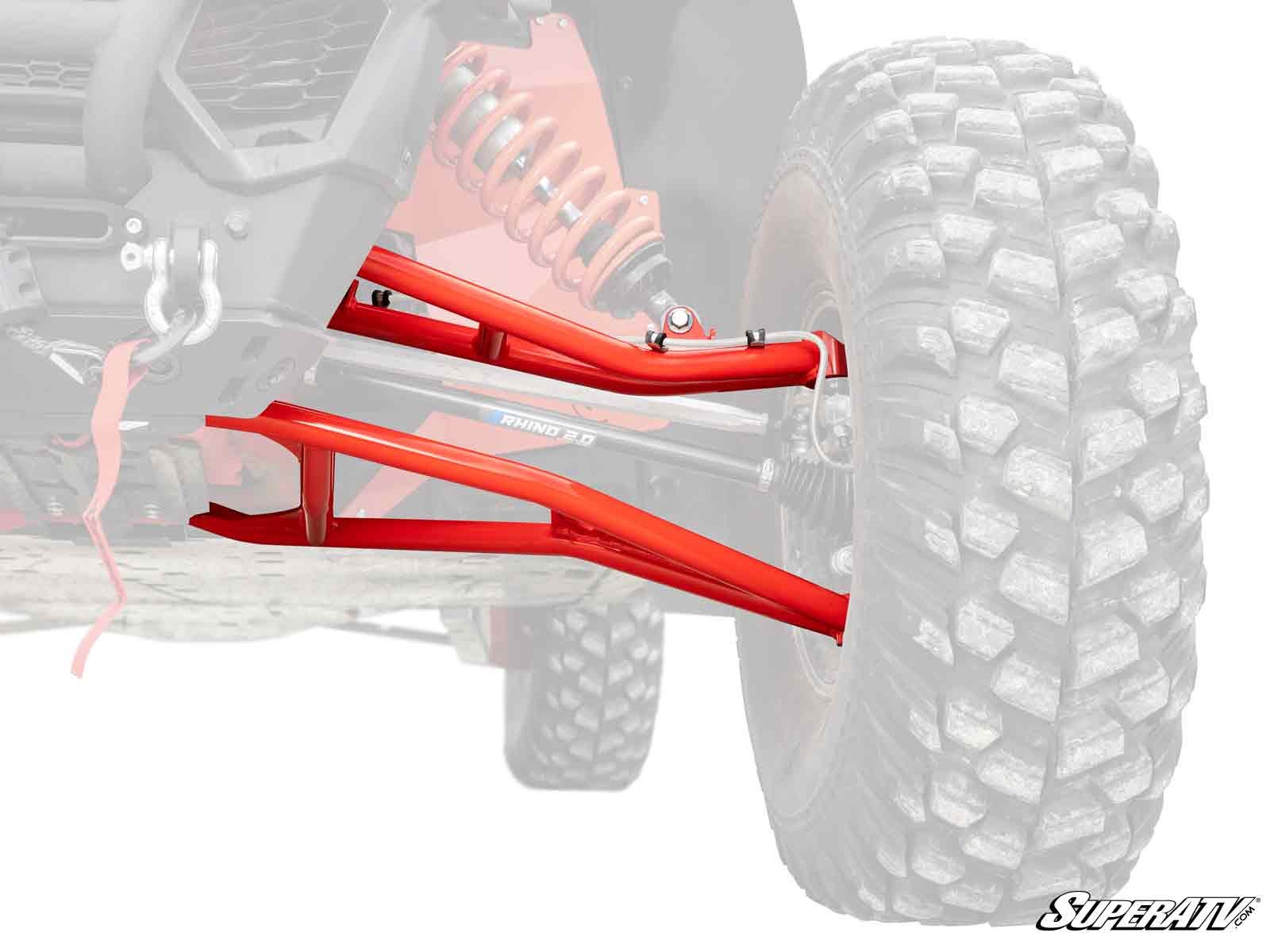

Can-Am Maverick X3 forward offset A-arms in Can-Am Red, high clearance bend

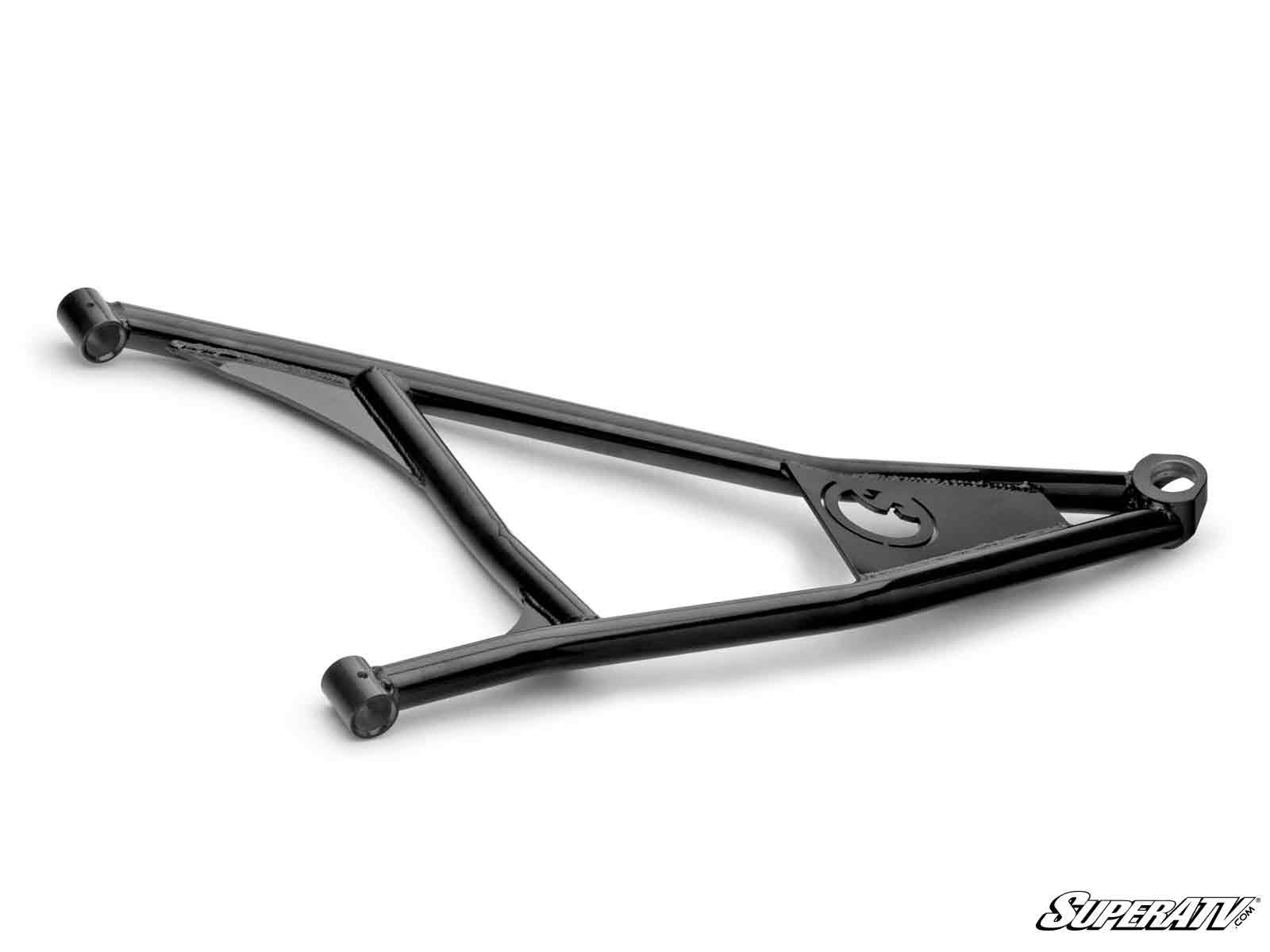

Can-Am Maverick X3 2 inch forward offset A-arms in black

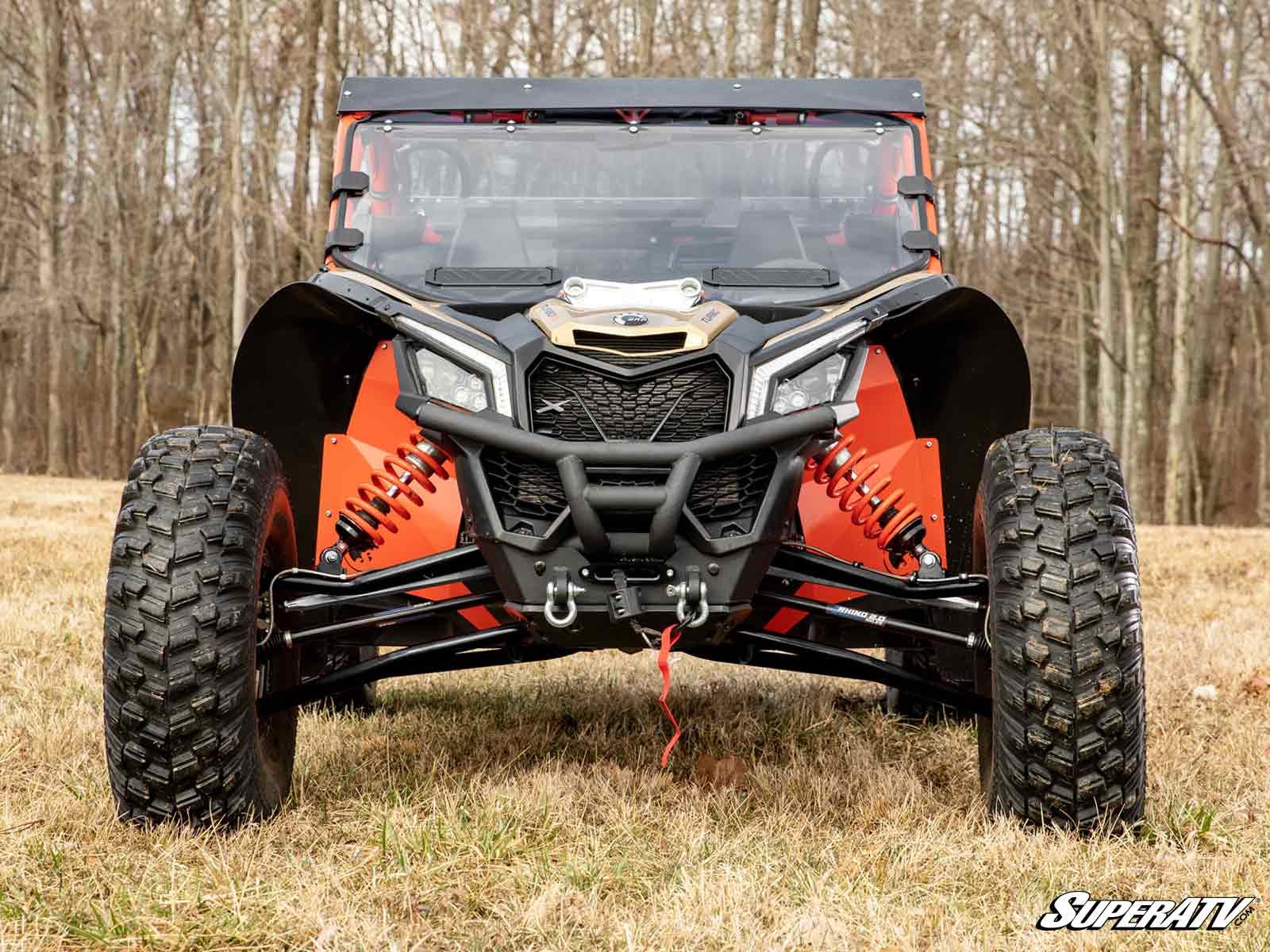

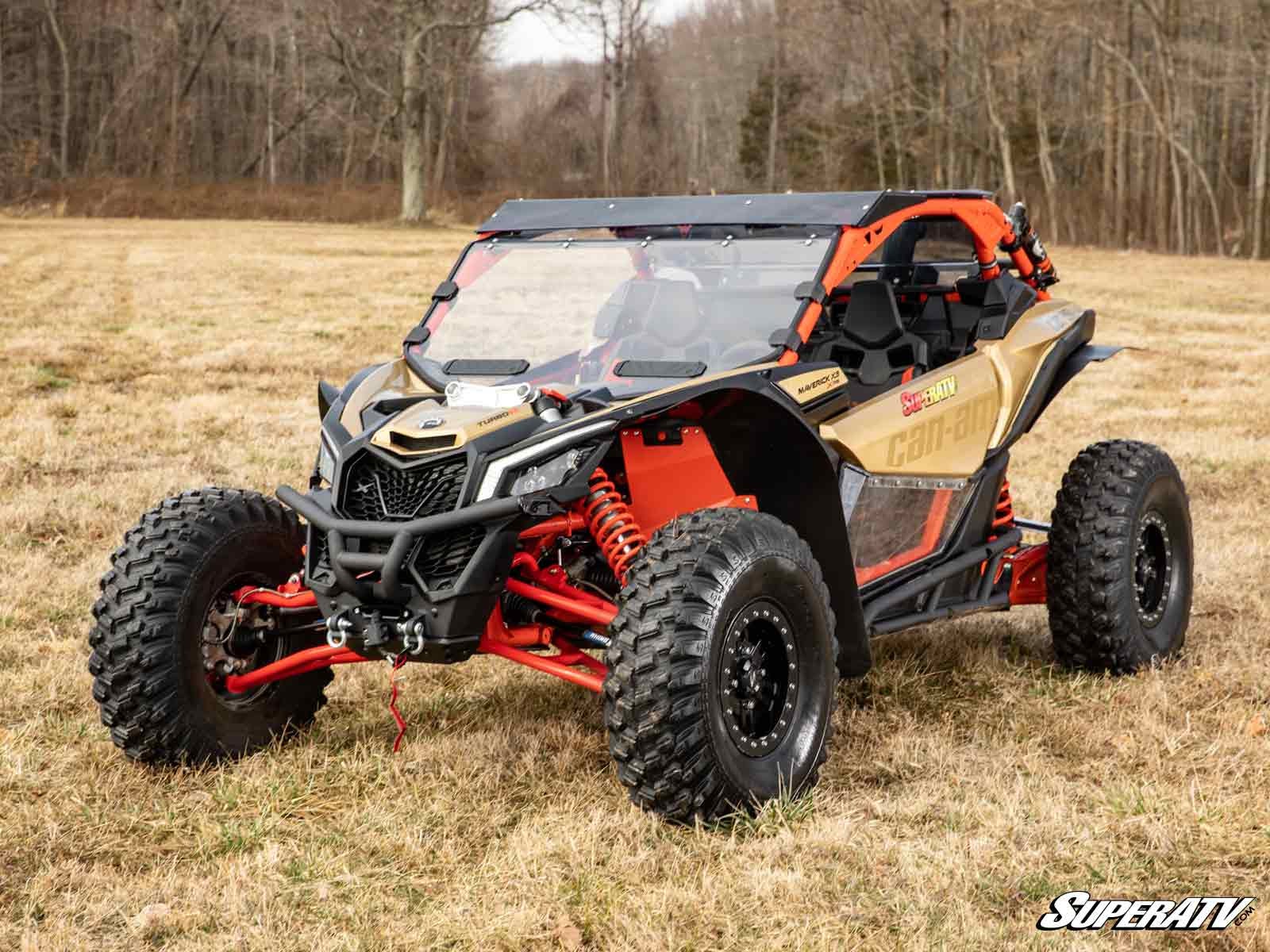

SuperATV Maverick X3 forward offset A-arms Can-Am Red, installed view

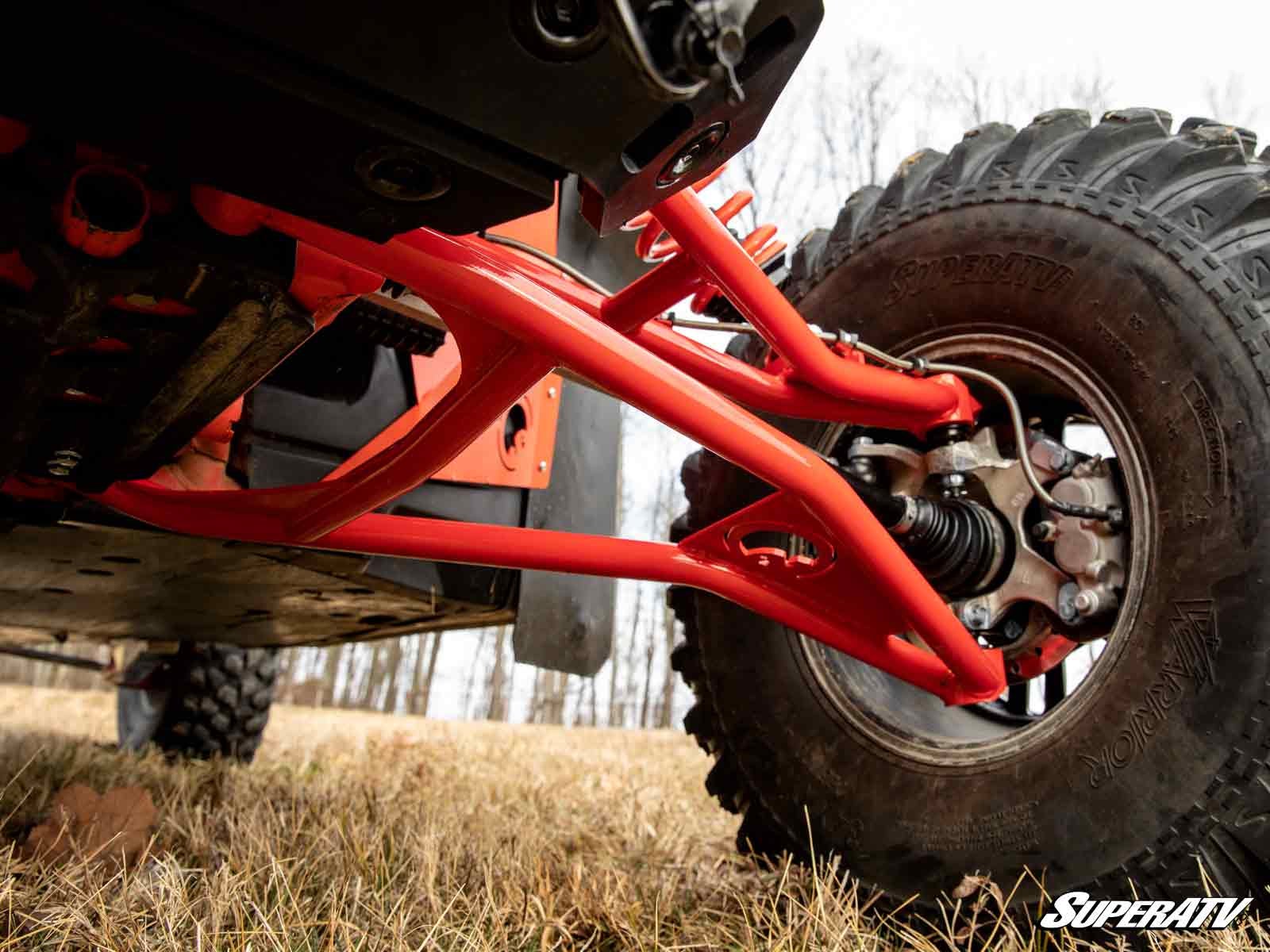

Can-Am Maverick X3 forward offset A-arms black, DOM steel tubing detail

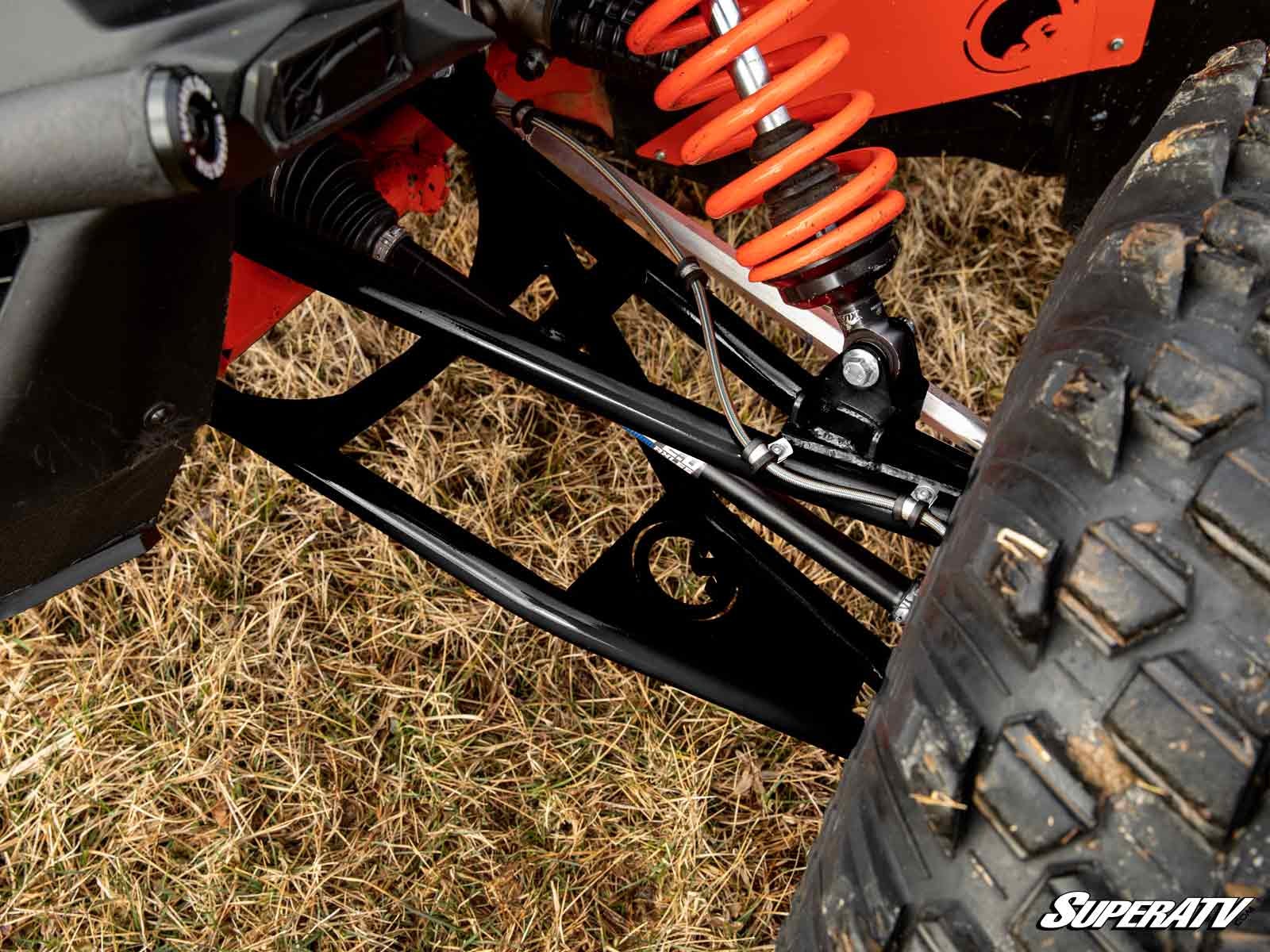

Can-Am Maverick X3 forward offset A-arms black, adjustable pivot block

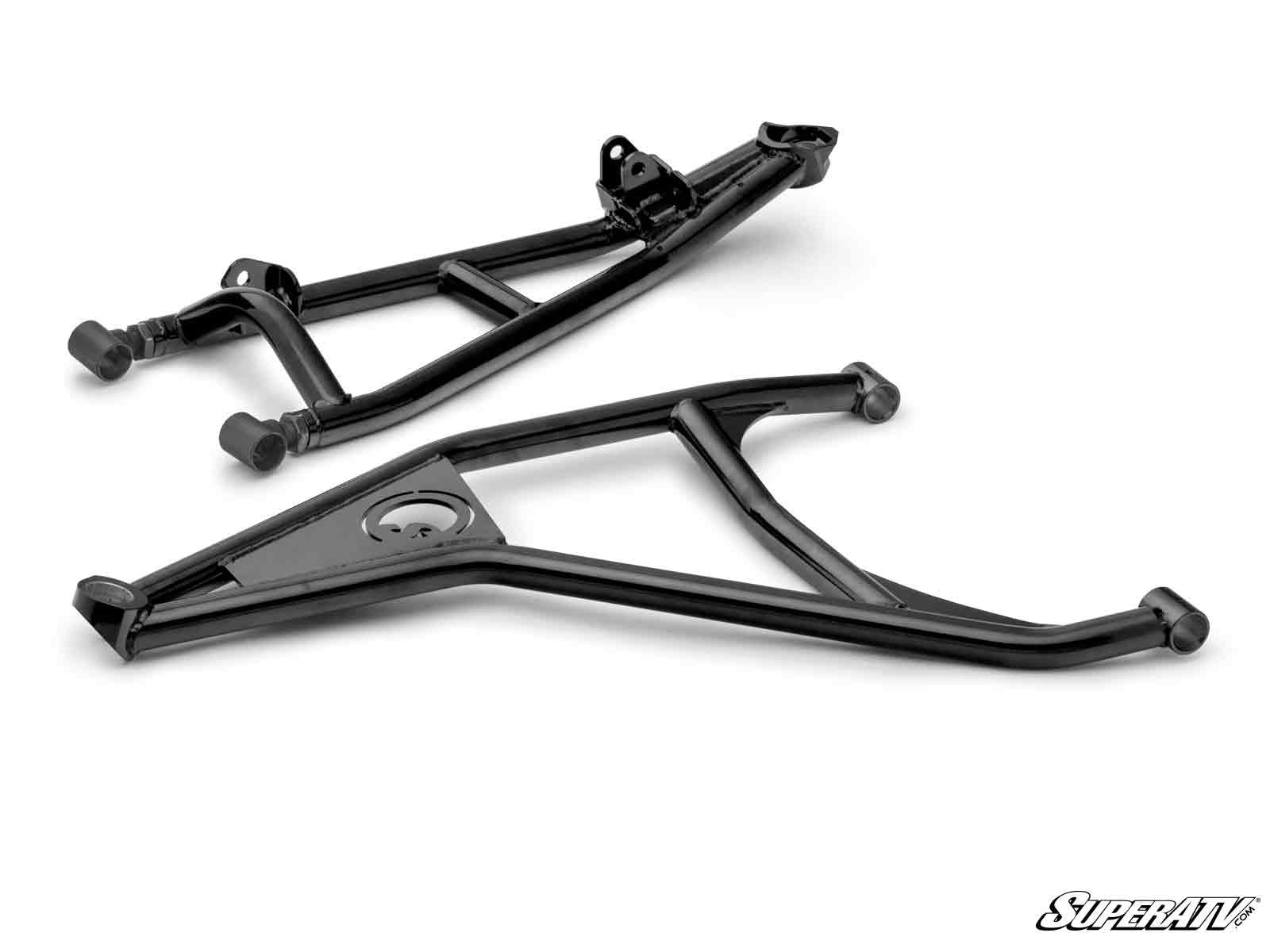

SuperATV Maverick X3 2 inch forward offset high-clearance A-arms black, full set

Super ATV

2017+ Can-Am Maverick X3 2" Forward Offset A-Arms | SuperATV

Sale price $640.95

Shipping calculated at checkout

Model
Ball Joints
Color: Black

In stock

2017+ Can-Am Maverick X3 2" Forward Offset A-Arms | SuperATV

SuperATV 2" Forward Offset A-Arms for the Can-Am Maverick X3 give your front suspension more tire clearance, more ground clearance, and full camber adjustability. These high-clearance A-arms move the front wheels 2" forward so you can run larger tires without relying on a lift kit. The built-in high-clearance bend adds 1.5" of ground clearance to help your Maverick X3 clear rocks, logs, ruts, and rough desert terrain.

More Tire Clearance for Bigger Maverick X3 Builds

When you start building a Can-Am Maverick X3 for larger tires, the stock front control arms can quickly become the limiting factor. These SuperATV forward offset A-arms move the front wheel position forward by 2", creating the extra room needed for bigger tire setups. The 64" A-arm option fits up to 33" tires, while the 72" A-arm option fits up to 37" tires.

High-Clearance A-Arms Built for Rough Terrain

These Maverick X3 high-clearance A-arms are designed to help your front suspension glide over trail obstacles instead of catching on them. The 1.5" clearance gain helps reduce hang-ups on rocks, roots, logs, ruts, and uneven desert lines. For riders pushing hard in sand, desert, rocks, and trail terrain, the added clearance helps keep the front end moving instead of dragging.

Strong DOM Steel Front Control Arms

SuperATV builds these Can-Am X3 front A-arms from 1.25" x .138" DOM wall steel tubing for strength you can count on off-road. The UV-resistant powder coat finish helps protect the arms from corrosion, trail abuse, and harsh riding conditions. They also use the stock A-arm bushings, making them a practical upgrade for riders replacing or upgrading factory front control arms.

Adjustable Camber for Lifted and Larger-Tire Setups

Changing tire size, adding a lift, or adding weight can affect camber and tire wear. These SuperATV A-arms include adjustable upper pivot blocks so you can dial in camber after changing your setup. They come set to stock specs out of the box for a quicker install, but still give you the adjustment range needed for serious Maverick X3 builds.

Key Features

  • Adds a 2" forward offset
  • Adds 1.5" of ground clearance
  • 64" A-arms fit up to 33" tires
  • 72" A-arms fit up to 37" tires
  • Made with 1.25" x .138" DOM wall steel tubing
  • Adjustable upper pivot blocks for full camber adjustability
  • Comes set to stock specs for quick installation
  • Utilizes stock A-arm bushings
  • UV-resistant powder coat finish
  • Easy to install
  • Backed by a lifetime warranty

Ball Joint Options

  • Reuse Existing: You must re-use your stock ball joints if you don't select a preinstalled option.
  • Standard Duty: Standard replacement ball joint option for riders who want a fresh replacement without upgrading to a heavy-duty ball joint package.
  • Heavy-Duty 4340: Hardened 4340 VAR steel with zinc plating, greaseable and adjustable, tested to withstand double the pressure of an OEM ball joint.
  • Keller Performance: Two-piece threaded design that eliminates the snap ring and threads onto the A-arm like a nut and bolt; chromoly stud with a tool-steel body, greaseable and rebuildable.
  • Super Duty 300M: 300M-grade steel with an adjustable steel-on-steel design and accessible grease zerk, rated 2.25x stronger than stock.

Symptoms This Product Solves

  • Limited front tire clearance on Can-Am Maverick X3 builds
  • Need for bigger tire fitment without adding a lift kit
  • Stock front control arms limiting larger tire setups
  • Front A-arms catching on rocks, logs, roots, ruts, and trail debris
  • Low ground clearance at the front suspension
  • Premature tire wear caused by incorrect camber after setup changes
  • Need for camber adjustment after adding tires, lift, or extra weight
  • Confusion over which ball joint option to choose for your build

Who Is This For?

  • Can-Am Maverick X3 riders who want more tire room up front
  • 64" Maverick X3 owners wanting clearance for up to 33" tires
  • 72" Maverick X3 owners wanting clearance for up to 37" tires
  • Trail, desert, rock, and dune riders who want added clearance without a lift
  • Owners upgrading front control arms while keeping camber adjustability
  • Riders choosing between stock ball joints and upgraded SuperATV ball joint packages

Specifications

  • Forward offset: 2"
  • Ground clearance gain: 1.5"
  • 64" A-arm tire fitment: up to 33" tires
  • 72" A-arm tire fitment: up to 37" tires
  • Tubing: 1.25" x .138" DOM wall steel tubing

Fitment

64" Models

  • Can-Am Maverick X3 900 : 2018
  • Can-Am Maverick X3 Turbo : 2017-2020
  • Can-Am Maverick X3 Turbo R : 2018-2020
  • Can-Am Maverick X3 DS Turbo R : 2021
  • Can-Am Maverick X3 DS Turbo 64 : 2022+
  • Can-Am Maverick X3 DS Turbo RR 64 : 2022+
  • Can-Am Maverick X3 X DS Turbo R : 2017-2020
  • Can-Am Maverick X3 X DS Turbo RR : 2020-2021
  • Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
  • Can-Am Maverick X3 X MR Turbo : 2018-2021
  • Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
  • Can-Am Maverick X3 X RC Turbo : 2018-2021
  • Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
  • Can-Am Maverick X3 MAX Turbo : 2017-2020
  • Can-Am Maverick X3 MAX Turbo R : 2018-2020
  • Can-Am Maverick X3 MAX DS Turbo R : 2021
  • Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
  • Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
  • Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
  • Can-Am Maverick X3 MAX X DS Turbo R : 2020
  • Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

72" Models

  • Can-Am Maverick X3 RS Turbo R : 2021
  • Can-Am Maverick X3 RS Turbo RR 72 : 2022+
  • Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
  • Can-Am Maverick X3 X RC Turbo R : 2018-2020
  • Can-Am Maverick X3 X RC Turbo RR : 2020-2021
  • Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
  • Can-Am Maverick X3 X RS Turbo R : 2017-2020
  • Can-Am Maverick X3 X RS Turbo RR : 2020-2021
  • Can-Am Maverick X3 X MR Turbo R : 2018-2019
  • Can-Am Maverick X3 X MR Turbo RR : 2020-2021
  • Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
  • Can-Am Maverick X3 MAX RS Turbo R : 2021
  • Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
  • Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
  • Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
  • Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+
  • Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
  • Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
  • Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
  • Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+

Note: Not compatible with Smart-Shox.

Frequently Asked Questions

What do 2" forward offset A-arms do for a Can-Am Maverick X3?

They move the front wheel position 2" forward to create more tire clearance. This helps Maverick X3 owners run larger tires without relying on a lift kit.

How much ground clearance do these A-arms add?

These high-clearance A-arms add 1.5" of ground clearance with a bend designed to help the front suspension move over rocks, logs, roots, ruts, and trail debris.

What size tires can I run with these A-arms?

64" A-arms fit up to 33" tires, and 72" A-arms fit up to 37" tires.

Can camber be adjusted with these A-arms?

Yes. The adjustable upper pivot blocks allow full camber adjustability. The A-arms come set to stock specs, but you can adjust camber after adding larger tires, a lift kit, or extra weight.

Which ball joint option should I choose?

You can re-use your stock ball joints, choose Standard Duty replacement ball joints, or upgrade to Heavy-Duty 4340, Keller Performance, or Super Duty 300M ball joints depending on how hard you ride and how much strength you want in the setup.

Are these compatible with Smart-Shox models?

No. These A-arms are not compatible with Smart-Shox.

Why SuperATV

SuperATV builds these Can-Am Maverick X3 2" forward offset A-arms for riders who want more tire clearance, more ground clearance, and adjustable camber in one front suspension upgrade. With 1.25" x .138" DOM wall steel tubing, a UV-resistant powder coat finish, and a lifetime warranty on the A-arms, they are built for hard off-road use.


Upgrade Your Can-Am Maverick X3 with 2" Forward Offset A-Arms

Give your Can-Am Maverick X3 the front tire clearance, ground clearance, and camber adjustability it needs for bigger tire setups and harder riding. Order SuperATV 2" Forward Offset A-Arms from Dunes 2 Dezert SXS and get the right front suspension upgrade for your build.
