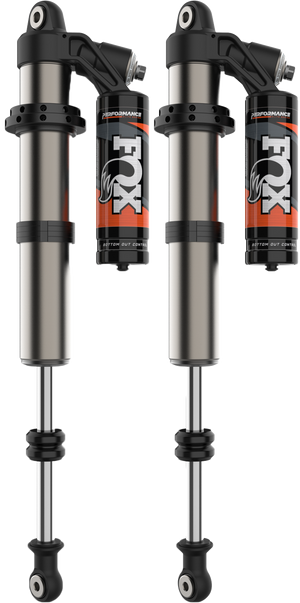

FOX 2.5 Performance Elite Front Shocks for Polaris RZR Pro XP
Product Description
The FOX 2.5 Performance Elite front shocks for Polaris RZR Pro XP deliver race-inspired suspension performance with exceptional durability and precise adjustability. Designed as a direct bolt-on suspension upgrade, these shocks improve ride quality, traction, and stability across aggressive off-road terrain.
FOX Performance Elite shocks feature Dual-Speed Compression (DSC) adjustment, allowing drivers to independently tune both high-speed and low-speed compression damping. This enables precise suspension tuning to match terrain conditions, vehicle load, and driving style.
The 2.5-inch aluminum shock bodies increase internal oil capacity and improve heat dissipation, helping maintain consistent damping performance during long rides and harsh conditions. FOX’s race-developed high-flow damping pistons improve small bump compliance while maintaining strong support during large impacts.
The piggyback reservoir increases oil capacity and houses an Internal Floating Piston (IFP) that separates nitrogen gas from the shock oil. This prevents oil aeration and maintains consistent damping performance during aggressive riding.
FOX also incorporates Bottom-Out Control (BOC) technology which increases compression damping during the final portion of suspension travel. This provides additional protection during hard impacts while maintaining ride comfort during normal operation.
With wide-range rebound adjustment and adjustable spring preload, riders can fine-tune suspension response, ride height, and traction for optimal off-road performance.
FOX Performance Elite shocks are engineered for drivers who demand race-level suspension performance with maximum durability and tuning capability.
Technical Specifications
Product: FOX Performance Elite Series 2.5 Shocks
Vehicle Fitment: Polaris RZR Pro XP
Position: Front
Shock Body Diameter: 2.5 in
Compression Adjustment: Dual-Speed Compression (DSC)
Rebound Adjustment: Wide-range adjustable rebound
Reservoir Type: Piggyback with Internal Floating Piston (IFP)
Shock Body Material: Hard-anodized aluminum
Shaft Size: 7/8 in hard-chromed shaft
Serviceability: Fully rebuildable and re-valvable
Sold As: Pair
Key Features
• Dual-Speed Compression (DSC) adjustable damping
• Bottom-Out Control (BOC) for added protection during hard impacts
• Wide-range rebound adjustment for improved traction
• Piggyback reservoir increases oil capacity and cooling
• 2.5-inch aluminum shock bodies improve heat dissipation
• FOX race-developed high-flow damping pistons
• Adjustable spring preload for ride height tuning
• 7/8-inch hard-chromed shafts for durability and seal life
• Fully rebuildable and re-valvable FOX shock design
Ideal Riding Conditions
These shocks are designed for RZR riders who want improved suspension performance across demanding terrain.
Best suited for:
• Desert riding
• Sand dunes
• Aggressive trail riding
• Rocky terrain
• High-speed off-road driving
Specifications
Part Number: 885-08-510-2
Series: FOX Performance Elite Series
Travel: 8.55 in
Extended Length: 27.5 in
Compressed Length: 18.95 in
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment
Compatible with the following Polaris models:
- Polaris RZR Pro XP (2020–2025)
- Polaris RZR Pro XP Premium
- Polaris RZR Pro XP Sport
- Polaris RZR Pro XP Orange Madness LE
- Polaris RZR Pro XP Rockford Fosgate LE
Position: Front
Sold as a pair
Frequently Asked Questions
Are these shocks sold individually or as a pair?
These FOX Performance Elite shocks are sold as a pair for the front suspension.
What does Dual-Speed Compression (DSC) adjustment do?
DSC allows independent adjustment of high-speed and low-speed compression damping so drivers can tune suspension performance for terrain and riding style.
What is the benefit of the piggyback reservoir?
Piggyback reservoirs increase oil capacity and cooling, helping shocks maintain consistent damping performance during aggressive riding.
Are FOX Performance Elite shocks rebuildable?
Yes. FOX shocks are fully rebuildable and can be serviced or custom-valved for specific riding applications.
Upgrade Your RZR Suspension
Upgrade your Polaris RZR Pro XP suspension with FOX 2.5 Performance Elite front shocks for improved traction, durability, and off-road performance.
