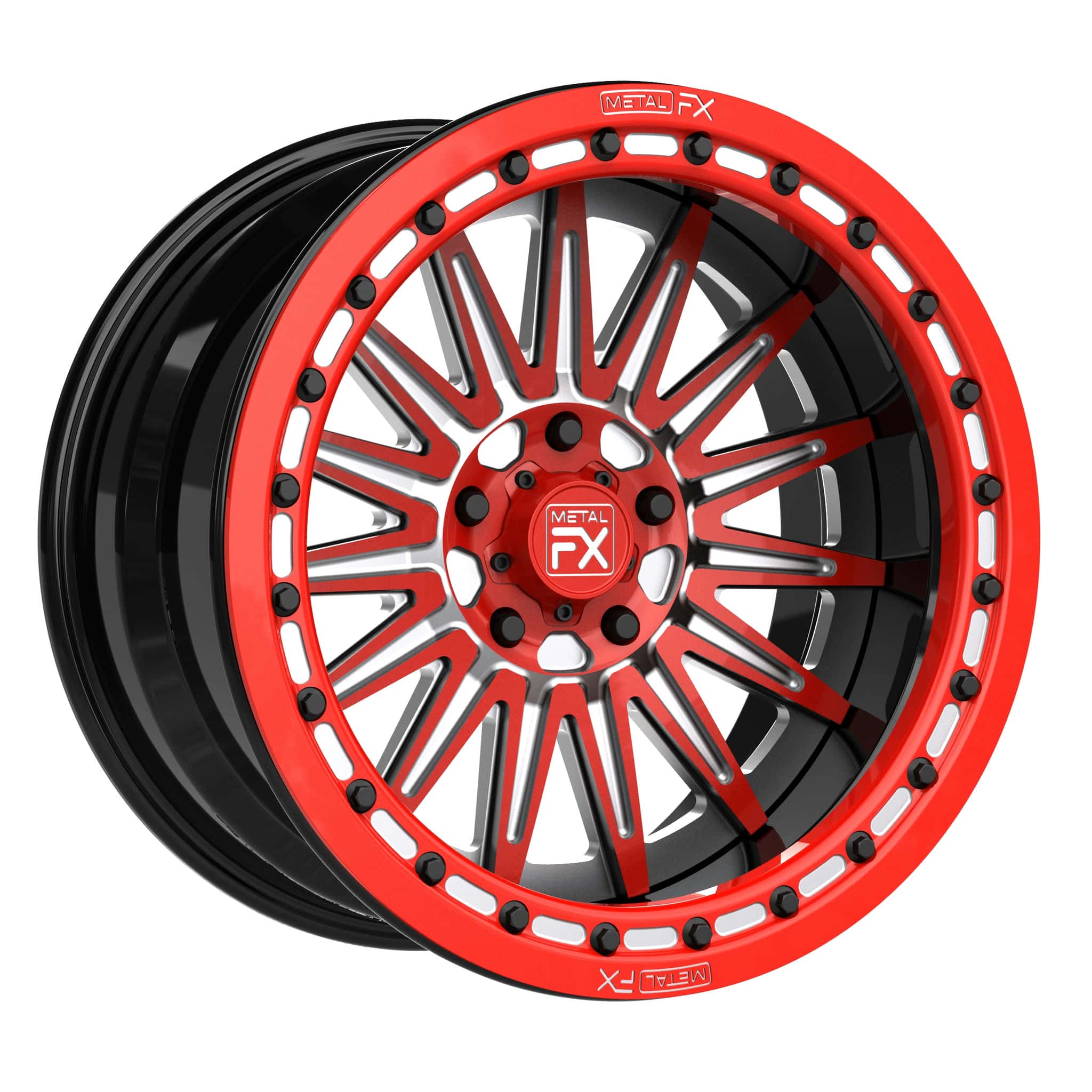

Metal FX Velocity R Custom Forged 3-Piece Beadlock 17" UTV Wheel 5x4.5

The Metal FX 17" Velocity R Custom Forged 3-Piece Beadlock is a custom-build UTV wheel for the Polaris RZR Pro R and Turbo R, on a 5x114.3 (5x4.5) bolt pattern. It is a forged 3-piece wheel with a concave 6061-T6 billet center, hidden assembly bolts and a beadlock ring, made in the USA, and offered in Custom or Raw finish.

This is a custom build, not a stock wheel. Metal FX builds it to order, prices it per wheel, and confirms finish and production timing after you order. Contact Dunes 2 Dezert SXS before you order to confirm size, offset and lead time for your machine. If you are shopping custom beadlock wheels or custom UTV rims and want a forged wheel rather than a cast wheel with a forged ring, this is the step up from the Metal FX cast line. Among Metal FX wheels, it sits in the forged beadlock wheels range. It suits RZR Pro R wheels shoppers and RZR Pro R beadlock wheels builds, alongside other Pro R beadlock wheels.

Key Features

• Forged 3-piece construction with a concave 6061-T6 billet center
• True beadlock: the ring mechanically clamps the tire's outer bead
• Hidden assembly bolts
• 17-inch diameter
• Bolt pattern: 5x114.3 (5x4.5), 66.1mm hub-centric bore
• Custom or Raw finish, built to order
• Made in the USA

Built To Solve: Stock-Looking Wheels on Pro R and Turbo R Builds

• Tires rolling off the bead when aired down for traction
• Off-the-shelf wheels that look like every other build
• Matching a premium forged wheel to a 5-lug hub
• Wanting a custom color instead of a stock finish
• Cast wheels that bend under hard hits

Best For: RZR Pro R and Turbo R Custom Builds

• RZR Pro R and Turbo R owners building a custom forged wheel setup
• Show and race builds that need a one-off finish
• Owners comparing UTV forged wheels and forged UTV wheels against cast
• Owners shopping 17 beadlock wheels and 17in beadlock wheels
• Riders comparing 5x4.5 beadlock wheels and other Polaris beadlock wheels, and RZR Turbo R wheels shoppers
• Riders who want a wheel in hand quickly should look at the standard Metal FX cast or forged wheels instead

Specifications

• Construction: forged 3-piece, 6061-T6 billet center
• Type: true beadlock
• Bolt pattern: 5x114.3 (5x4.5), 66.1mm hub-centric bore
• Diameter: 17 inch
• Size and offset: confirmed with Metal FX for your build; contact us before ordering
• Finishes: Custom (colors confirmed after the order) or Raw
• Sold: per wheel, built to order
• Lug nuts: acorn-style, sold separately
• Made in the USA

Fitment

Metal FX builds the R series for Polaris 5-lug machines on the 5x114.3 (5x4.5) pattern with a hub-centric 66.1mm bore, and lists this wheel for:

• Polaris RZR Pro R
• Polaris RZR Turbo R

Fitment is not guaranteed on applications not listed here. Confirm overall vehicle width with your chosen tires before ordering.

FAQ

Will the Metal FX 17" Velocity R fit my Polaris RZR Pro R?

Yes. Metal FX builds it for the Polaris RZR Pro R and Turbo R on the 5x114.3 (5x4.5) pattern with a 66.1mm bore. 4-lug RZR models will not fit.

What does custom build mean for this wheel?

Metal FX builds it to order rather than shipping from stock. It is priced per wheel, Metal FX confirms your finish after the order, and production time varies, so contact us for current lead times before ordering.

What size is the 17" Velocity R?

Size and offset are confirmed with Metal FX for your build. Contact us with your machine and tire size before ordering.

How does the Custom finish work?

Pick Custom and Metal FX contacts you after the order is placed to confirm colors. Raw is bare aluminum with no coating.

Is the Velocity R a true beadlock?

Yes. The beadlock ring mechanically clamps the tire's outer bead to the wheel, which helps keep the tire seated at lower pressures.

What lug nuts does it need?

It takes acorn-style lug nuts, sold separately. On the RZR Pro R and Turbo R, the Valor Offroad 12x1.5 5-lug kit fits.

Why Metal FX

Metal FX builds its forged wheels in the USA around specific platforms: a 4-lug line, an R line for Polaris's 5-lug machines and a 6R line for the Can-Am Maverick R. Among Metal FX UTV wheels, the custom forged builds sit at the top, above the cast line and the stock forged wheels. The Velocity R carries its own part numbers, separate from any cast version.

Start Your Custom Pro R Forged Wheel Build

Contact us to confirm size, offset and lead time, choose Custom or Raw, then order the Metal FX 17" Velocity R. Add an acorn-style lug kit, such as the Valor Offroad 12x1.5 5-lug kit.
