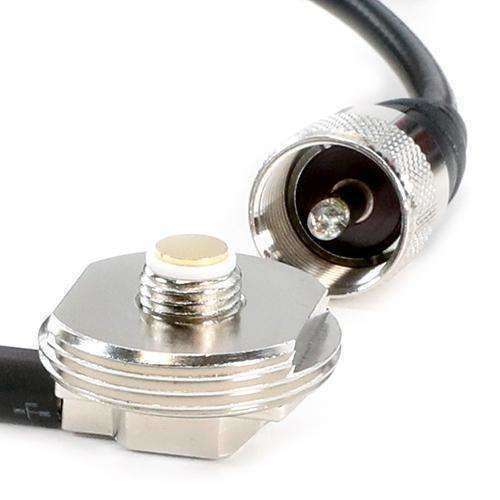

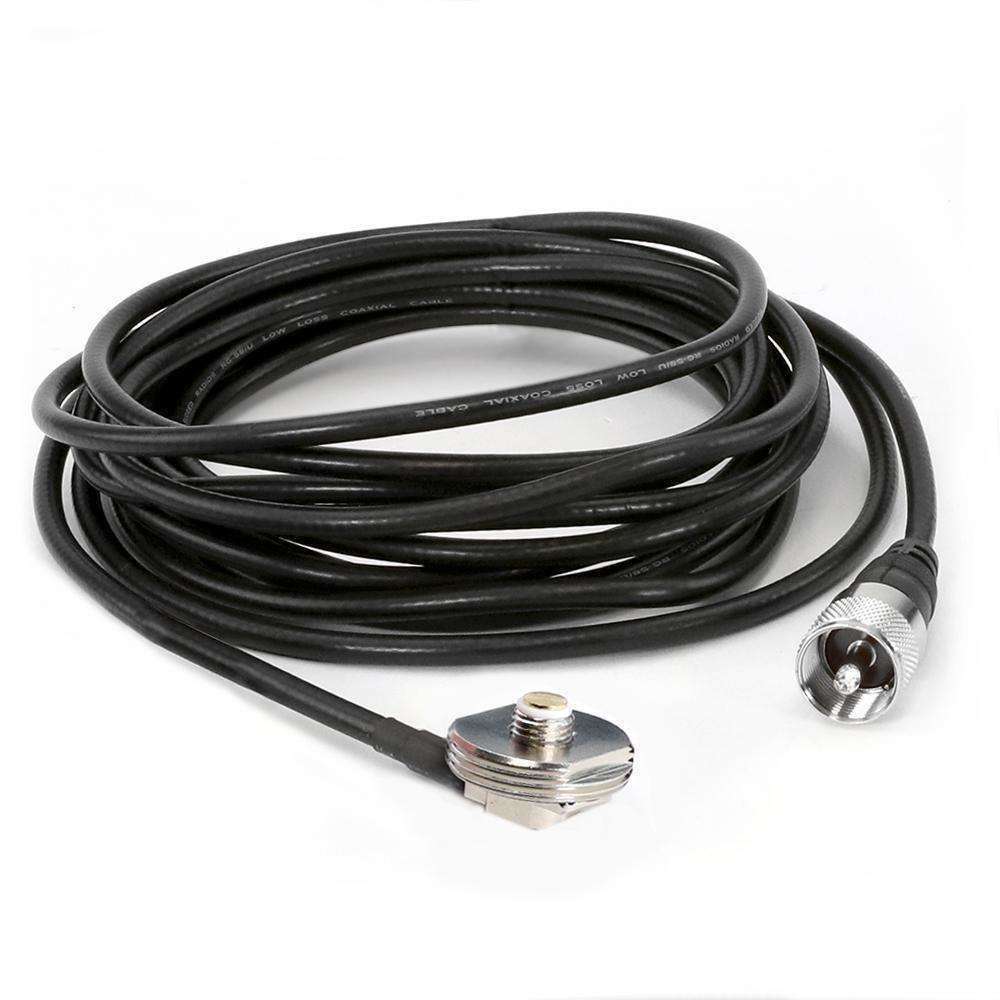

Rugged Radios Antenna Coax Cable with NMO Mount
Shipping calculated at checkout
In stock
Excess coax between a UTV radio and antenna can hurt radio performance when it is coiled or overlapped. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. Rugged Radios NMO coax cable connects the radio to the antenna through a crimped NMO mount, creating a weathertight connection.
Key Features
- Crimped NMO connection for a weathertight seal
- Nickel-plated brass NMO mount
- Works with VHF and UHF applications
- Requires a 3/8-inch thread hole
- 15-foot and 17-foot cable length options
Built To Solve: UTV Radio Antenna Cable Routing
- Choose a cable length that reaches from the radio to the antenna without excess.
- Run any excess coax in straight lines rather than coils or overlaps.
- Use the crimped NMO connection for a weathertight mount connection.
- Hold the wrench vertically when installing the NMO nut to reduce torque.
Best For: UTV Radio Installers Routing an Antenna
- UTV radio installations using an NMO antenna mount.
- VHF or UHF radio applications.
- Installers choosing between 15-foot and 17-foot cable runs.
- Installations with a 3/8-inch thread hole for the mount.
Specifications
- Radio applications: VHF and UHF
- Required thread hole: 3/8 inch
- Mount material: Nickel-plated brass
- Cable lengths: 15 feet and 17 feet
- Manufacturer part numbers: NMO-MT-15 (15 Feet), NMO-MT-17 (17 Feet)
What's in the Box
- Nickel-plated brass NMO mount
Fitment
- Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
How should I choose the cable length?
Measure the route from the radio to the antenna and choose a length that reaches without leaving excess cable.
What size thread hole does the NMO mount require?
The mount requires a 3/8-inch thread hole.
How should I tighten the NMO nut?
Hold the wrench vertically to reduce torque and avoid overtightening.
Can I coil excess antenna coax cable?
Coiling or overlapping coax can dramatically affect radio performance. Run excess cable in straight lines instead.
Is the NMO antenna stud's center conductor solid metal?
No. The center conductor is not solid metal and can be damaged by overtightening.
Why Rugged Radios
Rugged Radios uses a crimped NMO connection and a nickel-plated brass mount on this coax cable.
Route Your UTV Radio Antenna Cable
Choose the cable length that matches your radio-to-antenna run.
