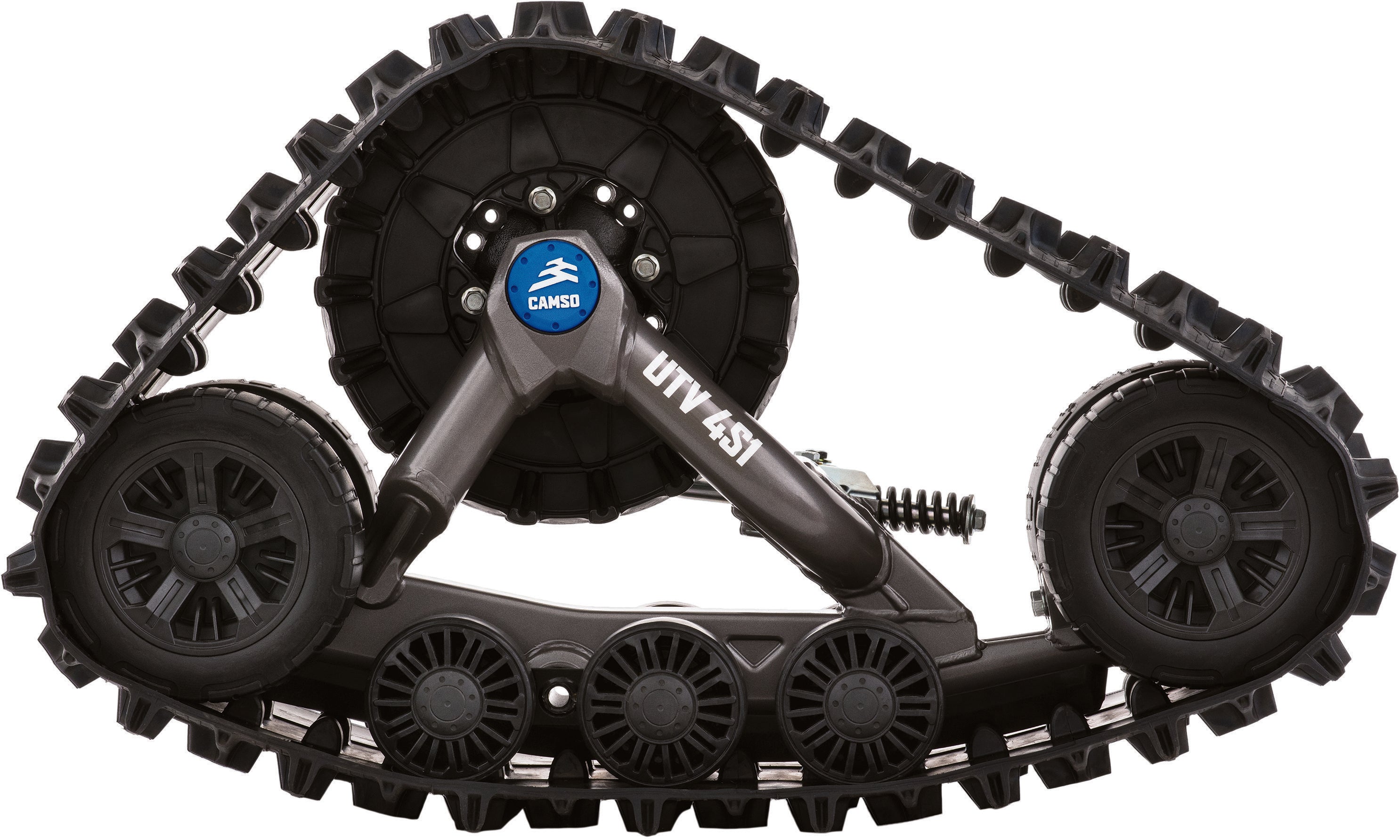

CAMSO UTV 4S1 Track System for Yamaha YXZ 1000R (2019–2024)

Dominate every season with the CAMSO UTV 4S1 Track System for Yamaha YXZ 1000R, the ultimate upgrade for riders who refuse to stay parked when terrain gets extreme. Designed for deep snow, mud, swamps, and unpredictable backcountry trails, this Yamaha YXZ 1000R track system gives your machine exceptional traction, flotation, stability, and torque in all conditions.

With over 2520 sq. in. of ground contact and 5 inches of added ground clearance, the CAMSO 4S1 Track System for Yamaha YXZ 1000R allows you to glide through deep powder, climb rock-strewn hills, and maintain confident control over broken ice, uneven terrain, and deeply rutted trails. The Flex-Track front design delivers smoother steering and improved handling, making technical terrain and 20º hill climbs easier and safer.

Built for abuse and engineered for longevity, the CAMSO UTV 4S1 Track System comes equipped with a reinforced carbon-steel frame, high-density tires, oil-bath triple bearings, and sealed hubs. Whether you're towing a 2500 lb load, hauling 1000 lbs of gear, or navigating remote hunting terrain, this YXZ 1000R track kit ensures maximum torque transfer and superior control.

This complete YXZ-specific setup includes a dedicated mount kit, anti-rotation components, and all installation hardware, making it straightforward to install and fully compatible with 2019–2024 Yamaha YXZ 1000R platforms. With optimized steering geometry, reduced vibration, and exceptional lateral stability, the CAMSO 4S1 Yamaha YXZ 1000R track system turns your machine into a true four-season vehicle built for adventure.

⭐ Top Performance Benefits

✔ Maximum Traction & Power
• Scale 20° snow-covered climbs
• Wide contact patch for premium flotation
• 1.125" lugs deliver aggressive bite

✔ Superior Comfort in Rough Terrain
• Foam-filled idler wheels smooth out impacts
• Rubber-mounted shafts minimize vibration
• Flex-Track improves steering across uneven ground

✔ Built for Extreme Durability
• Carbon-steel frame withstands debris and abuse
• High-density tires reduce wear
• Triple hub bearings with oil-bath lubrication
• Bladder-type seals prevent water intrusion

✔ Ultimate Torque & Hauling Strength
• Optimized sprocket ratio for increased torque
• Haul up to 1000 lbs
• Tow up to 2500 lbs on snow or ice

✔ Enhanced Steering & Stability
• Curved Flex-Track design improves control
• Optimized geometry for smooth long-distance driving
• Superior sidehill stability

📐 Technical Specifications

Drive & Frame

• Internal drive system
• Carbon steel frame
• Compatible with 15–18 tooth sprockets
• Mild-steel anti-rotation system with progressive damper

Tracks

• Front: 98.5" × 12.5" × 1.125"
• Rear: 116.7" × 14" × 1.125"

Weights

• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: 6.25 lbs

Wheels & Bearings

• 5.2" double-bearing mid-rollers
• 9.49" flat-free tires
• Forged-steel triple hub bearings

🔧 What’s Included

• 4 Track Systems — 2 Front, 2 Rear
• Yamaha YXZ 1000R Mount Kit
• Anti-Rotation Spring & Limiter
• Hardware & Installation Components

❓ Frequently Asked Questions

Will this CAMSO 4S1 Track System fit my Yamaha YXZ?
Yes — fits the following YXZ models (2019–2024):
• YXZ 1000R
• YXZ 1000R SS
• YXZ 1000R SE
• YXZ 1000R LE
• YXZ 1000R XT-R

How much ground clearance is added?
Approximately 5 inches.

Is this system good for steep terrain?
Yes — tested and proven for 20º climbs.

Can it tow and haul heavy loads?
Yes — tow 2500 lbs, haul 1000 lbs on snow and ice.

Is installation difficult?
No — includes a YXZ-specific mount kit for clean installation.

🚙 Fitment

2019–2024 Yamaha YXZ 1000R / SS / SE / LE / XT-R
