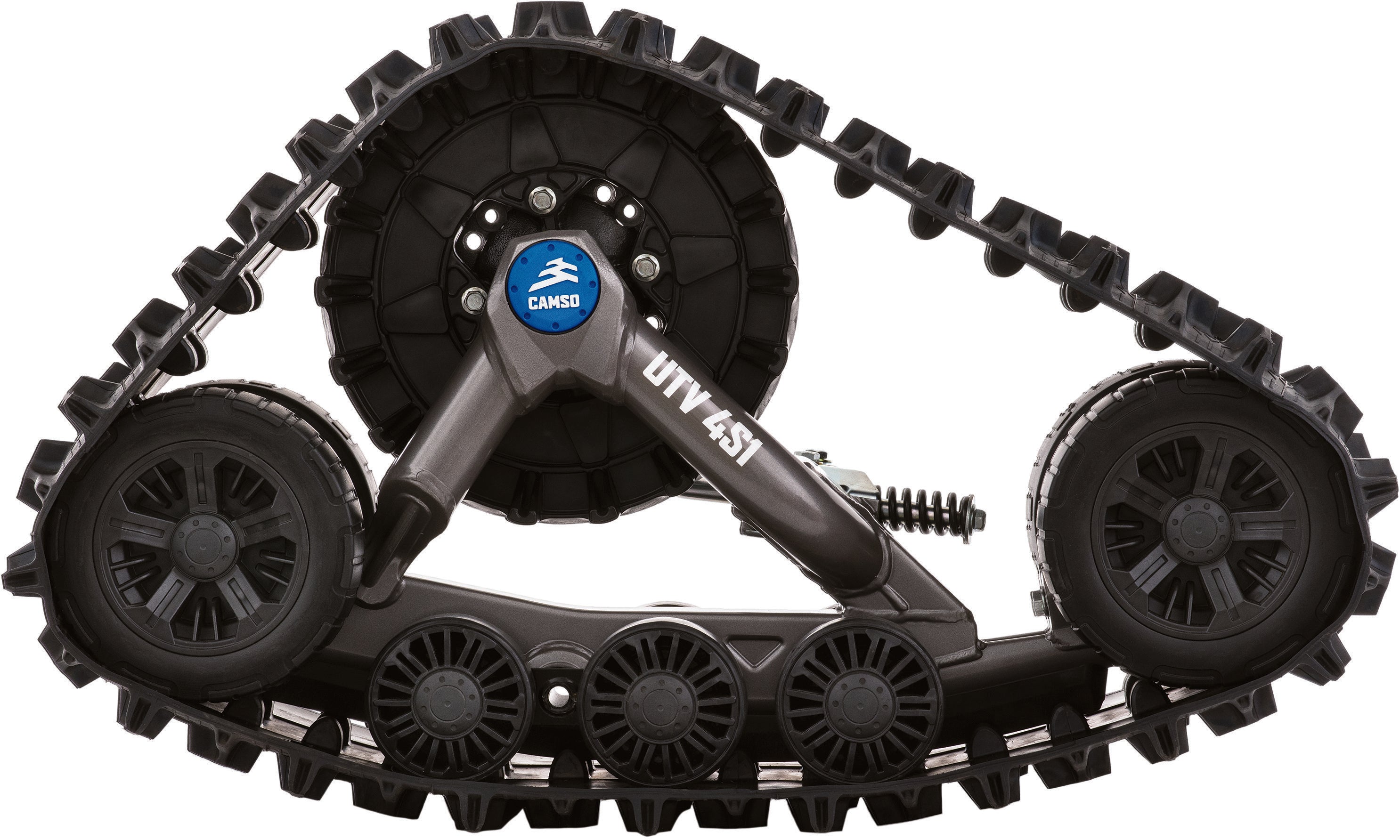

CAMSO UTV 4S1 Track System for Yamaha YXZ 1000R
Conquer winter rides, muddy trails, and rugged backcountry with the CAMSO UTV 4S1 Track System for Yamaha YXZ 1000R, the ultimate upgrade for riders who demand year-round capability. Engineered for superior traction, flotation, and control, this Yamaha YXZ 1000R track system transforms your sport side-by-side into an all-terrain powerhouse built to dominate deep snow, mud, swamps, and rock-covered terrain.
With over 2520 sq. in. of ground contact and a 5-inch increase in ground clearance, the CAMSO 4S1 Track System for YXZ 1000R allows you to glide across deep powder, climb over fallen timber, and maintain stable footing on broken ice, steep slopes, and unpredictable off-road surfaces. The Flex-Track front design enhances steering and precision control, giving riders confidence even when tackling 20º hills or sidehilling through winter terrain.
Designed for unmatched durability, the CAMSO UTV 4S1 Track System includes a reinforced steel frame, high-density tires, and oil-bath triple bearings made to withstand harsh environments with minimal maintenance. Whether you're hauling gear deep into hunting territory, towing heavy loads across frozen lakes, or exploring remote backcountry trails, this YXZ 1000R track kit delivers the torque, stability, and flotation required for four-season riding.
This complete kit includes a YXZ-specific mount system engineered for secure and straightforward installation. With optimized geometry, reduced vibration, and increased lateral stability, the CAMSO 4S1 YXZ track system ensures predictable handling and superior off-road performance in any terrain.
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climbing Power
• Scales 20° inclines in deep snow
• Wider track contact for improved flotation
• 1.125" lugs for aggressive traction
✔ Smoother Ride in Harsh Terrain
• Foam-filled idler wheels reduce impact
• Rubber-mounted shafts minimize vibration
• Flex-Track improves steering over uneven ground
✔ Extreme Durability
• High-strength carbon steel frame
• High-density tires reduce wear
• Triple bearings in oil-bath housing
✔ Superior Torque & Hauling Ability
• Optimized sprocket ratio for demanding loads
• Hauls 1000 lbs and tows 2500 lbs
• Ideal for snow, ice, and muddy work environments
✔ Stable & Precise Steering
• Curved Flex-Track design improves handling
• Stable cornering and sidehilling performance
• Enhanced geometry for long-distance comfort
📐 Technical Specifications
Drive & Frame
• Internal drive system
• Carbon steel frame
• Fits 15–18 tooth sprockets
• Progressive damped anti-rotation system
Track Dimensions
• Front: 98.5" × 12.5" × 1.125" lugs
• Rear: 116.7" × 14" × 1.125" lugs
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: 6.25 lbs
Wheels & Bearings
• 5.2" double-bearing mid-rollers
• 9.49" flat-free tires
• Triple hub bearings with forged steel hubs
🔧 What’s Included
• (4) Track systems — 2 front & 2 rear
• Yamaha YXZ-specific mount kit
• Anti-rotation spring & limiter system
• Full installation hardware
❓ Frequently Asked Questions
Will this CAMSO 4S1 Track System fit my Yamaha YXZ 1000R?
Yes — it fits the following:
• 2016–2018 YXZ 1000R
• 2016–2018 YXZ 1000R SE
• 2016–2018 YXZ 1000R SE2
• 2016–2018 YXZ 1000R SS
How much additional ground clearance will it provide?
Approximately 5 inches.
Can it handle steep terrain and deep snow?
Absolutely — tested and proven on 20º slopes.
What is the towing and hauling capacity?
• Hauling: 1000 lbs
• Towing: 2500 lbs (on snow/ice up to 15 MPH)
Is installation difficult?
No — this system includes a YXZ-specific mount kit for clean installation.
🚙 Fitment
2016–2018 Yamaha YXZ 1000R / SE / SE2 / SS
