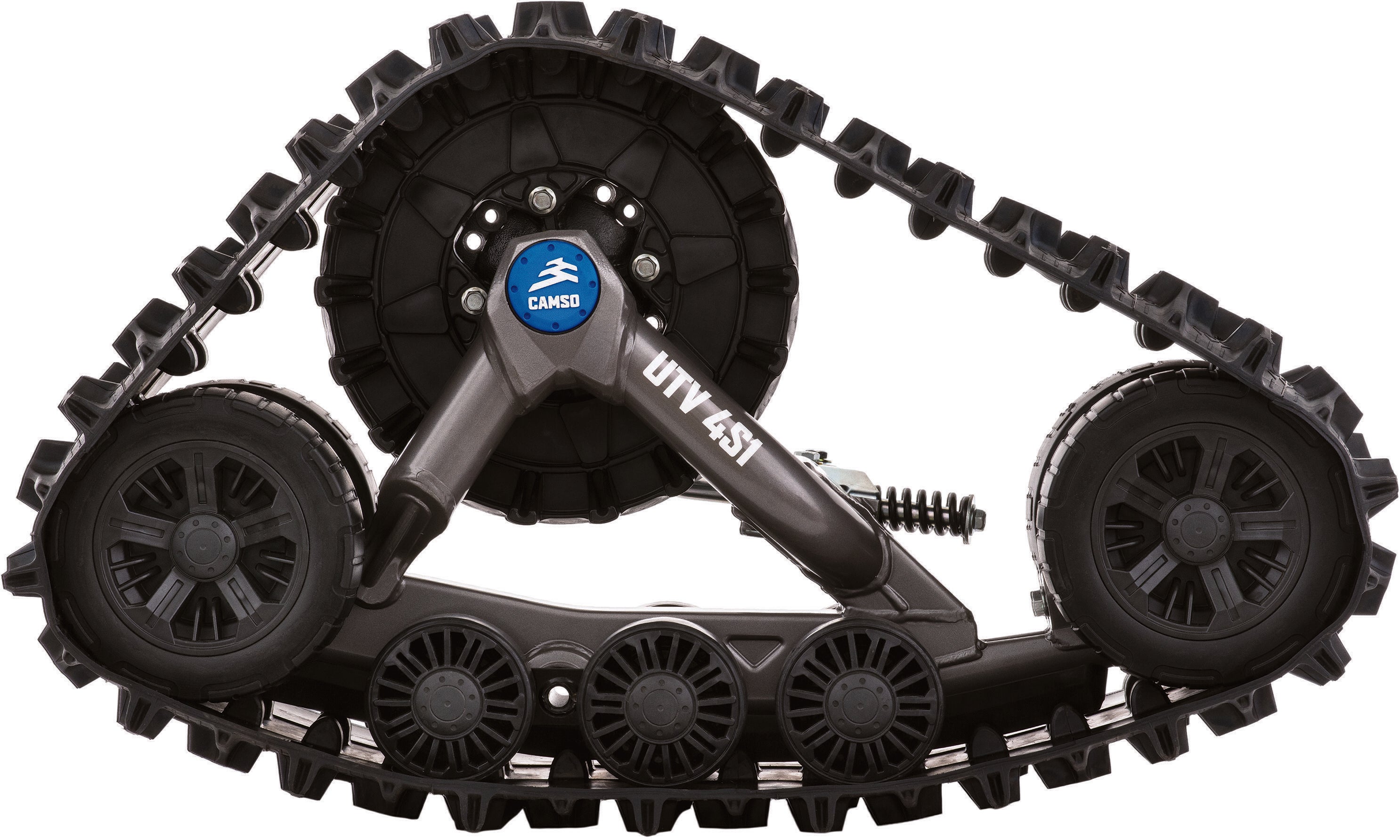

CAMSO UTV 4S1 Track System for Yamaha Wolverine 850
Dominate every season with the CAMSO UTV 4S1 Track System for Yamaha Wolverine 850, engineered to deliver the highest level of traction, flotation, and stability across snow, mud, slush, and rugged backcountry terrain. Designed specifically for the Yamaha Wolverine 850 X2 and X4, this advanced CAMSO 4S1 track system dramatically increases ground clearance, enhances weight distribution, and elevates off-road control in the harshest conditions.
With more than 2520 square inches of ground contact and a full 5-inch increase in ground clearance, the CAMSO 4S1 Track System for Yamaha Wolverine 850 allows you to effortlessly navigate deep snow, rocky trails, swampy terrain, rutted paths, broken ice, and steep hillsides. The innovative Flex-Track front design provides improved steering precision and stability, giving you total confidence when climbing 20º hills or sidehilling in unpredictable terrain.
Built for durability, the CAMSO 4S1 system features a carbon-steel frame, high-density flat-free tires, foam-filled idler wheels, and oil-bath triple bearings that reduce maintenance while maximizing lifespan. Whether you're hauling supplies, towing a heavy sled, or exploring remote winter terrain, this Yamaha Wolverine 850 track system supports loads up to 1000 lbs and towing up to 2500 lbs on snow or ice.
Optimized sprocket ratios improve torque and power transfer, ensuring consistent performance regardless of trail conditions. This comprehensive kit transforms your Wolverine 850 into a true four-season UTV capable of delivering unmatched capability, control, and comfort.
This complete CAMSO kit includes all four tracks, hardware, anti-rotation components, and Yamaha-specific mounting brackets for a straightforward installation.
⭐ Top Performance Benefits
✔ Maximum Traction & Climbing Performance
• Conquers 20° snowy climbs with ease
• Wide track footprint increases flotation
• 1.125" lugs for strong bite and grip
✔ Comfortable & Stable Ride
• Foam-filled idler wheels reduce impacts
• Rubber-mounted shafts minimize vibration
• Flex-Track smooths out uneven terrain
✔ Built for Extreme Durability
• Carbon-steel frame resists debris
• Flat-free wheels extend lifespan
• Triple bearings with oil-bath lubrication
• Bladder-type face seals block moisture & contaminants
✔ Enhanced Torque & Hauling Capability
• Optimized sprocket ratio boosts torque output
• Haul 1000 lbs or tow 2500 lbs
• Designed for work, hunting, and deep-snow access
✔ Superior Steering & Stability
• Curved Flex-Track improves steering precision
• Stable during sidehilling
• Predictable handling on long rides
📐 Technical Specifications
Drive & Frame
Internal drive
Carbon steel frame
15–18 tooth sprocket compatibility
Anti-rotation system with progressive damper
Track Dimensions
• Front: 98.5" L × 12.5" W × 1.125" lugs
• Rear: 116.7" L × 14" W × 1.125" lugs
Weight
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: ~6.25 lbs
Wheels & Bearings
• 5.2" dual-bearing mid-rollers
• 9.49" flat-free tires
• Triple bearing hub construction
🔧 What’s Included
• (4) Track systems – 2 front, 2 rear
• Yamaha Wolverine 850 X2/X4 mount kit
• Anti-rotation spring & limiter
• Hardware & installation components
❓ Frequently Asked Questions
Will this CAMSO 4S1 Track System fit my Yamaha Wolverine 850?
Yes — fits the following models:
• 2020–2025 Wolverine 850 X2 (EPS, R-Spec, SE, XT-R)
• 2020–2025 Wolverine 850 X4 (EPS, R-Spec, SE, XT-R)
How much added ground clearance can I expect?
Approximately 5 inches, depending on setup.
How much can I tow or haul with these tracks?
• Tow: up to 2500 lbs
• Haul: up to 1000 lbs
Is the Flex-Track design important?
Yes — it enhances steering precision, stability, and flotation in rough terrain.
Is installation difficult?
No — the kit includes a Yamaha-specific mount kit for streamlined installation.
🚙 Fitment
2020–2025 Yamaha Wolverine 850 X2 & X4
EPS • R-Spec • SE • XT-R
