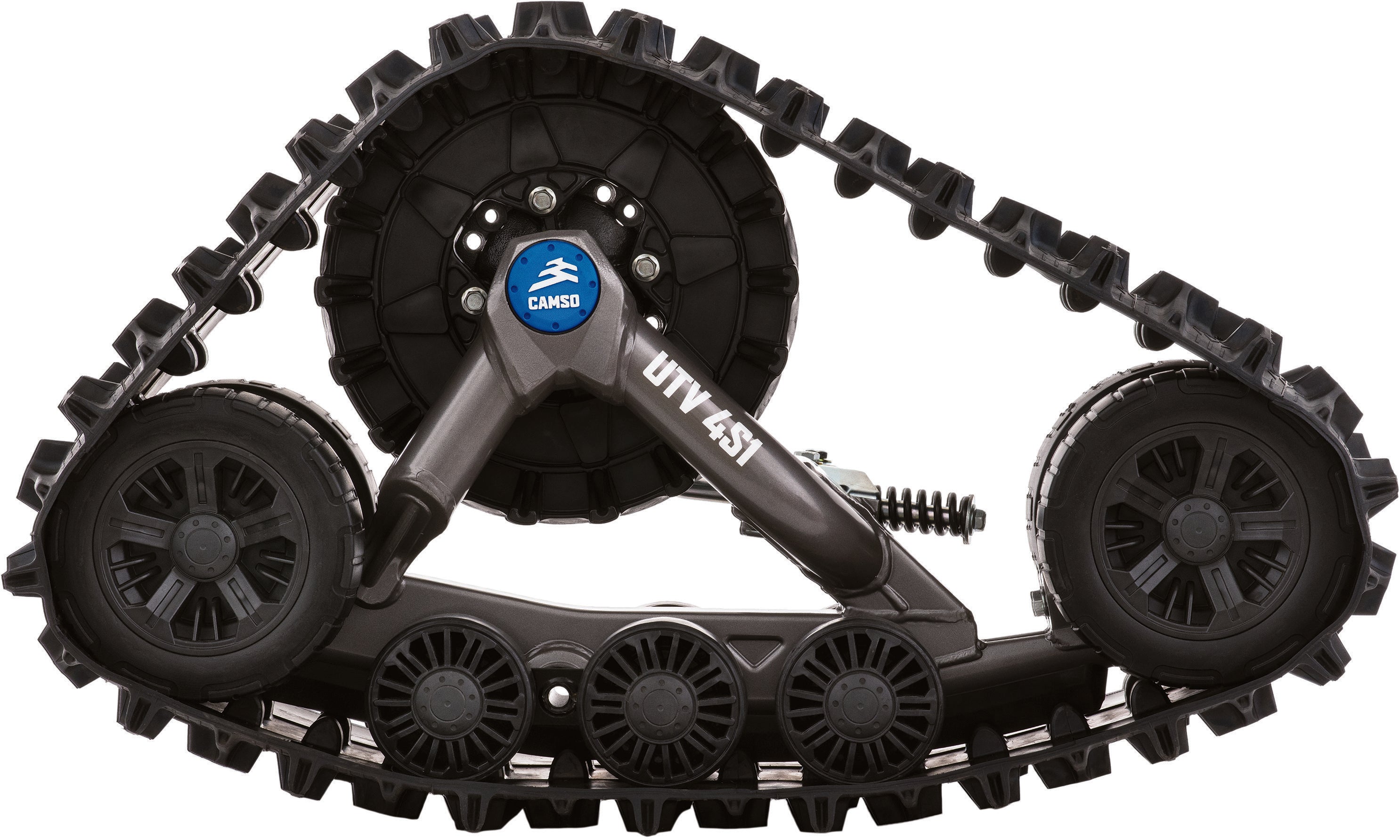

CAMSO UTV 4S1 Track System for Yamaha Wolverine 700 & X2/X4
Take your machine to all-terrain dominance with the CAMSO UTV 4S1 Track System for Yamaha Wolverine, engineered for riders who demand the highest levels of traction, stability, and durability. Whether you own a Wolverine 700, Wolverine X2, or Wolverine X4, this Yamaha Wolverine track system transforms your side-by-side into a true four-season powerhouse built for snow, mud, swamps, backcountry hunts, and rugged off-road landscapes.
With over 2520 sq. in. of ground contact and a 5-inch boost in ground clearance, the CAMSO 4S1 Track System for Yamaha Wolverine floats across deep powder, climbs over rocks and logs, and maintains exceptional stability on uneven and unpredictable terrain. The Flex-Track front design improves steering precision and control, even when navigating steep 20º climbs or sidehilling in heavy winter conditions.
Built for long-term reliability, the CAMSO UTV 4S1 Track System features a solid steel frame, high-density tires, and oil-bath triple bearings for reduced maintenance and maximum service life. Whether you're hauling up to 1000 lbs of gear or towing a 2500 lb load across snow or frozen lakes, this Yamaha Wolverine 700 track kit delivers the torque, flotation, and rugged reliability needed for extreme off-road environments.
This complete system includes a model-specific mount kit designed for the Wolverine platform, ensuring a secure, straightforward installation. With enhanced stability, reduced vibration, and optimized geometry, the CAMSO 4S1 Wolverine track system offers precise handling and unmatched confidence on any terrain.
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climbing Power
• Conquers 20° hills in deep snow
• Wider contact patch for superior flotation
• 1.125" lugs deliver exceptional grip
✔ Smooth & Stable Ride Quality
• Foam-filled idler wheels dampen bumps
• Rubber-mounted shafts reduce vibration
• Flex-Track improves steering over rough terrain
✔ Extreme Durability
• Solid carbon steel frame
• High-density tires withstand heavy use
• Oil-bath triple bearings + sealed hub system
✔ Enhanced Torque & Hauling Capacity
• Optimized sprocket ratio for power transfer
• Hauls up to 1000 lbs
• Tows up to 2500 lbs across snow and ice
✔ Precision Steering & Stability
• Curved Flex-Track improves handling responsiveness
• Superior lateral stability on uneven slopes
📐 Technical Specifications
Drive & Frame
• Internal drive system
• Carbon steel frame
• 15–18 tooth sprocket compatibility
• Progressive-damped anti-rotation system
Track Dimensions
• Front: 98.5" × 12.5" × 1.125" lugs
• Rear: 116.7" × 14" × 1.125" lugs
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: 6.25 lbs
Wheels & Bearings
• 5.2" double-bearing mid-roller wheels
• 9.49" flat-free tires
• Triple hub bearings with forged steel hubs
🔧 What’s Included
• (4) Track systems (2 front, 2 rear)
• Yamaha Wolverine-specific mount kit
• Anti-rotation + limiter system
• Complete hardware & installation components
❓ Frequently Asked Questions
Will this CAMSO 4S1 Track System fit my Yamaha Wolverine?
Yes — it fits:
• 2016–2018 Wolverine 700 / R-Spec / EPS / SE
• 2019 Wolverine 850 X2 / R-Spec / EPS / SE
• 2018–2019 Wolverine 850 X4 / EPS / SE
How much ground clearance will it add?
Approximately 5 inches.
Can it climb steep terrain?
Yes — tested successfully on 20º inclines, even in deep snow.
How durable is the system?
Extremely — built with a steel frame, high-density tires, sealed hubs, and triple oil-bath bearings.
How much can I tow or haul?
Hauls 1000 lbs, tows 2500 lbs on snow or ice.
Is installation difficult?
No — the system includes a Wolverine-specific mount kit for straightforward installation.
🚙 Fitment
2016–2018 Yamaha Wolverine 700 / EPS / SE / R-Spec
2019 Yamaha Wolverine 850 X2 / EPS / SE / R-Spec
2018–2019 Yamaha Wolverine 850 X4 / EPS / SE
