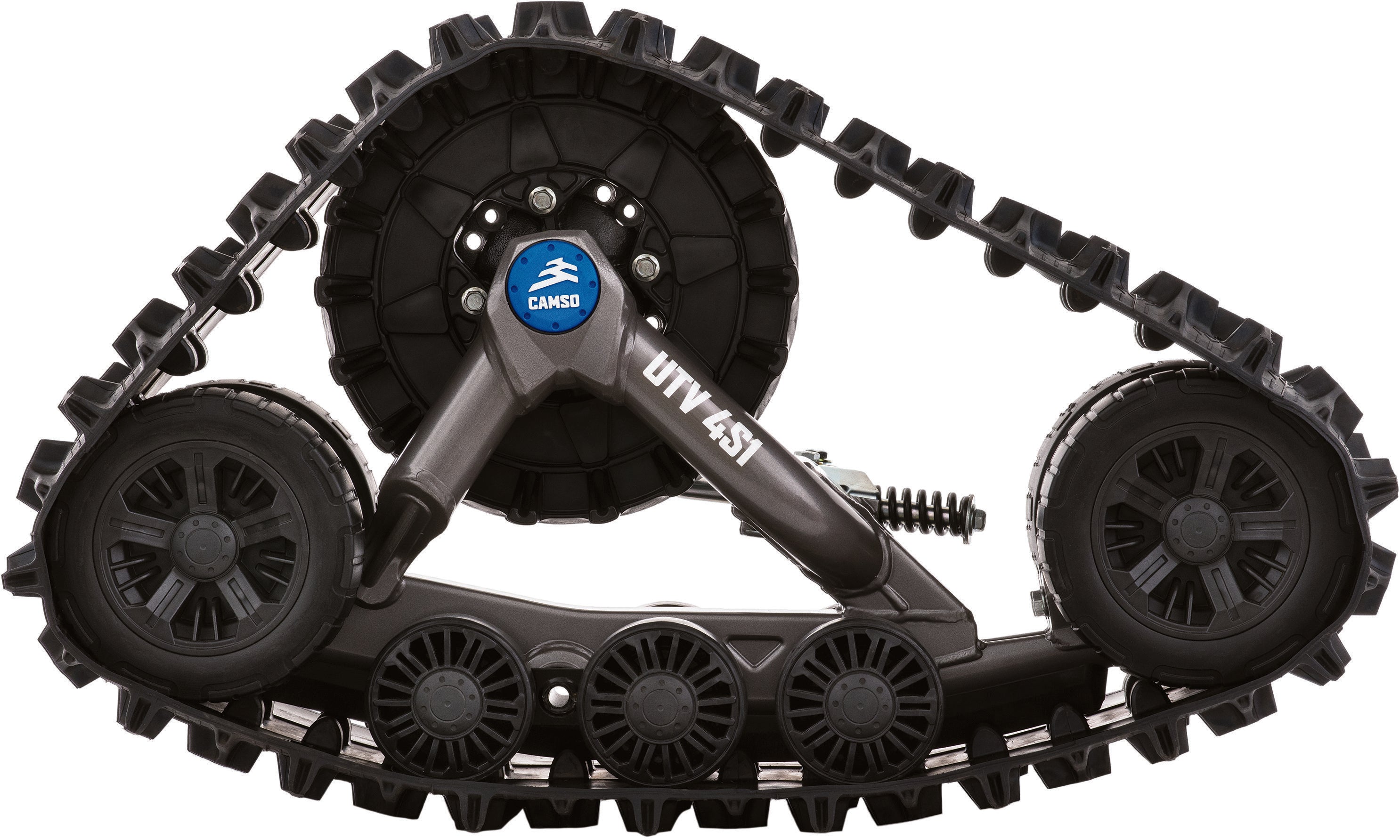

CAMSO UTV 4S1 Track System for Yamaha Viking 700 & Viking VI
Transform your Yamaha Viking into a true all-terrain powerhouse with the CAMSO UTV 4S1 Track System for Yamaha Viking. Engineered for riders who take their Viking 700 or Viking VI into the harshest conditions, this Yamaha Viking track system delivers maximum traction, stability, flotation, and control in snow, mud, swamps, and rugged backcountry terrain.
Built for four-season performance, the CAMSO 4S1 Track System provides over 2520 sq. in. of ground contact and boosts ground clearance by 5 inches, allowing your Viking to glide over deep powder, rocks, rutted trails, and uneven surfaces. The Flex-Track front design improves steering response and stability, giving you predictable control even while climbing steep 20º hills or sidehilling in deep snow.
Constructed with a solid steel frame, high-density tires, and oil-bath triple bearings, the CAMSO UTV 4S1 Track System offers unmatched durability with minimal maintenance. Whether you’re hauling heavy gear, towing up to 2500 lbs, or navigating remote hunting terrain, this Yamaha Viking 700 track kit delivers the torque, flotation, and reliability needed for extreme off-road conditions.
Easy installation is ensured through the included adapted mount kit specifically engineered for the Yamaha Viking platform. With superior stability, reduced vibration, and optimized steering geometry, the CAMSO 4S1 Viking track system turns your UTV into a confident, capable, all-season machine.
⭐ Top Performance Benefits
✔ Maximum Traction & Hill Climb Power
– Climb 20° hills in snow
– Wider contact patch for improved flotation
– 1.125" lugs for superior grip
✔ Enhanced Ride Comfort
– Foam-filled idler wheels
– Rubber-mounted shafts reduce vibration
– Flex-Track design improves steering
✔ Built for Long-Term Durability
– Solid steel frame
– High-density tires resist wear
– Triple oil-bath bearings + moisture-sealed hubs
✔ Improved Torque & Hauling Power
– Optimized sprocket ratios
– Haul 1000 lbs or tow 2500 lbs in snow/ice
✔ Precision Steering & Stability
– Flex-Track curved design
– Superior lateral control on sidehills
📐 Technical Specifications
Drive & Frame
• Internal drive system
• Carbon steel frame
• 15–18 tooth sprocket options
• Anti-rotation system with progressive damper
Track Dimensions
• Front: 98.5" × 12.5" × 1.125" lugs (Flex-Track)
• Rear: 116.7" × 14" × 1.125" lugs (Flat-Track)
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: 6.25 lbs
Wheels & Bearings
• 5.2" double-bearing mid-rollers
• 9.49" flat-free tires
• Triple hub bearings with forged steel hubs
🔧 What’s Included
• (4) Track systems – 2 front & 2 rear
• Adapted Yamaha Viking mount kit
• Anti-rotation & limiter components
• Full hardware and installation components
❓ Frequently Asked Questions
Will this CAMSO 4S1 Track System fit my Yamaha Viking?
Yes — the kit is specifically adapted for:
• 2014–2025 Yamaha Viking 700
• 2015–2025 Yamaha Viking VI
How much ground clearance does it add?
Approximately 5 inches.
Can it climb steep hills?
Yes — tested on 20º inclines even in deep snow.
What can it haul?
Up to 1000 lbs cargo or 2500 lbs towing on snow/ice.
Is installation difficult?
No — the system includes a model-specific mount kit for straightforward installation.
🚙 Fitment
2014–2025 Yamaha Viking 700 / EPS / SE / Ranch
2015–2025 Yamaha Viking VI / EPS / SE / Ranch
