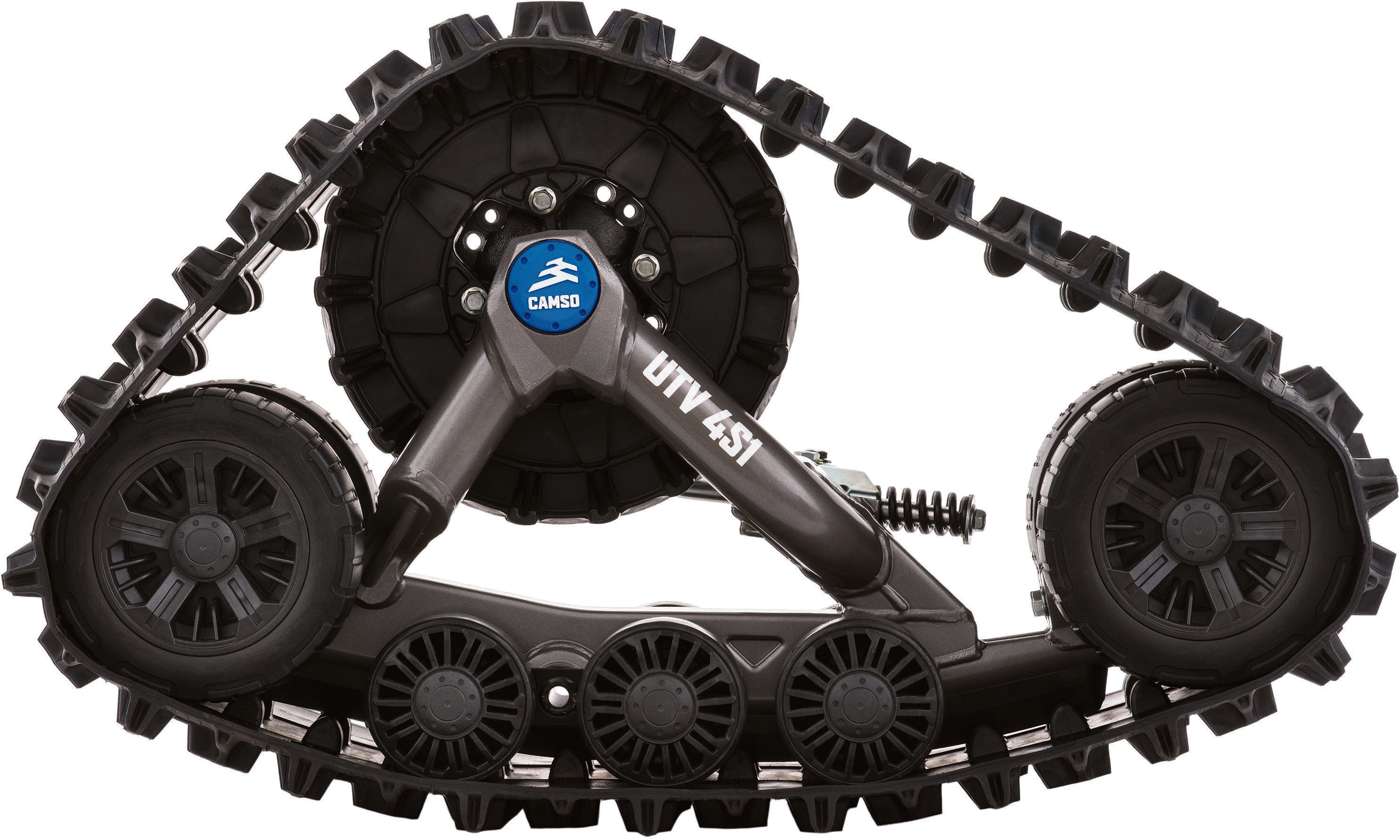

CAMSO UTV 4S1 Track System for Polaris Ranger XP 1000
Transform your UTV into a true four-season machine with the CAMSO UTV 4S1 Track System for Polaris Ranger XP 1000, engineered for maximum traction, flotation, torque, and stability in the harshest terrain. Whether you ride in deep snow, thick mud, swamp trails, rocky backcountry, or frozen winter ground, this high-performance Polaris Ranger XP 1000 track system delivers unmatched capability.
With over 2520 sq. in. of ground contact and roughly 5 inches of added ground clearance, the CAMSO 4S1 Track System for Polaris Ranger XP 1000 allows you to travel across deep powder, rutted trails, downed timber, broken ice, and uneven terrain with confidence. The advanced Flex-Track design improves steering precision and sidehill stability, making it easier to climb 20° hills and navigate challenging off-camber slopes.
Built with a reinforced carbon-steel frame, high-density flat-free tires, and oil-bath triple-bearing hubs, the CAMSO Ranger XP 1000 track kit ensures exceptional durability and reduced maintenance. Capable of hauling up to 1,000 lbs and towing 2,500 lbs on snow or ice, this system is ideal for winter work, ranching, backcountry access, hunting, and remote travel. Whether your Ranger uses straight A-arms or arched A-arms, this track system delivers all-terrain, all-weather performance you can rely on.
⭐ Fitment
2021–2025 Polaris Ranger XP 1000 Crew (Straight A-Arms)
- Crew XP 1000 Premium
- Crew XP 1000 NorthStar
- Crew XP 1000 Ultimate
2021–2025 Polaris Ranger XP 1000 Crew (Arched A-Arms)
- Trail Boss
- Texas Edition
- NorthStar
- High Lifter
- Big Game Edition
- Waterfowl Edition
2021–2025 Polaris Ranger XP 1000 (Straight A-Arms)
- XP 1000 Premium
- XP 1000 NorthStar
- XP 1000 Ultimate
2021–2025 Polaris Ranger XP 1000 (Arched A-Arms)
- Trail Boss
- Texas Edition
- NorthStar
- High Lifter
- Big Game Edition
- Waterfowl Edition
(Includes correct Polaris Ranger XP-specific CAMSO mount kit — NOT Wildcat.)
⭐ What’s Included
- (4) CAMSO 4S1 tracks — 2 front + 2 rear
- Polaris Ranger XP-specific mount kit
- Anti-rotation springs & limiter components
- Complete installation hardware
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climbing
- Climbs 20° hills in deep snow
- Large contact patch increases flotation
- 1.125" lugs deliver powerful grip
✔ Smooth, Controlled Ride
- Foam-filled idler wheels reduce shock
- Rubber-mounted shafts absorb vibration
- Flex-Track design smooths rough terrain
✔ Extreme Durability
- Heavy-duty carbon-steel frame
- High-density tires resist wear
- Triple oil-bath bearings for longevity
- Sealed hubs keep moisture out
✔ Strong Hauling & Towing
- Haul 1,000 lbs
- Tow 2,500 lbs on snow/ice
- Optimized sprocket improves torque
✔ Enhanced Steering & Stability
- Curved Flex-Track improves cornering
- Less steering effort in deep snow
- Great sidehill stability
📐 Technical Specifications
Drive Type: Internal
Frame: Carbon Steel
Sprocket: 15–18 teeth
Anti-Rotation: Progressive-damped steel system
Track Dimensions
- Front: 98.5" × 12.5" × 1.125" lugs
- Rear: 116.7" × 14" × 1.125" lugs
Weights
- Front Track: 103 lbs
- Rear Track: 120 lbs
- Mount Kit: ~6.25 lbs
Wheels & Bearings
- 5.2" double-bearing mid-rollers
- 9.49" flat-free tires
- Triple oil-bath bearings
Frequently Asked Questions
Q1: Will this CAMSO 4S1 Track System fit my Polaris Ranger XP 1000?
Yes — it fits all 2021–2025 Ranger XP 1000 models listed above with both straight and arched A-arms.
Q2: How much ground clearance does it add?
Approximately 5 inches.
Q3: Can these tracks climb steep terrain?
Yes — they safely climb 20° inclines and maintain strong sidehill stability.
Q4: How durable is the CAMSO 4S1?
Extremely — built with steel frames, sealed hubs, high-density tires, and triple bearings.
Q5: How much can I haul/tow?
- Haul: 1,000 lbs
- Tow: 2,500 lbs on snow/ice
Q6: What does Flex-Track improve?
Steering precision, terrain conformity, flotation, and ride comfort.
Q7: Is installation difficult?
No — the included Polaris Ranger-specific mount kit simplifies installation.
🚚 Shipping Recommendation
We strongly recommend shipping to a commercial address with forklift access to avoid residential freight charges.
