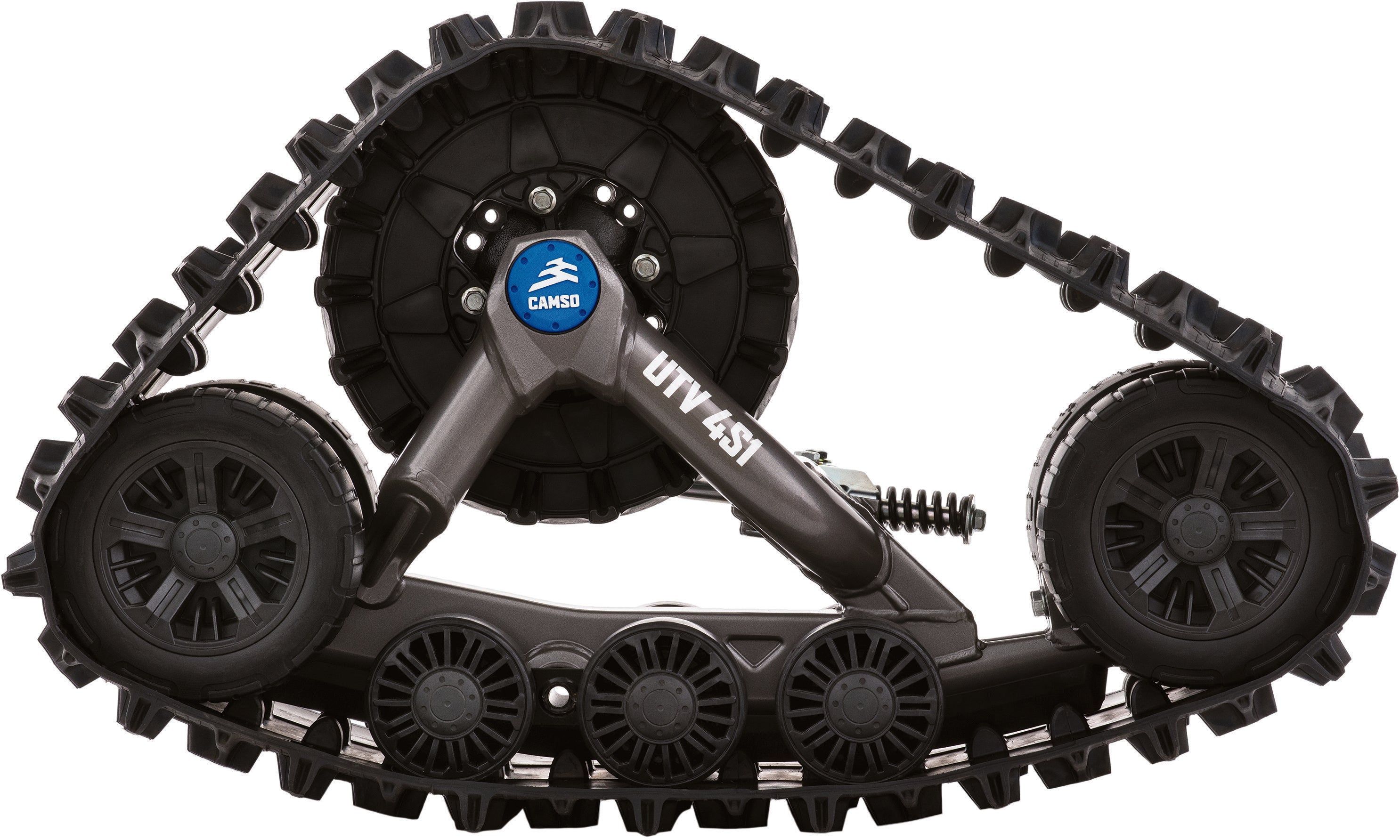

CAMSO UTV 4S1 Track System for Polaris Ranger Diesel & Brutus
Dominate extreme terrain with the CAMSO UTV 4S1 Track System for Polaris Ranger Diesel and Polaris Brutus, engineered to deliver unmatched traction, flotation, torque, and stability in the harshest off-road environments. Built for year-round use in deep snow, mud, swamps, job sites, and rugged backcountry terrain, this advanced Polaris Ranger Diesel track system dramatically boosts ground clearance, improves weight distribution, and enhances off-road control.
With over 2520 sq. in. of ground contact and approximately 5 inches of added ground clearance, the CAMSO 4S1 Track System for Polaris Ranger Diesel allows your machine to glide across deep powder, rutted trails, broken ice, rocks, and uneven work terrain. The Flex-Track front design delivers superior steering precision and lateral stability, even on 20° hill climbs and steep sidehills.
Built with a reinforced carbon-steel frame, high-density flat-free tires, and oil-bath triple-bearing hubs, the CAMSO Ranger Diesel track kit is engineered for long-term durability and reduced maintenance—ideal for ranching, commercial work, utility operations, or remote access in harsh weather. This system also provides exceptional hauling and towing capability, allowing you to haul up to 1,000 lbs and tow up to 2,500 lbs across snow or ice at speeds up to 15 MPH.
Whether you're operating a Ranger Diesel HST, Polaris Brutus, or PTO/HD/Deluxe model, this track system transforms your machine into a true four-season workhorse capable of handling the toughest environments.
⭐ Fitment
2014 Polaris 904 Ranger Diesel HST
2013–2014 Polaris 904 Brutus
- Brutus
- Brutus HD
- Brutus PTO
2015–2018 Polaris 1028 Brutus
- Brutus
- HD
- PTO
- CAB
- Deluxe
2015–2018 Polaris 1028 Ranger Diesel HST
- Ranger Diesel HST
- Ranger Diesel Deluxe
(Includes the correct CAMSO mount kit for these Polaris Diesel & Brutus models.)
⭐ What’s Included
- (4) CAMSO 4S1 Tracks — 2 front + 2 rear
- Polaris Ranger Diesel / Brutus–specific CAMSO mount kit (correct, NOT Wildcat)
- Anti-rotation springs & limiter components
- All required hardware
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climbing Power
- Handles 20° hill climbs in deep snow
- Large contact patch significantly increases flotation
- 1.125" lugs provide aggressive off-road grip
✔ Smoother Ride Over Rough Terrain
- Foam-filled idler wheels soften impacts
- Rubber-mounted shafts reduce vibration
- Flex-Track design improves steering feel
✔ Exceptional Durability
- Carbon-steel frame sheds debris and resists bending
- High-density tires reduce wear
- Triple oil-bath bearings extend service life
- Weather-sealed hub design prevents moisture intrusion
✔ Increased Torque & Heavy-Duty Work Capacity
- Optimized sprocket improves gear ratio
- Hauls 1,000 lbs
- Tows 2,500 lbs on snow/ice
✔ Superior Stability & Steering
- Curved Flex-Track increases handling precision
- Less steering effort in deep snow
- High lateral stability on steep angles
📐 Technical Specifications
Drive Type: Internal
Frame Material: Carbon steel
Sprocket: 15–18 teeth
Anti-Rotation: Progressive damped steel system
Track Dimensions
- Front: 98.5" × 12.5" × 1.125" lugs
- Rear: 116.7" × 14" × 1.125" lugs
Weights
- Front Track: 103 lbs
- Rear Track: 120 lbs
- Mount Kit: ~6.25 lbs
Wheels & Bearings
- 5.2" double-bearing mid-rollers
- 9.49" flat-free tires
- Oil-bath triple-bearing hubs
Frequently Asked Questions
Q1: Will the CAMSO 4S1 Track System fit my Polaris Ranger Diesel or Brutus?
Yes — it fits all models listed in the fitment section.
Q2: How much ground clearance does it add?
Approximately 5 inches.
Q3: Can this track system handle steep hills?
Yes — it has been tested to safely climb 20° hills.
Q4: How durable is the CAMSO 4S1?
Extremely — featuring carbon-steel construction, sealed hubs, and triple bearings.
Q5: How much can I haul or tow?
- Haul: 1,000 lbs
- Tow: 2,500 lbs (snow/ice up to 15 MPH)
Q6: What does Flex-Track do?
It improves steering, shock absorption, flotation, and terrain conformity.
Q7: Is installation difficult?
No — the included mount kit makes setup straightforward.
🚚 Shipping Recommendation
We strongly recommend shipping to a commercial address with forklift access to avoid residential freight charges.
