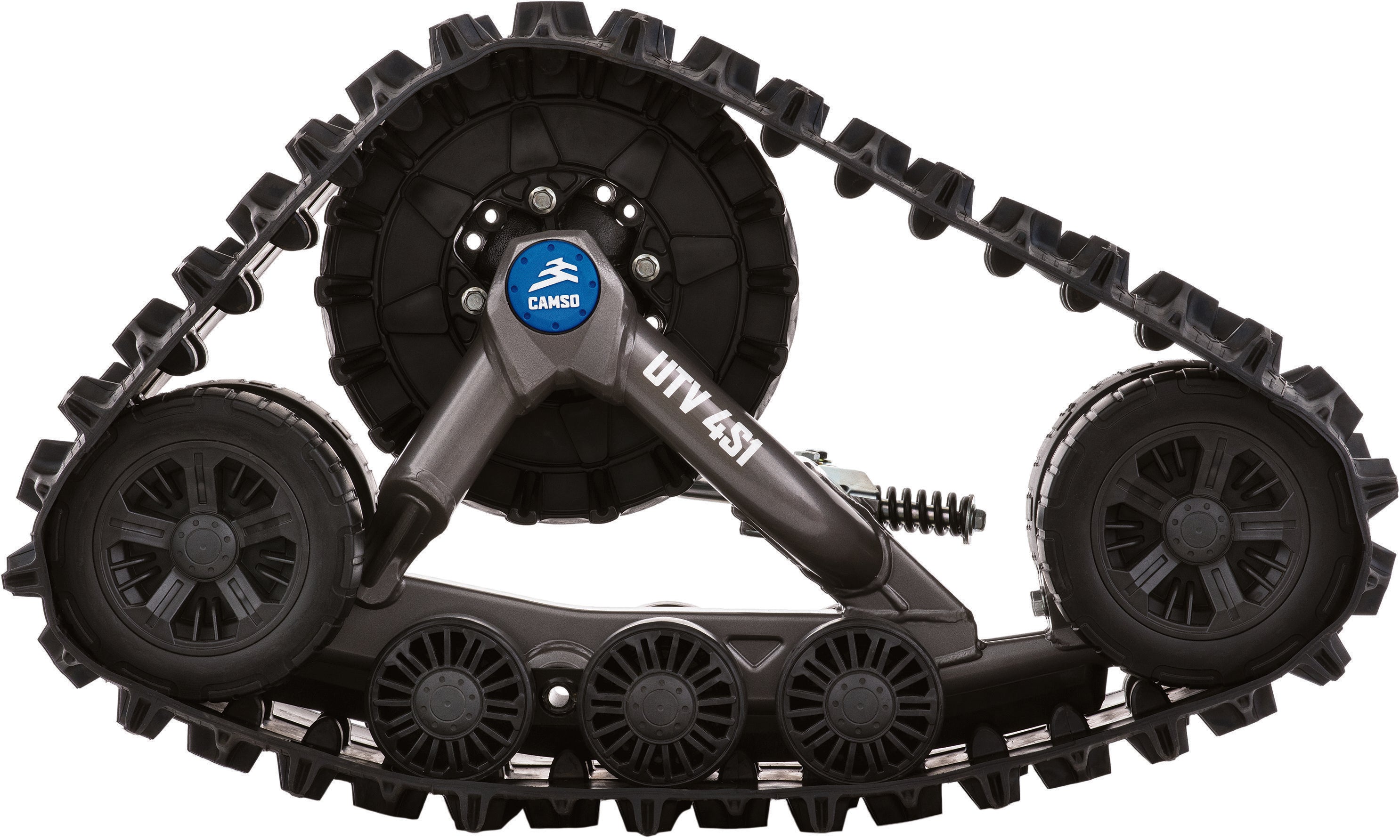

CAMSO UTV 4S1 Track System for Polaris General XP
Take your machine to the next level with the CAMSO UTV 4S1 Track System for Polaris General XP, engineered to deliver superior traction, flotation, torque, and stability in the toughest off-road conditions. Whether you're navigating deep snow, mud, swamps, rocky trails, or remote backcountry, this premium Polaris General XP track system gives you the power and confidence to travel all year long.
Featuring over 2520 sq. in. of ground contact and adding approximately 5 inches of ground clearance, the CAMSO 4S1 Track System for Polaris General XP allows your UTV to glide over deep powder, rutted trails, downed trees, broken ice, and uneven terrain with ease. The advanced Flex-Track front design enhances steering precision and provides superior lateral stability, even on steep 20° hill climbs and challenging sidehills.
Built with a solid carbon-steel frame, high-density flat-free tires, and oil-bath triple bearings, the CAMSO General XP track kit is designed for long-term durability and reduced maintenance. It's perfect for hauling heavy loads, winter riding, hunting, ranch work, and remote travel. With the ability to haul up to 1,000 lbs and tow up to 2,500 lbs on snow or ice, your Polaris General XP becomes a true four-season workhorse.
⭐ Fitment
2020–2025 Polaris General & General XP Models
- General XP
- General XP4
- Sport
- Premium
- Ultimate
- Deluxe
- Pursuit
- Factory Custom
- Ride Command
- Trailhead Edition
(Includes correct Polaris General XP-specific CAMSO mount kit — NOT a Wildcat kit.)
⭐ What’s Included
- (4) CAMSO 4S1 tracks — 2 front + 2 rear
- Polaris General XP-specific CAMSO mount kit
- Anti-rotation springs & limiter assemblies
- Complete hardware kit
⭐ Top Performance Benefits
✔ Maximum Traction & Climb Capability
- Handles 20° hill climbs
- Wide contact patch improves flotation
- 1.125" lugs deliver aggressive grip
✔ Smooth & Stable Ride
- Foam-filled idler wheels absorb impacts
- Rubber-mounted shafts reduce vibration
- Flex-Track design conforms to uneven terrain
✔ Built for Long-Term Durability
- Powder-coated carbon-steel frame
- High-density flat-free tires
- Triple oil-bath bearing hubs
- Bladder-style seals prevent moisture intrusion
✔ Heavy-Duty Hauling & Towing
- Hauls 1,000 lbs
- Tows 2,500 lbs on snow/ice
- Optimized sprocket improves torque transfer
✔ Superior Steering & Control
- Curved Flex-Track improves cornering
- Reduced steering effort
- Excellent lateral stability on sidehills
📐 Technical Specifications
Drive Type: Internal
Frame: Carbon steel
Sprocket: 15–18 teeth
Anti-Rotation: Mild-steel progressive-damped system
Track Dimensions
- Front: 98.5" × 12.5" × 1.125" lugs (Flex-Track)
- Rear: 116.7" × 14" × 1.125" lugs (Flat-Track)
Weights
- Front: 103 lbs
- Rear: 120 lbs
- Mount Kit: ~6.25 lbs
Wheels & Bearings
- 5.2" double-bearing mid-rollers
- 9.49" flat-free tires
- Oil-bath triple-bearing hubs
Frequently Asked Questions
Q1: Will this CAMSO 4S1 Track System fit my Polaris General XP?
Yes — it fits all 2020–2025 Polaris General XP and XP4 trims listed above.
Q2: How much ground clearance does it add?
Approximately 5 inches, depending on setup.
Q3: Can it handle steep hills?
Yes — the system is tested to climb 20° hills and maintain stable sidehilling.
Q4: How durable is the CAMSO 4S1?
Extremely — with steel framing, high-density tires, triple bearings, and sealed hubs.
Q5: What can I haul/tow with this system?
- Haul: 1,000 lbs
- Tow: 2,500 lbs on snow/ice
Q6: How does Flex-Track improve steering?
It improves contact, reduces shock, enhances steering precision, and increases ride comfort.
Q7: Is installation difficult?
No — the included Polaris General-specific mount kit makes installation straightforward.
🚚 Shipping Recommendation
We strongly recommend shipping to a commercial address with forklift access to avoid residential freight charges and ensure safe offloading.
