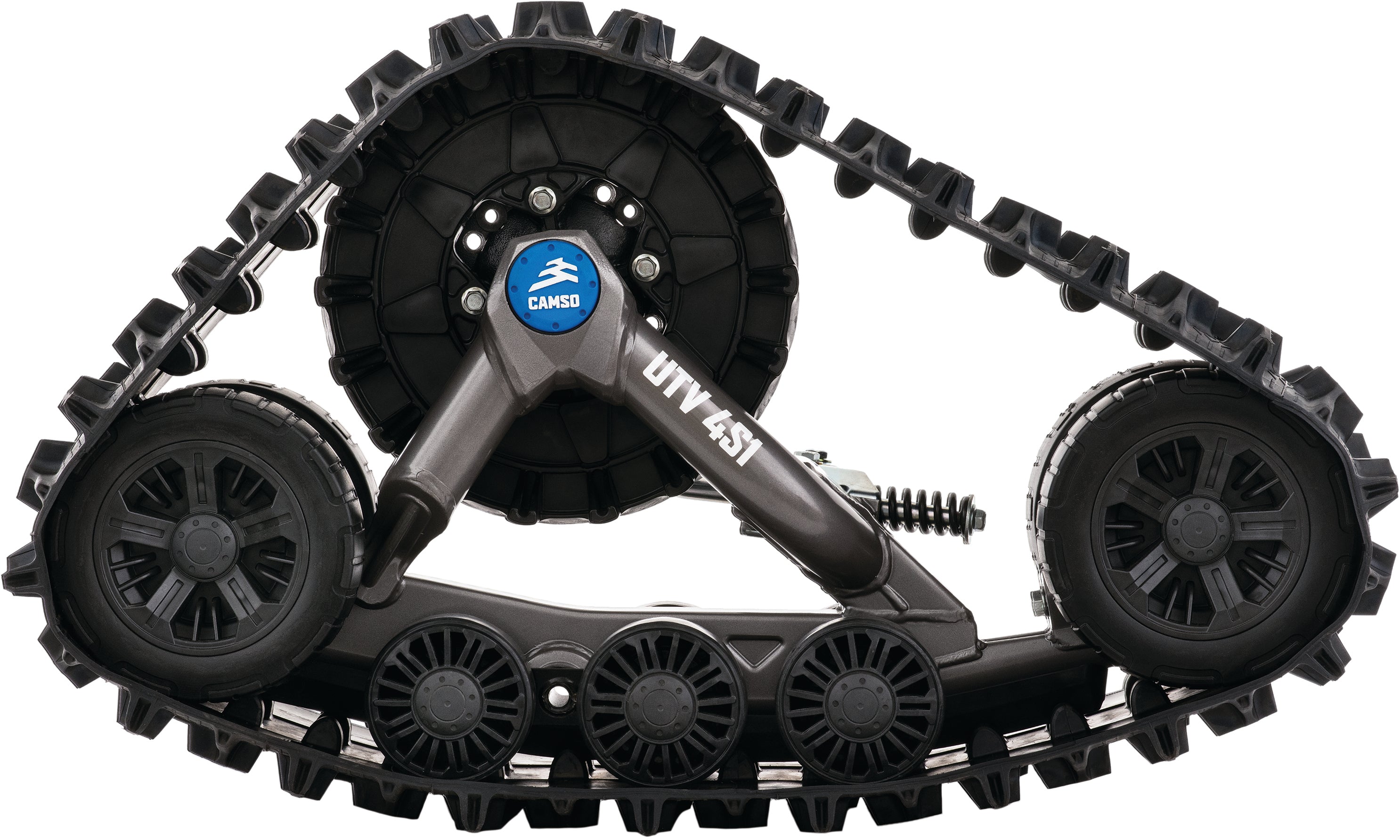

CAMSO UTV 4S1 Track System for Kubota 900 RTV
Take your machine to the next level with the CAMSO UTV 4S1 Track System for Kubota 900 RTV, engineered to deliver unbeatable traction, flotation, torque, and off-road performance. Whether you're navigating deep snow, mud, muskeg, swamps, or rugged backcountry terrain, this Kubota 900 RTV track system transforms your utility vehicle into a true four-season workhorse.
Featuring more than 2520 sq. in. of ground contact and an increased 5 inches of ground clearance, the CAMSO 4S1 Track System allows your Kubota RTV 900 to glide over deep powder, rutted trails, rocks, logs, broken ice, and uneven surfaces. The Flex-Track front design enhances steering precision, reduces plowing effect, and delivers reliable stability when climbing steep 20º inclines or tackling sidehills in harsh winter conditions.
Built with longevity in mind, the CAMSO 4S1 track system uses a solid carbon-steel frame, high-density flat-free tires, triple oil-bath bearings, and sealed hubs to minimize maintenance while maximizing durability. Perfect for hauling firewood, towing heavy utility sleds, or accessing difficult terrain for work or recreation, this track kit lets the Kubota RTV 900 tow up to 2500 lbs and haul up to 1000 lbs on snow or ice.
Optimized sprocket ratios greatly improve torque transfer, making your Kubota more capable under load and more efficient across all terrain types. Whether you're a farmer, rancher, trapper, property owner, or winter-trail enthusiast, the CAMSO 4S1 Track System for Kubota 900 RTV delivers unmatched capability and year-round performance.
This complete kit includes four tracks, a model-specific mount kit, anti-rotation components, hardware, and everything required for a straightforward installation.
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climb Capability
• Conquer 20º snow-covered hills
• Wider footprint increases flotation in deep snow
• 1.125" lugs for superior traction & control
✔ Comfortable & Stable Ride
• Foam-filled idler wheels absorb bumps
• Rubber-mounted shafts reduce vibration
• Flex-Track design smooths uneven surfaces
✔ Built for Extreme Durability
• Solid steel frame prevents debris buildup
• High-density tires resist wear
• Triple hub bearings with oil-bath lubrication
• Moisture-blocking face seals for long life
✔ Increased Torque & Hauling Power
• Improved gear ratio boosts torque
• Ideal for heavy loads, hauling, and utility tasks
• Tow up to 2500 lbs across snow and ice
✔ Precision Steering & Sidehill Stability
• Curved Flex-Track improves steering response
• Lateral stability for sidehilling and rugged terrain
• Smooth, predictable handling on long rides
📐 Technical Specifications
Drive & Frame
• Internal drive
• Carbon steel frame
• 15–18 tooth sprocket compatibility
• Progressive-damped anti-rotation system
Track Dimensions
• Front Track: 98.5" L × 12.5" W × 1.125" lugs
• Rear Track: 116.7" L × 14" W × 1.125" lugs
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: ~6.25 lbs
Wheels & Bearings
• 5.2" dual-bearing mid-rollers
• 9.49" flat-free tires
• Triple hub bearings with forged steel hubs
🔧 What’s Included
• (4) Track systems — 2 front & 2 rear
• Complete Kubota-specific mount kit
• Anti-rotation spring & limiter
• Installation hardware & components
❓ Frequently Asked Questions
Q1: Will the CAMSO 4S1 Track System fit my Kubota 900 RTV?
Yes — fits:
2005–2014 Kubota 900 RTV / R / G / W / T / XT
Q2: How much ground clearance is gained?
Approximately 5 inches, depending on setup.
Q3: What can I haul with these tracks?
• Haul up to 1000 lbs
• Tow up to 2500 lbs on snow/ice
Q4: Are these tracks durable?
Yes — they feature a steel frame, triple bearings, high-density tires, and sealed hubs.
Q5: Is installation difficult?
No — the Kubota-specific mount kit makes installation straightforward.
🚜 Fitment
2005–2014 Kubota RTV 900
R • G • W • T • XT models
