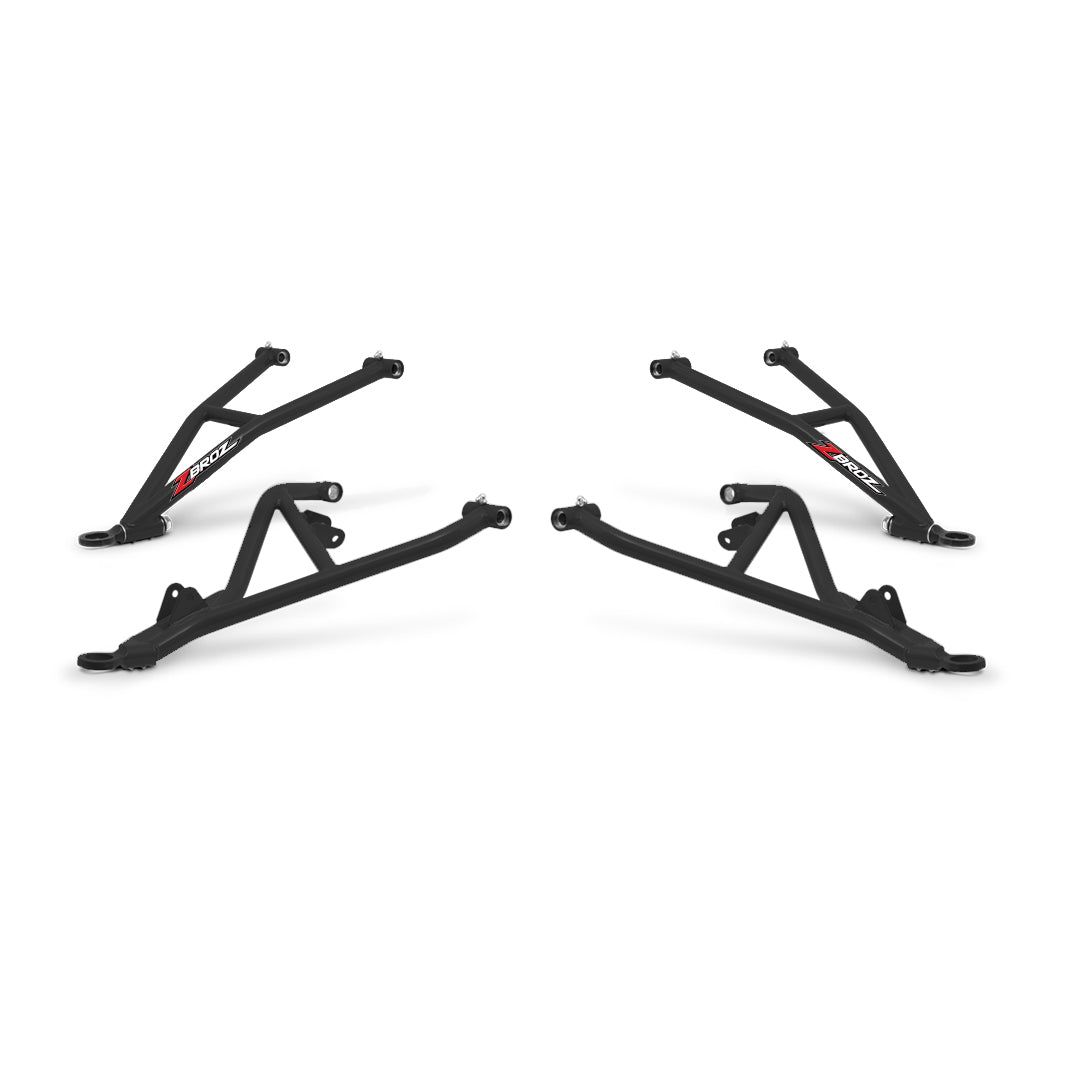

RZR XP 1000/Turbo HD Pro +2 Forward Camber Adjustable A-Arm Kit by ZBroz Racing

Run 30-33" tires without trimming. The ZBroz XP 1000/Turbo HD Pro +2 Forward A-arm kit replaces OEM A-arms on your Polaris RZR XP 1000, XP Turbo, XP 4 1000, or XP 4 Turbo with 1.125" DOM steel tube construction in ZBroz's Maximum Ground Clearance design — PLUS a +2" forward offset that extends wheelbase forward (preserving OEM steering geometry) and fits 30" to 33" tall tires without modification or fender trimming. The right upgrade for serious trail, rock crawling, and desert/dune builds with big-tire goals.

Key Features

• 1.125" DOM steel tubing construction
• +2" forward offset — extends wheelbase forward, no steering geometry change
• Fits 30" to 33" tires without modification or fender trimming
• Maximum Ground Clearance design
• Camber-adjustable lower ball joint housing (1 degree per shim, ships at -1 degree)
• Pre-installed brass bushings with grease zerks
• Precision Tig welded at every connection
• Compatible with OEM and most aftermarket ball joints
• Direct bolt-on installation
• Made in the USA

Specifications

• Type: HD Pro +2 Forward camber-adjustable A-arm kit
• Material: 1.125" DOM steel tubing
• Offset: +2" forward
• Tire fitment: 30"-33" without modification
• Bushings: Pre-installed brass at all pivot points
• Adjustability: Camber (lower ball joint housing with shims)
• Default camber: -1 degree as shipped
• Application: Polaris RZR XP 1000, XP Turbo, XP 4 1000, XP 4 Turbo (2014+)

Fitment

This XP 1000 A-arm kit fits Polaris RZR XP 1000, XP Turbo, XP 4 1000, and XP 4 Turbo from 2014 forward.

Frequently Asked Questions

What does +2" forward do?

The +2 forward camber adjustable A-arm for RZR XP 1000 design extends your wheelbase forward 2 inches — this lets you run larger 30"-33" tires without fender trimming, and improves vehicle stability without changing OEM steering geometry.

Will it fit larger tires than 33"?

The HD Pro A-arms for 30-33 inch tires on Polaris RZR XP 1000 are rated up to 33" as a clean bolt-on. Larger tires (34"+) may require additional clearance work or different geometry.

Does it offer camber adjustment?

Yes — camber-adjustable lower ball joint housing with included shims. Each shim adjusts camber by 1 degree.

Will it work with my XP 4 1000?

Yes — this kit fits both 2-seat (XP 1000/Turbo) and 4-seat (XP 4 1000/Turbo) chassis.

Is installation difficult?

Direct bolt-on with included hardware. Plan for alignment after install. DIY-able with floor jack or lift.

Why ZBroz Racing

ZBroz pioneered MGC A-arm design and brought it to UTV in 2008 with the RZR 800 LT kit, before competitors caught on. The off-road Polaris RZR XP 1000 HD Pro +2 forward A-arm upgrade is the gold-standard A-arm for big-tire builds. As a race-proven Polaris XP 1000 A-arm kit and HD Pro A-arm kit, this reflects that race pedigree. The +2 forward A-arms upgrade enables XP 1000 35 tire fitment path for owners running aggressive tire setups. As RZR XP 1000 HD Pro A-arms, these set the standard.
