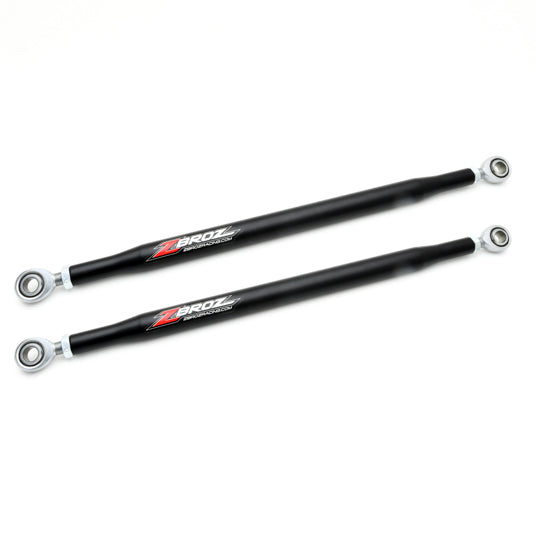

RZR Turbo S/Turbo S 4 HD Pro Max Upper Radius Rods by ZBroz Racing

Reinforce the upper rear suspension with HD Pro Max steel. The ZBroz Turbo S HD Pro Max upper radius rods replace the OEM upper rods on your Polaris RZR Turbo S or Turbo S 4 with 1.5" Chromoly DOM steel tube construction — matching the HD Pro Max trailing arm and A-arm platform for a fully unified upgrade. Built to withstand extreme mountain trails, rock crawling, and desert/dune rally abuse.

Key Features

• 1.5" Chromoly DOM tubing — HD Pro Max strength
• Stronger than OEM — resists bending under hard impacts
• Camber adjustability via Heim joints
• Pre-installed Teflon-lined heavy-duty Heim joints
• Compatible with OEM trailing arms
• Pairs with HD Pro Max lower radius rods (K45-0650-11) for full set
• Direct bolt-on installation
• Made in the USA (Logan, Utah)

Specifications

• Type: Upper radius rods (HD Pro Max line)
• Material: 1.5" Chromoly DOM tubing
• Joints: Teflon-lined heavy-duty Heim (camber adjustable)
• Application: Polaris RZR Turbo S and Turbo S 4 (2018-2021)

Fitment

These Turbo S upper radius rods fit:

• Polaris RZR Turbo S (2-seat)
• Polaris RZR Turbo S 4 (4-seat)

Frequently Asked Questions

What's the difference between HD Pro Max and Intense Series radius rods?

The HD Pro Max radius rod uses 1.5" Chromoly DOM tubing while Intense Series uses 6061-T6 billet aluminum I-beam. HD Pro Max prioritizes maximum strength with rugged steel; Intense Series prioritizes weight savings and aesthetic with billet aluminum.

Does it offer camber adjustment?

Yes — the RZR Turbo S radius rods use Teflon-lined Heim joints that allow precise camber adjustment.

Will they fit my Turbo S 4?

Yes — the HD upper radius rod kit for Polaris Turbo S fits both 2-seat and 4-seat Turbo S.

Do I need HD Pro Max lower rods too?

For a unified HD Pro Max rear suspension, pair with K45-0650-11. Mixing with OEM lowers works but doesn't deliver the full benefit.

Is installation difficult?

Direct bolt-on with included hardware. Alignment check recommended after install.

Why ZBroz Racing

The Chromoly DOM upper radius rods for RZR Turbo S are part of ZBroz's HD Pro Max line — same heavy-duty platform as the HD Pro Max A-arms and trailing arms. As a Turbo S upper rod replacement for OEM, this kit eliminates a known failure point. The off-road Polaris RZR Turbo S HD Pro Max upper radius rods upgrade for serious Turbo S rear suspension builds. As a Turbo S upper rod kit, this rounds out the HD Pro Max rear set.

Order Yours Today

Reinforce your upper rear with HD Pro Max steel. Add the ZBroz Turbo S HD Pro Max upper radius rods to your order. Shop/Order from Dunes 2 Dezert SXS.
