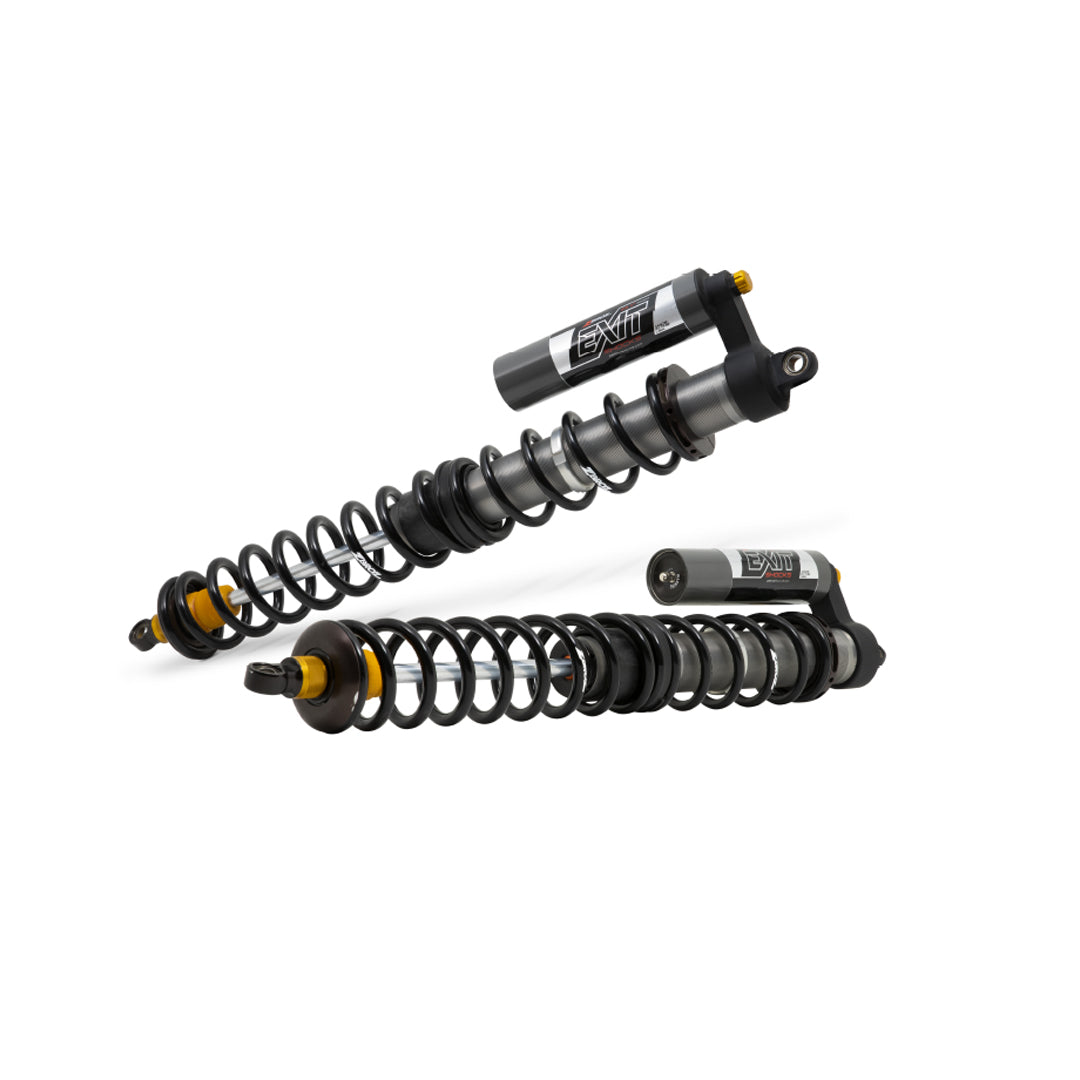

Polaris RZR Pro XP 4 2.5" X2 Series Front EXIT Shocks by ZBroz Racing

Race-grade damping for your 4-seat Pro XP. The ZBroz X2 Series Polaris RZR Pro XP 4 front EXIT shocks are ZBroz's top-tier shock platform built for the longer-wheelbase Pro XP 4 chassis — 2.5" bore, dual-rate springs with adjustable crossover rings, plus tool-free compression and rebound adjusters. Designed for desert rally, mountain trails, and rock crawling with passengers, these Pro XP 4 shocks deliver comfort, control, bottoming resistance, and race-bred durability tuned for 4-seat applications.

Key Features

• Direct bolt-on replacement for OEM Pro XP 4 front shocks
• Gain 1.25" - 2" ride height via true suspension lift
• 2.5" O.D. billet shock body with 2.5" O.D. piggyback reservoir
• Dual-rate spring setup with adjustable billet crossover rings

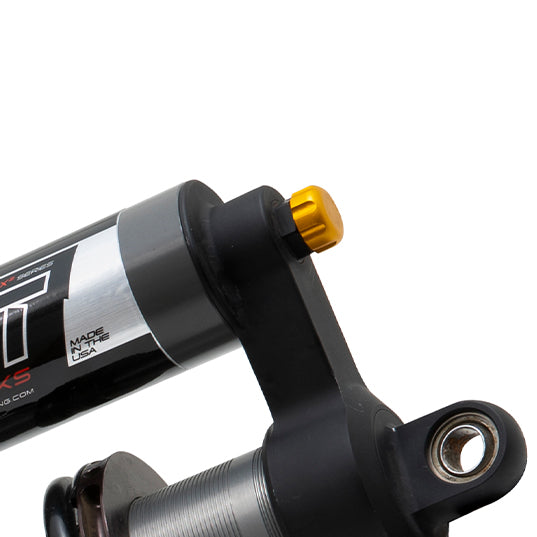

• Tool-free billet compression adjuster

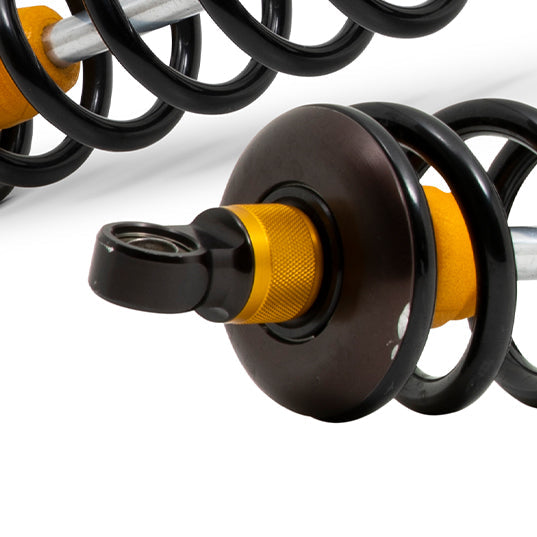

• Tool-free spherical rebound adjuster
• Performance high-flow piston, precisely valved and tuned
• 3/4" chrome shaft, PTFE-lined spherical bearings
• Pro XP 4-specific tuning for the longer wheelbase and 4-passenger weight
• Shot-peened pre-set chrome silicone wire springs
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X2 Series (top tier)
• Position: Front
• Body: 2.5" O.D. billet
• Reservoir: 2.5" O.D. piggyback
• Adjustability: Compression + spherical rebound, both tool-free
• Springs: Dual-rate with adjustable billet crossover rings
• Shaft: 3/4" chrome
• Lift: 1.25" - 2" true suspension lift
• Application: Polaris RZR Pro XP 4 (4-seat)

Fitment

These Pro XP 4 front shocks fit the Polaris RZR Pro XP 4 (4-seat). For 2-seat Pro XP, see K76-PL1010-DR.

Frequently Asked Questions

What makes the X2 Series different from X1?

The X2 jumps to a 2.5" bore (vs 2.2"), uses dual-rate springs with adjustable crossover rings, and adds BOTH compression and rebound adjusters. The X1 has compression only and a single-rate spring.

Will they fit my 2-seat Pro XP?

No — these Polaris RZR Pro XP 4 four-seat front EXIT shocks are 4-seat specific. For 2-seat use K76-PL1010-DR.

How much lift do they add?

1.25" to 2" of true suspension lift, adjustable via pre-load setting.

Are they tuned for the 4-seat?

Yes — these 2.5 inch X2 Series front shocks for Polaris Pro XP 4 are valved specifically for the longer-wheelbase Pro XP 4 chassis and 4-passenger weight.

How long is the build time?

2-4 weeks — all EXIT shocks are custom-built, valved, and tuned per application.

Why ZBroz Racing

The X2 Series is ZBroz's flagship damper platform — race-bred and proven on the dunes, in the rocks, and on the desert. The 2.5 inch X2 Series front shocks for Polaris Pro XP 4 deliver tunable damping you can actually feel. As RZR Pro XP 4 shocks, these set the standard for serious 4-seat Pro XP owners. The ultimate race-grade Polaris RZR Pro XP 4 2.5 front shocks and dual-rate compression rebound adjustable Pro XP 4 shocks upgrade. These X2 Series shocks bring the bigger bore platform to the 4-seat Pro XP chassis. These dual-rate UTV shocks deliver the X2 platform to the 4-seat Pro XP.

Order Yours Today

Take your Pro XP 4 to the next level. Add the ZBroz X2 Series Polaris RZR Pro XP 4 front EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
