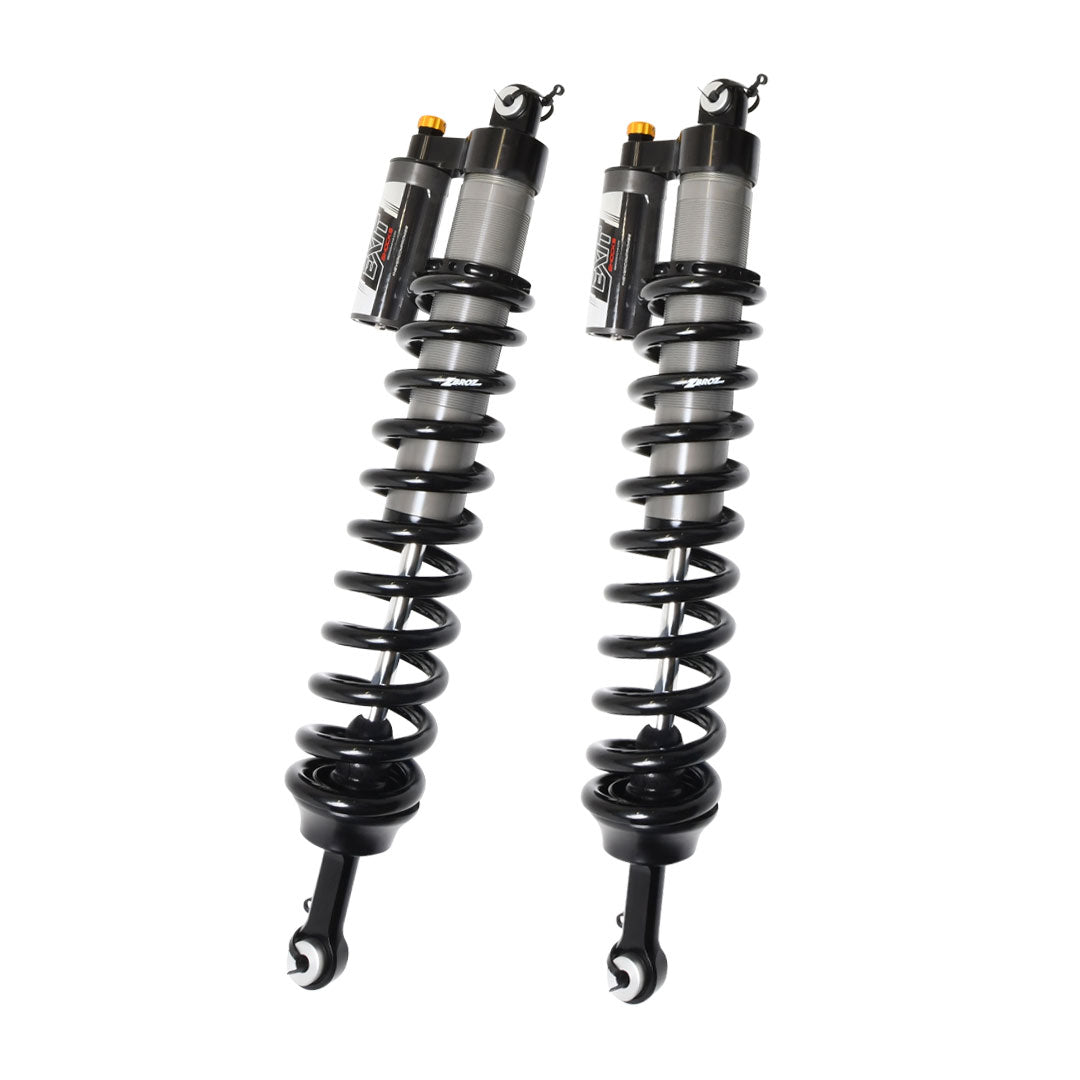

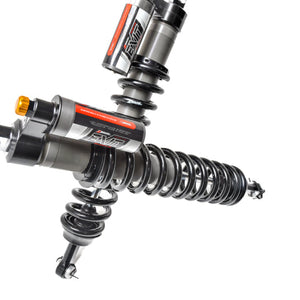

Ranger XP 1000 2.2" X1 Series Rear EXIT Shocks 2018-2025 by ZBroz Racing

Take your rear suspension from acceptable to dialed-in. The ZBroz X1 Series Ranger XP 1000 rear EXIT shocks deliver everything the X0-IFP offers plus a 26-click external compression adjuster — so you can tune rear damping for hauling, towing, trail comfort, or aggressive cornering. Built with a 2.2" billet body, single-rate spring, and threaded pre-load, these Ranger EXIT shocks bolt directly onto your 2018-2025 Ranger XP 1000 or Crew.

Key Features

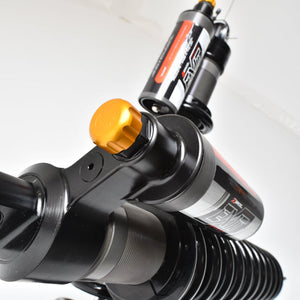

• 26-click external compression adjuster for trail-side damping tuning
• Direct bolt-on replacement for OEM 2018-2025 rear shocks
• Adds up to 2" of true suspension lift
• 2.2" billet body construction
• Single-rate spring, fully adjustable pre-load
• Hard-coat anodized aluminum
• Fully serviceable — every 1,500 miles or 24 months
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X1 Series
• Position: Rear
• Bore: 2.2" true bore
• Body: Billet construction
• Compression adjustability: 26-click external adjuster
• Pre-load: Threaded fully adjustable
• Spring: Single-rate
• Lift: Up to 2" true suspension lift
• Application: 2018-2025 Polaris Ranger XP 1000 and Crew XP 1000
• Service interval: 1,500 miles or 24 months

Fitment

These 2.2 bore shocks fit:

• Polaris Ranger XP 1000 (2018-2025)
• Polaris Ranger Crew XP 1000 (2018-2025)

For 2014-2017 Ranger rears, see K75-PL0664-SR (includes stock replacement rear upper arms).

Frequently Asked Questions

What's the difference between X0-IFP and X1 Series?

X1 adds a 26-click external compression adjuster on top of the X0-IFP foundation, giving you tunable damping.

Will they fit my Ranger Crew?

Yes — the Polaris Ranger Crew XP 1000 rear X1 shocks fit both 2-seat and Crew chassis from 2018-2025.

What does the 26-click adjuster control?

These 26-click compression adjustable Ranger rear shocks let you change compression damping for varied terrain, loads, and riding styles via a single external dial.

Do I need new rear arms with these?

No — 2018+ rears don't require new upper arms. The 2014-2017 version (K75-PL0664-SR) includes them.

How long is the build time?

2-4 weeks — custom-built, valved, and tuned per application.

Why ZBroz Racing

These off-road Polaris Ranger compression adjustable rear EXIT shocks deliver damping control most stock and even some aftermarket shocks can't match. As 2018-2025 Polaris Ranger 2.2 bore X1 rear shocks, they're the rear-suspension answer to serious Ranger owners who want adjustability. The X1 Series shocks bring genuine compression adjustable shocks to the rear, completing your Ranger XP 1000 rear shocks upgrade.

Order Yours Today

Tune your Ranger's rear ride. Add the ZBroz X1 Series Ranger XP 1000 rear EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
