Polaris General 1000 Stage 1 Spring Kit – Fox QS3 (Crossover) by ZBroz Racing

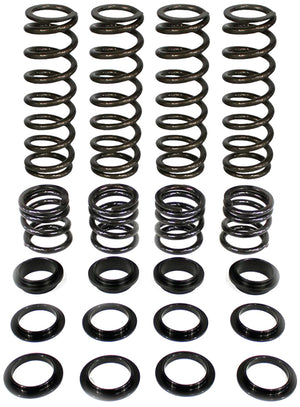

Take your Polaris General 1000 with Fox QS3 shocks to the next level with the ZBroz Stage 1 Dual Rate Spring Kit. This configuration includes billet crossover rings for fine-tuned dual rate transition control, delivering customizable ride quality on the General 1000 platform.

Whether you're running trails, hauling gear, or loaded with accessories, the included crossover rings let you dial in exactly where the spring rate transitions from soft initial stroke to firmer progressive rate — adjustable suspension performance the factory springs can't match.

Key Features

• Dual Rate Spring Technology — soft initial stroke, progressive rate for big hits
• Billet Crossover Rings Included — adjust rate transition point on-vehicle
• Fox QS3-Specific Fit — matched to factory shock geometry
• Tuned for General 1000 Chassis — designed for the 2-seat platform
• Restores Lost Ride Height from sag and accessory load
• High-Tensile Lightweight Springs — durable, powder-coated, USA-made

Specifications

• Stage 1 dual rate spring kit (front + rear)
• Includes billet crossover rings
• Designed for OEM Fox QS3 shocks
• High-tensile spring steel construction
• Powder-coated finish
• Designed and manufactured by ZBroz Racing in the USA

Fitment

• Polaris General 1000 (2-seat)
• Equipped with Fox QS3 shocks
• Compatible with factory QS3 3-position damping adjustment

FAQ

How is this different from the standard General 1000 spring kit?

This version includes billet crossover rings for adjustable dual rate transition. The standard kit uses factory transition points. The crossover version gives tuning flexibility for owners who want to fine-tune ride feel.

What do crossover rings do?

Crossover rings let you adjust where the dual rate transitions from the soft initial rate to the firmer progressive rate. Move them up for earlier transition (firmer ride), down for later transition (plusher ride).

Will it fit the General 4 1000 (4-seat)?

No. This kit is rated for the 2-seat General 1000 chassis. The 4-seat General uses different spring rates — contact Dunes 2 Dezert SXS for the 4-seat option.

Does it work with the QS3 adjustment knob?

Yes. The dual rate springs work seamlessly with the QS3's 3-position compression damping adjustment — no controller modifications required.

Is installation DIY-friendly?

Yes — plan 2-3 hours per side with basic shock service tools and a spring compressor. Setup instructions are included.

Why ZBroz

ZBroz Racing builds UTV suspension at their Utah facility with spring rates developed and proven in real off-road conditions. The General 1000 Fox QS3 Crossover kit is for owners who want tuning flexibility — the crossover rings make ride feel adjustable in a way fixed-rate factory springs can't deliver.
