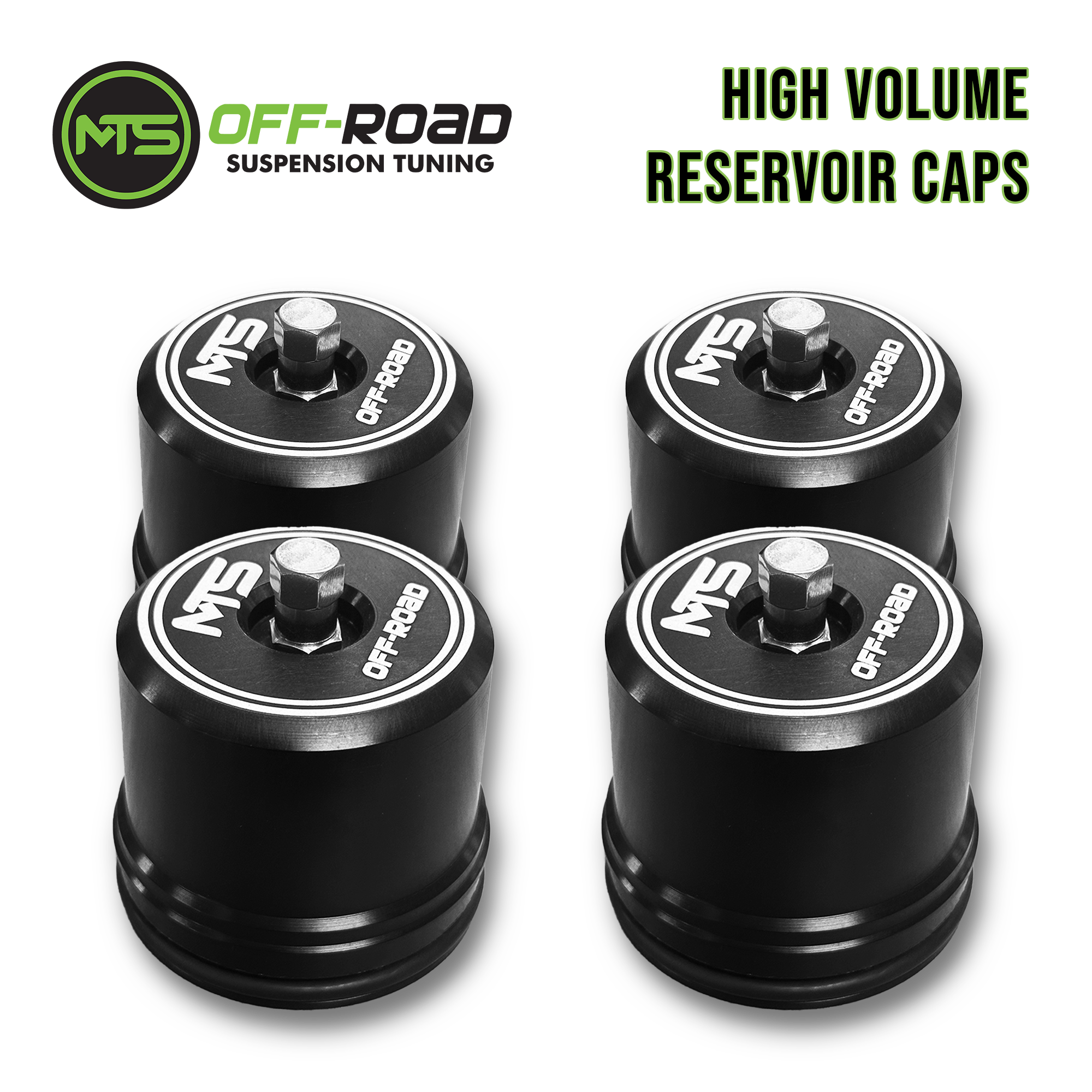

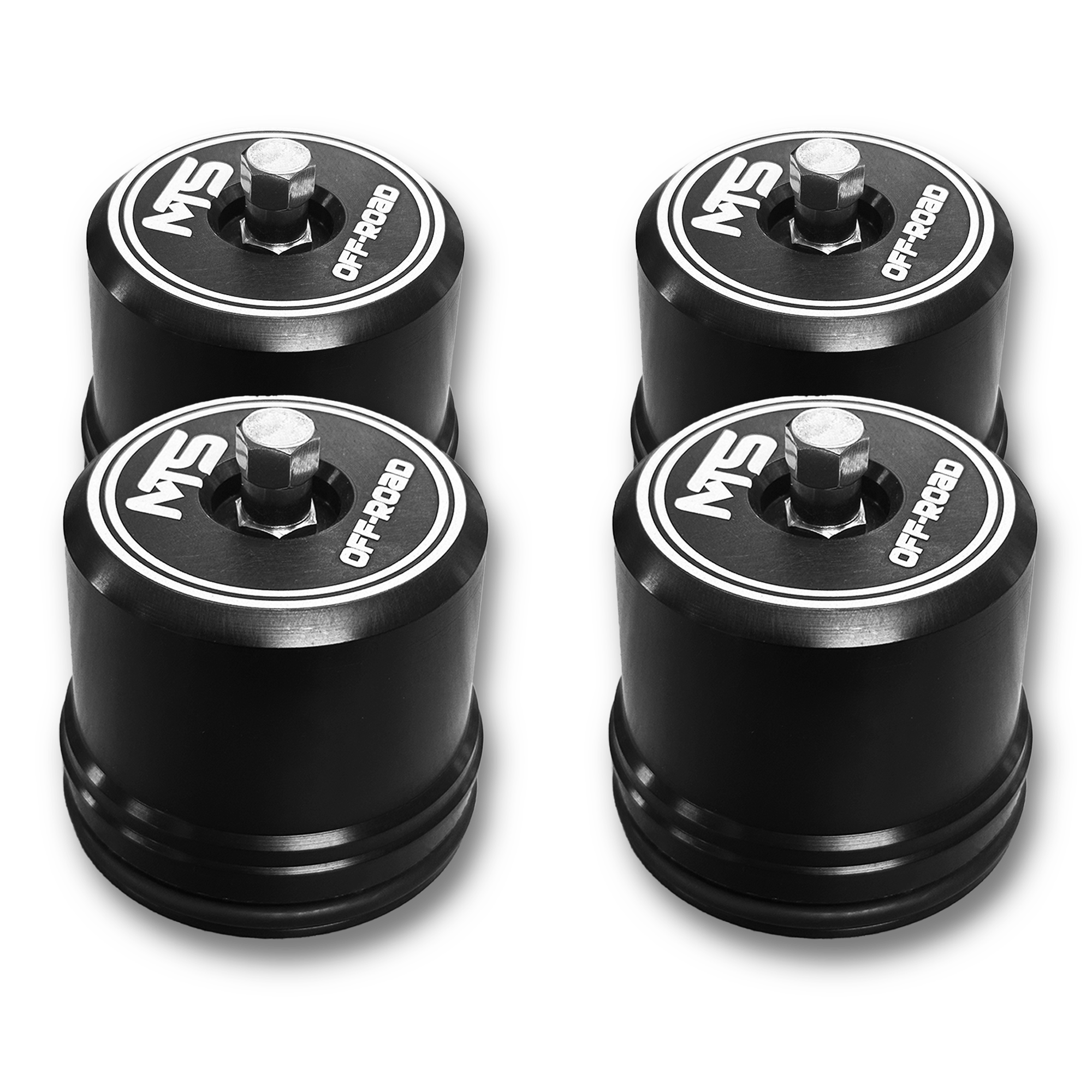

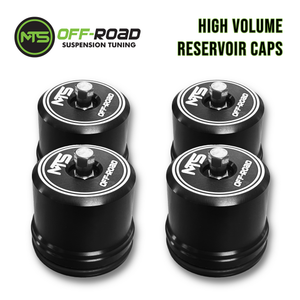

MTS Off-Road High Volume Reservoir Caps for Fox 2.5 Shocks
Upgrade your suspension serviceability and performance with the MTS Off-Road High Volume Reservoir Caps for Fox 2.5 Shocks. Designed specifically for Fox 2.5” reservoirs, these caps allow for easy nitrogen servicing and higher pressure capacity compared to standard OEM pellet-style caps.
Factory pellet caps limit nitrogen pressure to approximately 200 PSI. These MTS high volume reservoir caps allow up to 300 PSI, providing additional cavitation resistance and improved bottom-out control — especially important for heavier UTV builds and aggressive riders.
With an integrated Schrader valve, nitrogen checks and refills are faster and easier. Shocks typically lose around 30 PSI every six months, and dropping below 150 PSI can cause cavitation, excess heat, premature wear, and reduced handling performance. These Fox 2.5 nitrogen reservoir caps make routine maintenance simple and effective.
⚠ Fits Fox 2.5” reservoirs only.
⚠ Does NOT work with Walker Evans reservoirs.
Key Benefits
- Allows up to 300 PSI nitrogen capacity
- Reduces risk of shock cavitation
- Improves bottom-out resistance
- Enables easy nitrogen pressure checks
- Designed for aggressive off-road use
Features
- Integrated high-flow Schrader valve
- Direct replacement for OEM pellet-style caps
- Designed for Fox 2.5” reservoir shocks
- Built for performance and durability
- Service-friendly design
Included
- (4) MTS High Volume Reservoir Caps
Designed For
- Fox 2.5 reservoir shocks
- Desert and dune riders
- Aggressive trail riders
- Heavy UTV builds
- Performance suspension tuning
Best For
- Increasing nitrogen PSI capacity
- Preventing shock cavitation
- Improving bottom-out resistance
- Routine suspension maintenance
- High-performance UTV setups
FAQs
What shocks do these fit?
These caps are designed for Fox 2.5” reservoir shocks only.
Do these work with Walker Evans shocks?
No. These reservoir caps are NOT compatible with Walker Evans reservoirs.
Why run higher nitrogen pressure?
Higher PSI helps prevent cavitation, reduces heat buildup, and improves bottom-out resistance.
How often should nitrogen be checked?
Nitrogen should be checked at least twice per season, as shocks can lose approximately 30 PSI every six months.
How much PSI can these handle?
These caps allow up to 300 PSI of nitrogen.
