Legend REVO ATS Adjustable Air-Assisted Coil Suspension System for Can-Am Defender MAX & PRO HD10 (2023–2025)

The Legend REVO ATS Adjustable Air-Assisted Coil Suspension System for Can-Am Defender MAX and PRO HD10 delivers advanced suspension performance, improved ride comfort, and superior load-handling capability for demanding utility UTV applications. Designed specifically for 2023–2025 Can-Am Defender MAX and Defender PRO HD10 models, this premium suspension system combines high-performance coil shocks with integrated helper air springs to maintain optimal ride height and chassis stability under varying load conditions.

Legend’s patented design features independently adjustable front-to-rear air-assisted coil suspension, allowing riders to fine-tune ground clearance, chassis leveling, and suspension performance based on terrain or cargo weight. Industry-exclusive integrated helper air springs provide a wide adjustment range and significantly reduce bottoming when hauling heavy loads or operating attachments.

Custom coil spring rates improve ride quality when the vehicle is unloaded while the air-assisted system supports heavier payloads without sacrificing ride comfort or vehicle stability. The system is engineered so the Defender MAX and PRO HD10 can operate up to the manufacturer’s GVWR while maintaining safety, control, and ride comfort.

Heavy-duty 46 mm billet aluminum dampers paired with 16 mm hard chrome shafts deliver exceptional durability for demanding work environments. Aramid fiber-reinforced air springs provide superior puncture resistance and long-term reliability.

The suspension also features tool-free rebound adjustment knobs, allowing quick and precise tuning of damping performance across the full damping profile. Spherical bearing mounting points eliminate suspension bind and ensure smooth articulation throughout the suspension travel.

Air pressure adjustments are easily controlled using the included wireless remote control or Bluetooth mobile app, giving riders convenient control over suspension settings.

Assembled in Sturgis, South Dakota, the Legend REVO ATS suspension system provides a premium suspension upgrade engineered for durability, comfort, and performance.

Features

• Patented air-assisted coil suspension system for Can-Am Defender MAX and PRO HD10
• Independently adjustable front-to-rear air spring system
• Integrated helper air springs improve load capacity and ground clearance
• Maintains factory ride height regardless of cargo or accessory weight
• Reduces suspension bottoming under heavy loads
• Custom coil spring rates improve unloaded ride comfort
• Heavy-duty 46 mm billet aluminum shock bodies
• Durable 16 mm hard chrome shock shafts
• Tool-free rebound adjustment knobs for precise suspension tuning
• Aramid fiber reinforced air springs for high puncture resistance
• Type III hard coat anodized finish for corrosion resistance
• Spherical bearing mounts eliminate suspension bind
• Wireless remote and Bluetooth mobile app air adjustment
• Compatible with stock A-arms
• Not designed to function as a lift kit
• Assembled in Sturgis, South Dakota USA
• 2-year manufacturer warranty

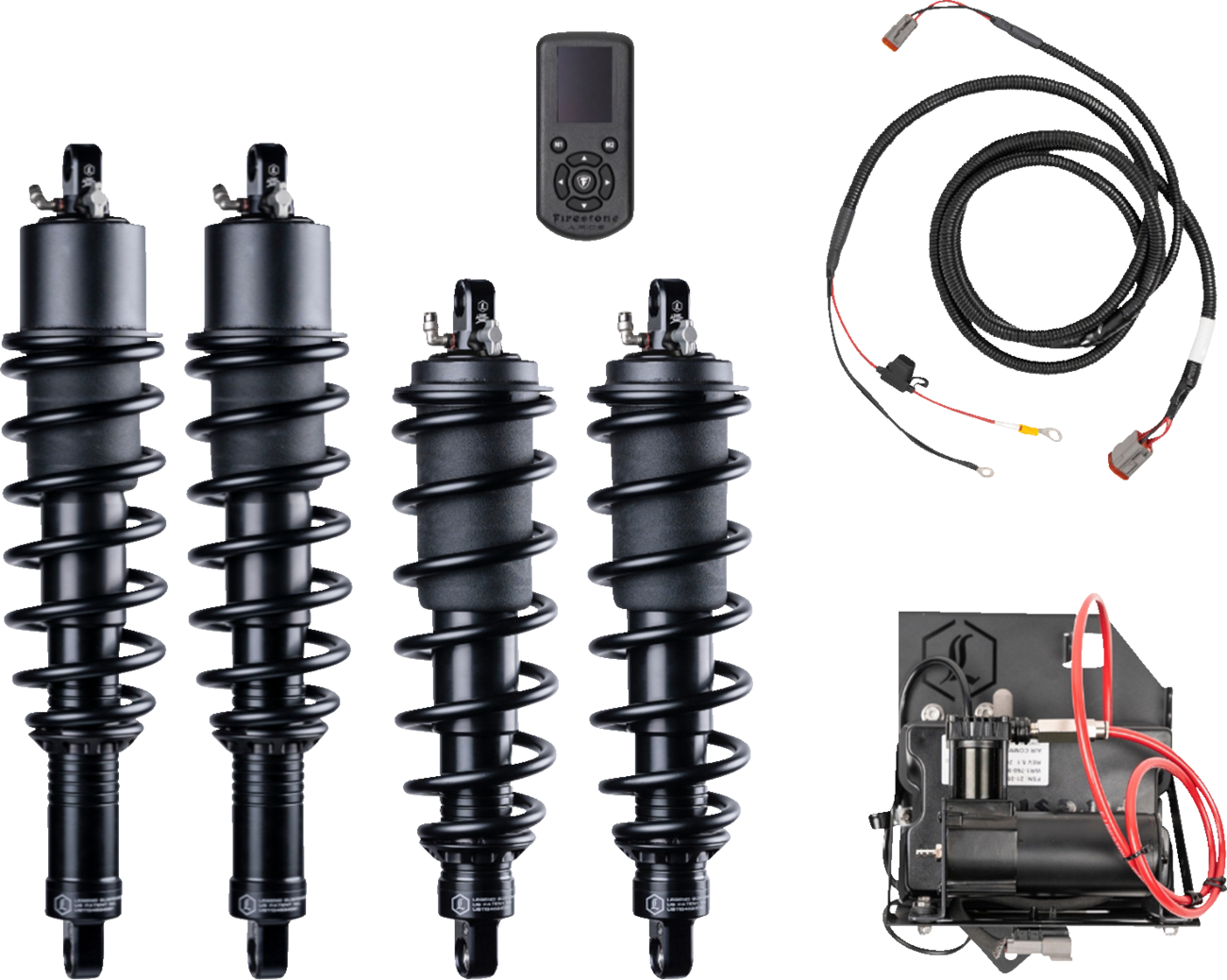

What’s Included

Shock Assemblies — Qty 4
Compressor Assembly — Qty 1
Remote Control — Qty 1
Hardware Kit — Qty 1
Wiring Kit — Qty 1
Installation Instructions — Qty 1

Product Specifications

Part Number: 1310-2379
Vehicle Fitment: Can-Am Defender MAX HD10 / Defender PRO HD10 (2023–2025)
Compatibility: Stock A-arms only
Warranty: 2 Years
Assembly Location: Sturgis, South Dakota USA

Dimensions: 29 × 18 × 30 in
Weight: 81 lbs

Fitment

• Can-Am Defender MAX HD10 (2023–2025)
• Can-Am Defender PRO HD10 (2023–2025)

Frequently Asked Questions

Does the REVO ATS suspension lift the Defender MAX or PRO HD10?
No. The system is designed to maintain factory ride height while improving ride quality and load support.

How are suspension adjustments made?
Air pressure adjustments can be made using the included wireless remote control or through the Bluetooth mobile app.

Will this improve ride comfort when unloaded?
Yes. Custom coil spring rates improve ride quality when the vehicle is not carrying cargo.

Is this suspension suitable for heavy work use?
Yes. Billet aluminum dampers, hard chrome shafts, and aramid-reinforced air springs are engineered for demanding utility environments.

Upgrade your Can-Am Defender MAX or PRO HD10 suspension with the Legend REVO ATS Adjustable Air-Assisted Coil Suspension System to improve ride comfort, load handling, and suspension control.
